| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

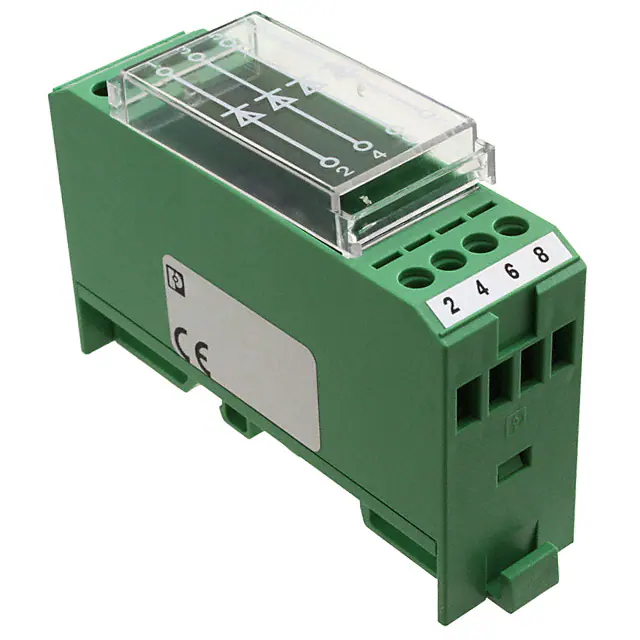

2952790DIODE MODULE 1KV 1.5A |
2,883 | 104.06 |
RFQ |
Datasheet |
Bulk | - | Active | 4 Independent | Standard | 1000 V | 1.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | DIN Rail/Channel |
|

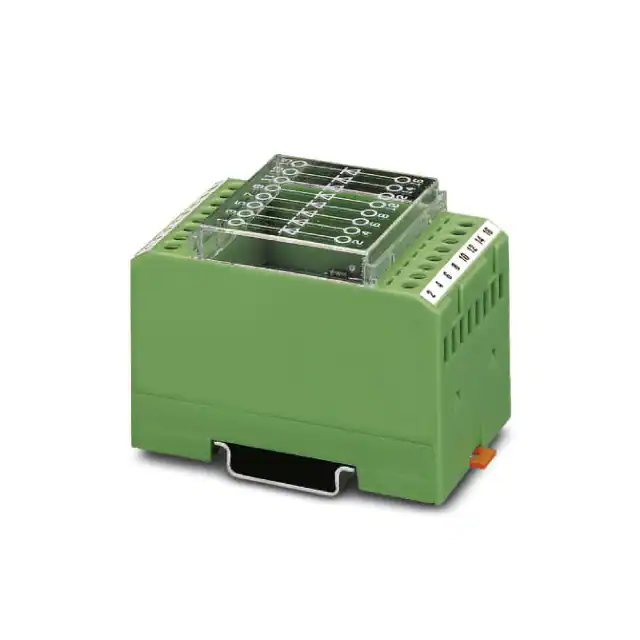

2949389DIODE MODULE 1KV 1.5A |
3,518 | 135.03 |
RFQ |
Datasheet |
Bulk | - | Active | 8 Independent | Standard | 1000 V | 1.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | DIN Rail |
|

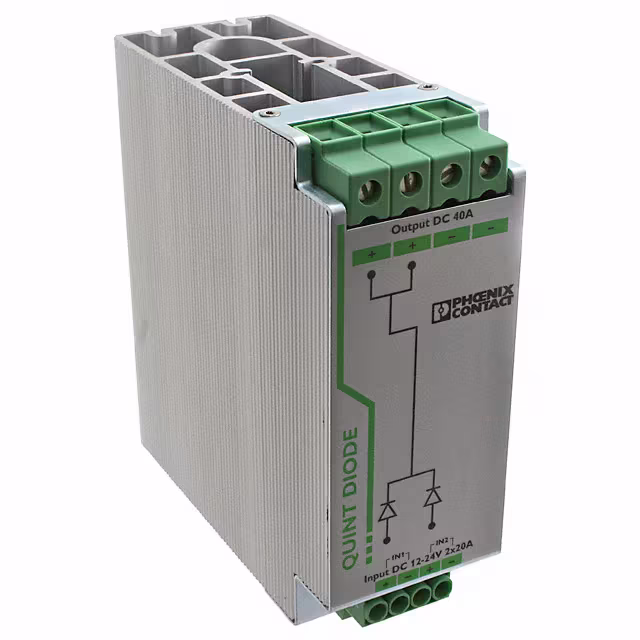

2320160DIODE MODULE 48V 20A DIN RAIL |
2,615 | 278.29 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 48 V | 20A (DC) | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 70°C | - |
|

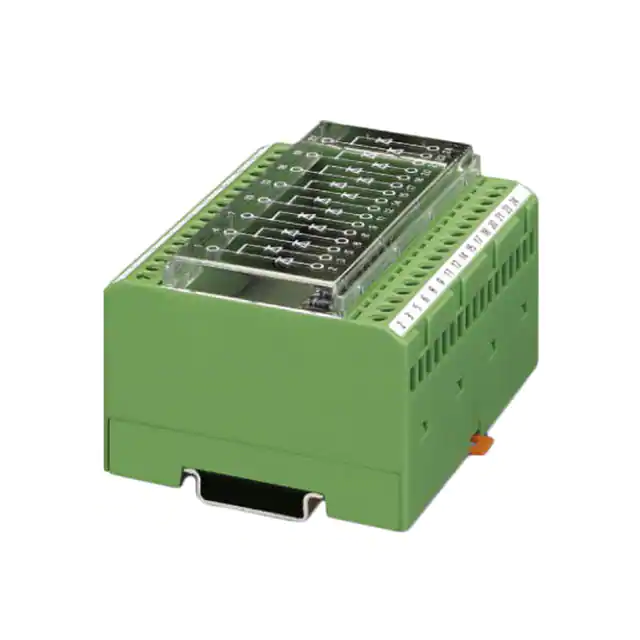

2954785DIODE MODULE 1.3KV 200MA |
2,954 | 328.65 |
RFQ |
Datasheet |
Bulk | - | Active | 16 Pair Common Cathode | Standard | 1300 V | 200mA | - | Small Signal =< 200mA (Io), Any Speed | - | - | -20°C ~ 50°C | DIN Rail/Channel |
|
2320157DIODE MODULE 24V 20A DIN RAIL |
3,227 | 260.86 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 24 V | 20A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 70°C | - |
|

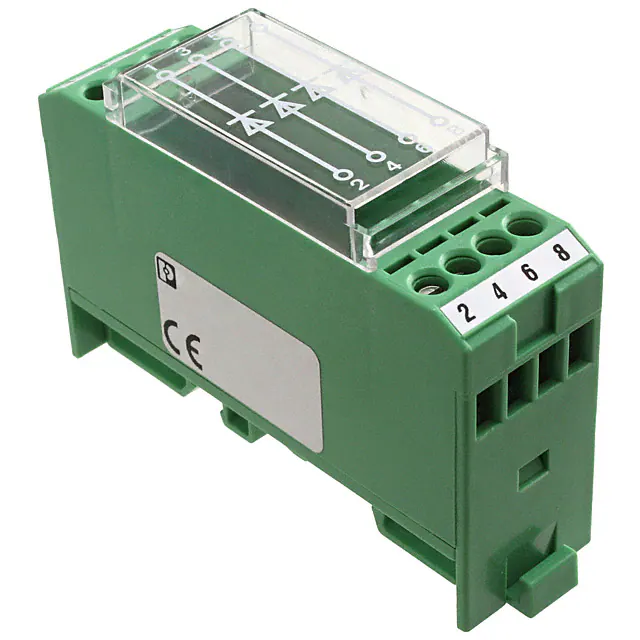

2950048DIODE MODULE 1.3KV 700MA |
2,116 | 86.54 |
RFQ |
Datasheet |
Bulk | - | Active | 4 Independent | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - |
|
2950077DIODE MODULE 1.3KV 700MA |
2,488 | 93.13 |
RFQ |
Datasheet |
Bulk | - | Active | 7 Common Anode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - |
|

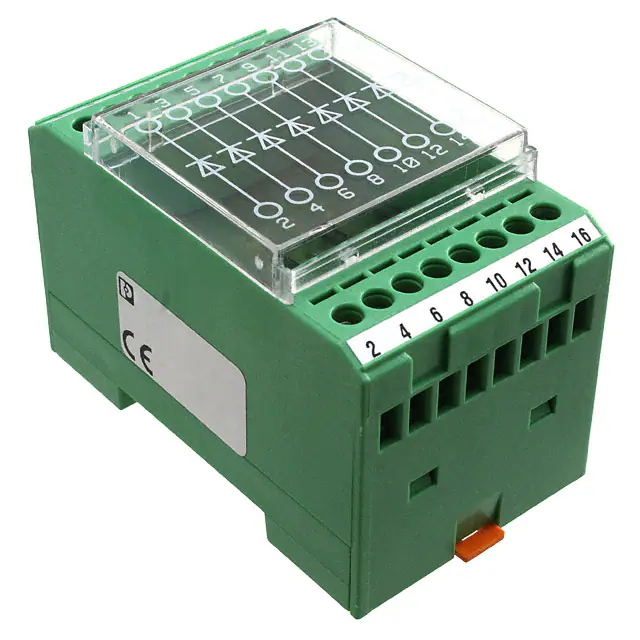

2950103DIODE MODULE 1.3KV 700MA |
3,165 | 132.31 |
RFQ |
Datasheet |
Bulk | - | Active | 8 Independent | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | DIN Rail |
|

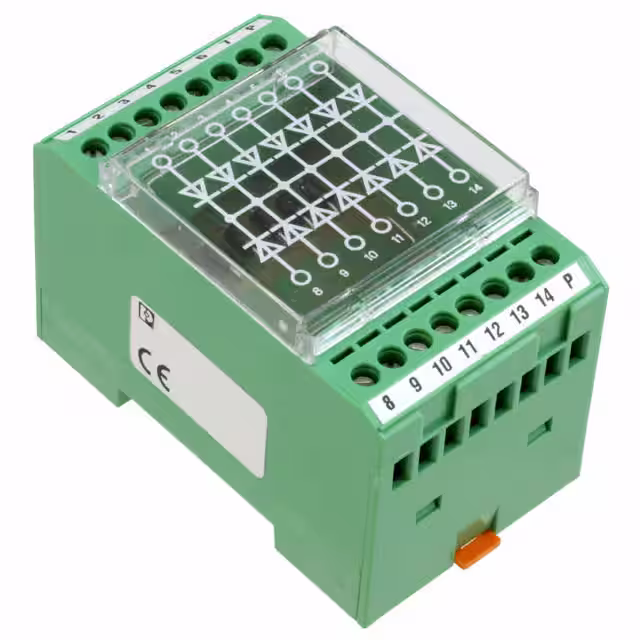

2950116DIODE MODULE 1.3KV 700MA |
3,257 | 142.79 |
RFQ |
Datasheet |
Bulk | - | Active | 14 Common Cathode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | DIN Rail |
|

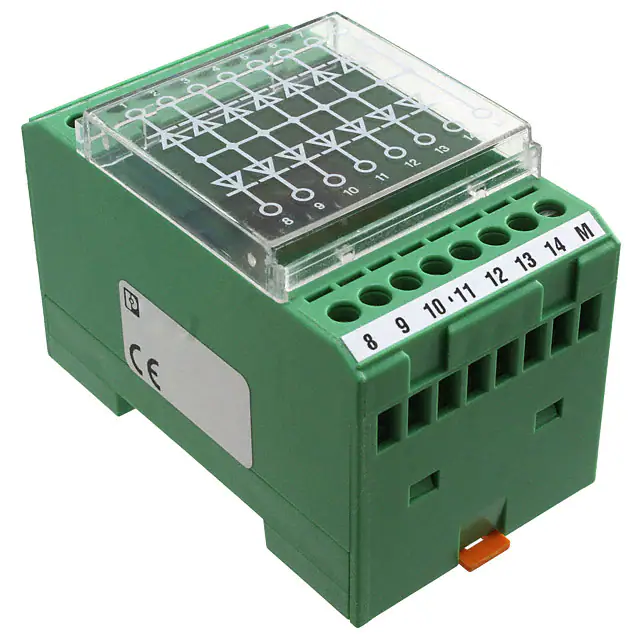

2950129DIODE MODULE 1.3KV 700MA |
3,049 | 142.79 |
RFQ |
Datasheet |
Bulk | - | Active | 14 Common Anode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | DIN Rail |
|

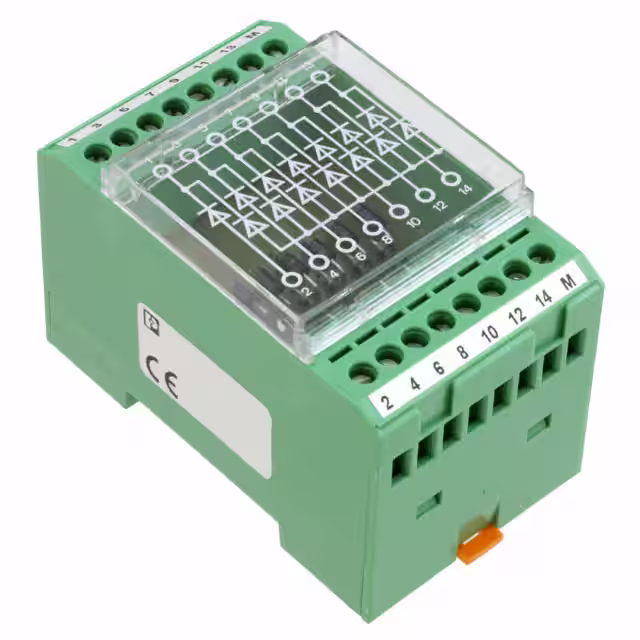

2950132DIODE MODULE 1.3KV 700MA |
3,478 | 198.28 |
RFQ |
Datasheet |
Bulk | - | Active | 7 Pair Common Cathode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | DIN Rail/Channel |
|

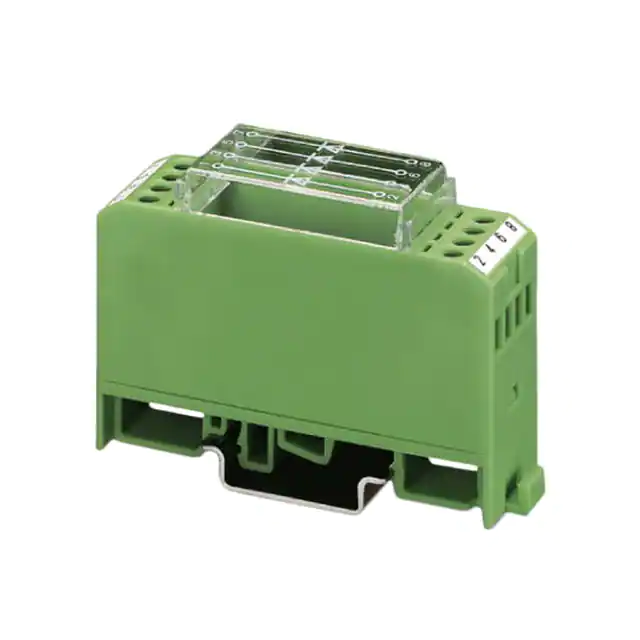

2952198DIODE MODULE 1KV |
3,706 | 75.04 |
RFQ |
Datasheet |
Bulk | - | Active | 4 Common Cathode | Standard | 1000 V | - | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | DIN Rail |
|
|
2952211DIODE MODULE 1KV |
2,035 | 75.04 |
RFQ |
Datasheet |
Bulk | - | Active | 14 Common Anode | Standard | 1000 V | - | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | DIN Rail |
|
2950064DIODE MODULE 1.3KV 700MA |
3,376 | 80.37 |
RFQ |
Datasheet |
Bulk | - | Active | 7 Common Cathode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -55°C ~ 150°C | DIN Rail/Channel |
|
2954882DIODE MODULE 1KV 300MA |
3,612 | 103.21 |
RFQ |
Datasheet |
Bulk | - | Active | 8 Common Anode | Standard | 1000 V | 300mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | DIN Rail/Channel |
|
|

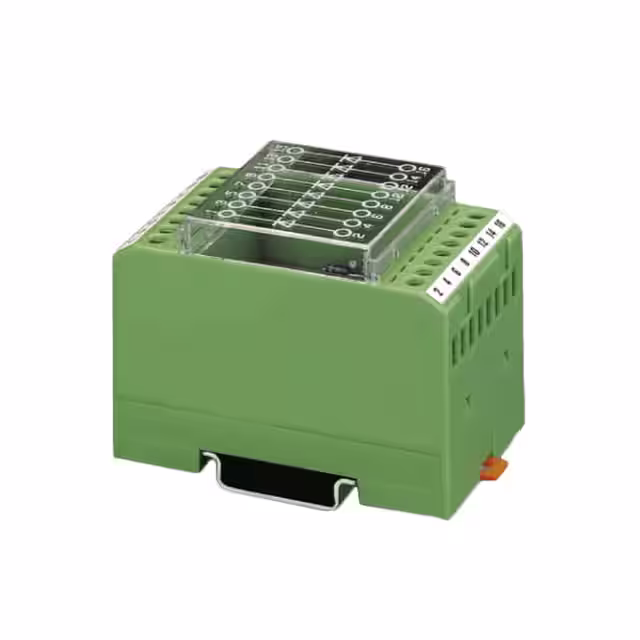

2954879DIODE MODULE 1KV 300MA |
3,829 | 103.21 |
RFQ |
Datasheet |
Bulk | - | Active | 8 Common Cathode | Standard | 1000 V | 300mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | DIN Rail/Channel |
|
2954798DIODE MODULE 1.3KV 400MA |
2,099 | 113.59 |
RFQ |
Datasheet |
Bulk | - | Active | 4 Pair Common Cathode | Standard | 1300 V | 400mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | DIN Rail/Channel |
|

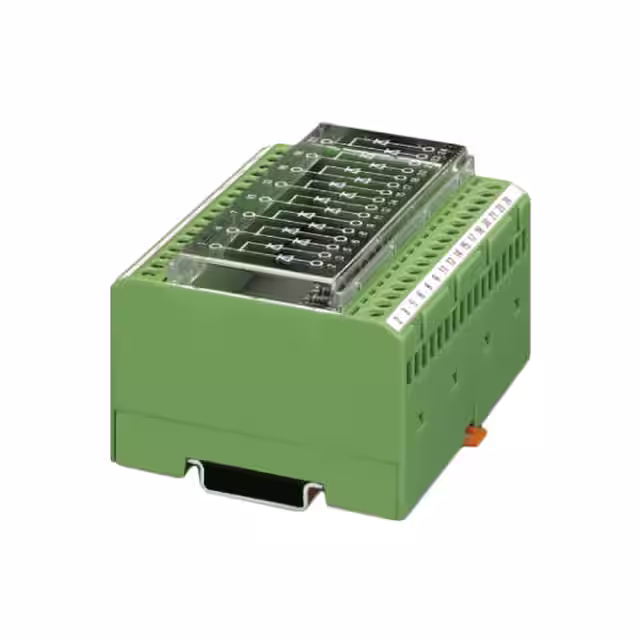

2954808DIODE MODULE 1.3KV 400MA |
3,632 | 217.99 |
RFQ |
Datasheet |
Bulk | - | Active | 8 Pair Common Cathode | Standard | 1300 V | 400mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | DIN Rail/Channel |
|

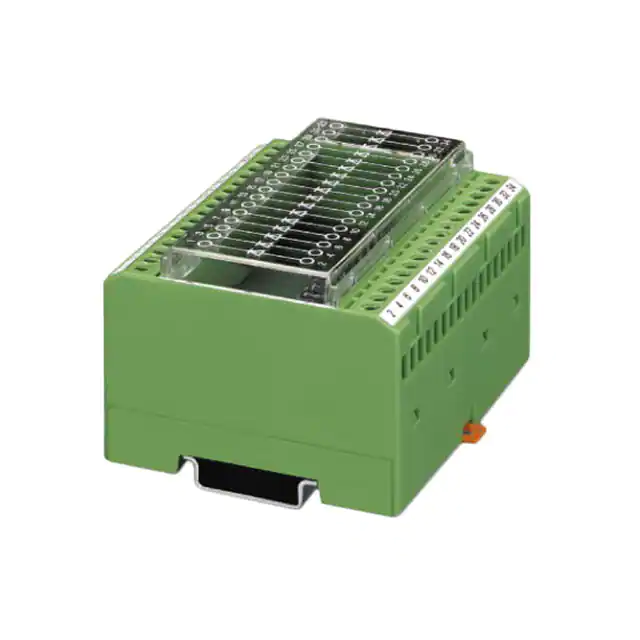

2954895DIODE MODULE 1.3KV 500MA |
3,897 | 225.99 |
RFQ |
Datasheet |
Bulk | - | Active | 17 Independent | Standard | 1300 V | 500mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | DIN Rail/Channel |
|
2954934DIODE MODULE 1.3KV |
3,925 | 270.77 |
RFQ |
Datasheet |
Bulk | - | Active | 32 Common Anode | Standard | 1300 V | - | - | - | - | 5 µA @ 1300 V | -20°C ~ 150°C | DIN Rail |
