Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType

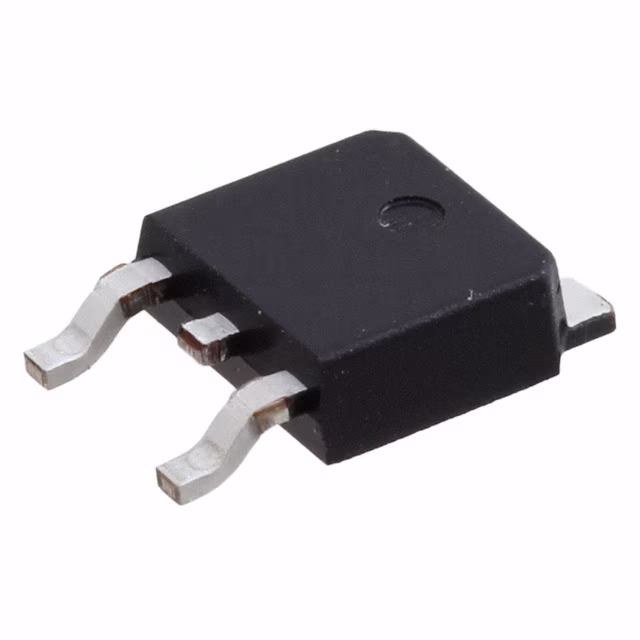

LQA10N200C DIODE ARRAY GP 200V 5A TO252 Power Integrations	2,704	1.24	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Qspeed™	Active	1 Pair Common Cathode	Standard	200 V	5A	1.1 V @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	13.9 ns	250 µA @ 200 V	-55°C ~ 150°C	Surface Mount
LQA20B300C DIODE RECT GP 300V 10A TO263 Power Integrations	2,102	2.56	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Qspeed™	Active	1 Pair Common Cathode	Standard	300 V	10A	1.9 V @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	12.6 ns	25 µA @ 300 V	150°C (Max)	Surface Mount

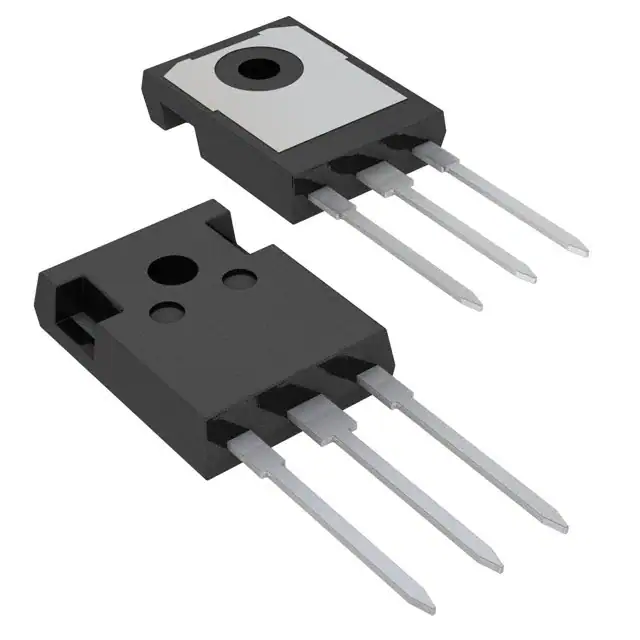

LQA30A300C DIODE ARRAY SCHOTTKY 300V TO247 Power Integrations	731	2.48	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Schottky	300 V	15A	1.9 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	13 ns	25 µA @ 300 V	150°C (Max)	Through Hole
LQA60A300C DIODE ARRAY SCHOTTKY 300V TO247 Power Integrations	320	3.10	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Schottky	300 V	30A	1.95 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	13.7 ns	250 µA @ 300 V	-55°C ~ 150°C	Through Hole
LQA20T300C DIODE ARRAY SCHOTTKY 300V TO220 Power Integrations	483	1.52	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Schottky	300 V	10A	1.9 V @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	12.6 ns	25 µA @ 300 V	150°C (Max)	Through Hole
LQA20N200C DIODE ARRAY GP 200V 10A TO252 Power Integrations	2,071	2.04	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Qspeed™	Active	1 Pair Common Cathode	Standard	200 V	10A	1.15 V @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	16 ns	500 µA @ 200 V	-55°C ~ 150°C	Surface Mount
LQA10N150C DIODE CC 150V 5A DUAL TO252 Power Integrations	2,248	0.51	RFQ	Datasheet	Tape & Reel (TR)	Qspeed™	Active	1 Pair Common Cathode	Standard	150 V	5A	1.1 V @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	15.1 ns	250 µA @ 150 V	-55°C ~ 150°C	Surface Mount
LQA10T150C DIODE CC 150V 5A DUAL TO-220AB Power Integrations	2,650	0.59	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Standard	150 V	5A	1.1 V @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	15.1 ns	250 µA @ 150 V	-55°C ~ 150°C	Through Hole
LQA10T200C DIODE ARRAY GP 200V 5A TO220AB Power Integrations	2,279	0.64	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Standard	200 V	5A	1.1 V @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	13.9 ns	250 µA @ 200 V	-55°C ~ 150°C	Through Hole
LXA08T600C DIODE ARRAY SCHOTTKY 600V TO220 Power Integrations	2,944	0.86	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Schottky	600 V	4A	2.96 V @ 4 A	Fast Recovery =< 500ns, > 200mA (Io)	18.5 ns	250 µA @ 600 V	150°C (Max)	Through Hole
LQA20N150C DIODE CC 150V 10A DUAL TO252 Power Integrations	3,873	0.94	RFQ	Datasheet	Tape & Reel (TR)	Qspeed™	Active	1 Pair Common Cathode	Standard	150 V	10A	1.15 V @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	16.3 ns	500 µA @ 150 V	-55°C ~ 150°C	Surface Mount
LQA12T300C DIODE ARRAY GP 300V 6A TO220AB Power Integrations	3,494	0.95	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Standard	300 V	6A	1.9 V @ 6 A	Fast Recovery =< 500ns, > 200mA (Io)	11.5 ns	25 µA @ 300 V	150°C (Max)	Through Hole
LQA12B300C DIODE ARRAY SCHOTTKY 300V TO263 Power Integrations	2,512	1.01	RFQ	Datasheet	Tape & Reel (TR)	Qspeed™	Active	1 Pair Common Cathode	Schottky	300 V	6A	1.9 V @ 6 A	Fast Recovery =< 500ns, > 200mA (Io)	11.5 ns	25 µA @ 300 V	150°C (Max)	Surface Mount
LXA12T600C DIODE ARRAY SCHOTTKY 600V TO220 Power Integrations	2,944	1.14	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Schottky	600 V	6A	2.94 V @ 6 A	Fast Recovery =< 500ns, > 200mA (Io)	23 ns	250 µA @ 600 V	150°C (Max)	Through Hole
LQA20T150C DIODE CC 150V 10A DUAL TO-220AB Power Integrations	2,551	1.23	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Standard	150 V	10A	1.15 V @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	16.3 ns	500 µA @ 150 V	-55°C ~ 150°C	Through Hole
LQA20T200C DIODE ARRAY GP 200V 10A TO220AB Power Integrations	2,507	1.30	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Standard	200 V	10A	1.15 V @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	16 ns	500 µA @ 200 V	-55°C ~ 150°C	Through Hole
LQA30T150C DIODE CC 150V 15A DUAL TO-220AB Power Integrations	2,946	1.47	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Standard	150 V	15A	1.2 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	16.3 ns	500 µA @ 150 V	-55°C ~ 150°C	Through Hole
LQA30B150C DIODE CC 150V 15A DUAL TO-263AB Power Integrations	3,051	1.47	RFQ	Datasheet	Tape & Reel (TR)	Qspeed™	Active	1 Pair Common Cathode	Standard	150 V	15A	1.2 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	16.3 ns	500 µA @ 150 V	-55°C ~ 150°C	Surface Mount
LXA16T600C DIODE ARRAY SCHOTTKY 600V TO220 Power Integrations	2,727	1.53	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Schottky	600 V	8A	2.94 V @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	21.5 ns	250 µA @ 600 V	150°C (Max)	Through Hole
LQA30T200C DIODE ARRAY GP 200V 15A TO220AB Power Integrations	2,642	1.55	RFQ	Datasheet	Tube	Qspeed™	Active	1 Pair Common Cathode	Standard	200 V	15A	1.2 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	16.5 ns	500 µA @ 200 V	-55°C ~ 150°C	Through Hole
