| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS410860DIODE GP 800V 600A POWRBLOK |
3,739 | 162.11 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 40 mA @ 800 V | 800 V | 600A | - | 1.19 V @ 1800 A | |
|
LS412660DIODE MODULE SINGLE |
3,398 | 200.21 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 40 mA @ 2600 V | 2600 V | 600A | -40°C ~ 150°C | 1.18 V @ 1500 A | |
|
R5031210RSZTDIODE GEN PURP |
3,563 | 148.15 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | 300 ns | 45 mA @ 1200 V | 1200 V | 100A | -40°C ~ 150°C | - | |
|

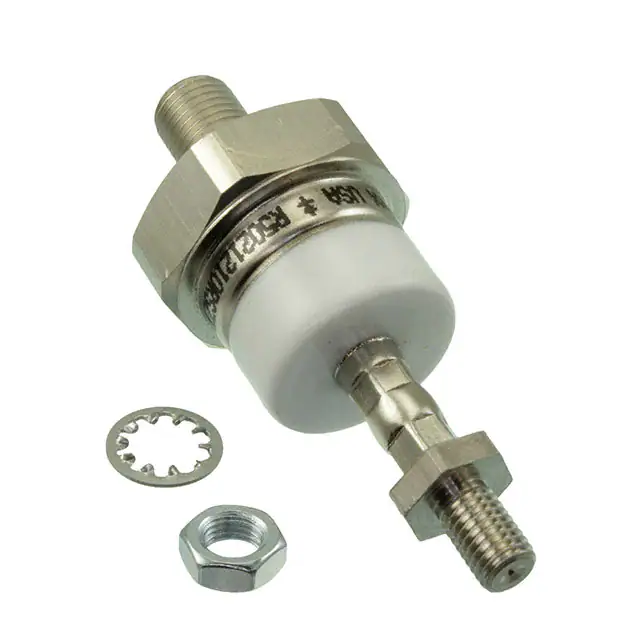

R5021210RSZTDIODE GEN PURP |
3,450 | 155.21 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 300 ns | 45 mA @ 1200 V | 1200 V | 100A | -40°C ~ 150°C | - | |
|
|

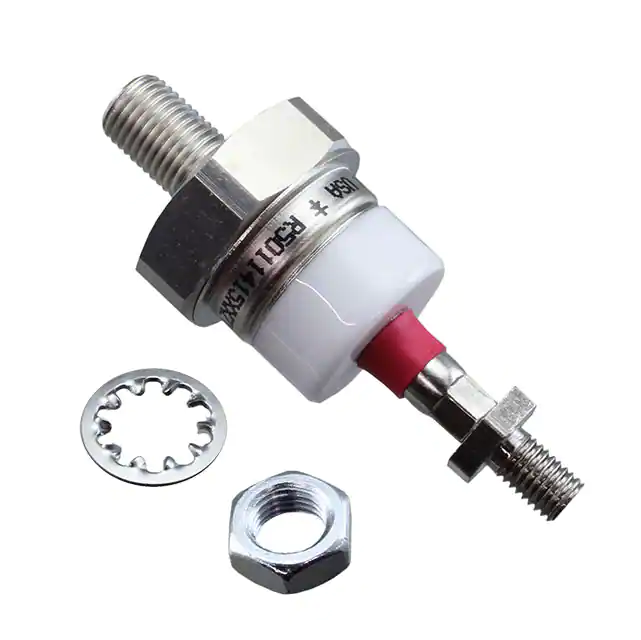

R5011415XXZTRECTIFIER 1400V 150A DO-8 REV |
3,133 | 144.83 |
RFQ |
Datasheet |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | 7 µs | 30 mA @ 1400 V | 1400 V | 150A | -65°C ~ 200°C | - | |
|
|
R5001415XXZTRECTIFIER 1400V 150A DO-8 FOR |
3,921 | 144.83 |
RFQ |
Datasheet |
Bag | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 7 µs | 30 mA @ 1400 V | 1400 V | 150A | -65°C ~ 200°C | - | |
|
1N4044DIODE GEN PURP 50V 275A DO205AB |
3,618 | 64.45 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 15 mA @ 50 V | 50 V | 275A | -65°C ~ 190°C | - | |
|
|
R7001604XXUADIODE GEN PURP 1.6KV 450A DO200 |
3,709 | 143.52 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 11 µs | 50 mA @ 1600 V | 1600 V | 450A | -65°C ~ 175°C | 1.6 V @ 1500 A | |
|
|

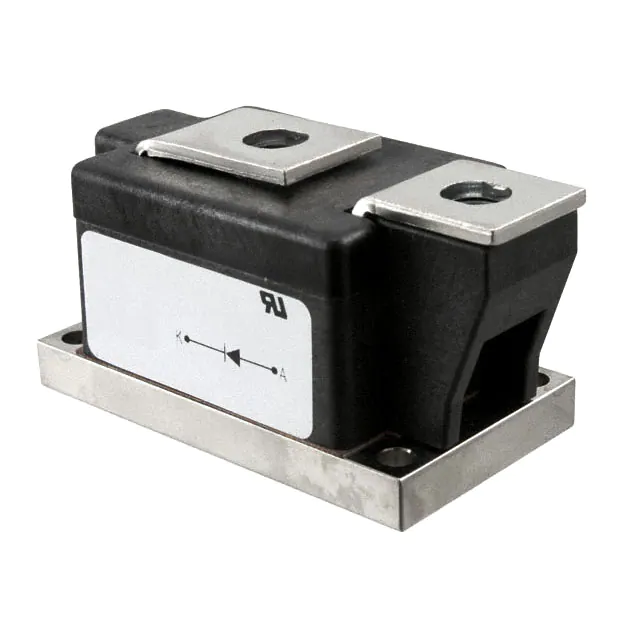

LS411860DIODE GP 1.8KV 600A POWRBLOK |
2,544 | 170.49 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 40 mA @ 1800 V | 1800 V | 600A | - | 1.19 V @ 1800 A | |
|
CD411699DDIODE MOD PWR BLOK 100A 1600V |
3,285 | 34.70 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
1N3262DIODE GEN PURP 150V 160A DO205AB |
2,903 | 51.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 150 V | 150 V | 160A | -65°C ~ 175°C | - | |
|
|
1N3262RDIODE GEN PURP 150V 160A DO205AB |
3,649 | 51.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 12 mA @ 150 V | 150 V | 160A | -65°C ~ 175°C | - | |
|
|
A177BDIODE GEN PURP 200V 100A DO205AA |
2,962 | 51.63 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 2.3 µs | - | 200 V | 100A | -40°C ~ 125°C | - | |
|
|
A177RBDIODE GEN PURP 200V 100A DO205AA |
3,956 | 51.63 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | 2.3 µs | - | 200 V | 100A | -40°C ~ 125°C | - | |
|
|
1N3263DIODE GEN PURP 200V 160A DO205AB |
3,126 | 52.19 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 200 V | 200 V | 160A | -65°C ~ 175°C | - | |
|
|
1N3263RDIODE GEN PURP 200V 160A DO205AB |
3,143 | 52.19 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 12 mA @ 200 V | 200 V | 160A | -65°C ~ 175°C | - | |
|

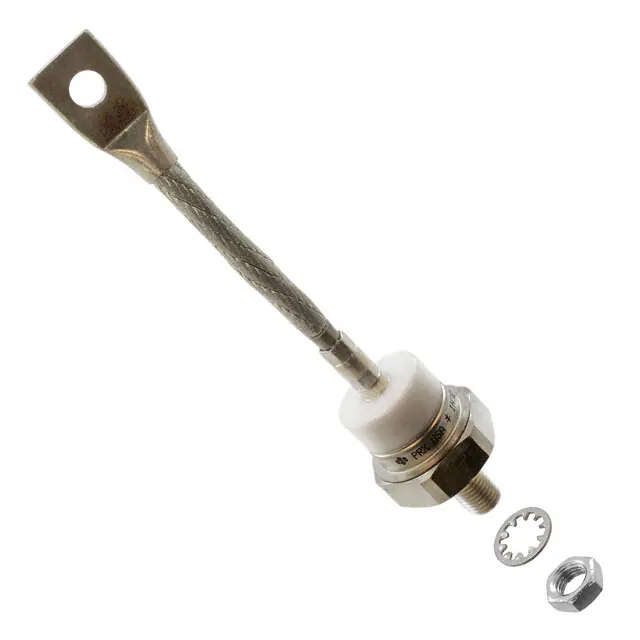

1N3288ADIODE GEN PURP 100V 100A DO205AA |
3,596 | 54.07 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 24 mA @ 100 V | 100 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
|
1N3288ARDIODE GEN PURP 100V 100A DO205AA |
3,207 | 54.07 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 24 mA @ 100 V | 100 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
|
R6200230XXOODIODE GP 200V 300A DO200AA R62 |
3,966 | 52.41 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 6 µs | 50 mA @ 200 V | 200 V | 300A | - | 1.7 V @ 800 A | |
|
|
R5020218FSWADIODE GEN PURP 200V 175A DO205AA |
2,787 | 52.83 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 1.5 µs | 45 mA @ 200 V | 200 V | 175A | -40°C ~ 150°C | 1.65 V @ 470 A |
