| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR1560STRDIODE SCHOTTKY 60V 15A TO277B |
43,631 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 850pF @ 5V, 1MHz | - | 200 µA @ 60 V | 60 V | 15A | -55°C ~ 150°C | 590 mV @ 15 A | |
|
SB2060TADIODE SCHOTTKY 60V 20A DO201AD |
7,696 | 0.66 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 mA @ 60 V | 60 V | 20A | -50°C ~ 150°C | 700 mV @ 20 A | |
|
|
MBR15200STRDIODE SCHOTTKY 200V 15A TO277B |
46,449 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 400pF @ 5V, 1MHz | - | 1 mA @ 200 V | 200 V | 15A | -55°C ~ 200°C | 920 mV @ 15 A | |
|
15SQ045TRDIODE SCHOTTKY 45V 15A R-6 |
27,208 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 45 V | 45 V | 15A | -55°C ~ 150°C | 550 mV @ 15 A | |
|
SK56TRDIODE SCHOTTKY 60V SMC |
26,841 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 400pF @ 5V, 1MHz | - | 1 mA @ 60 V | 60 V | - | -55°C ~ 150°C | 700 mV @ 5 A | |
|
S1JTRDIODE GEN PURP 600V 1A SMA |
135,553 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
S1ATRDIODE GEN PURP 50V 1A SMA |
162,153 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 50 V | 50 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
S1DTRDIODE GEN PURP 200V 1A SMA |
33,713 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
30BQ040TRDIODE SCHOTTKY 40V SMC |
15,969 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 230pF @ 5V, 1MHz | - | 500 µA @ 40 V | 40 V | - | -55°C ~ 150°C | 680 mV @ 3 A | |
|
|
30BQ100TRDIODE SCHOTTKY 100V SMC |
22,662 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 115pF @ 5V, 1MHz | - | 500 µA @ 100 V | 100 V | - | -55°C ~ 175°C | 790 mV @ 3 A | |
|

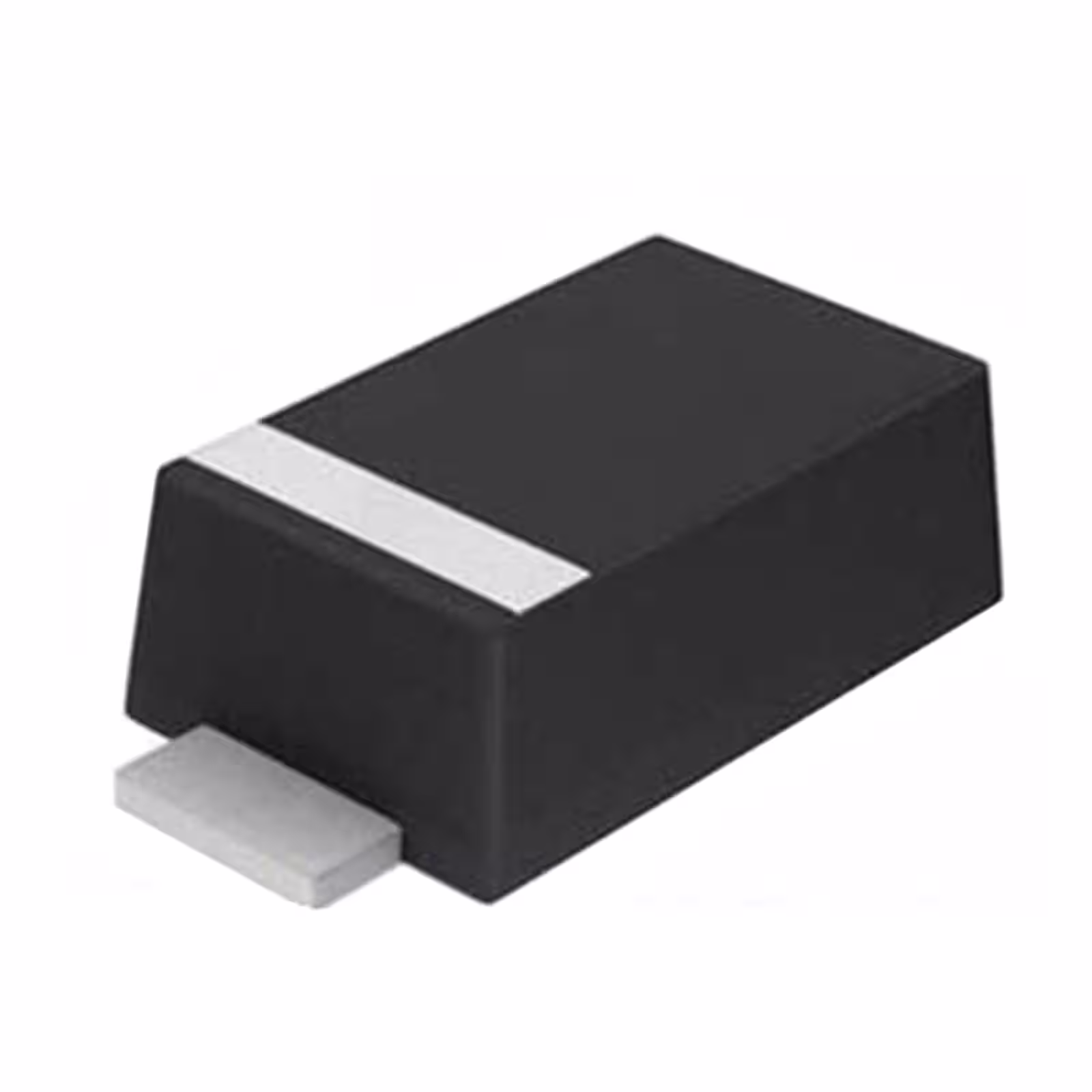

1N4007FLTRSTANDARD RECTIFIER 1000V SOD-123 |
67,055 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | |
|
|
ER5GTRDIODE GEN PURP 400V 5A SMC |
44,900 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 58pF @ 4V, 1MHz | 35 ns | 5 µA @ 400 V | 400 V | 5A | -55°C ~ 150°C | 1.25 V @ 5 A | |
|
50WQ06FNTRSCHOTTKY RECTIFIER 60V D-PAK |
77,975 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 130pF @ 5V, 1MHz | - | 3 mA @ 60 V | 60 V | 5.5A | -55°C ~ 150°C | 740 mV @ 10 A | |
|
MBRD560TRDIODE SCHOTTKY 60V 5A DPAK |
12,500 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 300pF @ 5V, 1MHz | - | 1 mA @ 60 V | 60 V | 5A | -55°C ~ 150°C | 650 mV @ 5 A | |
|
|
GS1MTRDIODE GEN PURP 1KV 1A SMA |
123,880 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
SDURD560ATRDIODE GEN PURP 600V DPAK |
31,390 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 600 V | 600 V | - | -55°C ~ 150°C | 1.7 V @ 5 A | |
|
|
SBRD10200TRDIODE SCHOTTKY 200V 10A DPAK |
97,022 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 150pF @ 5V, 1MHz | - | 1 mA @ 200 V | 200 V | 10A | -55°C ~ 150°C | 950 mV @ 10 A | |
|
|
SK520TRDIODE SCHOTTKY 200V 5A SMC |
16,473 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 200 V | 200 V | 5A | -55°C ~ 150°C | 1.1 V @ 5 A | |
|
|
MBRD1045TRDIODE SCHOTTKY 45V DPAK |
23,602 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 400pF @ 5V, 1MHz | - | 1 mA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 700 mV @ 10 A | |
|
|
50WQ10FNTRDIODE SCHOTTKY 100V DPAK |
11,895 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 250pF @ 5V, 1MHz | - | 1 mA @ 100 V | 100 V | - | -55°C ~ 150°C | 770 mV @ 5 A |
