| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

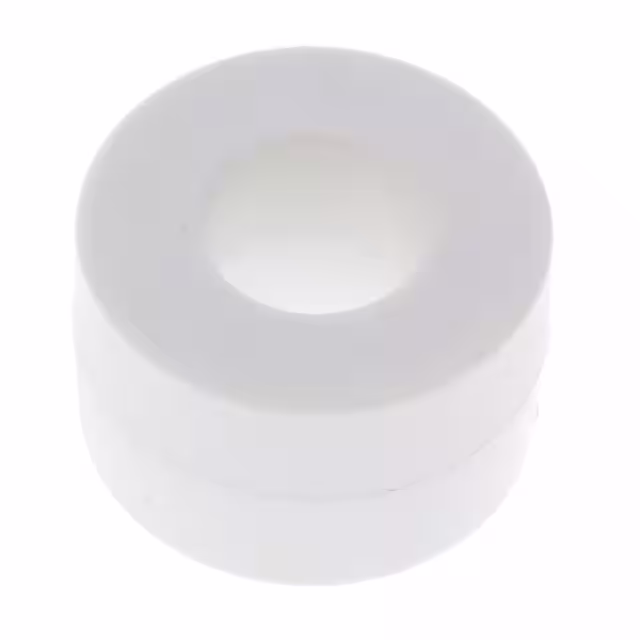

LRF251515MKCXNANOCRYSTALLINE CORE, 25X15X15 |
2,961 | 8.19 |
RFQ |
Datasheet |
Bulk | FL-V | Active | Toroid | - | - | 1.114 (28.30mm) | 38.1 µH | - | Ungapped | - | - | - | - | 63 | - | - | Uncoated | - |
|

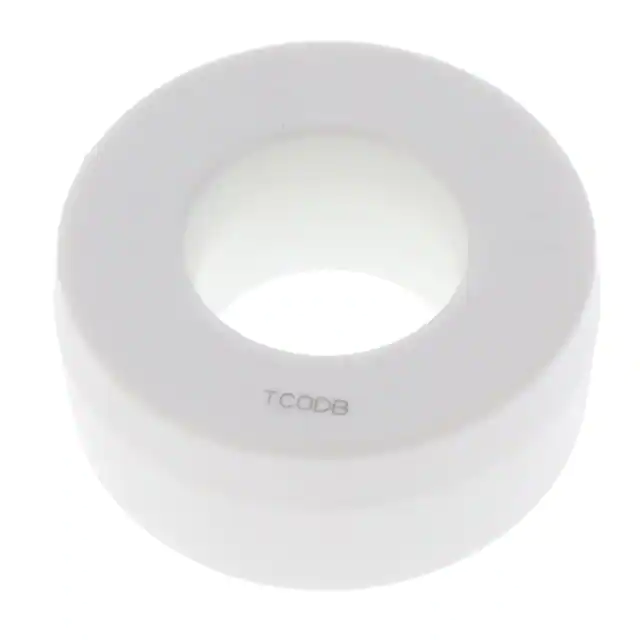

LRF372315MKCXNANOCRYSTALLINE CORE, 37X23X15 |
3,525 | 12.01 |
RFQ |
Datasheet |
Bulk | FL-V | Active | Toroid | - | - | 1.594 (40.50mm) | 34.7 µH | - | Ungapped | - | - | - | - | 83 | - | - | Uncoated | - |
|

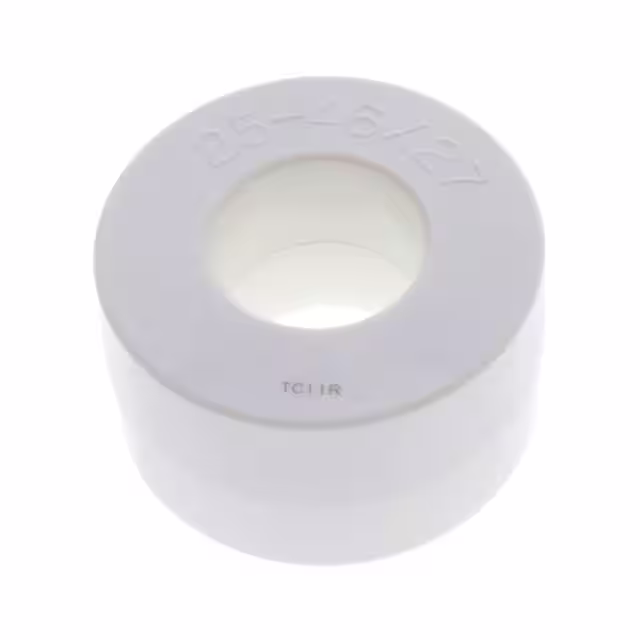

LRF462725MKCXNANOCRYSTALLINE CORE, 46X27X25 |
3,969 | 21.62 |
RFQ |
Datasheet |
Bulk | FL-V | Active | Toroid | - | - | 1.945 (49.40mm) | 64.6 µH | - | Ungapped | - | - | - | - | 190 | - | - | Uncoated | - |
|

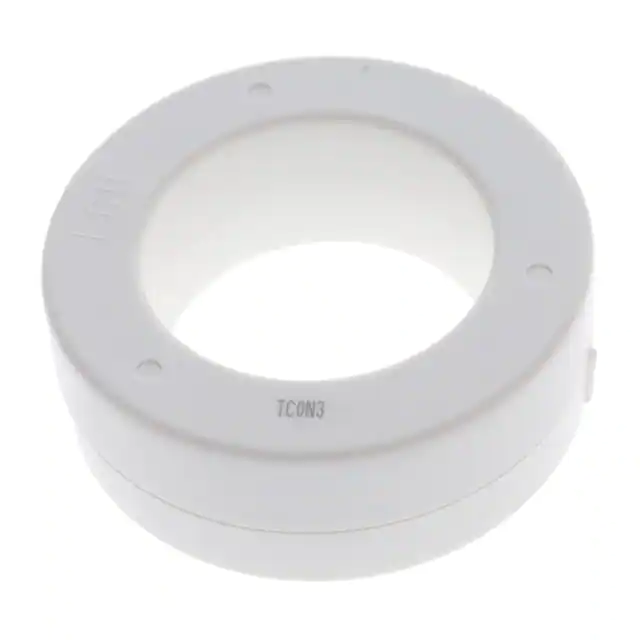

LRF624520MKCXNANOCRYSTALLINE CORE, 62X45X20 |
3,380 | 24.85 |
RFQ |
Datasheet |
Bulk | FL-V | Active | Toroid | - | - | 2.598 (66.00mm) | 31.5 µH | - | Ungapped | - | - | - | - | 1681 | - | - | Uncoated | - |
