| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

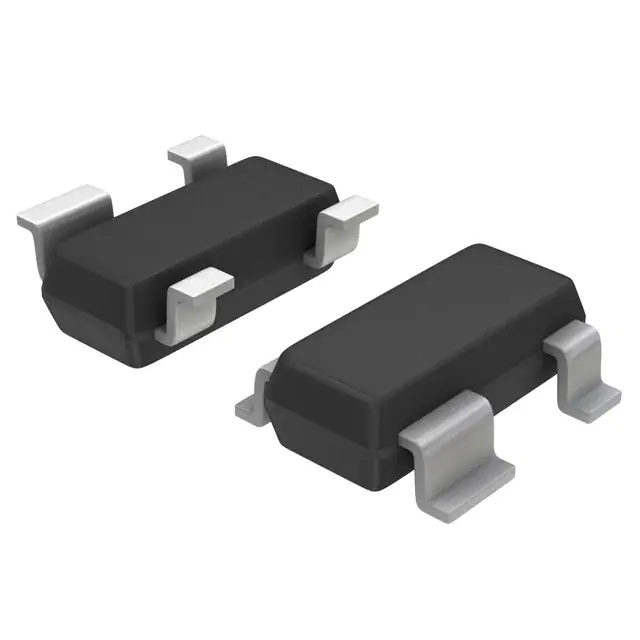

USB50405CE3/TR7TVS DIODE 5VWM 13VC |
4,036 | 0.92 |
RFQ |
Datasheet |
- | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V | 6V | 13V | 5A (8/20µs) | 500W | No | Ethernet | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - |
|
SMDB12C/TR7TVS DIODE 12VWM 19VC 8-SO |
2,848 | 6.54 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | TVSarray™ | Active | Zener | - | 4 | 12V | 13.3V | 19V | 5A (8/20µs) | 300W | No | General Purpose | 95pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMDA24E3/TR7TVS DIODE 24VWM 43VC 8-SO |
4,183 | 1.36 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | TVSarray™ | Active | Zener | 4 | - | 24V | 26.7V | 43V | 5A (8/20µs) | 300W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|

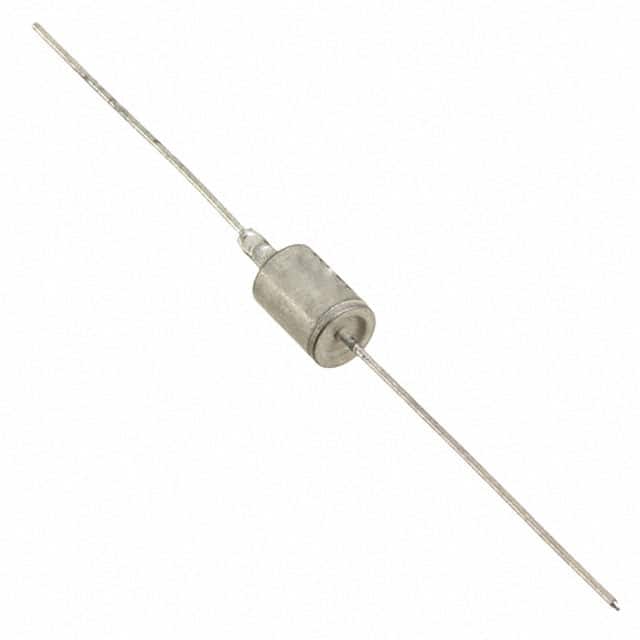

1N5656ATVS DIODE 77.8VWM 125VC DO13 |
137 | 18.12 |
RFQ |
Datasheet |
DO-13 | Bulk | - | Active | Zener | 1 | - | 77.8V | 86.5V | 125V | 12A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | Through Hole |
|
|
1N5907TVS DIODE 5VWM 8.5VC DO13 |
102 | 19.16 |
RFQ |
Datasheet |
DO-13 | Bulk | - | Active | Zener | 1 | - | 5V | 6V | 8.5V | 120A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | Through Hole |
|
|
1N6053ATVS DIODE 33VWM 53.9VC DO13 |
353 | 25.44 |
RFQ |
Datasheet |
DO-13 | Bulk | - | Active | Zener | - | 1 | 33V | 37.1V | 53.9V | 28A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Through Hole |
|

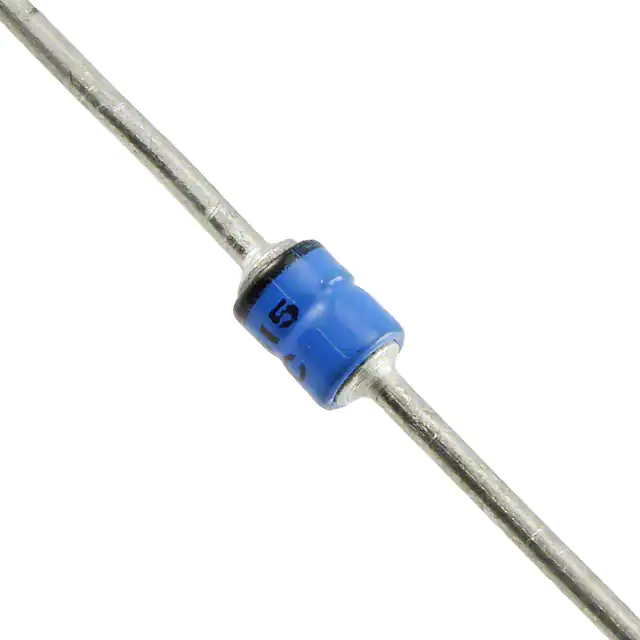

TVS515TVS DIODE 15VWM 25.2VC AXIAL |
105 | 12.18 |
RFQ |
Datasheet |
Axial | Tube | - | Active | Zener | 1 | - | 15V | 16.7V | 25.2V | 19.8A (8/20µs) | 500W | No | General Purpose | - | -65°C ~ 175°C (TJ) | Through Hole |
|
|
1N6036ATVS DIODE 6VWM 11.3VC DO13 |
118 | 20.00 |
RFQ |
Datasheet |
DO-13 | Bulk | - | Active | Zener | - | 1 | 6V | 7.13V | 11.3V | 132A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Through Hole |
|
|
1N5556TVS DIODE 40.3VWM 63.5VC DO13 |
294 | 23.04 |
RFQ |
Datasheet |
DO-13 | Bulk | - | Active | Zener | 1 | - | 40.3V | 43.7V | 63.5V | 24A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | Through Hole |
|

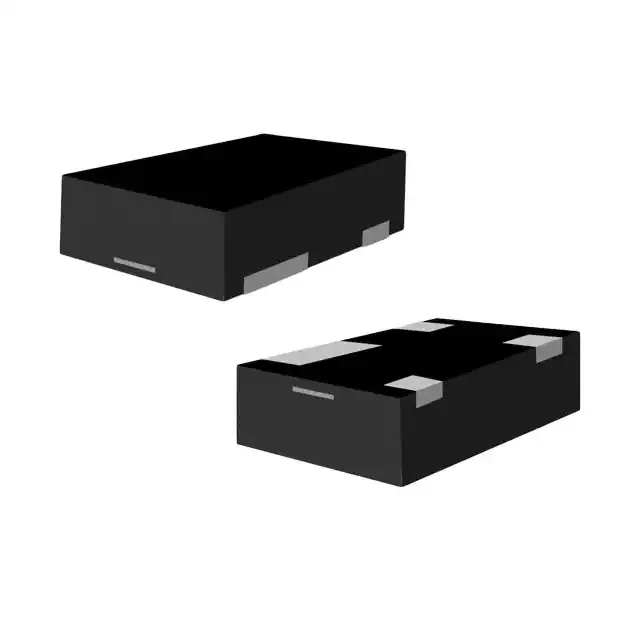

USBQNM50403CE3/TR7TVS DIODE 3.3VWM 11VC QFN143 |
3,000 | 3.81 |
RFQ |
Datasheet |
4-VDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V | 4V | 11V | 5A (8/20µs) | 500W | No | Ethernet | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
USBQNM50403E3/TR7TVS DIODE 3.3VWM 11VC QFN143 |
9,674 | 4.95 |
RFQ |
Datasheet |
4-VDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 3.3V | 4V | 11V | 5A (8/20µs) | 500W | No | Ethernet | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

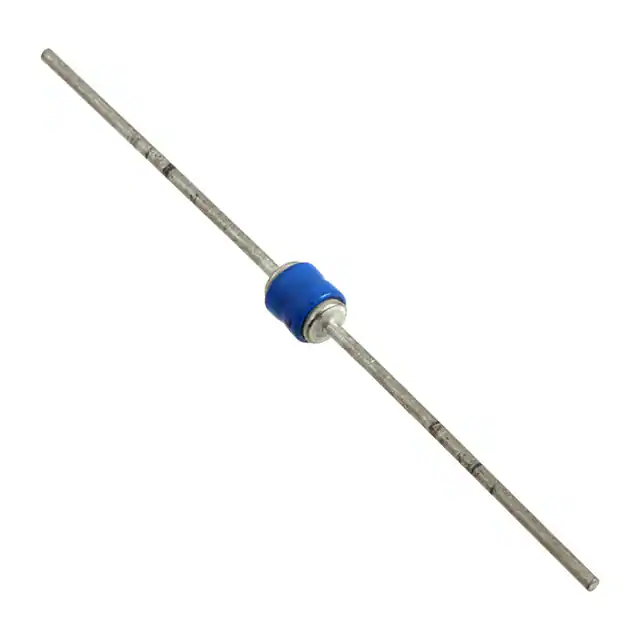

JANTX1N6166ATVS DIODE 76VWM 137.6VC C AXIAL |
117 | 14.31 |
RFQ |
Datasheet |
G, Axial | Bulk | Military, MIL-PRF-19500/516 | Active | Zener | - | 1 | 76V | 95V | 137.6V | 10.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Through Hole |
|
|
SMDB05CE3/TR7TVS DIODE 5VWM 11VC 8-SO |
350 | 1.92 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | TVSarray™ | Active | Zener | - | 4 | 5V | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMDA12/TR7TVS DIODE 12VWM 19VC 8-SO |
500 | 3.84 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | TVSarray™ | Active | Zener | 4 | - | 12V | 13.3V | 19V | 5A (8/20µs) | 300W | No | General Purpose | 185pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMDB12/TR7TVS DIODE 12VWM 19VC 8-SO |
500 | 4.53 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | TVSarray™ | Active | Zener | 4 | - | 12V | 13.3V | 19V | 5A (8/20µs) | 300W | No | General Purpose | 185pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
SM16LC24E3/TR13TVS DIODE 24VWM 55VC 16SO |
2,500 | 4.17 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 8 | - | 24V | 26.7V | 55V | 5A (8/20µs) | 500W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMDB24C/TR7TVS DIODE 24VWM 43VC 8-SO |
906 | 4.28 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | TVSarray™ | Active | Zener | - | 4 | 24V | 26.7V | 43V | 5A (8/20µs) | 300W | No | General Purpose | 45pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SM8LC05/TR7TVS DIODE 5VWM 11VC 8-SO |
500 | 5.60 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | TVSarray™ | Active | Zener | - | 2 | 5V | 6V | 11V | 5A (8/20µs) | 500W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SM16LC24C/TR13TVS DIODE 24VWM 55VC 16SO |
2,500 | 11.28 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 8 | 24V | 26.7V | 55V | 5A (8/20µs) | 300W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
UPT10E3/TR7TVS DIODE 10VWM 18VC POWERMITE 1 |
1,492 | 0.68 |
RFQ |
Datasheet |
DO-216AA | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Zener | 1 | - | 10V | 11V | 18V | 8.33A | 1000W (1kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Surface Mount |
