Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS172T250R4CCAP ALUM 1700UF 250V SCREW |
2,792 | 38.63 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1700 µF | -10%, +50% | 250 V | 50mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 A @ 120 Hz | 7.5 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
E36D401HLN182MCA5UCAP ALUM 1800UF 20% 400V SCREW |
2,974 | 26.69 |
RFQ |
Bulk | U36D | Active | 1800 µF | ±20% | 400 V | 91.5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.47 A @ 120 Hz | 7.658 A @ 3 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount | |
|
|
E36D251HLN472MCA5UCAP ALUM 4700UF 20% 250V SCREW |
2,495 | 26.69 |
RFQ |
Bulk | U36D | Active | 4700 µF | ±20% | 250 V | 28.8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.65 A @ 120 Hz | 10.71 A @ 3 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount | |
|
LNC2V122MSEFCAP ALUM 1200UF 20% 350V SCREW |
3,550 | 26.69 |
RFQ |
Datasheet |
Bulk | LNC | Active | 1200 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.6 A @ 120 Hz | 12.04 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 2.480 (63.00mm) | - | Chassis Mount |
|
|
E36D350HPN124MCB7UCAP ALUM 120000UF 20% 35V SCREW |
2,269 | 26.70 |
RFQ |
Bulk | U36D | Active | 120000 µF | ±20% | 35 V | 6.1mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.83 A @ 120 Hz | 17.962 A @ 3 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 4.625 (117.48mm) | - | Chassis Mount | |
|
MAL250016122E3CAP ALUM 1200UF 20% 400V SCREW |
2,692 | 26.70 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 1200 µF | ±20% | 400 V | 107mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 A @ 120 Hz | - | 85 mOhms | 0.874 (22.20mm) | 1.969 Dia (50.00mm) | 3.535 (89.80mm) | - | Chassis Mount |
|
450LSG1000MNB51X98CAP ALUM 1000UF 20% 450V SCREW |
2,652 | 38.66 |
RFQ |
Datasheet |
Bulk | LSG | Last Time Buy | 1000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.3 A @ 120 Hz | 6.02 A @ 10 kHz | - | 0.858 (21.80mm) | 2.008 Dia (51.00mm) | 3.976 (101.00mm) | - | Chassis Mount |
|
|
DCMC332M450CE2BCAP ALUM 3300UF 20% 450V SCREW |
3,187 | 38.66 |
RFQ |
Datasheet |
Bulk | DCMC | Active | 3300 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 5.187 (131.75mm) | - | Chassis Mount |
|
|
LNC2W182MSEGBBCAP ALUM 1800UF 20% 450V SCREW |
3,980 | 38.68 |
RFQ |
Datasheet |
Bulk | LNC | Active | 1800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.9 A @ 120 Hz | 16.66 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 2.874 (73.00mm) | - | Chassis Mount |
|
|
LNC2W182MSEGBNCAP ALUM 1800UF 20% 450V SCREW |
2,336 | 38.68 |
RFQ |
Datasheet |
Bulk | LNC | Active | 1800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.9 A @ 120 Hz | 16.66 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 2.874 (73.00mm) | - | Chassis Mount |
|
|
LNC2G222MSEGBBCAP ALUM 2200UF 20% 400V SCREW |
3,742 | 38.69 |
RFQ |
Datasheet |
Bulk | LNC | Active | 2200 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 120 Hz | 17.92 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 2.874 (73.00mm) | - | Chassis Mount |
|
|
LNC2G222MSEGBNCAP ALUM 2200UF 20% 400V SCREW |
3,700 | 38.69 |
RFQ |
Datasheet |
Bulk | LNC | Active | 2200 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 120 Hz | 17.92 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 2.874 (73.00mm) | - | Chassis Mount |
|
|
LNT1E154MSEBCAP ALUM 150000UF 20% 25V SCREW |
3,276 | 38.69 |
RFQ |
Datasheet |
Bulk | LNT | Active | 150000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.8 A @ 120 Hz | 20.7 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
|
LNT1E154MSENCAP ALUM 150000UF 20% 25V SCREW |
3,278 | 38.69 |
RFQ |
Datasheet |
Bulk | LNT | Active | 150000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.8 A @ 120 Hz | 20.7 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
|
LQR2W182MSEFBBCAP ALUM 1800UF 20% 450V SCREW |
2,564 | 38.71 |
RFQ |
Datasheet |
Bulk | LQR | Active | 1800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.4 A @ 120 Hz | 10.36 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.449 (113.00mm) | - | Chassis Mount |
|
|
LQR2W182MSEFBNCAP ALUM 1800UF 20% 450V SCREW |
2,986 | 38.71 |
RFQ |
Datasheet |
Bulk | LQR | Active | 1800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.4 A @ 120 Hz | 10.36 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.449 (113.00mm) | - | Chassis Mount |
|

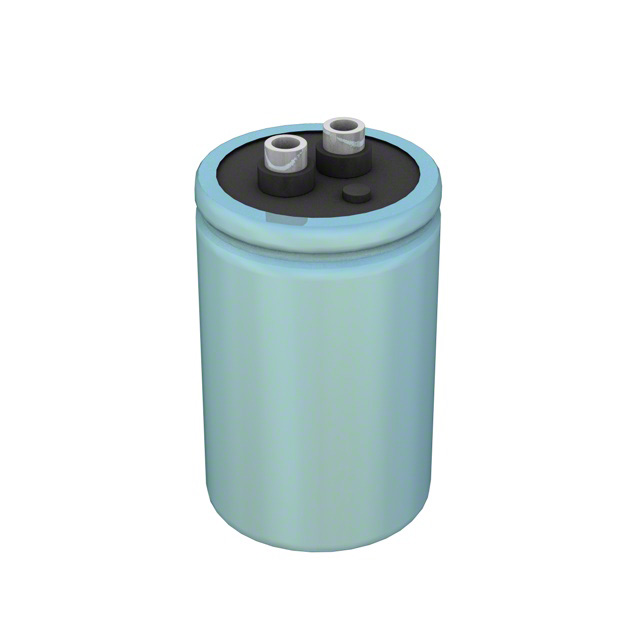

CGR183U010R2CCAP ALUM 18000UF 10V SCREW |
3,235 | 38.72 |
RFQ |
Datasheet |
Bulk | CGR | Active | 18000 µF | -10%, +75% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount |
|
MAL205358102E3CAP ALUM 1000UF 20% 385V RADIAL |
3,220 | 26.75 |
RFQ |
Datasheet |
Tape & Box (TB) | 053 PEC-PW | Active | 1000 µF | ±20% | 385 V | 180mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 100 Hz | - | 140 mOhms | 0.787 (20.00mm) | 1.575 Dia (40.00mm) | 4.134 (105.00mm) | - | Through Hole |
|
MAL210225681E3CAP ALUM 680UF 20% 350V SCREW |
2,396 | 26.75 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 680 µF | ±20% | 350 V | 216mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 100 Hz | - | 152 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 4.280 (108.70mm) | - | Chassis Mount |
|
|
MAL210265681E3CAP ALUM 680UF 20% 350V SCREW |
2,320 | 26.75 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 680 µF | ±20% | 350 V | 216mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 100 Hz | - | 152 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 4.280 (108.70mm) | - | Chassis Mount |
