Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E91F421VNT102MU65UCAP ALUM 1000UF 20% 420V SNAP |
3,885 | 27.52 |
RFQ |
Bulk | U91F | Active | 1000 µF | ±20% | 420 V | 96mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | - | 4.2 A @ 120 Hz | 6.006 A @ 100 kHz | - | 0.984 (25.00mm) | 1.772 Dia (45.00mm) | 2.657 (67.50mm) | - | Through Hole | |
|
|
DCMC124U050DJ2BCAP ALUM 120000UF 50V SCREW |
2,243 | 39.84 |
RFQ |
Datasheet |
Bulk | DCMC | Active | 120000 µF | -10%, +75% | 50 V | 7.7mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.7 A @ 120 Hz | 23.835 A @ 10 kHz | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 3.687 (93.65mm) | - | Chassis Mount |
|
ALS70A822QC250CAP ALUM 8200UF 20% 250V SCREW |
3,558 | 39.86 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 8200 µF | ±20% | 250 V | 41mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | 18.1 A @ 10 kHz | 30 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS70C822QC250CAP ALUM 8200UF 20% 250V SCREW |
3,062 | 39.86 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 8200 µF | ±20% | 250 V | 41mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | 18.1 A @ 10 kHz | 30 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS70H822QC250CAP ALUM 8200UF 20% 250V SCREW |
2,634 | 39.86 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 8200 µF | ±20% | 250 V | 41mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | 18.1 A @ 10 kHz | 30 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS71C822QC250CAP ALUM 8200UF 20% 250V SCREW |
3,987 | 39.86 |
RFQ |
Datasheet |
Bulk | ALS71 | Active | 8200 µF | ±20% | 250 V | 41mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | 18.1 A @ 10 kHz | 30 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS71H822QC250CAP ALUM 8200UF 20% 250V SCREW |
2,033 | 39.86 |
RFQ |
Datasheet |
Bulk | ALS71 | Active | 8200 µF | ±20% | 250 V | 41mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | 18.1 A @ 10 kHz | 30 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
CG252U075V3CCAP ALUM 2500UF 75V SCREW |
2,205 | 39.88 |
RFQ |
Datasheet |
Bulk | CG | Active | 2500 µF | -10%, +75% | 75 V | 36mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.6 A @ 120 Hz | 7.59 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
610D826G050DR5CAP ALUM 82UF 50V AXIAL |
2,925 | 27.56 |
RFQ |
Datasheet |
Bulk | 610D | Active | 82 µF | -10%, +75% | 50 V | - | - | -55°C ~ 125°C | Bi-Polar | - | General Purpose | - | - | - | - | 0.390 Dia x 2.812 L (9.92mm x 71.42mm) | - | - | Through Hole |
|
|
E36D400LPN253UDB7UCAP ALUM 25000UF 40V SCREW |
2,011 | 27.56 |
RFQ |
Bulk | U36D | Active | 25000 µF | -10%, +75% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 4.625 (117.48mm) | - | Chassis Mount | |
|
CGS222T200R4CCAP ALUM 2200UF 200V SCREW |
3,279 | 39.94 |
RFQ |
Datasheet |
Bulk | CGS | Active | 2200 µF | -10%, +50% | 200 V | 38mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 120 Hz | 8.7 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
CGS433U025R4CCAP ALUM 43000UF 25V SCREW |
2,363 | 39.94 |
RFQ |
Datasheet |
Bulk | CGS | Active | 43000 µF | -10%, +75% | 25 V | 22mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.5 A @ 120 Hz | 11.05 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
25LSW100000MEFC51X118CAP ALUM 100000UF 20% 25V SCREW |
3,978 | 39.98 |
RFQ |
Datasheet |
Bulk | LSW | Active | 100000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.1 A @ 120 Hz | 14.148 A @ 10 kHz | - | 0.858 (21.80mm) | 2.008 Dia (51.00mm) | 4.803 (122.00mm) | - | Chassis Mount |
|
MAL209676122E3CAP ALUM 1200UF 20% 400V RADIAL |
2,799 | 27.60 |
RFQ |
Datasheet |
Tape & Box (TB) | 096 PLL-4TSI | Active | 1200 µF | ±20% | 400 V | 190mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.7 A @ 100 Hz | - | 52 mOhms | 0.787 (20.00mm) | 1.575 Dia (40.00mm) | 2.953 (75.00mm) | - | Through Hole |
|
500C203T050BC2BCAP ALUM 20000UF 50V SCREW |
2,063 | 40.00 |
RFQ |
Datasheet |
Bulk | 500C | Active | 20000 µF | -10%, +50% | 50 V | 16mOhm | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|

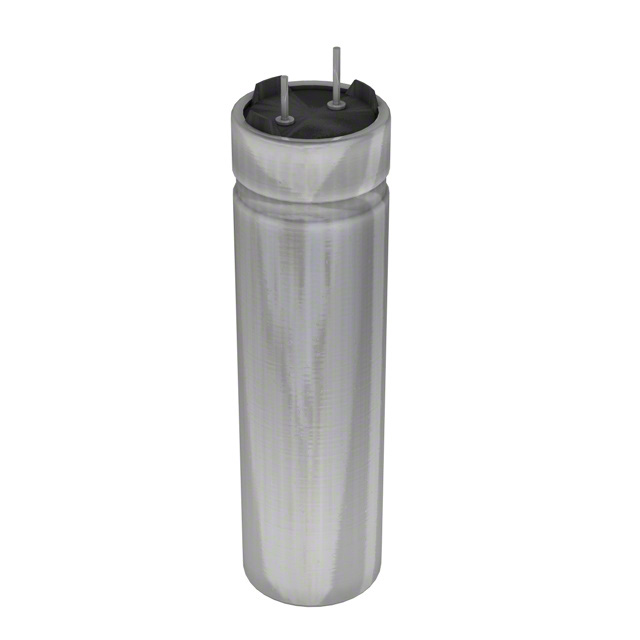

VPR242U050N3LCAP ALUM 2400UF 50V RADIAL |
3,918 | 27.68 |
RFQ |
Datasheet |
Bulk | VPR | Active | 2400 µF | -10%, +75% | 50 V | 15mOhm @ 10kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 5.639 A @ 10 kHz | - | 0.402 (10.20mm) | 1.000 Dia (25.40mm) | 3.626 (92.10mm) | - | Through Hole |
|
|
VPR332U040N3LCAP ALUM 3300UF 40V RADIAL |
3,401 | 27.68 |
RFQ |
Datasheet |
Bulk | VPR | Active | 3300 µF | -10%, +75% | 40 V | 14mOhm @ 10kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 6.437 A @ 10 kHz | - | 0.402 (10.20mm) | 1.000 Dia (25.40mm) | 3.626 (92.10mm) | - | Through Hole |
|
|
53D142F200MD6CAP ALUM 1400UF 200V AXIAL |
3,250 | 27.70 |
RFQ |
Datasheet |
Bulk | 53D | Active | 1400 µF | -10%, +50% | 200 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.375 Dia x 4.141 L (34.90mm x 105.20mm) | - | - | Through Hole |
|
|
E92F3J1VNT222MC80UCAP ALUM 2200UF 20% 385V SNAP |
2,046 | 27.70 |
RFQ |
Bulk | U92F | Active | 2200 µF | ±20% | 385 V | 56mOhm @ 120Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | - | 8.8 A @ 120 Hz | 12.584 A @ 100 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 3.248 (82.50mm) | - | Through Hole | |
|
|
DCMC153T200CF2BCAP ALUM 15000UF 200V SCREW |
2,482 | 40.04 |
RFQ |
Datasheet |
Bulk | DCMC | Active | 15000 µF | -10%, +50% | 200 V | 13.7mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.5 A @ 120 Hz | 20.79 A @ 10 kHz | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 5.687 (144.45mm) | - | Chassis Mount |
