Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS71A754QT040CAP ALUM 750000UF 20% 40V SCREW |
3,068 | 110.37 |
RFQ |
Datasheet |
Bulk | ALS71 | Active | 750000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42.7 A @ 100 Hz | 43.7 A @ 10 kHz | 7 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
ALS71C754QT040CAP ALUM 750000UF 20% 40V SCREW |
3,130 | 110.37 |
RFQ |
Datasheet |
Bulk | ALS71 | Active | 750000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42.7 A @ 100 Hz | 43.7 A @ 10 kHz | 7 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
ALS71H754QT040CAP ALUM 750000UF 20% 40V SCREW |
2,446 | 110.37 |
RFQ |
Datasheet |
Bulk | ALS71 | Active | 750000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42.7 A @ 100 Hz | 43.7 A @ 10 kHz | 7 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
LNT2W682MSEJBBCAP ALUM 6800UF 20% 450V SCREW |
2,841 | 110.39 |
RFQ |
Datasheet |
Bulk | LNT | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 28.3 A @ 120 Hz | 39.62 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
|
LNT2W682MSEJBNCAP ALUM 6800UF 20% 450V SCREW |
2,866 | 110.39 |
RFQ |
Datasheet |
Bulk | LNT | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 28.3 A @ 120 Hz | 39.62 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
|
36DY562F200CD2ACAP ALUM 5600UF 200V SCREW |
3,808 | 88.75 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 5600 µF | -10%, +50% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126 (28.60mm) | 2.579 Dia (65.50mm) | 4.752 (120.70mm) | - | Chassis Mount |
|
|
E37X401CPN682MFA5UCAP ALUM 6800UF 20% 400V SCREW |
2,440 | 88.78 |
RFQ |
Bulk | U37X | Active | 6800 µF | ±20% | 400 V | 19mOhm @ 120Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 17.2 A @ 120 Hz | 24.252 A @ 10 kHz | - | 1.250 (31.75mm) | 3.504 Dia (89.00mm) | 4.173 (106.00mm) | - | Chassis Mount | |
|
|
E36D451HPN802TEM9UCAP ALUM 8000UF 450V SCREW |
2,775 | 88.90 |
RFQ |
Bulk | U36D | Active | 8000 µF | -10%, +50% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount | |
|
CGS184U025X4CCAP ALUM 180000UF 25V SCREW |
2,555 | 110.67 |
RFQ |
Datasheet |
Bulk | CGS | Active | 180000 µF | -10%, +75% | 25 V | 4mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30.3 A @ 120 Hz | 39.39 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
E36D451CPN312TEM9UCAP ALUM 3100UF 450V SCREW |
2,452 | 88.97 |
RFQ |
Bulk | U36D | Active | 3100 µF | -10%, +50% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount | |
|

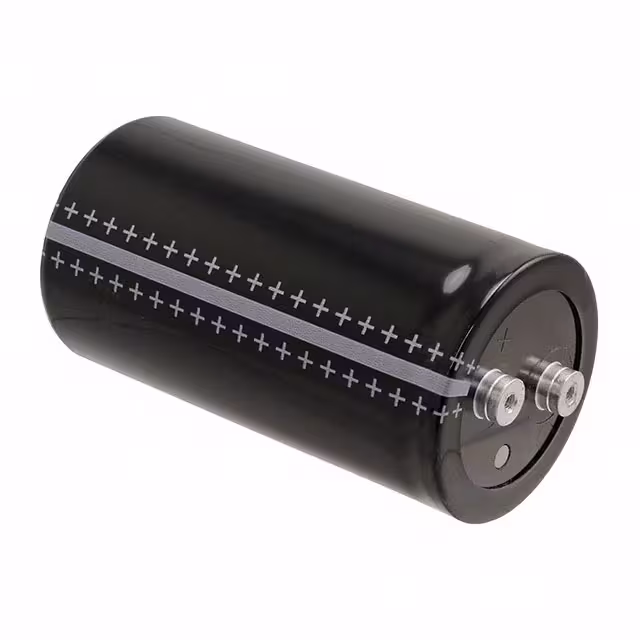

B43454A5398M000CAP ALUM 3900UF 20% 450V SCREW |
2,594 | 110.69 |
RFQ |
Datasheet |
Bulk | B43454 | Active | 3900 µF | ±20% | 450 V | 51mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 41 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
MAL210158683E3CAP ALUM 68000UF 20% 63V SCREW |
3,612 | 89.00 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 68000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 A @ 100 Hz | - | 6 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
100LSW39000M77X141CAP ALUM 39000UF 20% 100V SCREW |
2,281 | 89.04 |
RFQ |
Datasheet |
Bulk | LSW | Active | 39000 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.5 A @ 120 Hz | 18.15 A @ 10 kHz | - | 1.236 (31.40mm) | 3.031 Dia (77.00mm) | 5.669 (144.00mm) | - | Chassis Mount |
|
|
36DE913G040DC2ACAP ALUM 91000UF 40V SCREW |
2,566 | 89.13 |
RFQ |
Datasheet |
Bulk | 36DE | Active | 91000 µF | -10%, +75% | 40 V | - | 1000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 4.252 (108.00mm) | - | Chassis Mount |
|
ALS80C303QT250CAP ALUM 30000UF 20% 250V SCREW |
3,988 | 111.04 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 30000 µF | ±20% | 250 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26.4 A @ 100 Hz | 32.5 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
ALS80H303QT250CAP ALUM 30000UF 20% 250V SCREW |
2,241 | 111.04 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 30000 µF | ±20% | 250 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26.4 A @ 100 Hz | 32.5 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
ALS81A303QT250CAP ALUM 30000UF 20% 250V SCREW |
3,241 | 111.04 |
RFQ |
Datasheet |
Bulk | ALS81 | Active | 30000 µF | ±20% | 250 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26.4 A @ 100 Hz | 32.5 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
ALS81C303QT250CAP ALUM 30000UF 20% 250V SCREW |
3,481 | 111.04 |
RFQ |
Datasheet |
Bulk | ALS81 | Active | 30000 µF | ±20% | 250 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26.4 A @ 100 Hz | 32.5 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
ALS81H303QT250CAP ALUM 30000UF 20% 250V SCREW |
3,683 | 111.04 |
RFQ |
Datasheet |
Bulk | ALS81 | Active | 30000 µF | ±20% | 250 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26.4 A @ 100 Hz | 32.5 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
CGS102T500W3CCAP ALUM 1000UF 500V SCREW |
3,974 | 111.05 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1000 µF | -10%, +50% | 500 V | 101mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.7 A @ 120 Hz | 7.05 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 3.125 (79.38mm) | - | Chassis Mount |
