Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210288472E3CAP ALUM 4700UF 20% 385V SCREW |
3,599 | 117.21 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 4700 µF | ±20% | 385 V | 29mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 100 Hz | - | 20 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
ALS71A243QT350CAP ALUM 24000UF 20% 350V SCREW |
3,990 | 147.08 |
RFQ |
Datasheet |
Bulk | ALS71 | Active | 24000 µF | ±20% | 350 V | 12mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 A @ 100 Hz | 38 A @ 10 kHz | 9 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
36DX782F250DF2ACAP ALUM 7800UF 250V SCREW |
3,153 | 117.27 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 7800 µF | -10%, +50% | 250 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 5.752 (146.10mm) | - | Chassis Mount |
|
|
LNUN7472MSEJBBCAP ALUM 4700UF 20% 525V SCREW |
3,796 | 147.13 |
RFQ |
Datasheet |
Bulk | LNU | Active | 4700 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 120 Hz | 21.28 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.433 (138.00mm) | - | Chassis Mount |
|
|
LNUN7472MSEJBNCAP ALUM 4700UF 20% 525V SCREW |
3,519 | 147.13 |
RFQ |
Datasheet |
Bulk | LNU | Active | 4700 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 120 Hz | 21.28 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.433 (138.00mm) | - | Chassis Mount |
|
|
LNUN7472MTEJCAP ALUM 4700UF 20% 525V SCREW |
2,206 | 147.13 |
RFQ |
Datasheet |
Bulk | LNU | Active | 4700 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 120 Hz | 21.28 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.433 (138.00mm) | - | Chassis Mount |
|
|
ERHB701LGC152MEB5UCAP ALUM 1500UF 20% 700V SCREW |
2,475 | 117.33 |
RFQ |
Datasheet |
Bulk | RHB | Active | 1500 µF | ±20% | 700 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | 8.96 A @ 3 kHz | - | 1.240 (31.50mm) | 3.000 Dia (76.20mm) | 4.685 (119.00mm) | - | Chassis Mount |
|
CGS232T450W4CCAP ALUM 2300UF 450V SCREW |
3,756 | 147.38 |
RFQ |
Datasheet |
Bulk | CGS | Active | 2300 µF | -10%, +50% | 450 V | 52mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7 A @ 120 Hz | 10.5 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
E37X421CPN103MFF5UCAP ALUM 10000UF 20% 420V SCREW |
3,357 | 117.51 |
RFQ |
Bulk | U37X | Active | 10000 µF | ±20% | 420 V | 12mOhm @ 120Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 24.3 A @ 120 Hz | 34.263 A @ 10 kHz | - | 1.252 (31.80mm) | 3.504 Dia (89.00mm) | 6.142 (156.00mm) | - | Chassis Mount | |
|
CGH412T350W4LCAP ALUM 4100UF 350V SCREW |
3,515 | 147.63 |
RFQ |
Datasheet |
Bulk | CGH | Active | 4100 µF | -10%, +50% | 350 V | 38.6mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.6 A @ 120 Hz | 10.578 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 4.625 (117.48mm) | - | Chassis Mount |
|
|
36DE154G040DF2ACAP ALUM 150000UF 40V SCREW |
3,505 | 117.55 |
RFQ |
Datasheet |
Bulk | 36DE | Active | 150000 µF | -10%, +75% | 40 V | - | 1000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 5.752 (146.10mm) | - | Chassis Mount |
|
|
CGH702T250W4LCAP ALUM 7000UF 250V SCREW |
2,982 | 147.89 |
RFQ |
Datasheet |
Bulk | CGH | Active | 7000 µF | -10%, +50% | 250 V | 20.1mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.7 A @ 120 Hz | 14.391 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 4.625 (117.48mm) | - | Chassis Mount |
|
|
CGS702T250W4LCAP ALUM 7000UF 250V SCREW |
2,392 | 147.89 |
RFQ |
Datasheet |
Bulk | CGS | Active | 7000 µF | -10%, +50% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount |
|
MAL250055103E3CAP ALUM 10000UF 20% 350V SCREW |
3,014 | 117.72 |
RFQ |
Box | 500 PGP-ST | Active | 10000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.3 A @ 100 Hz | 27.45 A @ 10 kHz | 9 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 5.780 (146.80mm) | - | Chassis Mount | |
|
|
MAL250015103E3CAP ALUM 10000UF 20% 350V SCREW |
3,893 | 117.72 |
RFQ |
Box | 500 PGP-ST | Active | 10000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.3 A @ 100 Hz | 27.45 A @ 10 kHz | 9 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 5.780 (146.80mm) | - | Chassis Mount | |
|

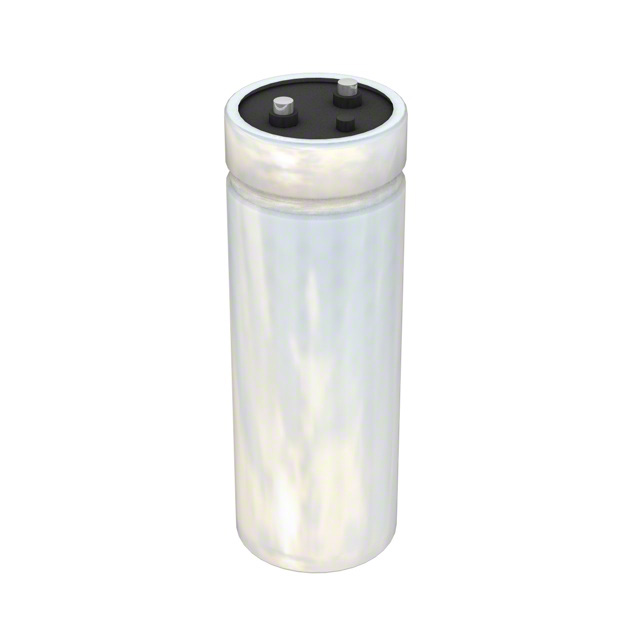

HES162G450V5LCAP ALUM 1600UF 450V SCREW |
2,426 | 147.96 |
RFQ |
Datasheet |
Bulk | HES | Active | 1600 µF | 0%, +50% | 450 V | 53mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.9 A @ 120 Hz | 8.487 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
LNT2H562MSEJBBCAP ALUM 5600UF 20% 500V SCREW |
2,448 | 147.98 |
RFQ |
Datasheet |
Bulk | LNT | Active | 5600 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17.8 A @ 120 Hz | 24.92 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
|
LNT2H562MSEJBNCAP ALUM 5600UF 20% 500V SCREW |
2,963 | 147.98 |
RFQ |
Datasheet |
Bulk | LNT | Active | 5600 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17.8 A @ 120 Hz | 24.92 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
|
36DY154F040DF2BCAP ALUM 150000UF 40V SCREW |
3,473 | 117.89 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 150000 µF | -10%, +50% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 5.752 (146.10mm) | - | Chassis Mount |
|
|
CGS162T500W4CCAP ALUM 1600UF 500V SCREW |
2,476 | 148.29 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1600 µF | -10%, +50% | 500 V | 66mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.5 A @ 120 Hz | 9.75 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 4.125 (104.78mm) | - | Chassis Mount |
