Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLSG102M100JB0CCAP ALUM 1000UF 20% 100V FLATPCK |
2,511 | 199.52 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 1000 µF | ±20% | 100 V | 387mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 4.4 A @ 120 Hz | 5.7 A @ 20 kHz | - | 0.500 (12.70mm) | 3.000 L x 1.000 W (76.20mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG501M150JB0CCAP ALUM 500UF 20% 150V FLATPACK |
2,244 | 199.52 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 500 µF | ±20% | 150 V | 387mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 4.4 A @ 120 Hz | 5.7 A @ 20 kHz | - | 0.500 (12.70mm) | 3.000 L x 1.000 W (76.20mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG491M200JB0CCAP ALUM 490UF 20% 200V FLATPACK |
3,689 | 199.52 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 490 µF | ±20% | 200 V | 507mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 4.4 A @ 120 Hz | 5 A @ 20 kHz | - | 0.500 (12.70mm) | 3.000 L x 1.000 W (76.20mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG381M250JB0CCAP ALUM 380UF 20% 250V FLATPACK |
3,711 | 199.52 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 380 µF | ±20% | 250 V | 484mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 4.5 A @ 120 Hz | 5.1 A @ 20 kHz | - | 0.500 (12.70mm) | 3.000 L x 1.000 W (76.20mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
CGS632T350X5LCAP ALUM 6300UF 350V SCREW |
3,487 | 199.81 |
RFQ |
Datasheet |
Bulk | CGS | Active | 6300 µF | -10%, +50% | 350 V | 25mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.7 A @ 120 Hz | 19.05 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
500C205U010FG2DCAP ALUM 2F 10V SCREW |
2,302 | 200.17 |
RFQ |
Datasheet |
Bulk | 500C | Active | 2 F | -10%, +75% | 10 V | 1.5mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | 80.5 A @ 120 Hz | - | - | 1.250 (31.75mm) | 3.500 Dia (88.90mm) | 8.687 (220.65mm) | - | Chassis Mount |
|
MAL210636154E3CAP ALUM 150000UF 25V SCREW |
3,052 | 149.25 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 150000 µF | -10%, +30% | 25 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 6.012 (152.70mm) | - | Chassis Mount |
|
|
MAL210676154E3CAP ALUM 150000UF 25V SCREW |
2,351 | 149.25 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 150000 µF | -10%, +30% | 25 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 6.012 (152.70mm) | - | Chassis Mount |
|
|
LNX2V273MSEKBNCAP ALUM 27000UF 20% 350V SCREW |
2,602 | 201.78 |
RFQ |
Datasheet |
Bulk | LNX | Active | 27000 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 42 A @ 120 Hz | 58.8 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
MAL210238682E3CAP ALUM 6800UF 20% 385V SCREW |
3,954 | 149.88 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 6800 µF | ±20% | 385 V | 22mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.3 A @ 100 Hz | - | 16 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL210278682E3CAP ALUM 6800UF 20% 385V SCREW |
3,964 | 149.88 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 6800 µF | ±20% | 385 V | 22mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.3 A @ 100 Hz | - | 16 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL210618683E3CAP ALUM 68000UF 63V SCREW |
3,961 | 149.88 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 68000 µF | -10%, +30% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.5 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 6.012 (152.70mm) | - | Chassis Mount |
|
|
MAL210658683E3CAP ALUM 68000UF 63V SCREW |
3,911 | 149.88 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 68000 µF | -10%, +30% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.5 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 6.012 (152.70mm) | - | Chassis Mount |
|
|
LNX2W153MSEKBNCAP ALUM 15000UF 20% 450V SCREW |
3,671 | 202.56 |
RFQ |
Datasheet |
Bulk | LNX | Active | 15000 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 31.1 A @ 120 Hz | 43.54 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 8.819 (224.00mm) | - | Chassis Mount |
|
|
LNT1K224MSEBCAP ALUM 220000UF 20% 80V SCREW |
2,622 | 203.19 |
RFQ |
Datasheet |
Bulk | LNT | Active | 220000 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.8 A @ 120 Hz | 37.2 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
|
LNT1K224MSENCAP ALUM 220000UF 20% 80V SCREW |
2,100 | 203.19 |
RFQ |
Datasheet |
Bulk | LNT | Active | 220000 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.8 A @ 120 Hz | 37.2 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
|
LNX2G223MSEKBNCAP ALUM 22000UF 20% 400V SCREW |
2,631 | 203.21 |
RFQ |
Datasheet |
Bulk | LNX | Active | 22000 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 41.4 A @ 120 Hz | 57.96 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|

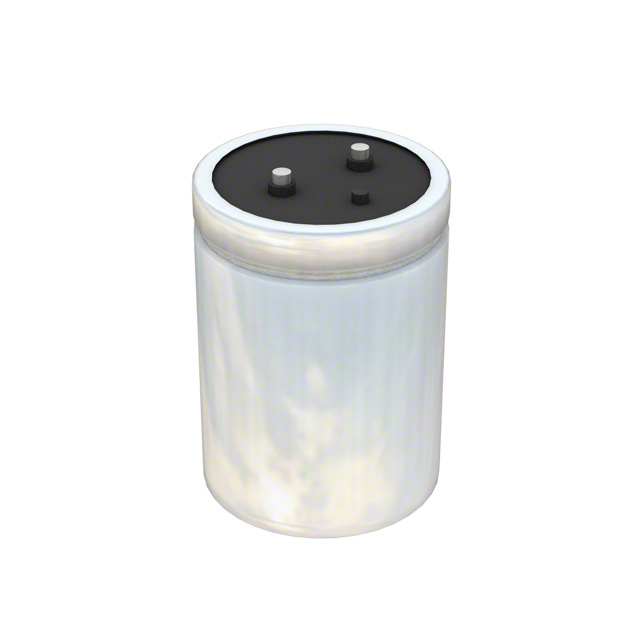

HES372G350X4CCAP ALUM 3700UF 350V SCREW |
2,858 | 203.48 |
RFQ |
Datasheet |
Bulk | HES | Active | 3700 µF | 0%, +50% | 350 V | 34mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.8 A @ 120 Hz | 12.054 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
MAL210232223E3CAP ALUM 22000UF 20% 200V SCREW |
2,394 | 150.45 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 22000 µF | ±20% | 200 V | 9mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.5 A @ 100 Hz | - | 7 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL210272223E3CAP ALUM 22000UF 20% 200V SCREW |
3,397 | 150.45 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 22000 µF | ±20% | 200 V | 9mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.5 A @ 100 Hz | - | 7 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
