Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210658104E3CAP ALUM 100000UF 63V SCREW |
2,566 | 212.40 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 100000 µF | -10%, +30% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 36.5 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.925 (226.70mm) | - | Chassis Mount |
|
80D471P250MD2DE3CAP ALUM 470UF 250V SNAP |
3,351 | 213.34 |
RFQ |
Datasheet |
Bulk | 80D | Active | 470 µF | -10%, +30% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

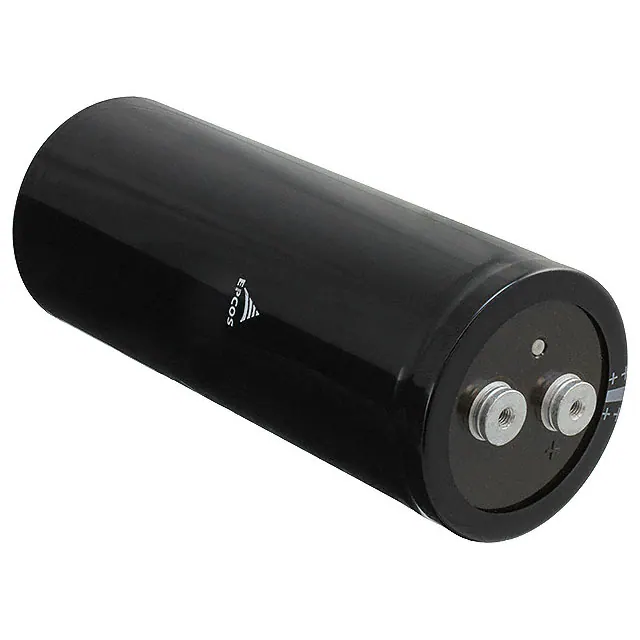

B43456A5129M000CAP ALUM 12000UF 20% 450V SCREW |
3,060 | 378.39 |
RFQ |
Datasheet |
Bulk | B43456 | Not For New Designs | 12000 µF | ±20% | 450 V | 9mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32 A @ 100 Hz | - | 12 mOhms | 1.248 (31.70mm) | 3.583 Dia (91.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
MAL210638104E3CAP ALUM 100000UF 63V SCREW |
3,244 | 214.65 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 100000 µF | -10%, +30% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 36.5 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.925 (226.70mm) | - | Chassis Mount |
|
B43705A9159M007CAP ALUM 15000UF 20% 400V SCREW |
3,043 | 216.17 |
RFQ |
Bulk | B43705 | Active | 15000 µF | ±20% | 400 V | 5.6mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 44.9 A @ 100 Hz | - | 9 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount | |
|
|
B43712A5109M000CAP ALUM 10000UF 20% 450V SCREW |
3,481 | 216.26 |
RFQ |
Datasheet |
Bulk | B43712 | Active | 10000 µF | ±20% | 450 V | 12mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.8 A @ 100 Hz | 2.56 A @ 100 kHz | 20 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 7.559 (192.00mm) | - | Chassis Mount |
|
CGS105UGX8L6PHCAP ALUM 1F 20V SCREW |
2,278 | 385.88 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1 F | -10%, +75% | 20 V | 3mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41 A @ 120 Hz | 53.3 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
MAL210216103E3CAP ALUM 10000UF 20% 400V SCREW |
2,947 | 217.20 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 10000 µF | ±20% | 400 V | 14mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.1 A @ 100 Hz | - | 11 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL210237682E3CAP ALUM 6800UF 20% 450V SCREW |
3,900 | 217.20 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 6800 µF | ±20% | 450 V | 25mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.8 A @ 100 Hz | - | 20 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL210242333E3CAP ALUM 33000UF 20% 200V SCREW |
2,659 | 217.20 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 33000 µF | ±20% | 200 V | 6mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41.7 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.795 (223.40mm) | - | Chassis Mount |
|
|
MAL210243223E3CAP ALUM 22000UF 20% 250V SCREW |
3,597 | 217.20 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 22000 µF | ±20% | 250 V | 7mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35.3 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.118 (155.40mm) | - | Chassis Mount |
|
|
MAL210256103E3CAP ALUM 10000UF 20% 400V SCREW |
2,005 | 217.20 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 10000 µF | ±20% | 400 V | 14mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.1 A @ 100 Hz | - | 11 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL210277682E3CAP ALUM 6800UF 20% 450V SCREW |
3,234 | 217.20 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 6800 µF | ±20% | 450 V | 25mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.8 A @ 100 Hz | - | 20 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL210282333E3CAP ALUM 33000UF 20% 200V SCREW |
2,156 | 217.20 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 33000 µF | ±20% | 200 V | 6mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41.7 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.795 (223.40mm) | - | Chassis Mount |
|
|
MAL210283223E3CAP ALUM 22000UF 20% 250V SCREW |
3,076 | 217.20 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 22000 µF | ±20% | 250 V | 7mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35.3 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.118 (155.40mm) | - | Chassis Mount |
|
|
B43700E8688M000CAP ALUM 6800UF 20% 600V SCREW |
2,914 | 217.86 |
RFQ |
Bulk | B43700 | Active | 6800 µF | ±20% | 600 V | 14mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.3 A @ 100 Hz | - | 22 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 7.795 (198.00mm) | - | Chassis Mount | |
|
|
B43725A4159M000CAP ALUM 15000UF 20% 350V SCREW |
3,342 | 217.88 |
RFQ |
Datasheet |
Bulk | B43725 | Active | 15000 µF | ±20% | 350 V | 5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 43.8 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis Mount |
|
|
MAL210236103E3CAP ALUM 10000UF 20% 400V SCREW |
3,966 | 219.15 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 10000 µF | ±20% | 400 V | 14mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.1 A @ 100 Hz | - | 11 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL210247682E3CAP ALUM 6800UF 20% 450V SCREW |
3,807 | 219.15 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 6800 µF | ±20% | 450 V | 24mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.3 A @ 100 Hz | - | 19 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.118 (155.40mm) | - | Chassis Mount |
|
|
MAL210276103E3CAP ALUM 10000UF 20% 400V SCREW |
3,136 | 219.15 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 10000 µF | ±20% | 400 V | 14mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.1 A @ 100 Hz | - | 11 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
