Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M39018/04-1300ALUM-SCREW TERMINAL |
2,597 | 262.52 |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

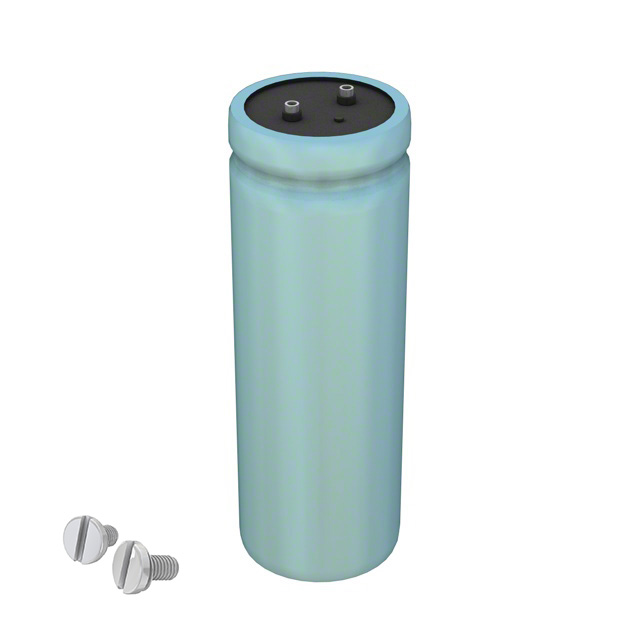

CGH692T500X8LCAP ALUM 6900UF 500V SCREW |
2,051 | 521.90 |
RFQ |
Datasheet |
Bulk | CGH | Active | 6900 µF | -10%, +50% | 500 V | 41mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.9 A @ 120 Hz | - | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
|
MAL210415103E3CAP ALUM 10000UF 20% 350V SCREW |
2,467 | 262.65 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 10000 µF | ±20% | 350 V | 20mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.5 A @ 100 Hz | - | 18 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL210455103E3CAP ALUM 10000UF 20% 350V SCREW |
2,183 | 262.65 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 10000 µF | ±20% | 350 V | 20mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.5 A @ 100 Hz | - | 18 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
B43742B9129M000CAP ALUM 12000UF 20% 400V SCREW |
3,510 | 262.89 |
RFQ |
Datasheet |
Bulk | B43742 | Active | 12000 µF | ±20% | 400 V | 9.4mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 26.1 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 6.732 (171.00mm) | - | Chassis Mount |
|
B43704A4229M000CAP ALUM 22000UF 20% 350V SCREW |
3,004 | 263.54 |
RFQ |
Datasheet |
Bulk | B43704 | Active | 22000 µF | ±20% | 350 V | 3.4mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50.5 A @ 100 Hz | - | 6 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
MAL250034153E3CAP ALUM 15000UF 20% 420V SCREW |
2,490 | 263.85 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 15000 µF | ±20% | 420 V | 8mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 A @ 120 Hz | - | 6 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.795 (223.40mm) | - | Chassis Mount |
|
|
B43723A5129M050CAP ALUM 12000UF 20% 450V SCREW |
3,439 | 264.25 |
RFQ |
Datasheet |
Bulk | B43723 | Active | 12000 µF | ±20% | 450 V | 8.3mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30.1 A @ 100 Hz | - | 13 mOhms | 1.248 (31.70mm) | 3.027 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis Mount |
|
|
MAL210435103E3CAP ALUM 10000UF 20% 350V SCREW |
3,722 | 264.60 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 10000 µF | ±20% | 350 V | 20mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.5 A @ 100 Hz | - | 18 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL210445103E3CAP ALUM 10000UF 20% 350V SCREW |
2,296 | 264.60 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 10000 µF | ±20% | 350 V | 19mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20.5 A @ 100 Hz | - | 17 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.118 (155.40mm) | - | Chassis Mount |
|
|
MAL210475103E3CAP ALUM 10000UF 20% 350V SCREW |
2,312 | 264.60 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 10000 µF | ±20% | 350 V | 20mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.5 A @ 100 Hz | - | 18 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL210485103E3CAP ALUM 10000UF 20% 350V SCREW |
2,674 | 264.60 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 10000 µF | ±20% | 350 V | 19mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20.5 A @ 100 Hz | - | 17 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.118 (155.40mm) | - | Chassis Mount |
|
|
B43704A6109M000CAP ALUM 10000UF 20% 500V SCREW |
2,432 | 264.68 |
RFQ |
Datasheet |
Bulk | B43704 | Active | 10000 µF | ±20% | 500 V | 9.4mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30.4 A @ 100 Hz | - | 15 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
B43705A5129M000CAP ALUM 12000UF 20% 450V SCREW |
2,140 | 267.56 |
RFQ |
Datasheet |
Bulk | B43705 | Active | 12000 µF | ±20% | 450 V | 8.4mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41.1 A @ 100 Hz | - | 14 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
101C113T250DF2BCAP ALUM SCREW |
3,404 | 268.24 |
RFQ |
Datasheet |
Bulk | 101C | Active | - | - | - | - | - | - | - | - | - | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.687 (144.45mm) | - | Chassis Mount |
|
|
101C114U063DF1DSCAP ALUM SCREW |
2,948 | 292.31 |
RFQ |
Datasheet |
Bulk,Bulk | 101C | Active | - | - | - | - | - | - | - | - | - | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.687 (144.45mm) | - | Chassis, Stud Mount |
|
|
101C134U075DG2DCAP ALUM SCREW |
2,598 | 268.24 |
RFQ |
Datasheet |
Bulk | 101C | Active | - | - | - | - | - | - | - | - | - | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
|
101C164M063DN1BCAP ALUM SCREW |
2,777 | 268.24 |
RFQ |
Datasheet |
Bulk | 101C | Active | - | - | - | - | - | - | - | - | - | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 7.687 (195.25mm) | - | Chassis Mount |
|
|
101C184U063DG2DPCAP ALUM SCREW |
2,196 | 292.31 |
RFQ |
Datasheet |
Bulk,Bulk | 101C | Active | - | - | - | - | - | - | - | - | - | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis, Stud Mount |
|
|
101C284U040DN2DCAP ALUM SCREW |
2,092 | 268.24 |
RFQ |
Datasheet |
Bulk | 101C | Active | - | - | - | - | - | - | - | - | - | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 7.687 (195.25mm) | - | Chassis Mount |
