Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCX302U030L3CCAP ALUM 3000UF 30V AXIAL |
2,292 | 0.00 |
RFQ |
Datasheet |
Bulk | TCX | Obsolete | 3000 µF | -10%, +75% | 30 V | 39mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 4.643 A @ 120 Hz | 5.29 A @ 2.4 kHz | - | - | 0.875 Dia x 3.125 L (22.22mm x 79.38mm) | - | - | Through Hole |
|
TCX471U030J1CCAP ALUM 470UF 30V AXIAL |
2,974 | 0.00 |
RFQ |
Datasheet |
Bulk | TCX | Obsolete | 470 µF | -10%, +75% | 30 V | 214mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.149 A @ 120 Hz | 1.31 A @ 2.4 kHz | - | - | 0.750 Dia x 1.125 L (19.05mm x 28.58mm) | - | - | Through Hole |
|
TCX501U050G2CCAP ALUM 500UF 50V AXIAL |
3,996 | 0.00 |
RFQ |
Datasheet |
Bulk | TCX | Obsolete | 500 µF | -10%, +75% | 50 V | 155mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.624 A @ 120 Hz | 1.85 A @ 2.4 kHz | - | - | 0.625 Dia x 2.125 L (15.88mm x 53.98mm) | - | - | Through Hole |
|
TCX561U075L2LCAP ALUM 560UF 75V AXIAL |
3,057 | 0.00 |
RFQ |
Datasheet |
Bulk | TCX | Obsolete | 560 µF | -10%, +75% | 75 V | 115mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.491 A @ 120 Hz | 2.84 A @ 2.4 kHz | - | - | 0.875 Dia x 2.625 L (22.22mm x 66.68mm) | - | - | Through Hole |
|
|
TCX622U015L2LCAP ALUM 6200UF 15V AXIAL |
3,297 | 0.00 |
RFQ |
Datasheet |
Bulk | TCX | Obsolete | 6200 µF | -10%, +75% | 15 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.875 Dia (22.22mm) | - | - | Through Hole |
|
TCX650U075G1CCAP ALUM 65UF 75V AXIAL |
3,313 | 0.00 |
RFQ |
Datasheet |
Bulk | TCX | Obsolete | 65 µF | -10%, +75% | 75 V | 2.961Ohm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 419 mA @ 120 Hz | 477.66 mA @ 2.4 kHz | - | - | 0.625 Dia x 1.125 L (15.88mm x 28.58mm) | - | - | Through Hole |
|
TCX711U050N1GCAP ALUM 710UF 50V AXIAL |
2,674 | 0.00 |
RFQ |
Datasheet |
Bulk | TCX | Obsolete | 710 µF | -10%, +75% | 50 V | 118mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.989 A @ 120 Hz | 2.27 A @ 2.4 kHz | - | - | 1.000 Dia x 1.375 L (25.40mm x 34.93mm) | - | - | Through Hole |
|
TCX722U025N3LCAP ALUM 7200UF 25V AXIAL |
3,432 | 0.00 |
RFQ |
Datasheet |
Bulk | TCX | Obsolete | 7200 µF | -10%, +75% | 25 V | 23mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 6.882 A @ 120 Hz | 7.85 A @ 2.4 kHz | - | - | 1.000 Dia x 3.625 L (25.40mm x 92.08mm) | - | - | Through Hole |
|
|
TCX741U075N2LCAP ALUM 740UF 75V AXIAL |
3,138 | 0.00 |
RFQ |
Datasheet |
Bulk | TCX | Obsolete | 740 µF | -10%, +75% | 75 V | 90mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 3.033 A @ 120 Hz | 3.46 A @ 2.4 kHz | - | - | 1.000 Dia x 2.625 L (25.40mm x 66.68mm) | - | - | Through Hole |
|
|
TCX822U015N2LCAP ALUM 8200UF 15V AXIAL |
3,393 | 0.00 |
RFQ |
Datasheet |
Bulk | TCX | Obsolete | 8200 µF | -10%, +75% | 15 V | 25mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 5.796 A @ 120 Hz | 6.61 A @ 2.4 kHz | - | - | 1.000 Dia x 2.625 L (25.40mm x 66.68mm) | - | - | Through Hole |
|
TCX951U050N1LCAP ALUM 950UF 50V AXIAL |
3,550 | 0.00 |
RFQ |
Datasheet |
Bulk | TCX | Obsolete | 950 µF | -10%, +75% | 50 V | 89mOhm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.456 A @ 120 Hz | 2.8 A @ 2.4 kHz | - | - | 1.000 Dia x 1.625 L (25.40mm x 41.28mm) | - | - | Through Hole |
|

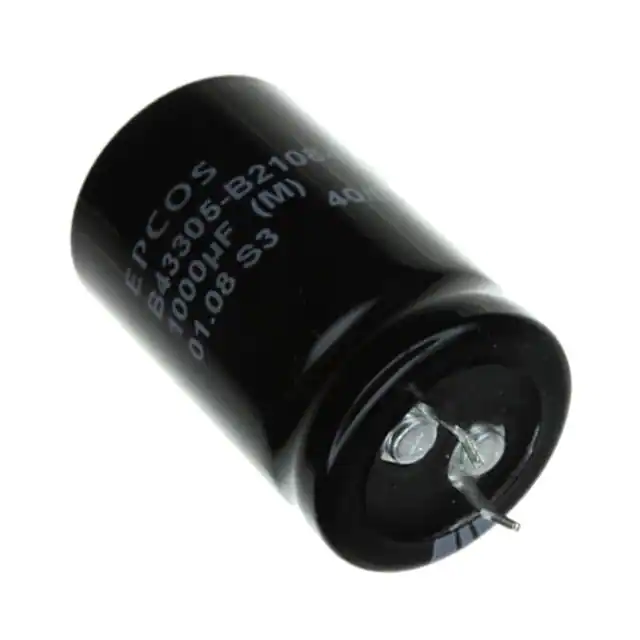

B43305B2108M000CAP ALUM 1000UF 20% 200V SNAP |
3,572 | 0.00 |
RFQ |
Datasheet |
Bulk | B43305 | Active | 1000 µF | ±20% | 200 V | 130mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.76 A @ 100 Hz | - | 180 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

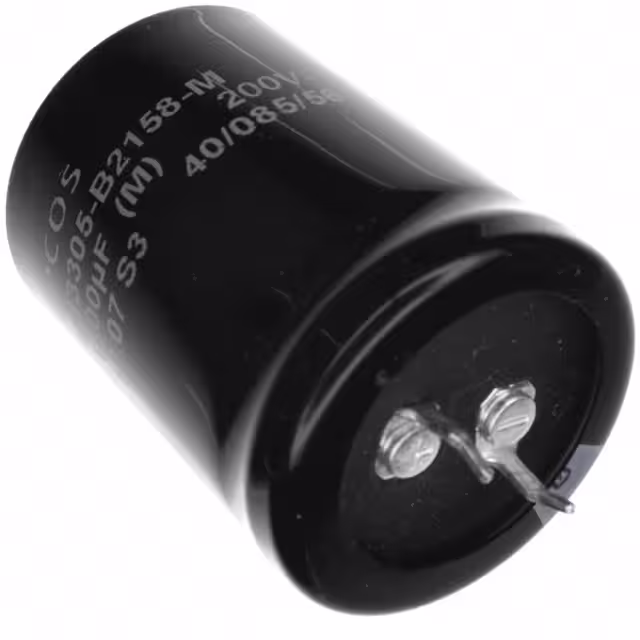

B43305B2158M000CAP ALUM 1500UF 20% 200V SNAP |
3,210 | 0.00 |
RFQ |
Datasheet |
Bulk | B43305 | Active | 1500 µF | ±20% | 200 V | 85mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.44 A @ 100 Hz | - | 120 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

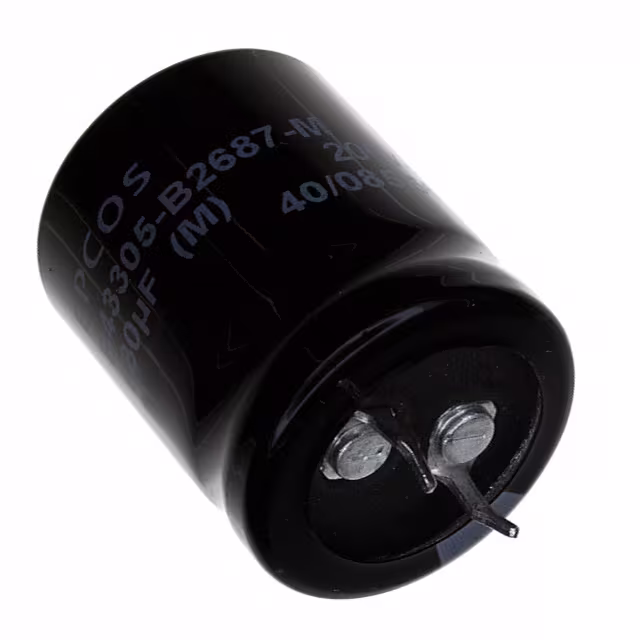

B43305B2687M000CAP ALUM 680UF 20% 200V SNAP |
3,332 | 0.00 |
RFQ |
Datasheet |
Bulk | B43305 | Active | 680 µF | ±20% | 200 V | 190mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 100 Hz | - | 260 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.181 (30.00mm) | - | Through Hole |
|

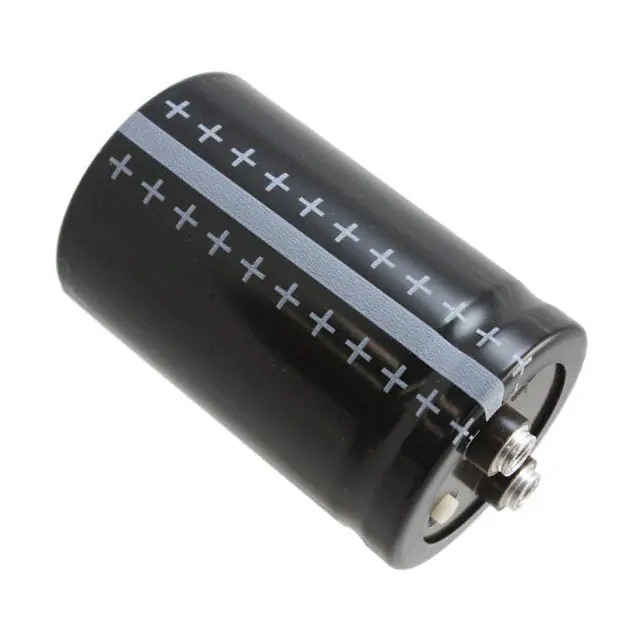

B43564A9108M000CAP ALUM 1000UF 20% 400V SCREW |
3,033 | 0.00 |
RFQ |
Datasheet |
Bulk | B43564 | Obsolete | 1000 µF | ±20% | 400 V | - | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount |
|
|
B43564B9228M000CAP ALUM 2200UF 20% 400V SCREW |
3,169 | 0.00 |
RFQ |
Datasheet |
Bulk | B43564 | Obsolete | 2200 µF | ±20% | 400 V | 72mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 100 Hz | - | 58 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.177 (80.70mm) | - | Chassis Mount |
|

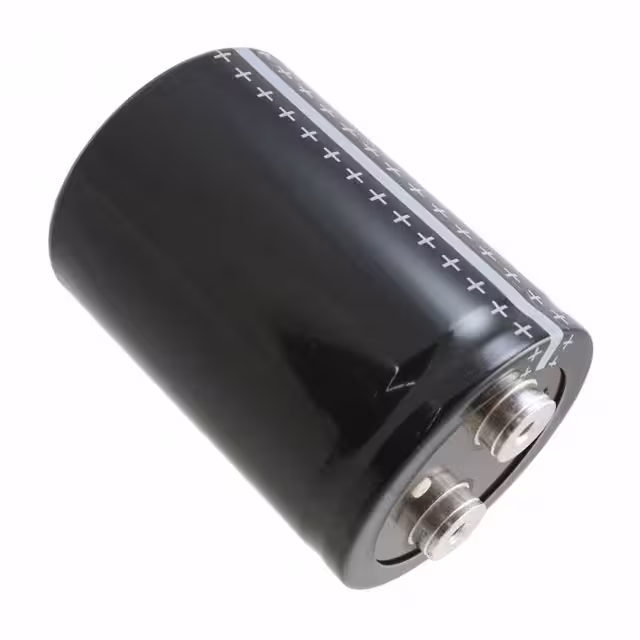

B43564A2688M000CAP ALUM 6800UF 20% 250V SCREW |
2,747 | 0.00 |
RFQ |
Datasheet |
Bulk | B43564 | Active | 6800 µF | ±20% | 250 V | 29mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14.5 A @ 100 Hz | - | 23 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.638 (143.20mm) | - | Chassis Mount |
|
B43584A9158M000CAP ALUM 1500UF 20% 400V SCREW |
2,227 | 0.00 |
RFQ |
Datasheet |
Bulk | B43584 | Obsolete | 1500 µF | ±20% | 400 V | 62mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 100 Hz | - | 74 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.177 (80.70mm) | - | Chassis, Stud Mount |
|
B43584A4158M000CAP ALUM 1500UF 20% 350V SCREW |
2,895 | 0.00 |
RFQ |
Datasheet |
Bulk | B43584 | Active | 1500 µF | ±20% | 350 V | 93mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.5 A @ 100 Hz | - | 93 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.161 (105.70mm) | - | Chassis, Stud Mount |
|
B43584A5228M000CAP ALUM 2200UF 20% 450V SCREW |
3,792 | 0.00 |
RFQ |
Datasheet |
Bulk | B43584 | Active | 2200 µF | ±20% | 450 V | 72mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.2 A @ 100 Hz | - | 65 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.161 (105.70mm) | - | Chassis, Stud Mount |
