Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41605A5688M009CAP ALUM 6800UF 20% 25V RADIAL |
2,574 | 0.00 |
RFQ |
Datasheet |
Tray | B41605 | Obsolete | 6800 µF | ±20% | 25 V | 19mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 6.9 A @ 10 kHz | 15 mOhms | 0.331 (8.40mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
B41605A7388M002CAP ALUM 3800UF 20% 40V SNAP |
2,471 | 0.00 |
RFQ |
Datasheet |
Tray | B41605 | Obsolete | 3800 µF | ±20% | 40 V | 22mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 6.9 A @ 10 kHz | 15 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
|
B41605A8158M002CAP ALUM 1500UF 20% 63V SNAP |
2,636 | 0.00 |
RFQ |
Datasheet |
Tray | B41605 | Active | 1500 µF | ±20% | 63 V | 39mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 4.9 A @ 10 kHz | 22 mOhms | 0.331 (8.40mm) | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
|
B41605A8278M009CAP ALUM 2700UF 20% 63V RADIAL |
3,764 | 0.00 |
RFQ |
Datasheet |
Tray | B41605 | Obsolete | 2700 µF | ±20% | 63 V | 21mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 8.8 A @ 10 kHz | 12 mOhms | 0.331 (8.40mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
B41607A0158M002CAP ALUM 1500UF 20% 55V SNAP |
2,914 | 0.00 |
RFQ |
Datasheet |
Tray | B41607 | Active | 1500 µF | ±20% | 55 V | 80mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | Automotive | - | 7.7 A @ 10 kHz | 14 mOhms | 0.331 (8.40mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
|
B41607A7208M002CAP ALUM 2000UF 20% 40V SNAP |
3,278 | 0.00 |
RFQ |
Datasheet |
Tray | B41607 | Active | 2000 µF | ±20% | 40 V | 80mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | Automotive | - | 7.7 A @ 10 kHz | 14 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
|
B41607A7278M009CAP ALUM 2700UF 20% 40V RADIAL |
3,648 | 0.00 |
RFQ |
Datasheet |
Tray | B41607 | Obsolete | 2700 µF | ±20% | 40 V | 60mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | Automotive | - | 9.7 A @ 10 kHz | 11 mOhms | 0.331 (8.40mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
B41607A8118M002CAP ALUM 1100UF 20% 63V SNAP |
2,407 | 0.00 |
RFQ |
Datasheet |
Tray | B41607 | Obsolete | 1100 µF | ±20% | 63 V | 80mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | Automotive | - | 7.6 A @ 10 kHz | 14 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
|
B41607A8158M009CAP ALUM 1500UF 20% 63V RADIAL |
3,090 | 0.00 |
RFQ |
Datasheet |
Tray | B41607 | Obsolete | 1500 µF | ±20% | 63 V | 65mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | Automotive | - | 9.7 A @ 10 kHz | 11 mOhms | 0.331 (8.40mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
B41607A8807M002CAP ALUM 800UF 20% 63V SNAP |
2,230 | 0.00 |
RFQ |
Datasheet |
Tray | B41607 | Obsolete | 800 µF | ±20% | 63 V | 115mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | Automotive | - | 5.4 A @ 10 kHz | 22 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
B41691A5158Q7CAP ALUM 1500UF 25V AXIAL |
3,879 | 0.00 |
RFQ |
Datasheet |
Tray | B41691 | Obsolete | 1500 µF | -10%, +30% | 25 V | 73mOhm @ 100Hz | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | - | 3.2 A @ 10 kHz | 39 mOhms | - | 0.630 Dia x 1.535 L (16.00mm x 39.00mm) | - | - | Through Hole |
|

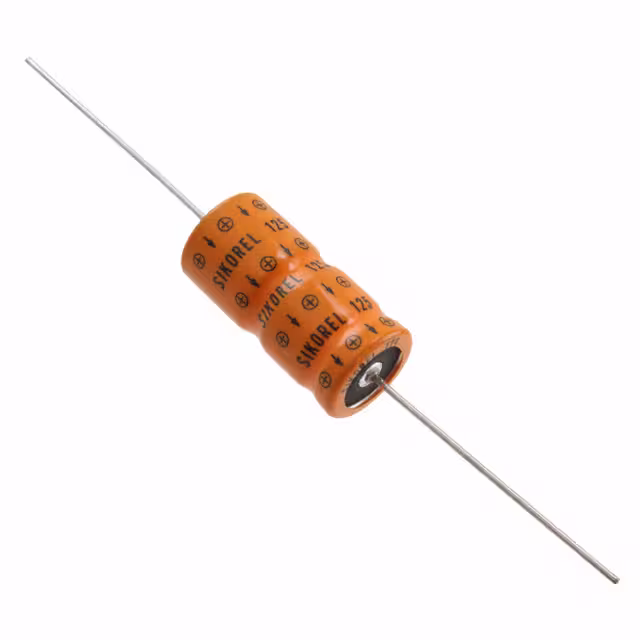

B41691A8227Q7CAP ALUM 220UF 63V AXIAL |
2,706 | 0.00 |
RFQ |
Datasheet |
Tray | B41691 | Obsolete | 220 µF | -10%, +30% | 63 V | 260mOhm @ 100Hz | 2000 Hrs @ 150°C | -55°C ~ 125°C | Polar | - | Automotive | - | 2.8 A @ 10 kHz | 76 mOhms | - | 0.551 Dia x 1.181 L (14.00mm x 30.00mm) | - | - | Through Hole |
|
|
B41692A8228Q7CAP ALUM 2200UF 63V AXIAL |
3,891 | 0.00 |
RFQ |
Datasheet |
Tray | B41692 | Obsolete | 2200 µF | -10%, +30% | 63 V | 25mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 8.5 A @ 10 kHz | 19 mOhms | - | 0.827 Dia x 1.929 L (21.00mm x 49.00mm) | - | - | Through Hole |
|
B41693A7108Q7CAP ALUM 1000UF 40V AXIAL |
3,336 | 0.00 |
RFQ |
Datasheet |
Tray | B41693 | Obsolete | 1000 µF | -10%, +30% | 40 V | 115mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.1 A @ 10 kHz | 62 mOhms | - | 0.709 Dia x 1.181 L (18.00mm x 30.00mm) | - | - | Through Hole |
|
|
B41693A7687Q7CAP ALUM 680UF 40V AXIAL |
3,008 | 0.00 |
RFQ |
Datasheet |
Tray | B41693 | Obsolete | 680 µF | -10%, +30% | 40 V | 160mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 2.85 A @ 10 kHz | 75 mOhms | - | 0.630 Dia x 1.181 L (16.00mm x 30.00mm) | - | - | Through Hole |
|
|
B41693A8227Q7CAP ALUM 220UF 63V AXIAL |
3,033 | 0.00 |
RFQ |
Datasheet |
Tray | B41693 | Obsolete | 220 µF | -10%, +30% | 63 V | 320mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 2.5 A @ 10 kHz | 102 mOhms | - | 0.551 Dia x 1.181 L (14.00mm x 30.00mm) | - | - | Through Hole |
|
|
B41693A8477Q7CAP ALUM 470UF 63V AXIAL |
2,140 | 0.00 |
RFQ |
Datasheet |
Tray | B41693 | Obsolete | 470 µF | -10%, +30% | 63 V | 150mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 4 A @ 10 kHz | 52 mOhms | - | 0.630 Dia x 1.535 L (16.00mm x 39.00mm) | - | - | Through Hole |
|
|
B41693A8687Q7CAP ALUM 680UF 63V AXIAL |
3,600 | 0.00 |
RFQ |
Datasheet |
Tray | B41693 | Obsolete | 680 µF | -10%, +30% | 63 V | 110mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 4.3 A @ 10 kHz | 44 mOhms | - | 0.709 Dia x 1.535 L (18.00mm x 39.00mm) | - | - | Through Hole |
|
B41694A5477Q7CAP ALUM 470UF 25V AXIAL |
3,580 | 0.00 |
RFQ |
Datasheet |
Tray | B41694 | Obsolete | 470 µF | -10%, +30% | 25 V | 160mOhm @ 100Hz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 2.35 A @ 10 kHz | 60 mOhms | - | 0.551 Dia x 0.984 L (14.00mm x 25.00mm) | - | - | Through Hole |
|

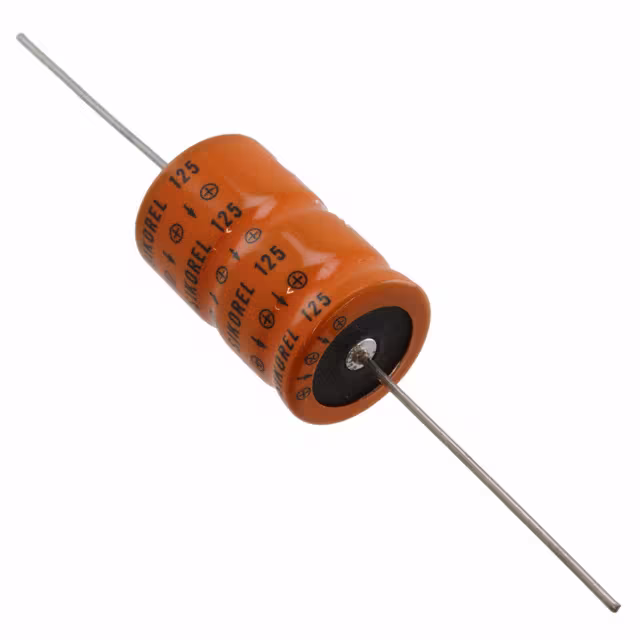

B41695A5228Q7CAP ALUM 2200UF 25V AXIAL |
3,101 | 0.00 |
RFQ |
Datasheet |
Tray | B41695 | Obsolete | 2200 µF | -10%, +30% | 25 V | 110mOhm @ 100Hz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 2.5 A @ 10 kHz | 80 mOhms | - | 0.709 Dia x 1.181 L (18.00mm x 30.00mm) | - | - | Through Hole |
