| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL204216229E3CAP ALUM 22UF 400V AXIAL |
1,438 | 5.07 |
RFQ |
Datasheet |
Bulk | 042 ASH | Active | 22 µF | -10%, +50% | 400 V | 3.5Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 290 mA @ 100 Hz | - | 2.1 Ohms | - | 0.709 Dia x 1.181 L (18.00mm x 30.00mm) | - | - | Through Hole |
|
MAL212016471E3CAP ALUM 470UF 20% 25V AXIAL |
736 | 5.17 |
RFQ |
Datasheet |
Bulk | 120 ATC | Active | 470 µF | ±20% | 25 V | 112mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.1 A @ 10 kHz | 84 mOhms | - | 0.394 Dia x 1.181 L (10.00mm x 30.00mm) | - | - | Through Hole |
|
MAL213659471E3CAP ALUM 470UF 20% 100V RADIAL |
666 | 5.17 |
RFQ |
Datasheet |
Bulk | 136 RVI | Active | 470 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 100 Hz | - | 45 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
|
MAL212017221E3CAP ALUM 220UF 20% 40V AXIAL |
423 | 5.18 |
RFQ |
Datasheet |
Bulk | 120 ATC | Active | 220 µF | ±20% | 40 V | 192mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 1.99 A @ 10 kHz | 124 mOhms | - | 0.394 Dia x 1.181 L (10.00mm x 30.00mm) | - | - | Through Hole |
|
|
MAL212018101E3CAP ALUM 100UF 20% 63V AXIAL |
330 | 5.18 |
RFQ |
Datasheet |
Bulk | 120 ATC | Active | 100 µF | ±20% | 63 V | 297mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 1.56 A @ 10 kHz | 249 mOhms | - | 0.394 Dia x 1.181 L (10.00mm x 30.00mm) | - | - | Through Hole |
|
|
MAL212016102E3CAP ALUM 1000UF 20% 25V AXIAL |
429 | 5.47 |
RFQ |
Datasheet |
Bulk | 120 ATC | Active | 1000 µF | ±20% | 25 V | 64mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.6 A @ 10 kHz | 55 mOhms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|
|
MAL212018221E3CAP ALUM 220UF 20% 63V AXIAL |
1,201 | 5.50 |
RFQ |
Datasheet |
Bulk | 120 ATC | Active | 220 µF | ±20% | 63 V | 149mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.15 A @ 10 kHz | 126 mOhms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|
|
MAL212019101E3CAP ALUM 100UF 20% 100V AXIAL |
247 | 5.62 |
RFQ |
Datasheet |
Bulk | 120 ATC | Active | 100 µF | ±20% | 100 V | 389mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 1.14 A @ 10 kHz | 381 mOhms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|
MAL212618681E3CAP ALUM 680UF 20% 63V AXIAL |
791 | 5.83 |
RFQ |
Datasheet |

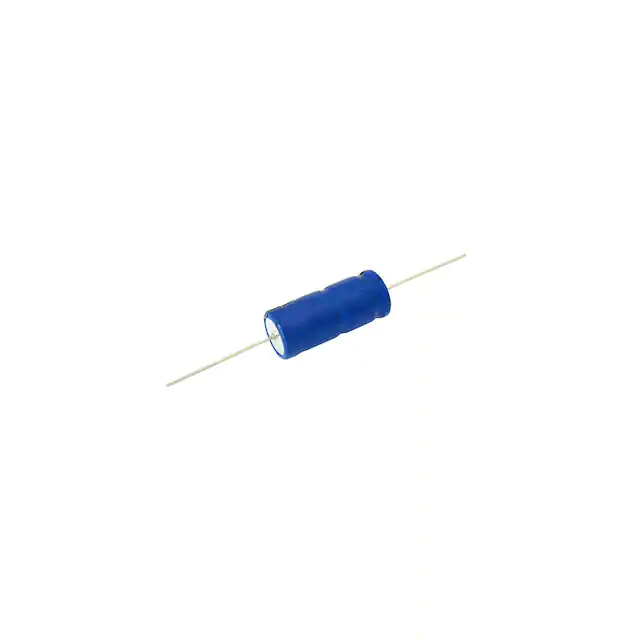

Bulk | 126 ALX | Active | 680 µF | ±20% | 63 V | 124mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1 A @ 100 Hz | 1.3 A @ 10 kHz | 74 mOhms | - | 0.709 Dia x 1.181 L (18.00mm x 30.00mm) | - | - | Through Hole |
|
MAL204315479E3CAP ALUM 47UF 350V AXIAL |
551 | 5.99 |
RFQ |
Datasheet |
Bulk | 043 ASH | Active | 47 µF | -10%, +50% | 350 V | 3.2Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 450 mA @ 100 Hz | - | 2.1 Ohms | - | 0.709 Dia x 1.496 L (18.00mm x 38.00mm) | - | - | Through Hole |
|
MAL214651222E3CAP ALUM 2200UF 20% 50V RADIAL |
1,017 | 6.04 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 2200 µF | ±20% | 50 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
|
MAL214650332E3CAP ALUM 3300UF 20% 35V RADIAL |
173 | 6.04 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 3300 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.1 A @ 100 kHz | 19 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
|
MAL204313101E3CAP ALUM 100UF 250V AXIAL |
783 | 6.69 |
RFQ |
Datasheet |
Bulk | 043 ASH | Active | 100 µF | -10%, +50% | 250 V | 1.5Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 650 mA @ 100 Hz | - | 1.1 Ohms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole |
|
MAL212515103E3CAP ALUM 10000UF 20% 16V AXIAL |
804 | 6.79 |
RFQ |

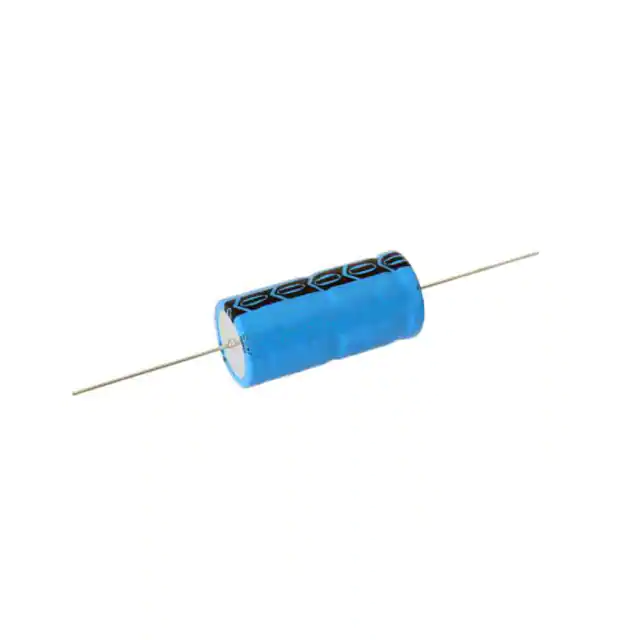

Box | 125 ALS | Active | 10000 µF | ±20% | 16 V | 48mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 100 Hz | 2.171 A @ 10 kHz | 62 mOhms | - | 0.709 Dia x 1.496 L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212517222E3CAP ALUM 2200UF 20% 40V AXIAL |
716 | 6.79 |
RFQ |
Box | 125 ALS | Active | 2200 µF | ±20% | 40 V | 84mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 100 Hz | 2.02 A @ 10 kHz | 69 mOhms | - | 0.709 Dia x 1.496 L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212618102E3CAP ALUM 1000UF 20% 63V AXIAL |
851 | 6.83 |
RFQ |
Datasheet |
Bulk | 126 ALX | Active | 1000 µF | ±20% | 63 V | 105mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.3 A @ 100 Hz | 1.69 A @ 10 kHz | 490 mOhms | - | 0.709 Dia x 1.496 L (18.00mm x 38.00mm) | - | - | Through Hole |
|
|
MAL204316479E3CAP ALUM 47UF 400V AXIAL |
279 | 6.92 |
RFQ |
Datasheet |
Bulk | 043 ASH | Active | 47 µF | -10%, +50% | 400 V | 1.7Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 450 mA @ 100 Hz | - | 1.1 Ohms | - | 0.709 Dia x 1.496 L (18.00mm x 38.00mm) | - | - | Through Hole |
|
MAL215759479E3CAP ALUM 47UF 20% 500V SNAP |
987 | 7.13 |
RFQ |
Datasheet |
Bulk | 157 PUM-SI | Active | 47 µF | ±20% | 500 V | 3.54Ohm @ 100Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | Audio | - | - | 2.93 Ohms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
MAL212017102E3CAP ALUM 1000UF 20% 40V AXIAL |
1,020 | 7.22 |
RFQ |
Datasheet |
Bulk | 120 ATC | Active | 1000 µF | ±20% | 40 V | 59mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 3.15 A @ 10 kHz | 49 mOhms | - | 0.709 Dia x 1.181 L (18.00mm x 30.00mm) | - | - | Through Hole |
|
|
MAL212018471E3CAP ALUM 470UF 20% 63V AXIAL |
363 | 7.58 |
RFQ |
Datasheet |
Bulk | 120 ATC | Active | 470 µF | ±20% | 63 V | 81mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.86 A @ 10 kHz | 74 mOhms | - | 0.709 Dia x 1.181 L (18.00mm x 30.00mm) | - | - | Through Hole |
