| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL212016472E3CAP ALUM 4700UF 20% 25V AXIAL |
3,824 | 7.58 |
RFQ |
Datasheet |
Bulk | 120 ATC | Active | 4700 µF | ±20% | 25 V | 27mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 4.47 A @ 10 kHz | 29 mOhms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole |
|
MAL216257332E3CAP ALUM 3300UF 20% 40V SNAP |
2,122 | 7.59 |
RFQ |
Datasheet |
Bulk | 162 PLL-PW | Active | 3300 µF | ±20% | 40 V | 60mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.17 A @ 100 Hz | - | 38 mOhms | - | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
|
MAL216258222E3CAP ALUM 2200UF 20% 63V SNAP |
2,109 | 7.59 |
RFQ |
Datasheet |
Bulk | 162 PLL-PW | Active | 2200 µF | ±20% | 63 V | 100mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.72 A @ 100 Hz | - | 79 mOhms | - | 1.181 Dia (30.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
MAL215628562E3CAP ALUM 5600UF 20% 63V SNAP |
2,176 | 7.59 |
RFQ |
Datasheet |
Bulk | 156 PUM-SI | Active | 5600 µF | ±20% | 63 V | 69mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.75 A @ 100 Hz | - | 45 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL215668562E3CAP ALUM 5600UF 20% 63V SNAP |
2,555 | 7.59 |
RFQ |
Datasheet |
Bulk | 156 PUM-SI | Active | 5600 µF | ±20% | 63 V | 69mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.75 A @ 100 Hz | - | 45 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
MAL215923561E3CAP ALUM 560UF 20% 250V SNAP |
2,245 | 7.59 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 560 µF | ±20% | 250 V | 425mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | - | 310 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
MAL215943561E3CAP ALUM 560UF 20% 250V SNAP |
3,562 | 7.59 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 560 µF | ±20% | 250 V | 425mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | - | 310 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
MAL215953561E3CAP ALUM 560UF 20% 250V SNAP |
3,076 | 7.59 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 560 µF | ±20% | 250 V | 425mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | - | 310 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
MAL215973561E3CAP ALUM 560UF 20% 250V SNAP |
2,691 | 7.59 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 560 µF | ±20% | 250 V | 425mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | - | 310 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

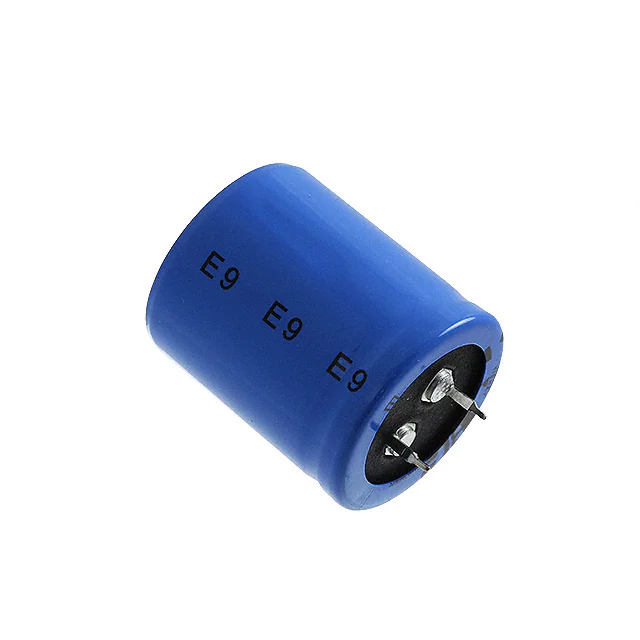

MAL209332152E3CAP ALUM 1500UF 20% 200V SNAP |
2,073 | 7.60 |
RFQ |
Datasheet |
Tape & Box (TB) | 093 PMG-SI | Active | 1500 µF | ±20% | 200 V | 120mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | - | 90 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
MAL209333821E3CAP ALUM 820UF 20% 250V SNAP |
2,398 | 7.60 |
RFQ |
Datasheet |
Tape & Box (TB) | 093 PMG-SI | Active | 820 µF | ±20% | 250 V | 190mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.23 A @ 120 Hz | - | 130 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL211847222E3CAP ALUM 2200UF 20% 40V T/H |
3,770 | 7.61 |
RFQ |
Datasheet |
Tape & Reel (TR) | 118 AHT | Active | 2200 µF | ±20% | 40 V | 105mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 1.54 A @ 100 Hz | - | 100 mOhms | - | 0.827 Dia (21.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
MAL215616183E3CAP ALUM 18000UF 20% 25V SNAP |
2,926 | 7.63 |
RFQ |
Datasheet |
Bulk | 156 PUM-SI | Active | 18000 µF | ±20% | 25 V | 41mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.06 A @ 100 Hz | - | 27 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
MAL215656183E3CAP ALUM 18000UF 20% 25V SNAP |
2,636 | 7.63 |
RFQ |
Datasheet |
Bulk | 156 PUM-SI | Active | 18000 µF | ±20% | 25 V | 41mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.06 A @ 100 Hz | - | 27 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
MAL205916151E3CAP ALUM 150UF 20% 400V SNAP |
2,403 | 7.63 |
RFQ |
Datasheet |
Tape & Box (TB) | 059 PLL-SI | Active | 150 µF | ±20% | 400 V | 1.35Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 100 Hz | - | 1.11 Ohms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
MAL205926151E3CAP ALUM 150UF 20% 400V SNAP |
2,106 | 7.63 |
RFQ |
Datasheet |
Tape & Box (TB) | 059 PLL-SI | Active | 150 µF | ±20% | 400 V | 1.35Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 100 Hz | - | 1.11 Ohms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
MAL205928151E3CAP ALUM 150UF 20% 385V SNAP |
3,321 | 7.63 |
RFQ |
Datasheet |
Tape & Box (TB) | 059 PLL-SI | Active | 150 µF | ±20% | 385 V | 850mOhm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 100 Hz | - | 675 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
MAL205936151E3CAP ALUM 150UF 20% 400V SNAP |
2,288 | 7.63 |
RFQ |
Datasheet |
Tape & Box (TB) | 059 PLL-SI | Active | 150 µF | ±20% | 400 V | 1.35Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 100 Hz | - | 1.11 Ohms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL219359221E3CAP ALUM 220UF 20% 500V SNAP |
2,624 | 7.63 |
RFQ |
Box | 193 PUR-SI | Active | 220 µF | ±20% | 500 V | 620mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 100 Hz | 2.295 A @ 10 kHz | 470 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole | |
|
|
MAL219319221E3CAP ALUM 220UF 20% 500V SNAP |
3,334 | 7.63 |
RFQ |
Box | 193 PUR-SI | Active | 220 µF | ±20% | 500 V | 620mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 100 Hz | 2.295 A @ 10 kHz | 470 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
