| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL205157682E3CAP ALUM 6800UF 20% 40V RADIAL |
2,048 | 9.24 |
RFQ |
Datasheet |
Tape & Box (TB) | 051 PEC-PW | Active | 6800 µF | ±20% | 40 V | 49mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.7 A @ 100 Hz | - | 38 mOhms | 0.787 (20.00mm) | 1.181 Dia (30.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
MAL215838472E3CAP ALUM 4700UF 20% 63V SNAP |
3,629 | 9.24 |
RFQ |
Datasheet |
Bulk | 158 PUL-SI | Active | 4700 µF | ±20% | 63 V | 52mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.22 A @ 100 Hz | - | 41 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
MAL215878472E3CAP ALUM 4700UF 20% 63V SNAP |
2,001 | 9.24 |
RFQ |
Datasheet |
Bulk | 158 PUL-SI | Active | 4700 µF | ±20% | 63 V | 52mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.22 A @ 100 Hz | - | 41 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

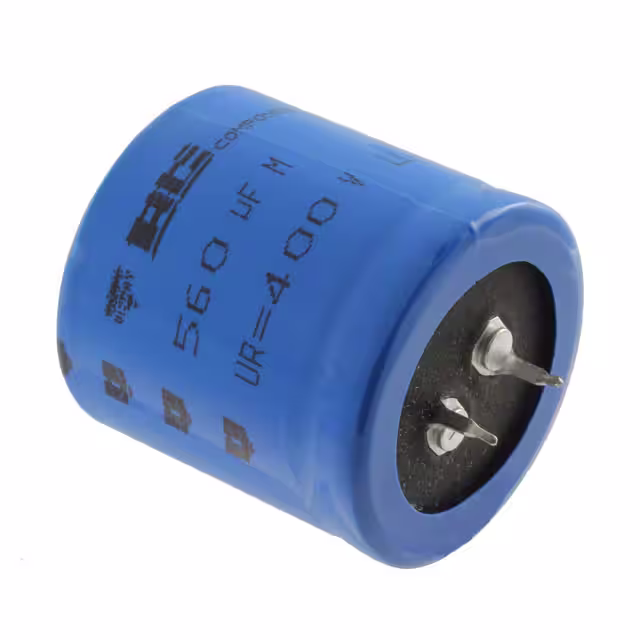

MAL209326561E3CAP ALUM 560UF 20% 400V SNAP |
2,552 | 9.25 |
RFQ |
Datasheet |
Bulk | 093 PMG-SI | Active | 560 µF | ±20% | 400 V | 340mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | - | 270 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL219329271E3CAP ALUM 270UF 20% 500V SNAP |
2,276 | 9.29 |
RFQ |
Box | 193 PUR-SI | Active | 270 µF | ±20% | 500 V | 530mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 100 Hz | 2.61 A @ 10 kHz | 400 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole | |
|
MAL219369271E3CAP ALUM 270UF 20% 500V SNAP |
3,322 | 9.29 |
RFQ |
Box | 193 PUR-SI | Active | 270 µF | ±20% | 500 V | 530mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 100 Hz | 2.61 A @ 10 kHz | 400 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole | |
|
MAL216258332E3CAP ALUM 3300UF 20% 63V SNAP |
3,412 | 9.30 |
RFQ |
Datasheet |
Bulk | 162 PLL-PW | Active | 3300 µF | ±20% | 63 V | 75mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.44 A @ 100 Hz | - | 61 mOhms | - | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
MAL209427331E3CAP ALUM 330UF 20% 450V SNAP |
3,247 | 9.32 |
RFQ |
Datasheet |
Tape & Box (TB) | 094 PME-SI | Active | 330 µF | ±20% | 450 V | 420mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.58 A @ 120 Hz | - | 320 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
MAL205159152E3CAP ALUM 1500UF 20% 100V RADIAL |
2,009 | 9.35 |
RFQ |
Datasheet |
Tape & Box (TB) | 051 PEC-PW | Active | 1500 µF | ±20% | 100 V | 95mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.95 A @ 100 Hz | - | 67 mOhms | 0.787 (20.00mm) | 1.181 Dia (30.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
MAL225923152E3CAP ALUM 1500UF 20% 250V SNAP |
2,270 | 9.35 |
RFQ |
Box | 259 PHM-SI | Active | 1500 µF | ±20% | 250 V | 100mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.71 A @ 100 Hz | 5.565 A @ 10 kHz | 70 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole | |
|
|
MAL225963152E3CAP ALUM 1500UF 20% 250V SNAP |
3,322 | 9.35 |
RFQ |
Box | 259 PHM-SI | Active | 1500 µF | ±20% | 250 V | 100mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.71 A @ 100 Hz | 5.565 A @ 10 kHz | 70 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole | |
|
MAL216353331E3CAP ALUM 330UF 20% 250V SNAP |
3,803 | 9.36 |
RFQ |
Datasheet |
Bulk | 163 PLL-PW | Active | 330 µF | ±20% | 250 V | 325mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 100 Hz | - | 240 mOhms | - | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
|
MAL215841822E3CAP ALUM 8200UF 20% 50V SNAP |
3,711 | 9.38 |
RFQ |
Datasheet |
Bulk | 158 PUL-SI | Active | 8200 µF | ±20% | 50 V | 61mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.88 A @ 100 Hz | - | 46 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL205768331E3CAP ALUM 330UF 20% 385V SNAP |
2,416 | 9.61 |
RFQ |
Datasheet |
Tape & Box (TB) | 057 PSM-SI | Active | 330 µF | ±20% | 385 V | 480mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.73 A @ 100 Hz | - | 280 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
MAL205788331E3CAP ALUM 330UF 20% 385V SNAP |
3,645 | 9.61 |
RFQ |
Datasheet |
Tape & Box (TB) | 057 PSM-SI | Active | 330 µF | ±20% | 385 V | 480mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.73 A @ 100 Hz | - | 280 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
MAL215881822E3CAP ALUM 8200UF 20% 50V SNAP |
2,973 | 9.38 |
RFQ |
Datasheet |
Bulk | 158 PUL-SI | Active | 8200 µF | ±20% | 50 V | 61mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.88 A @ 100 Hz | - | 46 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
MAL209426471E3CAP ALUM 470UF 20% 400V SNAP |
3,761 | 9.41 |
RFQ |
Datasheet |
Tape & Box (TB) | 094 PME-SI | Active | 470 µF | ±20% | 400 V | 370mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | - | 300 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL225726681E3CAP ALUM 680UF 20% 400V SNAP |
2,608 | 9.43 |
RFQ |
Box | 257 PRM-SI | Active | 680 µF | ±20% | 400 V | 300mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.84 A @ 100 Hz | 3.976 A @ 10 kHz | 250 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole | |
|
|
MAL225716681E3CAP ALUM 680UF 20% 400V SNAP |
2,257 | 9.43 |
RFQ |
Box | 257 PRM-SI | Active | 680 µF | ±20% | 400 V | 300mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.84 A @ 100 Hz | 3.976 A @ 10 kHz | 250 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole | |
|
|
MAL205928221E3CAP ALUM 220UF 20% 385V SNAP |
3,462 | 9.43 |
RFQ |
Datasheet |
Tape & Box (TB) | 059 PLL-SI | Active | 220 µF | ±20% | 385 V | 580mOhm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | - | 465 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
