| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL219317471E3CAP ALUM 470UF 20% 450V SNAP |
3,526 | 10.88 |
RFQ |
Box | 193 PUR-SI | Active | 470 µF | ±20% | 450 V | 180mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.53 A @ 100 Hz | 3.795 A @ 10 kHz | 110 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole | |
|
|
MAL205877103E3CAP ALUM 10000UF 20% 40V SNAP |
2,357 | 10.88 |
RFQ |
Datasheet |
Tape & Box (TB) | 058 PLL-SI | Active | 10000 µF | ±20% | 40 V | 46mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.18 A @ 100 Hz | - | 29 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
MAL205626223E3CAP ALUM 22000UF 20% 25V SNAP |
3,221 | 10.90 |
RFQ |
Datasheet |
Tape & Box (TB) | 056 PSM-SI | Active | 22000 µF | ±20% | 25 V | 36mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.96 A @ 100 Hz | - | 23 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
MAL205646223E3CAP ALUM 22000UF 20% 25V SNAP |
2,301 | 10.90 |
RFQ |
Datasheet |
Tape & Box (TB) | 056 PSM-SI | Active | 22000 µF | ±20% | 25 V | 36mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.96 A @ 100 Hz | - | 23 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

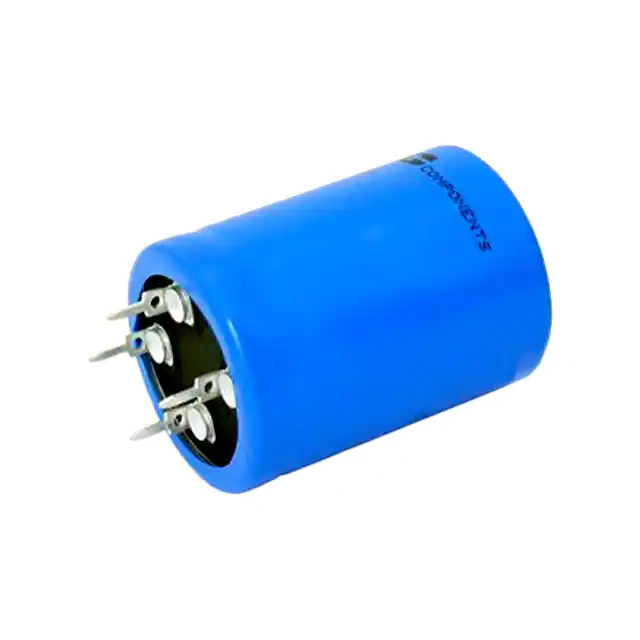

MAL205256221E3CAP ALUM 220UF 400V RADIAL |
3,281 | 10.94 |
RFQ |
Datasheet |
Tape & Box (TB) | 052 PED-PW | Active | 220 µF | -10%, +30% | 400 V | 650mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | - | 450 mOhms | 0.689 (17.50mm) | 1.378 Dia (35.00mm) | 2.165 (55.00mm) | - | Through Hole |
|
|
MAL205657153E3CAP ALUM 15000UF 20% 40V SNAP |
3,699 | 10.94 |
RFQ |
Datasheet |
Tape & Box (TB) | 056 PSM-SI | Active | 15000 µF | ±20% | 40 V | 49mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.05 A @ 100 Hz | - | 41 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
MAL205677153E3CAP ALUM 15000UF 20% 40V SNAP |
2,652 | 10.94 |
RFQ |
Datasheet |
Tape & Box (TB) | 056 PSM-SI | Active | 15000 µF | ±20% | 40 V | 49mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.05 A @ 100 Hz | - | 41 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
MAL209426561E3CAP ALUM 560UF 20% 400V SNAP |
2,163 | 10.95 |
RFQ |
Datasheet |
Tape & Box (TB) | 094 PME-SI | Active | 560 µF | ±20% | 400 V | 300mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | - | 240 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
MAL225956681E3CAP ALUM 680UF 20% 400V SNAP |
3,815 | 10.96 |
RFQ |
Box | 259 PHM-SI | Active | 680 µF | ±20% | 400 V | 220mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.79 A @ 100 Hz | 4.185 A @ 10 kHz | 170 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole | |
|
|
MAL225916681E3CAP ALUM 680UF 20% 400V SNAP |
2,491 | 10.96 |
RFQ |
Box | 259 PHM-SI | Active | 680 µF | ±20% | 400 V | 220mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.79 A @ 100 Hz | 4.185 A @ 10 kHz | 170 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole | |
|
MAL215847153E3CAP ALUM 15000UF 20% 40V SNAP |
3,689 | 10.99 |
RFQ |
Datasheet |
Bulk | 158 PUL-SI | Active | 15000 µF | ±20% | 40 V | 42mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.99 A @ 100 Hz | - | 35 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
MAL215887153E3CAP ALUM 15000UF 20% 40V SNAP |
3,441 | 10.99 |
RFQ |
Datasheet |
Bulk | 158 PUL-SI | Active | 15000 µF | ±20% | 40 V | 42mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.99 A @ 100 Hz | - | 35 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
MAL215983102E3CAP ALUM 1000UF 20% 250V SNAP |
2,242 | 11.19 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 1000 µF | ±20% | 250 V | 235mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | - | 180 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
MAL215839332E3CAP ALUM 3300UF 20% 100V SNAP |
2,062 | 11.35 |
RFQ |
Datasheet |
Bulk | 158 PUL-SI | Active | 3300 µF | ±20% | 100 V | 94mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.87 A @ 100 Hz | - | 87 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
MAL215879332E3CAP ALUM 3300UF 20% 100V SNAP |
2,929 | 11.35 |
RFQ |
Datasheet |
Bulk | 158 PUL-SI | Active | 3300 µF | ±20% | 100 V | 94mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.87 A @ 100 Hz | - | 87 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
MAL205952102E3CAP ALUM 1000UF 20% 200V SNAP |
2,026 | 11.57 |
RFQ |
Datasheet |
Tape & Box (TB) | 059 PLL-SI | Active | 1000 µF | ±20% | 200 V | 160mOhm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.45 A @ 100 Hz | - | 125 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
MAL205972102E3CAP ALUM 1000UF 20% 200V SNAP |
2,518 | 11.57 |
RFQ |
Datasheet |
Tape & Box (TB) | 059 PLL-SI | Active | 1000 µF | ±20% | 200 V | 160mOhm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.45 A @ 100 Hz | - | 125 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
MAL209422222E3CAP ALUM 2200UF 20% 200V SNAP |
2,514 | 11.57 |
RFQ |
Datasheet |
Tape & Box (TB) | 094 PME-SI | Active | 2200 µF | ±20% | 200 V | 100mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.02 A @ 120 Hz | - | 70 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
MAL209423122E3CAP ALUM 1200UF 20% 250V SNAP |
3,337 | 11.02 |
RFQ |
Datasheet |
Tape & Box (TB) | 094 PME-SI | Active | 1200 µF | ±20% | 250 V | 130mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.47 A @ 120 Hz | - | 100 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
MAL225923182E3CAP ALUM 1800UF 20% 250V SNAP |
2,703 | 11.04 |
RFQ |
Box | 259 PHM-SI | Active | 1800 µF | ±20% | 250 V | 80mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.42 A @ 100 Hz | 6.63 A @ 10 kHz | 60 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.244 (57.00mm) | - | Through Hole |
