| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210147104E3CAP ALUM 100000UF 20% 40V SCREW |
3,610 | 71.04 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 100000 µF | ±20% | 40 V | 7mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.3 A @ 100 Hz | - | 6 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL210187104E3CAP ALUM 100000UF 20% 40V SCREW |
3,454 | 71.04 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 100000 µF | ±20% | 40 V | 7mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.3 A @ 100 Hz | - | 6 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
MAL210432682E3CAP ALUM 6800UF 20% 200V SCREW |
2,466 | 71.31 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 6800 µF | ±20% | 200 V | 22mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.7 A @ 100 Hz | - | 14 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.358 (110.70mm) | - | Chassis Mount |
|
|
MAL210433472E3CAP ALUM 4700UF 20% 250V SCREW |
3,153 | 71.31 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 4700 µF | ±20% | 250 V | 28mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | - | 17 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.358 (110.70mm) | - | Chassis Mount |
|
|
MAL210472682E3CAP ALUM 6800UF 20% 200V SCREW |
2,365 | 71.31 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 6800 µF | ±20% | 200 V | 22mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.7 A @ 100 Hz | - | 14 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.358 (110.70mm) | - | Chassis Mount |
|
|
MAL210473472E3CAP ALUM 4700UF 20% 250V SCREW |
2,365 | 71.31 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 4700 µF | ±20% | 250 V | 28mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | - | 17 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.358 (110.70mm) | - | Chassis Mount |
|
MAL250079222E3CAP ALUM 2200UF 20% 500V SCREW |
2,675 | 71.48 |
RFQ |
Box | 500 PGP-ST | Active | 2200 µF | ±20% | 500 V | 99mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.74 A @ 100 Hz | 11.61 A @ 10 kHz | 91 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.165 (105.80mm) | - | Chassis Mount | |
|
MAL250039222E3CAP ALUM 2200UF 20% 500V SCREW |
3,431 | 71.48 |
RFQ |
Box | 500 PGP-ST | Active | 2200 µF | ±20% | 500 V | 99mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.74 A @ 100 Hz | 11.61 A @ 10 kHz | 91 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.165 (105.80mm) | - | Chassis Mount | |
|
|
MAL250015562E3CAP ALUM 5600UF 20% 350V SCREW |
2,362 | 72.25 |
RFQ |
Box | 500 PGP-ST | Active | 5600 µF | ±20% | 350 V | 22mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.5 A @ 100 Hz | 20.25 A @ 10 kHz | 15 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 4.205 (106.80mm) | - | Chassis Mount | |
|
|
MAL250055562E3CAP ALUM 5600UF 20% 350V SCREW |
2,167 | 72.25 |
RFQ |
Box | 500 PGP-ST | Active | 5600 µF | ±20% | 350 V | 22mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.5 A @ 100 Hz | 20.25 A @ 10 kHz | 15 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 4.205 (106.80mm) | - | Chassis Mount | |
|
MAL250139332E3CAP ALUM 3300UF 20% 500V SCREW |
3,747 | 90.51 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 3300 µF | ±20% | 500 V | 73mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.6 A @ 100 Hz | 18.9 A @ 10 kHz | 59 mOhms | 1.252 (31.80mm) | 3.520 Dia (89.40mm) | 5.949 (151.10mm) | - | Chassis Mount |
|
|
MAL210129223E3CAP ALUM 22000UF 20% 100V SCREW |
2,236 | 72.32 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 22000 µF | ±20% | 100 V | 9mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.4 A @ 100 Hz | - | 6 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL210169223E3CAP ALUM 22000UF 20% 100V SCREW |
3,937 | 72.32 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 22000 µF | ±20% | 100 V | 9mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.4 A @ 100 Hz | - | 6 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL210477152E3CAP ALUM 1500UF 20% 450V SCREW |
2,550 | 72.56 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 1500 µF | ±20% | 450 V | 77mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.3 A @ 100 Hz | - | 44 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.358 (110.70mm) | - | Chassis Mount |
|
MAL210616683E3CAP ALUM 68000UF 25V SCREW |
2,901 | 72.56 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 68000 µF | -10%, +30% | 25 V | 10mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | - | 10 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.402 (111.80mm) | - | Chassis Mount |
|
|
MAL210656683E3CAP ALUM 68000UF 25V SCREW |
2,853 | 72.56 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 68000 µF | -10%, +30% | 25 V | 10mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | - | 10 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.402 (111.80mm) | - | Chassis Mount |
|
MAL210245332E3CAP ALUM 3300UF 20% 350V SCREW |
2,562 | 72.77 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 3300 µF | ±20% | 350 V | 48mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | - | 35 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.358 (110.70mm) | - | Chassis Mount |
|
|
MAL210285332E3CAP ALUM 3300UF 20% 350V SCREW |
3,971 | 72.77 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 3300 µF | ±20% | 350 V | 48mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | - | 35 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.358 (110.70mm) | - | Chassis Mount |
|

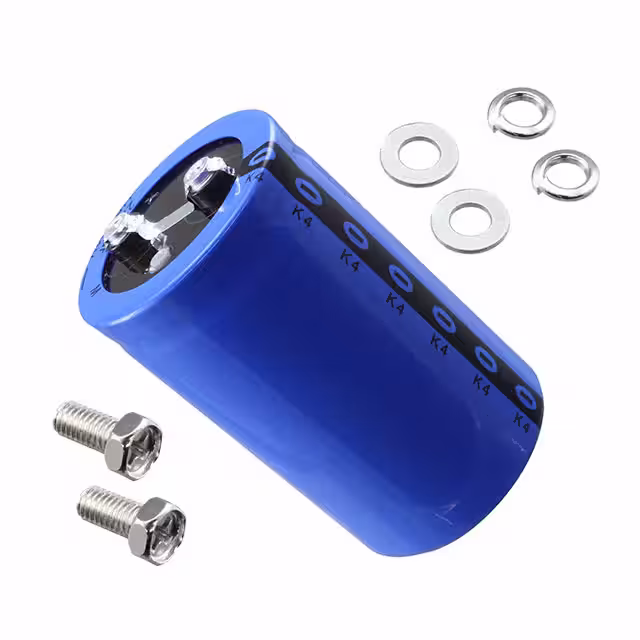

MAL250019222E3CAP ALUM 2200UF 20% 500V SCREW |
3,689 | 72.99 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 2200 µF | ±20% | 500 V | 99mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.74 A @ 100 Hz | 11.61 A @ 10 kHz | 91 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.173 (106.00mm) | - | Chassis Mount |
|
|
MAL210168473E3CAP ALUM 47000UF 20% 63V SCREW |
3,949 | 73.81 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 47000 µF | ±20% | 63 V | 8mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.6 A @ 100 Hz | - | 6 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
