| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210426222E3CAP ALUM 2200UF 20% 400V SCREW |
2,161 | 92.64 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 2200 µF | ±20% | 400 V | 56mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.4 A @ 100 Hz | - | 33 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL210466222E3CAP ALUM 2200UF 20% 400V SCREW |
2,158 | 92.64 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 2200 µF | ±20% | 400 V | 56mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.4 A @ 100 Hz | - | 33 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
MAL250036472E3CAP ALUM 4700UF 20% 400V SCREW |
2,309 | 92.70 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 4700 µF | ±20% | 400 V | 30mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 A @ 120 Hz | - | 25 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL250076472E3CAP ALUM 4700UF 20% 400V SCREW |
3,069 | 92.70 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 4700 µF | ±20% | 400 V | 30mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 A @ 120 Hz | - | 25 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
MAL210147154E3CAP ALUM 150000UF 20% 40V SCREW |
3,267 | 93.02 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 150000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL210187154E3CAP ALUM 150000UF 20% 40V SCREW |
3,340 | 93.02 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 150000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL250117562E3CAP ALUM 5600UF 20% 450V SCREW |
3,720 | 93.21 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 5600 µF | ±20% | 450 V | 34mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 100 Hz | 23.85 A @ 10 kHz | 24 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 4.598 (116.80mm) | - | Chassis Mount |
|
|
MAL250157562E3CAP ALUM 5600UF 20% 450V SCREW |
3,566 | 93.21 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 5600 µF | ±20% | 450 V | 34mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 100 Hz | 23.85 A @ 10 kHz | 24 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 4.598 (116.80mm) | - | Chassis Mount |
|
|
MAL211010602E3CAP ALUM 6000UF 300V SCREW |
3,093 | 93.66 |
RFQ |
Datasheet |
Bulk | 110 PHT-ST | Active | 6000 µF | -10%, +30% | 300 V | 17.6mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 20 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|
|
MAL211020602E3CAP ALUM 6000UF 300V SCREW |
2,752 | 93.66 |
RFQ |
Datasheet |
Bulk | 110 PHT-ST | Active | 6000 µF | -10%, +30% | 300 V | 25.3mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 20 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|
|
MAL211040602E3CAP ALUM 6000UF 300V SCREW |
2,482 | 93.66 |
RFQ |
Datasheet |
Bulk | 110 PHT-ST | Active | 6000 µF | -10%, +30% | 300 V | 25.3mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 20 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|
|
MAL211070602E3CAP ALUM 6000UF 300V SCREW |
2,154 | 93.66 |
RFQ |
Datasheet |
Bulk | 110 PHT-ST | Active | 6000 µF | -10%, +30% | 300 V | 25.3mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 20 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|
|
MAL211080602E3CAP ALUM 6000UF 300V SCREW |
3,322 | 93.66 |
RFQ |
Datasheet |
Bulk | 110 PHT-ST | Active | 6000 µF | -10%, +30% | 300 V | 25.3mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 20 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|
|
MAL211050602E3CAP ALUM 6000UF 300V SCREW |
2,147 | 93.66 |
RFQ |
Datasheet |
Bulk | 110 PHT-ST | Active | 6000 µF | -10%, +30% | 300 V | 25.3mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 20 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|
|
MAL211060602E3CAP ALUM 6000UF 300V SCREW |
2,772 | 93.66 |
RFQ |
Datasheet |
Bulk | 110 PHT-ST | Active | 6000 µF | -10%, +30% | 300 V | 25.3mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 20 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|

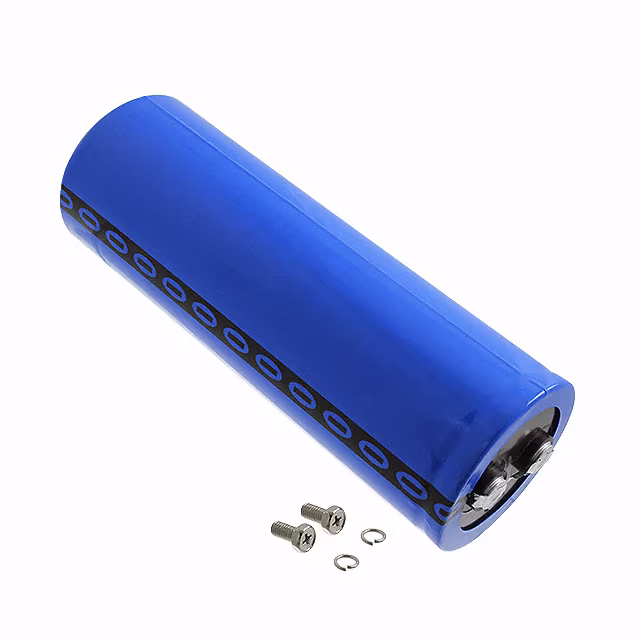

MAL211030602E3CAP ALUM 6000UF 300V SCREW |
3,418 | 93.66 |
RFQ |
Datasheet |
Bulk | 110 PHT-ST | Active | 6000 µF | -10%, +30% | 300 V | 25.3Ohm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 20 Ohms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|
|
MAL210425332E3CAP ALUM 3300UF 20% 350V SCREW |
2,667 | 94.26 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 3300 µF | ±20% | 350 V | 42mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.2 A @ 100 Hz | - | 26 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL210465332E3CAP ALUM 3300UF 20% 350V SCREW |
3,675 | 94.26 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 3300 µF | ±20% | 350 V | 42mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.2 A @ 100 Hz | - | 26 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL250014472E3CAP ALUM 4700UF 20% 420V SCREW |
3,229 | 94.43 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 4700 µF | ±20% | 420 V | 25mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.5 A @ 120 Hz | - | 19 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.791 (121.70mm) | - | Chassis Mount |
|
|
MAL250054472E3CAP ALUM 4700UF 20% 420V SCREW |
2,954 | 94.43 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 4700 µF | ±20% | 420 V | 25mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.5 A @ 120 Hz | - | 19 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.791 (121.70mm) | - | Chassis Mount |
