| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL225659472E3CAP ALUM 4700UF 20% 100V SNAP |
3,300 | 13.01 |
RFQ |
Datasheet |
Bulk | 256 PMG-SI | Active | 4700 µF | ±20% | 100 V | 56mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 3.96 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
MAL212614123E3CAP ALUM 12000UF 20% 10V AXIAL |
3,355 | 9.05 |
RFQ |
Datasheet |
Bulk | 126 ALX | Active | 12000 µF | ±20% | 10 V | 47mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.86 A @ 100 Hz | 2.232 A @ 10 kHz | 29 mOhms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole |
|
MAL211839478E3CAP ALUM 4.7UF 20% 100V AXIAL |
1,000 | 1.64 |
RFQ |
Datasheet |
Tape & Box (TB) | 118 AHT | Active | 4.7 µF | ±20% | 100 V | 24Ohm | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 50.4 mA @ 10 kHz | 19 Ohms | - | 0.256 Dia x 0.709 L (6.50mm x 18.00mm) | - | - | Through Hole |
|
MAL205756151E3CAP ALUM 150UF 20% 400V SNAP |
3,043 | 10.51 |
RFQ |
Datasheet |
Bulk | 057 PSM-SI | Active | 150 µF | ±20% | 400 V | 950mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.16 A @ 100 Hz | - | 520 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
MAL225749221E3CAP ALUM 220UF 20% 500V SNAP |
2,626 | 11.12 |
RFQ |
Box | 257 PRM-SI | Active | 220 µF | ±20% | 500 V | 960mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.72 A @ 100 Hz | 2.408 A @ 10 kHz | 840 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole | |
|
MAL215956331E3CAP ALUM 330UF 20% 400V SNAP |
3,443 | 15.89 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 330 µF | ±20% | 400 V | 640mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | - | 450 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
MAL225739391E3CAP ALUM 390UF 20% 500V SNAP |
3,923 | 15.98 |
RFQ |
Box | 257 PRM-SI | Active | 390 µF | ±20% | 500 V | 560mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.34 A @ 100 Hz | 3.276 A @ 10 kHz | 490 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole | |
|
|
MAL225726821E3CAP ALUM 820UF 20% 400V SNAP |
100 | 18.20 |
RFQ |
Box | 257 PRM-SI | Active | 820 µF | ±20% | 400 V | 250mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.18 A @ 100 Hz | 4.452 A @ 10 kHz | 210 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole | |
|
MAL205858682E3CAP ALUM 6800UF 20% 63V SNAP |
2,577 | 19.16 |
RFQ |
Datasheet |
Bulk | 058 PLL-SI | Active | 6800 µF | ±20% | 63 V | 46mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.58 A @ 100 Hz | - | 35 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
MAL219359391E3CAP ALUM 390UF 20% 500V SNAP |
100 | 21.16 |
RFQ |
Datasheet |
Bulk | 193 PUR-SI | Active | 390 µF | ±20% | 500 V | 360mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | 3.45 A @ 10 kHz | 270 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
MAL215919471E3CAP ALUM 470UF 20% 500V SNAP |
2,822 | 26.92 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 470 µF | ±20% | 500 V | 300mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | 3.136 A @ 10 kHz | 230 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.362 (60.00mm) | - | Through Hole |
|
MAL229956152E3CAP ALUM 1500UF 20% 400V SNAP |
2,187 | 44.25 |
RFQ |
Datasheet |
Bulk | 299 PHL-4TSI | Active | 1500 µF | ±20% | 400 V | 90mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.54 A @ 100 Hz | 8.31 A @ 10 kHz | 60 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 4.016 (102.00mm) | - | Through Hole |
|
MAL210436332E3CAP ALUM 3300UF 20% 400V SCREW |
3,399 | 146.16 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 3300 µF | ±20% | 400 V | 38mOhm | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 16.95 A @ 10 kHz | 23 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 4.378 (111.20mm) | - | Chassis Mount |
|
|
MAL210436472E3CAP ALUM 4700UF 20% 400V SCREW |
3,084 | 191.33 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 4700 µF | ±20% | 400 V | 27mOhm | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 20.7 A @ 10 kHz | 17 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 5.953 (151.20mm) | - | Chassis Mount |
|

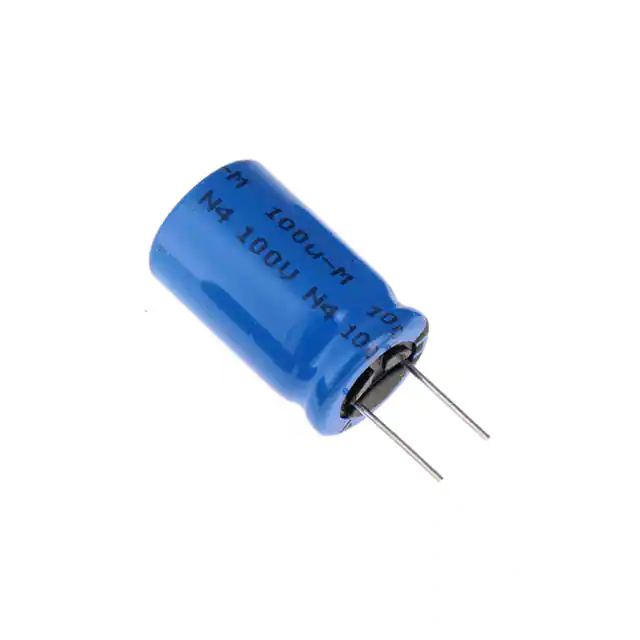

MAL213639101E3CAP ALUM 100UF 20% 100V RADIAL |
651 | 2.49 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 136 RVI | Active | 100 µF | ±20% | 100 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 100 Hz | - | 150 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
MAL213826221E3CAP ALUM 220UF 20% 25V AXIAL |
790 | 3.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 138 AML | Active | 220 µF | ±20% | 25 V | 940mOhm @ 100kHz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 270 mA @ 100 Hz | - | 270 mOhms | - | 0.394 Dia x 0.709 L (10.00mm x 18.00mm) | - | - | Through Hole |
|
MAL202190517E3CAP ALUM 1000UF 20% 16V AXIAL |
962 | 3.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 021 ASM | Active | 1000 µF | ±20% | 16 V | 260mOhm @ 100Hz | 2500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 660 mA @ 100 Hz | - | 180 mOhms | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
|
MAL202125102E3CAP ALUM 1000UF 20% 16V AXIAL |
990 | 3.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 021 ASM | Active | 1000 µF | ±20% | 16 V | 260mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 700 mA @ 100 Hz | - | 175 mOhms | - | 0.394 Dia x 1.181 L (10.00mm x 30.00mm) | - | - | Through Hole |
|
MAL213833471E3CAP ALUM 470UF 20% 6.3V AXIAL |
1,000 | 1.22 |
RFQ |
Datasheet |
Tape & Box (TB) | 138 AML | Active | 470 µF | ±20% | 6.3 V | 810mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 250 mA @ 100 Hz | 300 mA @ 10 kHz | 640 mOhms | - | 0.256 Dia x 0.709 L (6.50mm x 18.00mm) | - | - | Through Hole |
|
|
MAL213834221E3CAP ALUM 220UF 20% 10V AXIAL |
1,000 | 1.22 |
RFQ |
Datasheet |
Tape & Box (TB) | 138 AML | Active | 220 µF | ±20% | 10 V | 1.4Ohm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 190 mA @ 100 Hz | 228 mA @ 10 kHz | 910 mOhms | - | 0.256 Dia x 0.709 L (6.50mm x 18.00mm) | - | - | Through Hole |
