| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESL107M050AGMAACAP ALUM 100UF 20% 50V RADIAL |
3,063 | 0.36 |
RFQ |
Datasheet |
Bulk | ESL | Active | 100 µF | ±20% | 50 V | 120mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 362.5 mA @ 120 Hz | 725 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
EXV337M035A9PAACAP ALUM 330UF 20% 35V SMD |
2,450 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EXV | Active | 330 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 120 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EXV477M025A9PAACAP ALUM 470UF 20% 25V SMD |
2,428 | 1.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EXV | Active | 470 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 850 mA @ 100 kHz | 120 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
ESH477M025AG4AACAP ALUM 470UF 20% 25V RADIAL |
15,974 | 0.41 |
RFQ |
Datasheet |
Bulk | ESH | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 630 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.669 (17.00mm) | - | Through Hole |
|

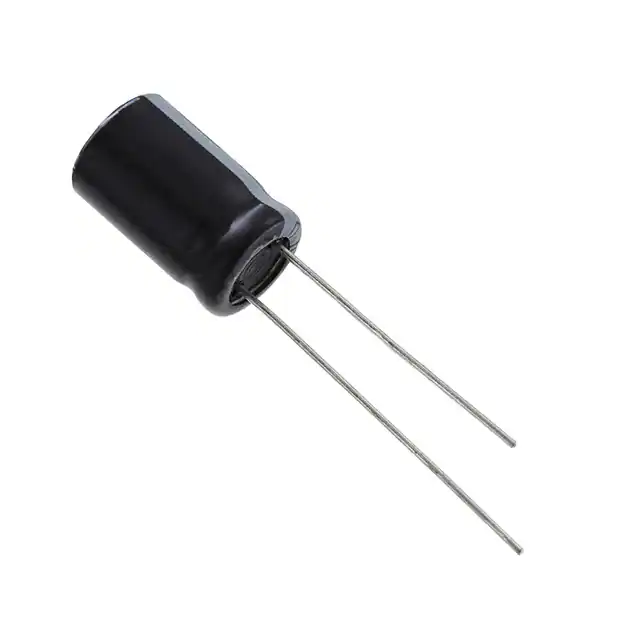

ESL106M200AG9AACAP ALUM 10UF 20% 200V RADIAL |
2,804 | 0.47 |
RFQ |
Datasheet |
Bulk | ESL | Active | 10 µF | ±20% | 200 V | 3.65Ohm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 87.5 mA @ 120 Hz | 175 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
ESL227M035AG8AACAP ALUM 220UF 20% 35V RADIAL |
3,234 | 0.48 |
RFQ |
Datasheet |
Bulk | ESL | Active | 220 µF | ±20% | 35 V | 48mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 1.02 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.709 (18.00mm) | - | Through Hole |
|
|

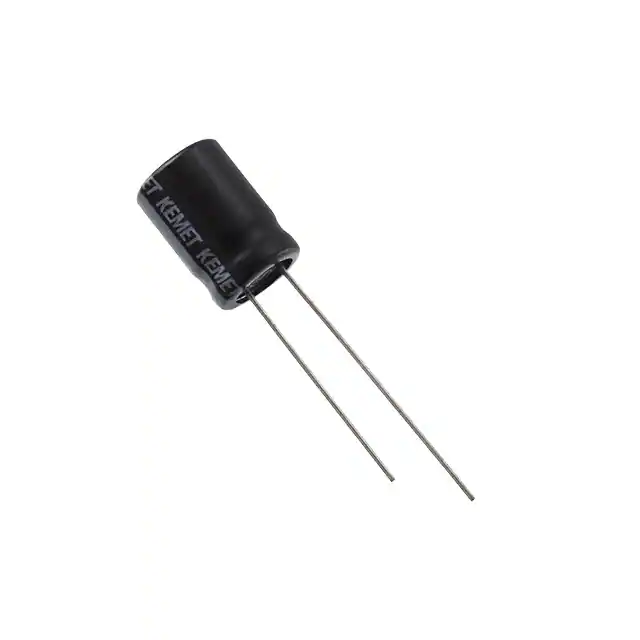

ESL337M025AGMAACAP ALUM 330UF 20% 25V RADIAL |
2,496 | 0.51 |
RFQ |
Datasheet |
Bulk | ESL | Active | 330 µF | ±20% | 25 V | 61mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 482.5 mA @ 120 Hz | 965 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
ESL476M100AH9AACAP ALUM 47UF 20% 100V RADIAL |
3,573 | 0.52 |
RFQ |
Datasheet |
Bulk | ESL | Active | 47 µF | ±20% | 100 V | 320mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 255 mA @ 120 Hz | 510 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
ESL477M025AH9AACAP ALUM 470UF 20% 25V RADIAL |
3,863 | 0.53 |
RFQ |
Datasheet |
Bulk | ESL | Active | 470 µF | ±20% | 25 V | 43mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 662.5 mA @ 120 Hz | 1.325 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|

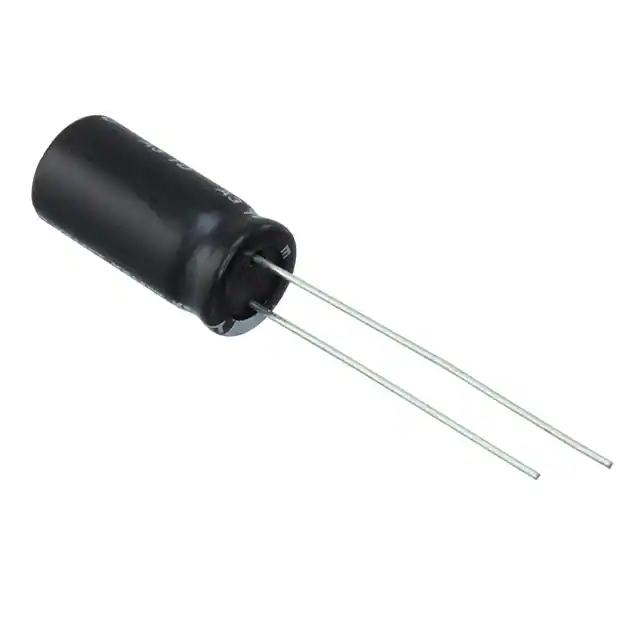

ESL107M063AG8AACAP ALUM 100UF 20% 63V RADIAL |
2,151 | 0.57 |
RFQ |
Datasheet |
Bulk | ESL | Active | 100 µF | ±20% | 63 V | 170mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 580 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.709 (18.00mm) | - | Through Hole |
|
ESS107M016AE2EACAP ALUM 100UF 20% 16V RADIAL |
2,372 | 0.27 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESS | Active | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 120 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.335 (8.50mm) | - | Through Hole |
|
|
ESS106M063AE2EACAP ALUM 10UF 20% 63V RADIAL |
3,513 | 0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESS | Active | 10 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 75 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.335 (8.50mm) | - | Through Hole |
|
ESK107M050AG3EACAP ALUM 100UF 20% 50V RADIAL |
3,031 | 0.36 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 345 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EDK106M035A9DAACAP ALUM 10UF 20% 35V SMD |
2,708 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 37.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.222 (5.64mm) | 0.209 L x 0.256 W (5.30mm x 6.50mm) | Surface Mount |
|
|
EDK226M016A9DAACAP ALUM 22UF 20% 16V SMD |
2,578 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 39 mA @ 120 Hz | 48.75 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.222 (5.64mm) | 0.209 L x 0.256 W (5.30mm x 6.50mm) | Surface Mount |
|
EEV226M035S9DAACAP ALUM 22UF 20% 35V SMD |
3,561 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 22 µF | ±20% | 35 V | 1Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 112 mA @ 120 Hz | 160 mA @ 100 kHz | 1 Ohms | - | 0.197 Dia (5.00mm) | 0.222 (5.65mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|

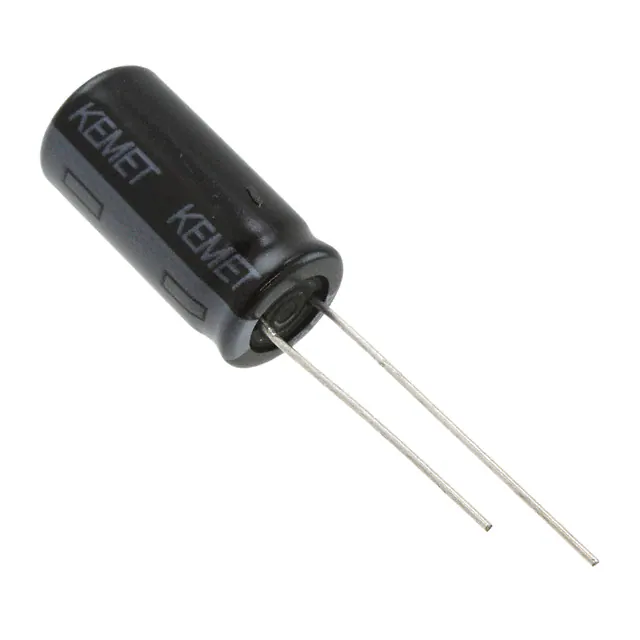

ESH477M050AH4AACAP ALUM 470UF 20% 50V RADIAL |
3,281 | 0.73 |
RFQ |
Datasheet |
Bulk | ESH | Active | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 945 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EDK476M025A9GAACAP ALUM 47UF 20% 25V SMD |
3,774 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 87.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EDK107M016A9GAACAP ALUM 100UF 20% 16V SMD |
3,228 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 87.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.222 (5.64mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
|
EDK476M035A9GAACAP ALUM 47UF 20% 35V SMD |
2,057 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 87.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.222 (5.64mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
