Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TurnsRatio-Primary:Secondary	Impedance-Primary(Ohms)	Impedance-Secondary(Ohms)	DCResistance(DCR)-Primary	DCResistance(DCR)-Secondary	TransformerType	FrequencyRange	FrequencyResponse	Voltage-Isolation	InsertionLoss	ReturnLoss	PowerLevel	OperatingTemperature	ApprovalAgency	MountingType	Size/Dimension	Height-Seated(Max)

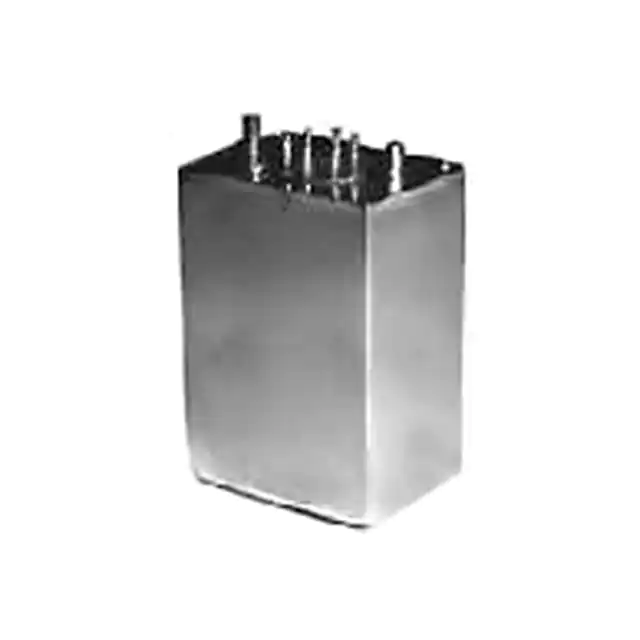

812 TRANSF AUDIO 150/600 12K/48K IMP Hammond Manufacturing	3,539	RFQ	Datasheet	Bulk	800	Obsolete	-	500, 125/125	40k, 10k/10k	3.11Ohm	1.432kOhm	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	750V	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
804 TRANSF AUDIO 150/600 150/600 IMP Hammond Manufacturing	2,249	RFQ	Datasheet	Bulk	800	Obsolete	-	500, 125/125	500, 125/125	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
802 TRANSFR AUDIO 60/240 150/600 IMP Hammond Manufacturing	2,626	RFQ	Datasheet	Bulk	800	Obsolete	-	200, 50/50	600, 150/150	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
808 TRANSFR AUDIO 50/200 10K/40K IMP Hammond Manufacturing	2,382	RFQ	Datasheet	Bulk	800	Active	-	200, 50/50	40k, 10k/10k	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
835 TRANSF AUDIO 10K/40K 10K/40K IMP Hammond Manufacturing	2,033	RFQ	Datasheet	Bulk	800	Obsolete	1:1	40k, 10k/10k	40k, 10k/10k	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
841 TRANSFMR AUDIO 5K/20K 50/200 IMP Hammond Manufacturing	3,019	RFQ	Datasheet	Bulk	800	Obsolete	-	20k, 5k/5k	200, 50/50	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	20dB Max	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
844 TRANSF AUDIO 12K/48K 150/600 IMP Hammond Manufacturing	2,996	RFQ	Datasheet	Bulk	800	Obsolete	-	40k, 10k/10k	500, 125/125	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	20dB Max	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
842 TRANSFR AUDIO 6K/24K 150/600 IMP Hammond Manufacturing	3,924	RFQ	Datasheet	Bulk	800	Obsolete	-	20k, 5k/5k	500, 125/125	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	20dB Max	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
813 TRANS AUDIO 150/600 720/2880 IMP Hammond Manufacturing	2,632	RFQ	Datasheet	Bulk	800	Obsolete	-	600, 150/150	2.4k, 600/600	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
140C TRANSFORMER AUDIO 50/60K IMPED Hammond Manufacturing	3,388	RFQ	Datasheet	Bulk	140	Obsolete	1:34:5	50	60k	-	-	Shielded	70Hz ~ 11kHz	±1dB	-	-	-	-	-	-	Chassis Mount	1.250 Dia (31.75mm)	1.000 (25.40mm)
806 TRANSFR AUDIO 7.5/30 10K/40K IMP Hammond Manufacturing	3,045	RFQ	Datasheet	Bulk	800	Obsolete	-	30, 7.5/7.5	40k, 10k/10k	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
1620A AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	3,059	RFQ	Datasheet	Box	A	Obsolete	-	6.6kCT	4, 8, 16	66.16Ohm, 74.93Ohm	170mOhm, 300mOhm, 440mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	20W	-	-	Chassis Mount	3.500 L x 2.500 W (88.90mm x 63.50mm)	3.060 (77.72mm)
140HEX TRANSFORMER AUDIO Hammond Manufacturing	2,162	RFQ		Bulk	140EX	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Chassis Mount	1.250 Dia (31.75mm)	1.000 (25.40mm)
616G TRANSFORMER Hammond Manufacturing	3,634	RFQ		Bulk	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
