| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

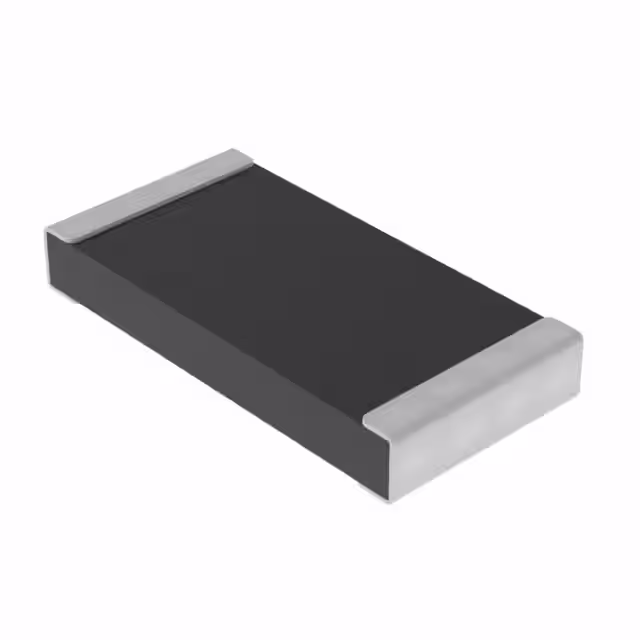

CSRF2010FT6L00RES 0.006 OHM 1% 1W 2010 |
3,680 | 0.76 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | CSRF | Active | 6 mOhms | ±1% | 1W | Metal Foil | Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 125°C | - | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.037 (0.95mm) | |
.jpg)
|
RHC2512FT6K80RES 6.8K OHM 1% 2W 2512 |
4,742 | 0.81 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | RHC | Active | 6.8 kOhms | ±1% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.248 L x 0.126 W (6.30mm x 3.20mm) | 0.028 (0.70mm) | |
|

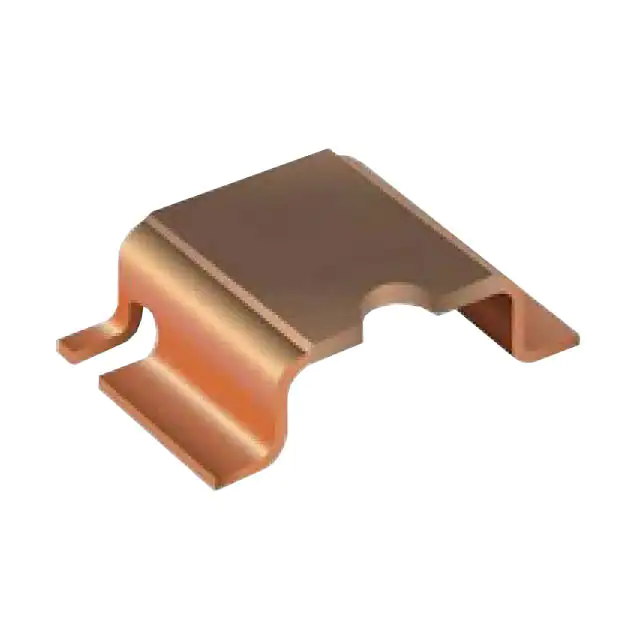

HCSK4026FTL500RES 0.0005 OHM 1% 5W 4026 SMD |
2,196 | 1.24 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCSK | Active | 500 µOhms | ±1% | 5W | Metal Element | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 170°C | - | 0.398 L x 0.260 W (10.10mm x 6.60mm) | 0.112 (2.84mm) | |
|
UHVB2010FCD500MRES 500M OHM 1% 2010 6KV |
943 | 12.21 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | UHV | Active | 500 MOhms | ±1% | - | - | High Voltage | ±100ppm/°C | -55°C ~ 150°C | - | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.030 (0.76mm) | |
|
RNCF0805TKW4K99RES 4.99K OHM, 0.01%, 2 PPM, 0.1 |
2,860 | 2.94 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RNCF | Active | 4.99 kOhms | ±0.01% | 0.125W, 1/8W | Thin Film | Automotive AEC-Q200 | ±2ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.026 (0.65mm) | |
|
HVCB2010FDD10M0RES 10M OHM 1% 1W 2010 |
4,936 | 3.12 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 10 MOhms | ±1% | 1W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | - | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.030 (0.76mm) | |
|
RMCF0603FG825RRES 825 OHM 1% 1/10W 0603 |
24,460 | 0.10 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RMCF | Active | 825 Ohms | ±1% | 0.1W, 1/10W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.061 L x 0.031 W (1.55mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
HVCB0603JDC470MRES 470M OHM 5% 0.06W 0603 |
1,835 | 4.16 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 470 MOhms | ±5% | 0.06W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
HVCB1206DKC10M0RES 10M OHM 0.5% 1/3W 1206 |
1,754 | 4.96 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 10 MOhms | ±0.5% | 0.333W, 1/3W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.030 (0.75mm) | |
.jpg)
|
HVCB0603JDL3G00RES 3G OHM 5% 0.06W 0603 |
2,002 | 4.96 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 3 GOhms | ±5% | 0.06W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±200ppm/°C | -55°C ~ 150°C | - | 0.063 L x 0.031 W (1.60mm x 0.79mm) | 0.020 (0.51mm) | |
|
|
RPC0805JT22R0-UPRES, PULSE, 0805, 5%, 22 OHM, 0. |
4,348 | 0.21 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 22 Ohms | ±5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
|
RPC0805JT68R0-UPRES, PULSE, 0805, 5%, 68 OHM, 0. |
3,522 | 0.21 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 68 Ohms | ±5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
|
RPC0805JT1K00-UPRES, PULSE, 0805, 5%, 1 KOHM, 0. |
3,307 | 0.21 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 1 kOhms | ±5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
|
RPC0805JT10K0-UPRES, PULSE, 0805, 5%, 10 KOHM, 0 |
6,497 | 0.21 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 10 kOhms | ±5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
|
HVCB2010FDC2M00RES 2M OHM 1% 1W 2010 |
721 | 5.24 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 2 MOhms | ±1% | 1W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.030 (0.76mm) | |
|
|
RPC0805JT1R00-UPRES, PULSE, 0805, 5%, 1 OHM, 0.5 |
21,588 | 0.25 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 1 Ohms | ±5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
|
RPC0805JT3R30-UPRES, PULSE, 0805, 5%, 3.3 OHM, 0 |
9,200 | 0.25 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 3.3 Ohms | ±5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
RPC1206JT15R0-UPRES, PULSE, 1206, 5%, 15 OHM, 0. |
8,750 | 0.28 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 15 Ohms | ±5% | 0.75W, 3/4W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.061 W (3.10mm x 1.55mm) | 0.026 (0.65mm) | |
|
|
RPC1206JT47R0-UPRES, PULSE, 1206, 5%, 47 OHM, 0. |
6,105 | 0.28 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 47 Ohms | ±5% | 0.75W, 3/4W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.061 W (3.10mm x 1.55mm) | 0.026 (0.65mm) | |
|
|
RPC1206JT100R-UPRES, PULSE, 1206, 5%, 100 OHM, 0 |
4,762 | 0.28 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 100 Ohms | ±5% | 0.75W, 3/4W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.061 W (3.10mm x 1.55mm) | 0.026 (0.65mm) |
