Chip Resistor - Surface Mount(648583)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)
TNPW06039K76BECN RES 9.76K OHM 0.1% 1/10W 0603 Vishay Dale	2,115	0.42	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	TNPW	Active	9.76 kOhms	±0.1%	0.1W, 1/10W	Thin Film	Military	±25ppm/°C	-55°C ~ 125°C	-	0.061 L x 0.033 W (1.55mm x 0.85mm)	0.022 (0.55mm)
TNPW120611K3BECN RES 11.3K OHM 0.1% 1/4W 1206 Vishay Dale	2,749	0.42	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	TNPW	Active	11.3 kOhms	±0.1%	0.25W, 1/4W	Thin Film	Military	±25ppm/°C	-55°C ~ 125°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.026 (0.65mm)
TNPW1206121KBECN RES 121K OHM 0.1% 1/4W 1206 Vishay Dale	3,399	0.42	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	TNPW	Active	121 kOhms	±0.1%	0.25W, 1/4W	Thin Film	Military	±25ppm/°C	-55°C ~ 125°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.026 (0.65mm)
TNPW120613K0BECN RES 13K OHM 0.1% 1/4W 1206 Vishay Dale	2,749	0.42	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	TNPW	Active	13 kOhms	±0.1%	0.25W, 1/4W	Thin Film	Military	±25ppm/°C	-55°C ~ 125°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.026 (0.65mm)
TNPW12061K54BECN RES 1.54K OHM 0.1% 1/4W 1206 Vishay Dale	3,547	0.42	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	TNPW	Active	1.54 kOhms	±0.1%	0.25W, 1/4W	Thin Film	Military	±25ppm/°C	-55°C ~ 125°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.026 (0.65mm)
TNPW1206208KBECN RES 208K OHM 0.1% 1/4W 1206 Vishay Dale	3,487	0.42	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	TNPW	Active	208 kOhms	±0.1%	0.25W, 1/4W	Thin Film	Military	±25ppm/°C	-55°C ~ 125°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.026 (0.65mm)
TNPW1206305RBECN RES 305 OHM 0.1% 1/4W 1206 Vishay Dale	2,797	0.42	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	TNPW	Active	305 Ohms	±0.1%	0.25W, 1/4W	Thin Film	Military	±25ppm/°C	-55°C ~ 125°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.026 (0.65mm)
TNPW120678R7BECN RES 78.7 OHM 0.1% 1/4W 1206 Vishay Dale	3,522	0.42	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	TNPW	Active	78.7 Ohms	±0.1%	0.25W, 1/4W	Thin Film	Military	±25ppm/°C	-55°C ~ 125°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.026 (0.65mm)
TNPW120681K6BECN RES 81.6K OHM 0.1% 1/4W 1206 Vishay Dale	3,219	0.42	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	TNPW	Active	81.6 kOhms	±0.1%	0.25W, 1/4W	Thin Film	Military	±25ppm/°C	-55°C ~ 125°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.026 (0.65mm)
ESR25JZPJ301 RES SMD 300 OHM 5% 2/3W 1210 Rohm Semiconductor	3,528	0.42	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	ESR	Active	300 Ohms	±5%	0.667W, 2/3W	Thick Film	Automotive AEC-Q200, Pulse Withstanding	±200ppm/°C	-55°C ~ 155°C	AEC-Q200	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.026 (0.65mm)

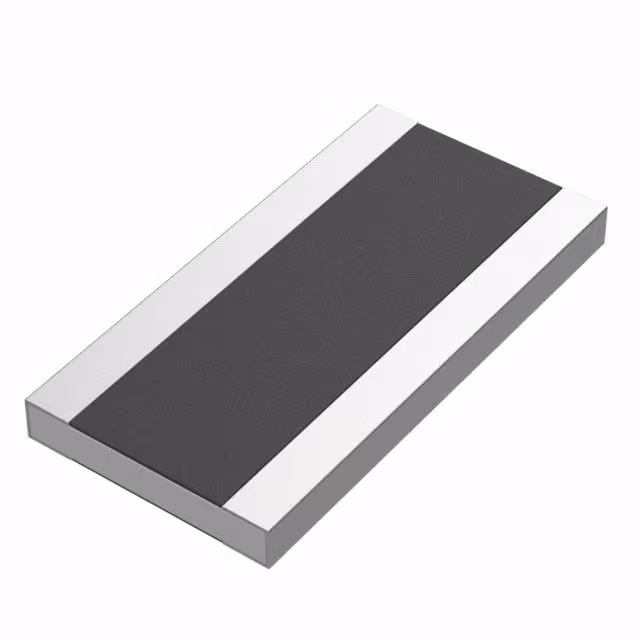

561020163012 RES 430 OHM 5% 2W 1225 Würth Elektronik	3,984	0.42	RFQ	Datasheet	Wide 2512 (6432 Metric), 1225	Tape & Reel (TR),Cut Tape (CT)	WRIS-KWKB	Active	430 Ohms	±5%	2W	Thick Film	Current Sense	200ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.248 W (3.20mm x 6.30mm)	0.026 (0.65mm)
561020163016 RES 2.2 OHM 1% 2W 1225 Würth Elektronik	3,337	0.42	RFQ	Datasheet	Wide 2512 (6432 Metric), 1225	Tape & Reel (TR),Cut Tape (CT)	WRIS-KWKB	Active	2.2 Ohms	±1%	2W	Thick Film	Current Sense	±200ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.248 W (3.20mm x 6.30mm)	0.026 (0.65mm)
HCS3920JT3L00 RES SHUNT, 3920, 0.003 OHM, 5% Stackpole Electronics Inc	2,730	0.00	RFQ	Datasheet	-55°C ~ 170°C	Tape & Reel (TR),Cut Tape (CT)	HCS	Active	3 mOhms	±5%	3W	Metal Element	Automotive AEC-Q200, Current Sense, Moisture Resistant	±50ppm/°C	3920	AEC-Q200	0.402 L x 0.205 W (10.20mm x 5.20mm)
HCS3920FT3L00 RES SHUNT, 3920, 0.003 OHM, 1% Stackpole Electronics Inc	3,642	0.00	RFQ	Datasheet	-55°C ~ 170°C	Tape & Reel (TR),Cut Tape (CT)	HCS	Active	3 mOhms	±1%	3W	Metal Element	Automotive AEC-Q200, Current Sense, Moisture Resistant	±50ppm/°C	3920	AEC-Q200	0.402 L x 0.205 W (10.20mm x 5.20mm)
HCS3920FT5L00 RES SHUNT, 3920, 0.005 OHM, 1% Stackpole Electronics Inc	2,017	0.00	RFQ	Datasheet	-55°C ~ 170°C	Tape & Reel (TR),Cut Tape (CT)	HCS	Active	5 mOhms	±1%	2W	Metal Element	Automotive AEC-Q200, Current Sense, Moisture Resistant	±50ppm/°C	3920	AEC-Q200	0.402 L x 0.205 W (10.20mm x 5.20mm)
SBM20R003JER 5W 0.003 OHMS 5% Ohmite	3,162	0.42	RFQ	Datasheet	Strip, C Bend	Tape & Reel (TR)	SB	Active	3 mOhms	±5%	5W	Metal Element	Current Sense	±70ppm/°C	-55°C ~ 155°C	-	0.440 L x 0.125 W (11.18mm x 3.18mm)	0.168 (4.27mm)
SBK20R010JER 5W 0.01 OHMS 5% Ohmite	3,756	0.42	RFQ	Datasheet	Strip, C Bend	Tape & Reel (TR)	SB	Active	10 mOhms	±5%	5W	Metal Element	Current Sense	±40ppm/°C	-55°C ~ 155°C	-	0.447 L x 0.250 W (11.35mm x 6.35mm)	0.180 (4.57mm)
SBK20R005JER 5W 0.005 OHMS 5% Ohmite	3,296	0.42	RFQ	Datasheet	Strip, C Bend	Tape & Reel (TR)	SB	Active	5 mOhms	±5%	5W	Metal Element	Current Sense	±40ppm/°C	-55°C ~ 155°C	-	0.447 L x 0.250 W (11.35mm x 6.35mm)	0.180 (4.57mm)
SBM20R002JER 5W 0.002 OHMS 5% Ohmite	3,211	0.42	RFQ	Datasheet	Strip, C Bend	Tape & Reel (TR)	SB	Active	2 mOhms	±5%	5W	Metal Element	Current Sense	±70ppm/°C	-55°C ~ 155°C	-	0.440 L x 0.140 W (11.18mm x 3.56mm)	0.168 (4.27mm)
SBK20R015JER 5W 0.015 OHMS 5% Ohmite	2,166	0.42	RFQ	Datasheet	Strip, C Bend	Tape & Reel (TR)	SB	Active	15 mOhms	±5%	5W	Metal Element	Current Sense	±40ppm/°C	-55°C ~ 155°C	-	0.447 L x 0.250 W (11.35mm x 6.35mm)	0.180 (4.57mm)
