| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1879502-4CRGH2512 5% 820K 2W |
8,000 | 0.17 |
RFQ |
Datasheet |
- | Box | * | Active | - | - | - | - | - | - | - | - | - | - | |
|
7-1614964-3CPF 1206 390R 0.1% 25PPM 1K RL |
6,000 | 0.19 |
RFQ |
Datasheet |
- | Box | * | Active | - | - | - | - | - | - | - | - | - | - | |
|
3-2176156-1TLM 1206 0.5W R051 1% 50PPM 5K R |
5,000 | 0.20 |
RFQ |
Datasheet |
- | Box | * | Active | - | - | - | - | - | - | - | - | - | - | |
|
|
3-2176156-2TLM 1206 0.5W R056 1% 50PPM 5K R |
5,000 | 0.20 |
RFQ |
Datasheet |
- | Box | * | Active | - | - | - | - | - | - | - | - | - | - | |
|
1-2176058-2RES 30M OHM 5% 2W 2512 2K RL |
6,000 | 0.22 |
RFQ |
Datasheet |
2512 (6432 Metric) | Box | RL73, CGS | Active | 30 mOhms | ±5% | 2W | Thick Film | Current Sense | ±400ppm/°C | -55°C ~ 155°C | - | 0.250 L x 0.124 W (6.35mm x 3.15mm) | 0.028 (0.70mm) | |
|

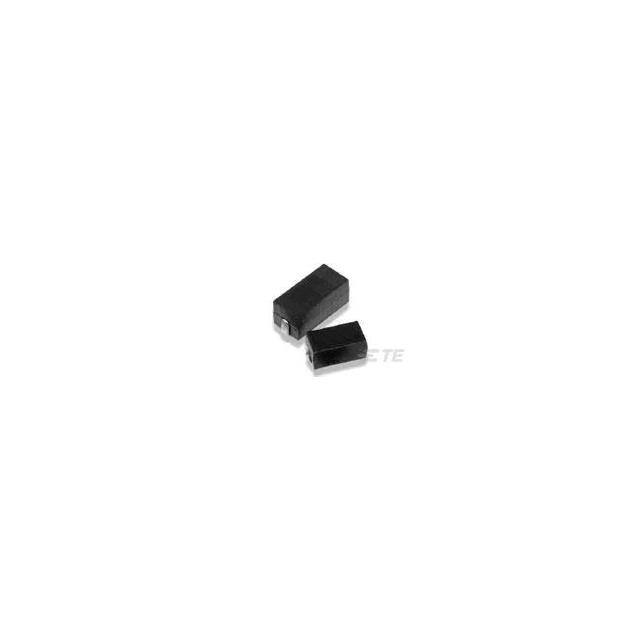

1-1879022-9RES 1.8K OHM 5% 3W SMD |
9,000 | 0.22 |
RFQ |
Datasheet |
4122 (10555 Metric), J-Lead | Box | SMF, CGS | Active | 1.8 kOhms | ±5% | 3W | Metal Film | Flame Retardant Coating, Safety | ±100ppm/°C | -80°C ~ 280°C | - | 0.413 L x 0.217 W (10.50mm x 5.50mm) | 0.209 (5.30mm) | |
|
|
3-2176155-2TLM 0805 0.25W R056 1% 50PPM 5K |
5,000 | 0.22 |
RFQ |
Datasheet |
- | Box | * | Active | - | - | - | - | - | - | - | - | - | - | |
|
1-2176156-5RES 11M OHM 1% 1/2W 1206 5K |
5,000 | 0.23 |
RFQ |
Datasheet |
1206 (3216 Metric) | Box | TLM, CGS | Active | 11 mOhms | ±1% | 0.5W, 1/2W | Metal Foil | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 0.120 L x 0.061 W (3.05mm x 1.55mm) | 0.029 (0.73mm) | |
|
|
1-2176156-8RES 15M OHM 1% 1/2W 1206 5K |
5,000 | 0.23 |
RFQ |
Datasheet |
1206 (3216 Metric) | Box | TLM, CGS | Active | 15 mOhms | ±1% | 0.5W, 1/2W | Metal Foil | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 0.120 L x 0.061 W (3.05mm x 1.55mm) | 0.029 (0.73mm) | |
|
|
1-2176058-1RES 27M OHM 5% 2W 2512 2K RL |
4,000 | 0.23 |
RFQ |
Datasheet |
2512 (6432 Metric) | Box | RL73, CGS | Active | 27 mOhms | ±5% | 2W | Thick Film | Current Sense | ±400ppm/°C | -55°C ~ 155°C | - | 0.250 L x 0.124 W (6.35mm x 3.15mm) | 0.028 (0.70mm) | |
|
|
1-2176155-5RES 11M OHM 1% 1/4W 0805 5K |
5,000 | 0.26 |
RFQ |
Datasheet |
0805 (2012 Metric) | Box | TLM, CGS | Active | 11 mOhms | ±1% | 0.25W, 1/4W | Metal Foil | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.026 (0.65mm) | |
|
|
1-2176157-7RES 13M OHM 1% 3/4W 2010 4K |
8,000 | 0.26 |
RFQ |
Datasheet |
2010 (5025 Metric) | Box | TLM, CGS | Active | 13 mOhms | ±1% | 0.75W, 3/4W | Metal Foil | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.029 (0.73mm) | |
|
8-1879140-1RN 0603 127K 0.1% 10PPM 5K RL |
5,000 | 0.28 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | ||
|
1676346-3RN 0805 464R 0.1% 10PPM 5KRL |
5,000 | 0.28 |
RFQ |
Datasheet |
- | Box | * | Active | - | - | - | - | - | - | - | - | - | - | |
|
|
1676362-3RN 0805 4K87 0.1% 10PPM 5KRL |
5,000 | 0.28 |
RFQ |
Datasheet |
- | Box | * | Active | - | - | - | - | - | - | - | - | - | - | |
|
|
9-1879225-3CPF0603 82R 0.1% 15PPM 1K RL |
8,000 | 0.28 |
RFQ |
Datasheet |
- | Box | * | Active | - | - | - | - | - | - | - | - | - | - | |
|
|
1-2176158-1RES 68M OHM 5% 1W 2512 4K |
4,000 | 0.29 |
RFQ |
Datasheet |
2512 (6432 Metric) | Box | TLM, CGS | Active | 68 mOhms | ±5% | 1W | Metal Foil | Current Sense | ±100ppm/°C | -55°C ~ 155°C | - | 0.248 L x 0.124 W (6.30mm x 3.15mm) | 0.028 (0.70mm) | |
|
|
1-1879133-4RES 1.13K OHM 0.1% 1/16W 0603 1K |
2,000 | 0.45 |
RFQ |
Datasheet |
0603 (1608 Metric) | Box | RN73, Holsworthy | Active | 1.13 kOhms | ±0.1% | 0.063W, 1/16W | Thin Film | - | ±10ppm/°C | -55°C ~ 155°C | - | 0.061 L x 0.031 W (1.55mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
1676412-2RN 0805 69R8 0.1% 10PPM 1KRL |
2,000 | 0.45 |
RFQ |
Datasheet |
- | Box | * | Active | - | - | - | - | - | - | - | - | - | - | |
|
|
3-1879134-1RN 0603 20K5 0.1% 10PPM 1K RL |
2,000 | 0.45 |
RFQ |
Datasheet |
- | Box | * | Active | - | - | - | - | - | - | - | - | - | - |
