Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)
PWR163S-25-2R50F RES SMD 2.5 OHM 1% 25W DPAK Bourns Inc.	300	3.94	RFQ	Datasheet	TO-252-3, DPak (2 Leads + Tab), SC-63	Tube	PWR163	Active	2.5 Ohms	±1%	25W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.320 L x 0.324 W (8.13mm x 8.22mm)	0.125 (3.17mm)
PWR163S-25-4R70J RES SMD 4.7 OHM 5% 25W DPAK Bourns Inc.	268	3.99	RFQ	Datasheet	TO-252-3, DPak (2 Leads + Tab), SC-63	Tube	PWR163	Active	4.7 Ohms	±5%	25W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.320 L x 0.324 W (8.13mm x 8.22mm)	0.125 (3.17mm)
CRM2010-JW-3R3ELF RES SMD 3.3 OHM 5% 1W 2010 Bourns Inc.	5,411	0.46	RFQ	Datasheet	2010 (5025 Metric)	Tape & Reel (TR),Cut Tape (CT)	CRM2010	Active	3.3 Ohms	±5%	1W	Thick Film	Current Sense	±200ppm/°C	-55°C ~ 155°C	-	0.197 L x 0.098 W (5.00mm x 2.50mm)	0.028 (0.70mm)
PWR263S-20-20R0F RES SMD 20 OHM 1% 20W D2PAK Bourns Inc.	136	4.02	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tube	PWR263S-20	Active	20 Ohms	±1%	20W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.192 (4.88mm)
PWR263S-20-1000F RES SMD 100 OHM 1% 20W D2PAK Bourns Inc.	103	4.02	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tube	PWR263S-20	Active	100 Ohms	±1%	20W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.192 (4.88mm)
PWR263S-20-1R00F RES SMD 1 OHM 1% 20W D2PAK Bourns Inc.	101	4.83	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tube	PWR263S-20	Active	1 Ohms	±1%	20W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.192 (4.88mm)
PWR163S-25-R050J RES 0.05 OHM 5% 25W DPAK Bourns Inc.	353	4.97	RFQ	Datasheet	TO-252-3, DPak (2 Leads + Tab), SC-63	Tube	PWR163	Active	50 mOhms	±5%	25W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.320 L x 0.324 W (8.13mm x 8.22mm)	0.125 (3.17mm)
PWR263S-35-4R70F RES SMD 4.7 OHM 1% 35W D2PAK Bourns Inc.	138	5.10	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tube	PWR263S-35	Active	4.7 Ohms	±1%	35W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.177 (4.50mm)
CRL2010-JW-R100ELF RES 0.1 OHM 5% 1/2W 2010 Bourns Inc.	13,597	0.67	RFQ	Datasheet	2010 (5025 Metric)	Tape & Reel (TR),Cut Tape (CT)	CRL	Active	100 mOhms	±5%	0.5W, 1/2W	Thick Film	-	±200ppm/°C	-55°C ~ 125°C	-	0.197 L x 0.098 W (5.00mm x 2.50mm)	0.028 (0.70mm)
CR0402-JW-822GLF RES SMD 8.2K OHM 5% 1/16W 0402 Bourns Inc.	34,333	0.10	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR0402	Active	8.2 kOhms	±5%	0.063W, 1/16W	Thick Film	-	±200ppm/°C	-55°C ~ 155°C	-	0.039 L x 0.020 W (1.00mm x 0.50mm)	0.016 (0.40mm)
CR0402-JW-623GLF RES SMD 62K OHM 5% 1/16W 0402 Bourns Inc.	27,764	0.10	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR0402	Active	62 kOhms	±5%	0.063W, 1/16W	Thick Film	-	±200ppm/°C	-55°C ~ 155°C	-	0.039 L x 0.020 W (1.00mm x 0.50mm)	0.016 (0.40mm)
CR0402-JW-514GLF RES SMD 510K OHM 5% 1/16W 0402 Bourns Inc.	26,115	0.10	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR0402	Active	510 kOhms	±5%	0.063W, 1/16W	Thick Film	-	±200ppm/°C	-55°C ~ 155°C	-	0.039 L x 0.020 W (1.00mm x 0.50mm)	0.016 (0.40mm)
CR0603-FX-7322ELF RES SMD 73.2K OHM 1% 1/10W 0603 Bourns Inc.	26,948	0.10	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR0603	Active	73.2 kOhms	±1%	0.1W, 1/10W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.022 (0.55mm)
CR1206-FX-5110ELF RES SMD 511 OHM 1% 1/4W 1206 Bourns Inc.	19,835	0.10	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR1206	Active	511 Ohms	±1%	0.25W, 1/4W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.030 (0.75mm)

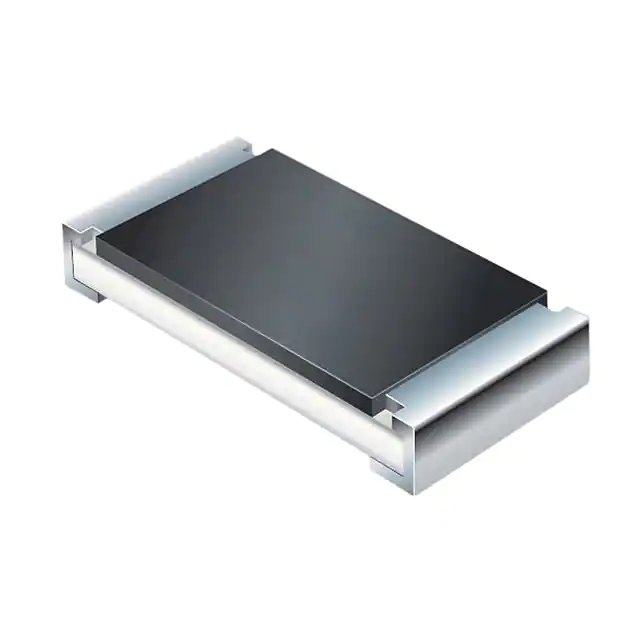

CR0603-FX-2001EPF RES 0603 2K 1% 100MW TC100 LOW L Bourns Inc.	39,882	0.10	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR-PF	Active	2 kOhms	±1%	0.1W, 1/10W	Thick Film	-	±100ppm/°C	-55°C ~ 155°C	-	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.022 (0.55mm)
CR1206-FX-6811ELF RES SMD 6.81K OHM 1% 1/4W 1206 Bourns Inc.	28,480	0.10	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR1206	Active	6.81 kOhms	±1%	0.25W, 1/4W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.030 (0.75mm)
CR1206-FX-3012ELF RES SMD 30.1K OHM 1% 1/4W 1206 Bourns Inc.	60,814	0.10	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR1206	Active	30.1 kOhms	±1%	0.25W, 1/4W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.030 (0.75mm)
CR1206-FX-51R1ELF RES SMD 51.1 OHM 1% 1/4W 1206 Bourns Inc.	103,564	0.10	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR1206	Active	51.1 Ohms	±1%	0.25W, 1/4W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.030 (0.75mm)
CR1206-FX-6800ELF RES SMD 680 OHM 1% 1/4W 1206 Bourns Inc.	57,403	0.10	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR1206	Active	680 Ohms	±1%	0.25W, 1/4W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.030 (0.75mm)
CR1206-FX-3013ELF RES SMD 301K OHM 1% 1/4W 1206 Bourns Inc.	49,991	0.10	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR1206	Active	301 kOhms	±1%	0.25W, 1/4W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.030 (0.75mm)
