Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)
CSS4J-4026K-5L00F RES 0.005 OHM 1% 3W 4026 Bourns Inc.	1,420	1.72	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	CSS4J-4026	Active	5 mOhms	±1%	3W	Metal Element	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 170°C	-	0.397 L x 0.260 W (10.06mm x 6.60mm)	0.115 (2.92mm)
CSS4J-4026R-1L00FE RES 0.001 OHM 1% 4W 4026 Bourns Inc.	1,070	1.72	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	CSS4J-4026	Active	1 mOhms	±1%	4W	Metal Element	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 170°C	-	0.397 L x 0.260 W (10.06mm x 6.60mm)	0.119 (3.01mm)
CRM2512AFX-R100ELF RES 0.1 OHM 1% 2W 2512 Bourns Inc.	3,562	1.80	RFQ	Datasheet	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	CRM-A	Active	100 mOhms	±1%	2W	Thick Film	Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.248 L x 0.122 W (6.30mm x 3.10mm)	0.031 (0.80mm)
CSS2H-5930K-3L00F RES 0.003 OHM 1% 6W 5930 Bourns Inc.	2,225	1.88	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	CSS2H-5930	Active	3 mOhms	±1%	6W	Metal Element	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 170°C	-	0.591 L x 0.305 W (15.00mm x 7.75mm)	0.020 (0.51mm)
CSS2H-5930K-2L00F RES 0.002 OHM 1% 7W 5930 Bourns Inc.	1,355	1.96	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	CSS2H-5930	Active	2 mOhms	±1%	7W	Metal Element	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 170°C	-	0.591 L x 0.305 W (15.00mm x 7.75mm)	0.020 (0.51mm)
CSS2H-3920R-L300F RES 300 UOHM 1% 10W 3920 Bourns Inc.	5,873	2.04	RFQ	Datasheet	3920 (1052 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSS2H-3920	Active	300 µOhms	±1%	10W	Metal Element	Automotive AEC-Q200, Current Sense, Moisture Resistant	±150ppm/°C	-55°C ~ 170°C	AEC-Q200	0.395 L x 0.205 W (10.04mm x 5.20mm)	0.055 (1.40mm)
PWR163S-25-8R00FE RES SMD 8 OHM 1% 25W DPAK Bourns Inc.	235	3.31	RFQ	Datasheet	TO-252-3, DPak (2 Leads + Tab), SC-63	Tape & Reel (TR),Cut Tape (CT)	PWR163	Active	8 Ohms	±1%	25W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.320 L x 0.324 W (8.13mm x 8.22mm)	0.125 (3.17mm)
PWR263S-35-5R00JE RES SMD 5 OHM 5% 35W D2PAK Bourns Inc.	356	3.82	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tape & Reel (TR),Cut Tape (CT)	PWR263S-35	Active	5 Ohms	±5%	35W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.177 (4.50mm)
PWR163S-25-2500FE RES SMD 250 OHM 1% 25W DPAK Bourns Inc.	440	3.34	RFQ	Datasheet	TO-252-3, DPak (2 Leads + Tab), SC-63	Tape & Reel (TR),Cut Tape (CT)	PWR163	Active	250 Ohms	±1%	25W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.320 L x 0.324 W (8.13mm x 8.22mm)	0.125 (3.17mm)
PWR263S-20-1500JE RES SMD 150 OHM 5% 20W D2PAK Bourns Inc.	169	3.56	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tape & Reel (TR),Cut Tape (CT)	PWR263S-20	Active	150 Ohms	±5%	20W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.192 (4.88mm)
PWR263S-20-47R0JE RES SMD 47 OHM 5% 20W D2PAK Bourns Inc.	130	3.56	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tape & Reel (TR),Cut Tape (CT)	PWR263S-20	Active	47 Ohms	±5%	20W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.192 (4.88mm)
PWR163S-25-5R00JE RES SMD 5 OHM 5% 25W DPAK Bourns Inc.	426	3.60	RFQ	Datasheet	TO-252-3, DPak (2 Leads + Tab), SC-63	Tape & Reel (TR),Cut Tape (CT)	PWR163	Active	5 Ohms	±5%	25W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.320 L x 0.324 W (8.13mm x 8.22mm)	0.125 (3.17mm)
PWR263S-35-1R00FE RES SMD 1 OHM 1% 35W D2PAK Bourns Inc.	174	4.10	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tape & Reel (TR),Cut Tape (CT)	PWR263S-35	Active	1 Ohms	±1%	35W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.177 (4.50mm)
PWR263S-35-10R0FE RES SMD 10 OHM 1% 35W D2PAK Bourns Inc.	3,007	3.54	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tape & Reel (TR),Cut Tape (CT)	PWR263S-35	Active	10 Ohms	±1%	35W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.177 (4.50mm)
PWR163S-25-R150FE RES 0.15 OHM 1% 25W DPAK Bourns Inc.	497	4.84	RFQ	Datasheet	TO-252-3, DPak (2 Leads + Tab), SC-63	Tape & Reel (TR),Cut Tape (CT)	PWR163	Active	150 mOhms	±1%	25W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.320 L x 0.324 W (8.13mm x 8.22mm)	0.125 (3.17mm)
CR0805-FX-6651ELF RES SMD 6.65K OHM 1% 1/8W 0805 Bourns Inc.	2,789	0.00	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR)	CR0805	Active	6.65 kOhms	±1%	0.125W, 1/8W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.024 (0.60mm)
PWR263S-35-1000F RES SMD 100 OHM 1% 35W D2PAK Bourns Inc.	2,581	2.88	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tube	PWR263S-35	Active	100 Ohms	±1%	35W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.177 (4.50mm)
PWR263S-20-20R0J RES SMD 20 OHM 5% 20W D2PAK Bourns Inc.	246	3.02	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tube	PWR263S-20	Active	20 Ohms	±5%	20W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.192 (4.88mm)
PWR263S-35-2R00J RES SMD 2 OHM 5% 35W D2PAK Bourns Inc.	2,551	3.39	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tube	PWR263S-35	Active	2 Ohms	±5%	35W	Thick Film	Automotive AEC-Q200, Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.398 L x 0.409 W (10.10mm x 10.40mm)	0.177 (4.50mm)

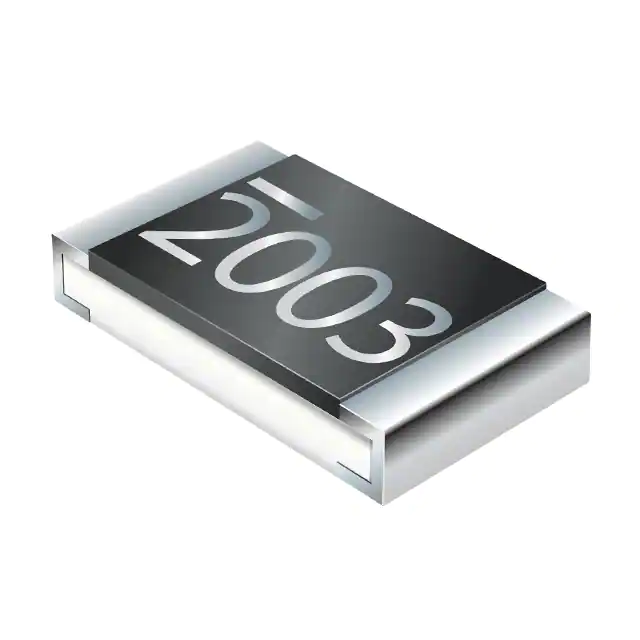

CR0805AFX-10R0EAS RESA-AS 0805 10R 1% 125MW TC100 Bourns Inc.	67,244	0.10	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	CR0805A-AS	Active	10 Ohms	±1%	0.125W, 1/8W	Thick Film	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.024 (0.60mm)
