Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)
RW2S0CBR010JE RES 0.01 OHM 5% 2W J LEAD Ohmite	341	3.45	RFQ	Datasheet	4122 J-Lead	Bulk	RW	Active	10 mOhms	±5%	2W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.407 L x 0.226 W (10.34mm x 5.74mm)	0.227 (5.77mm)
RW1S0CKR025DET RES 0.025 OHM 0.5% 1W 4324 Ohmite	4,000	3.64	RFQ	Datasheet	4324 J-Lead (4 Terminals)	Tape & Reel (TR)	RW1S0CK	Active	25 mOhms	±0.5%	1W	Thick Film	Current Sense, Flame Proof, Moisture Resistant, Safety	±50ppm/°C	-55°C ~ 125°C	-	0.425 L x 0.244 W (10.80mm x 6.20mm)	0.091 (2.30mm)
RW2R0DAR100JE RES 0.1 OHM 5% 2W J LEAD Ohmite	171	3.70	RFQ	Datasheet	4524 J-Lead	Bulk	RW	Active	100 mOhms	±5%	2W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW3R0DBR005JE RES 0.005 OHM 5% 3W J LEAD Ohmite	3,567	2.97	RFQ	Datasheet	6327 J-Lead	Bulk	RW	Active	5 mOhms	±5%	3W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)
LVK20R015FER RES 0.015 OHM 1% 3/4W 2010 Ohmite	4,562	1.13	RFQ	Datasheet	2010 (5025 Metric)	Tape & Reel (TR),Cut Tape (CT)	LVK	Active	15 mOhms	±1%	0.75W, 3/4W	Thick Film	Anti-Corrosive, Current Sense, Moisture Resistant	±50ppm/°C	-40°C ~ 125°C	-	0.197 L x 0.098 W (5.00mm x 2.50mm)	0.026 (0.65mm)
LVK20R039FER RES 0.039 OHM 1% 3/4W 2010 Ohmite	3,365	1.13	RFQ	Datasheet	2010 (5025 Metric)	Tape & Reel (TR),Cut Tape (CT)	LVK	Active	39 mOhms	±1%	0.75W, 3/4W	Thick Film	Anti-Corrosive, Current Sense, Moisture Resistant	±50ppm/°C	-40°C ~ 125°C	-	0.197 L x 0.098 W (5.00mm x 2.50mm)	0.026 (0.65mm)

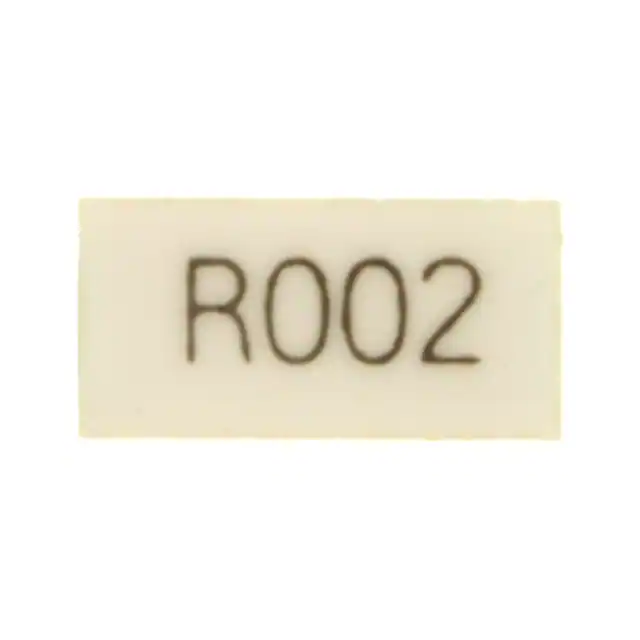

FCSL64R002GER RES 0.002 OHM 2W 2512 WIDE Ohmite	29,825	1.17	RFQ	Datasheet	Wide 2512 (6432 Metric), 1225	Tape & Reel (TR),Cut Tape (CT)	FCSL	Active	2 mOhms	±2%	2W	Metal Foil	Current Sense, Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.122 L x 0.248 W (3.10mm x 6.30mm)	0.028 (0.70mm)
RW2S0CBR200JE RES 0.2 OHM 5% 2W J LEAD Ohmite	3,599	4.02	RFQ	Datasheet	4122 J-Lead	Bulk	RW	Active	200 mOhms	±5%	2W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.407 L x 0.226 W (10.34mm x 5.74mm)	0.227 (5.77mm)
RW1S0BAR005JE RES 0.005 OHM 5% 1W J LEAD Ohmite	2,381	4.10	RFQ	Datasheet	2512 J-Lead	Bulk	RW	Active	5 mOhms	±5%	1W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.246 L x 0.136 W (6.25mm x 3.45mm)	0.141 (3.58mm)
RW3R0DB1R00JE RES SMD 1 OHM 5% 3W J LEAD Ohmite	195	4.31	RFQ	Datasheet	6327 J-Lead	Bulk	RW	Active	1 Ohms	±5%	3W	Wirewound	Current Sense	±50ppm/°C	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)
RW1S0BAR750JE RES 0.75 OHM 5% 1W J LEAD Ohmite	306	4.41	RFQ	Datasheet	2512 J-Lead	Bulk	RW	Active	750 mOhms	±5%	1W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.246 L x 0.136 W (6.25mm x 3.45mm)	0.141 (3.58mm)
RW1S0BAR075JE RES 0.075 OHM 5% 1W J LEAD Ohmite	200	4.41	RFQ	Datasheet	2512 J-Lead	Bulk	RW	Active	75 mOhms	±5%	1W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.246 L x 0.136 W (6.25mm x 3.45mm)	0.141 (3.58mm)
RW3R0DB150RJE RES SMD 150 OHM 5% 3W J LEAD Ohmite	543	4.52	RFQ	Datasheet	6327 J-Lead	Bulk	RW	Active	150 Ohms	±5%	3W	Wirewound	Current Sense	±20ppm/°C	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)
RW3R0DB10R0JE RES SMD 10 OHM 5% 3W J LEAD Ohmite	100	4.52	RFQ	Datasheet	6327 J-Lead	Bulk	RW	Active	10 Ohms	±5%	3W	Wirewound	Current Sense	±20ppm/°C	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)
RW3R0DB47R0JE RES SMD 47 OHM 5% 3W J LEAD Ohmite	150	4.52	RFQ	Datasheet	6327 J-Lead	Bulk	RW	Active	47 Ohms	±5%	3W	Wirewound	Current Sense	±20ppm/°C	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)
RW3R0DB15R0JE RES SMD 15 OHM 5% 3W J LEAD Ohmite	148	4.52	RFQ	Datasheet	6327 J-Lead	Bulk	RW	Active	15 Ohms	±5%	3W	Wirewound	Current Sense	±20ppm/°C	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)

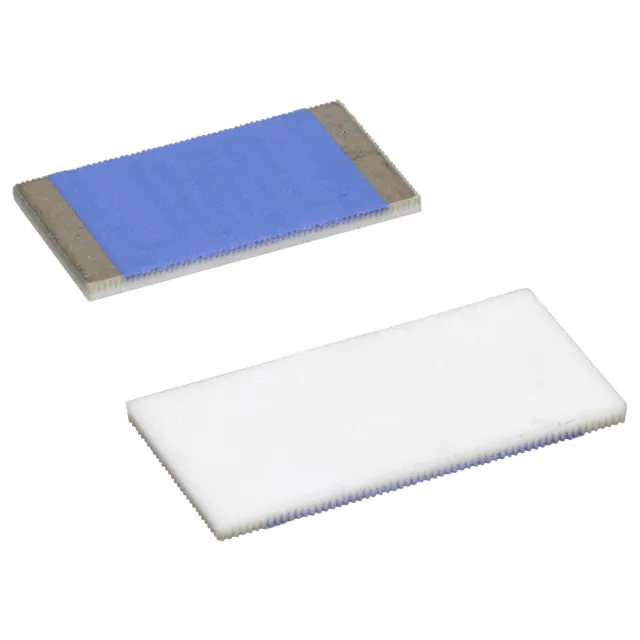

MC102821002JE RES SMD 10K OHM 5% 1.5W 5025 Ohmite	1,426	4.42	RFQ	Datasheet	Nonstandard	Bulk	Macrochip	Active	10 kOhms	±5%	1.5W	Thick Film	High Voltage, Non-Inductive	±50ppm/°C	-55°C ~ 180°C	-	0.500 L x 0.250 W (12.70mm x 6.35mm)	0.142 (3.60mm)

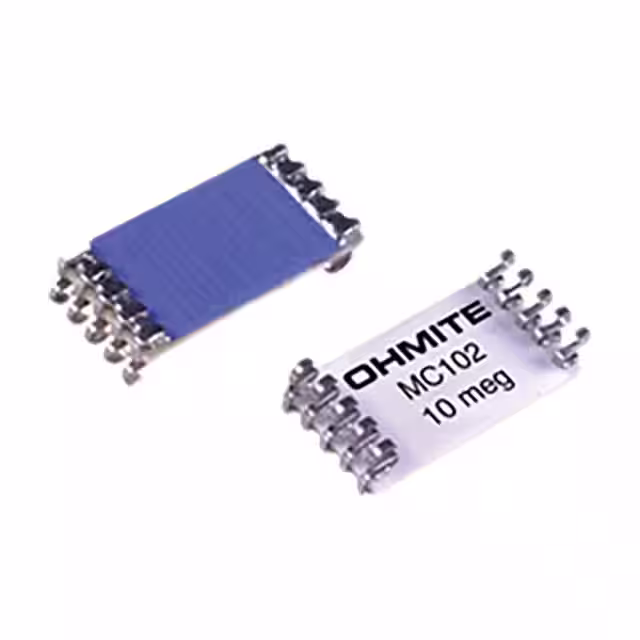

MC102825005JE RES SMD 50M OHM 5% 1.5W 5025 Ohmite	470	4.42	RFQ	Datasheet	Nonstandard	Bulk	Macrochip	Active	50 MOhms	±5%	1.5W	Thick Film	High Voltage, Non-Inductive	±50ppm/°C	-55°C ~ 180°C	-	0.500 L x 0.250 W (12.70mm x 6.35mm)	0.142 (3.60mm)
MC102821003JE RES SMD 100K OHM 5% 1.5W 5025 Ohmite	295	4.42	RFQ	Datasheet	Nonstandard	Bulk	Macrochip	Active	100 kOhms	±5%	1.5W	Thick Film	High Voltage, Non-Inductive	±50ppm/°C	-55°C ~ 180°C	-	0.500 L x 0.250 W (12.70mm x 6.35mm)	0.142 (3.60mm)
FCSL76R010FER RES 0.01 OHM 3W 3015 WIDE Ohmite	93,695	1.48	RFQ	Datasheet	Wide 3015 (7638 Metric), 1530	Tape & Reel (TR),Cut Tape (CT)	FCSL	Active	10 mOhms	±1%	3W	Metal Foil	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 155°C	-	0.150 L x 0.299 W (3.80mm x 7.60mm)	0.028 (0.70mm)
