Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)
TDH50H2R00FE-TR TO-263 HEATSINKABLE THICK FILM R Ohmite	3,989	9.09	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tape & Reel (TR),Cut Tape (CT)	TDH50	Active	2 Ohms	±1%	50W	Thick Film	Non-Inductive	-	-55°C ~ 155°C	-	0.406 L x 0.398 W (10.30mm x 10.10mm)	0.185 (4.70mm)
TDH50H500RFE-TR TO-263 HEATSINKABLE THICK FILM R Ohmite	2,942	9.09	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tape & Reel (TR),Cut Tape (CT)	TDH50	Active	500 Ohms	±1%	50W	Thick Film	Non-Inductive	-	-55°C ~ 155°C	-	0.406 L x 0.398 W (10.30mm x 10.10mm)	0.185 (4.70mm)
KDV06FR240ET RES 0.24 OHM 1% 1/5W 0603 Ohmite	2,240	0.26	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	KDV	Active	240 mOhms	±1%	0.2W, 1/5W	Metal Film	Current Sense	±50ppm/°C	-55°C ~ 155°C	-	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.022 (0.55mm)
KDV06FR390ET RES 0.39 OHM 1% 1/5W 0603 Ohmite	5,079	0.26	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	KDV	Active	390 mOhms	±1%	0.2W, 1/5W	Metal Film	Current Sense	±50ppm/°C	-55°C ~ 155°C	-	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.022 (0.55mm)
KDV06FR082ET RES 0.082 OHM 1% 1/5W 0603 Ohmite	5,000	0.26	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	KDV	Active	82 mOhms	±1%	0.2W, 1/5W	Metal Film	Current Sense	±100ppm/°C	-55°C ~ 155°C	-	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.022 (0.55mm)
KDV08FR510ET RES 0.51 OHM 1% 1/4W 0805 Ohmite	5,013	0.29	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	KDV	Active	510 mOhms	±1%	0.25W, 1/4W	Metal Film	Current Sense	±50ppm/°C	-55°C ~ 155°C	-	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.026 (0.65mm)
KDV08FR240ET RES 0.24 OHM 1% 1/4W 0805 Ohmite	2,564	0.29	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	KDV	Active	240 mOhms	±1%	0.25W, 1/4W	Metal Film	Current Sense	±50ppm/°C	-55°C ~ 155°C	-	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.026 (0.65mm)
KDV08FR270ET RES 0.27 OHM 1% 1/4W 0805 Ohmite	2,659	0.03	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	KDV	Active	270 mOhms	±1%	0.25W, 1/4W	Metal Film	Current Sense	±50ppm/°C	-55°C ~ 155°C	-	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.026 (0.65mm)
KDV08FR082ET RES 0.082 OHM 1% 1/4W 0805 Ohmite	2,922	0.30	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	KDV	Active	82 mOhms	±1%	0.25W, 1/4W	Metal Film	Current Sense	±100ppm/°C	-55°C ~ 155°C	-	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.026 (0.65mm)
KDV12DR510ET RES 0.51 OHM 0.5% 1/2W 1206 Ohmite	2,255	0.36	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	KDV	Active	510 mOhms	±0.5%	0.5W, 1/2W	Metal Film	Current Sense	±50ppm/°C	-55°C ~ 155°C	-	0.133 L x 0.063 W (3.10mm x 1.60mm)	0.026 (0.65mm)
KDV08DR082ET RES 0.082 OHM 0.5% 1/4W 0805 Ohmite	2,373	0.40	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	KDV	Active	82 mOhms	±0.5%	0.25W, 1/4W	Metal Film	Current Sense	±100ppm/°C	-55°C ~ 155°C	-	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.026 (0.65mm)
FC4L76R010FER CURRENT SENSE CHIP 1% 0.010 OHM Ohmite	1,001	1.70	RFQ	Datasheet	Wide 3015 (7638 Metric), 1530	Tape & Reel (TR),Cut Tape (CT)	FC4L	Active	10 mOhms	±1%	3W	Metal Foil	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 155°C	-	0.150 L x 0.299 W (3.80mm x 7.60mm)	0.031 (0.80mm)
RW2S0CBR010JET RES 0.01 OHM 5% 2W J LEAD Ohmite	1,000	1.26	RFQ	Datasheet	4122 J-Lead	Tape & Reel (TR)	RW	Active	10 mOhms	±5%	2W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.407 L x 0.226 W (10.34mm x 5.74mm)	0.227 (5.77mm)

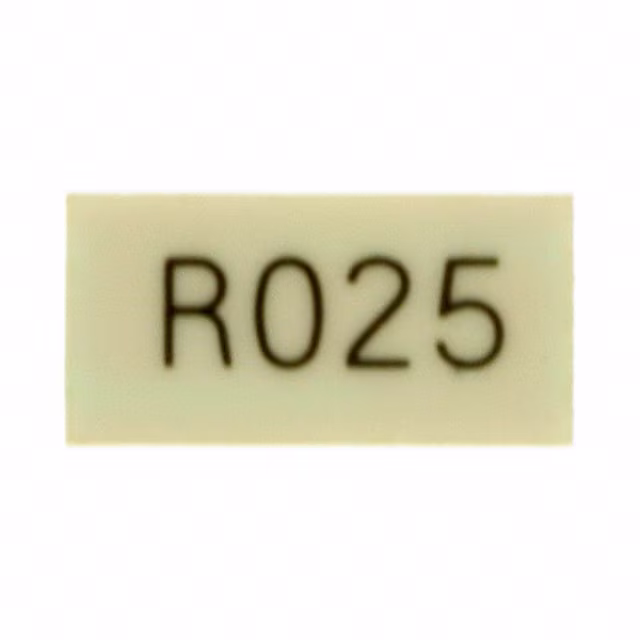

FCSL90R025FER RES 0.025 OHM 4W 3518 WIDE Ohmite	2,268	1.66	RFQ	Datasheet	Wide 3518 (9045 Metric), 1835	Tape & Reel (TR),Cut Tape (CT)	FCSL	Active	25 mOhms	±1%	4W	Metal Foil	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 155°C	-	0.177 L x 0.350 W (4.50mm x 8.90mm)	0.028 (0.70mm)

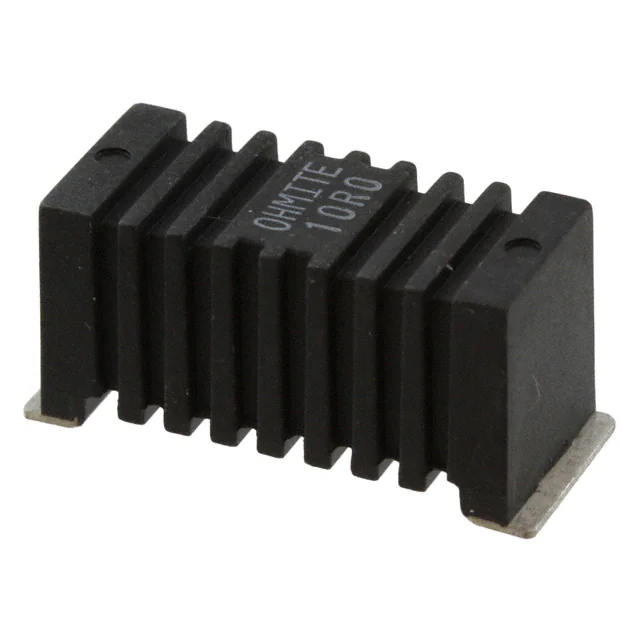

RW5S0FA10R0JE RES SMD 10 OHM 5% 5W L BEND Ohmite	465	1.63	RFQ	Datasheet	SMD, L-Bend	Bulk	RW	Active	10 Ohms	±5%	5W	Wirewound	-	±20ppm/°C	-55°C ~ 155°C	-	0.806 L x 0.365 W (20.47mm x 9.27mm)	0.406 (10.31mm)

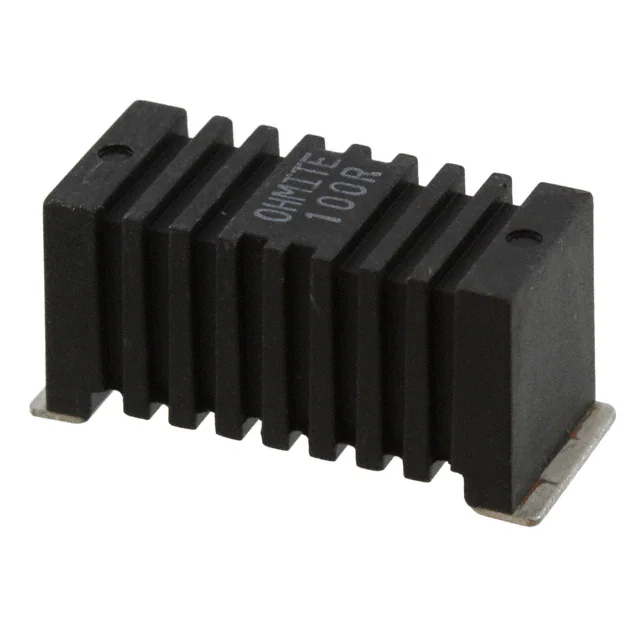

RW5S0FA100RJE RES SMD 100 OHM 5% 5W L BEND Ohmite	2,180	1.63	RFQ	Datasheet	SMD, L-Bend	Strip	RW	Active	100 Ohms	±5%	5W	Wirewound	-	±20ppm/°C	-55°C ~ 155°C	-	0.806 L x 0.365 W (20.47mm x 9.27mm)	0.406 (10.31mm)
HVC0603T1005FET RES SMD 10M OHM 1% 1/10W 0603 Ohmite	3,255	1.81	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	10 MOhms	±1%	0.1W, 1/10W	Thick Film	High Voltage	±100ppm/°C	-55°C ~ 155°C	-	0.059 L x 0.031 W (1.50mm x 0.80mm)	0.022 (0.55mm)
HVC1206T1005JET RES SMD 10M OHM 5% 1/4W 1206 Ohmite	3,564	2.00	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	10 MOhms	±5%	0.25W, 1/4W	Thick Film	High Voltage	±100ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.059 W (3.20mm x 1.50mm)	0.022 (0.55mm)
HVC0805T5005JET RES SMD 50M OHM 5% 1/8W 0805 Ohmite	2,000	2.23	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	50 MOhms	±5%	0.125W, 1/8W	Thick Film	High Voltage	±100ppm/°C	-55°C ~ 155°C	-	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.022 (0.55mm)
HVC0805T2505JET RES SMD 25M OHM 5% 1/8W 0805 Ohmite	2,367	2.23	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	25 MOhms	±5%	0.125W, 1/8W	Thick Film	High Voltage	±100ppm/°C	-55°C ~ 155°C	-	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.022 (0.55mm)
