| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

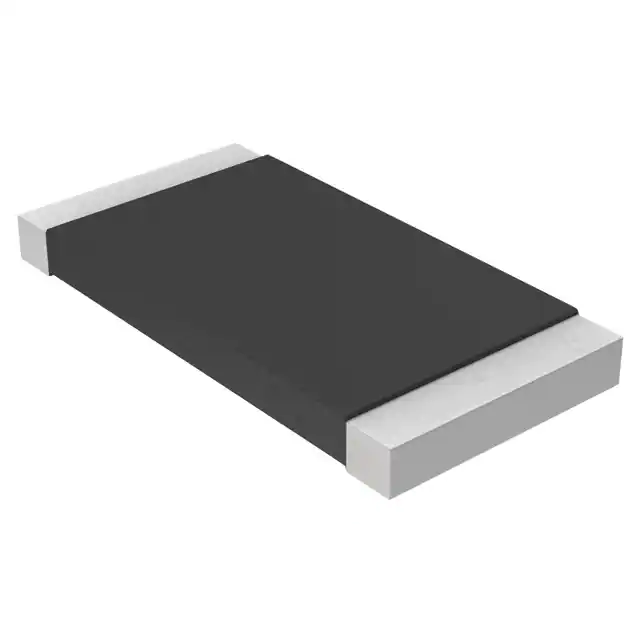

WSL2512R4000FEARES 0.4 OHM 1% 1W 2512 |
2,806 | 0.89 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 400 mOhms | ±1% | 1W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.035 (0.89mm) | |
.JPG)
|

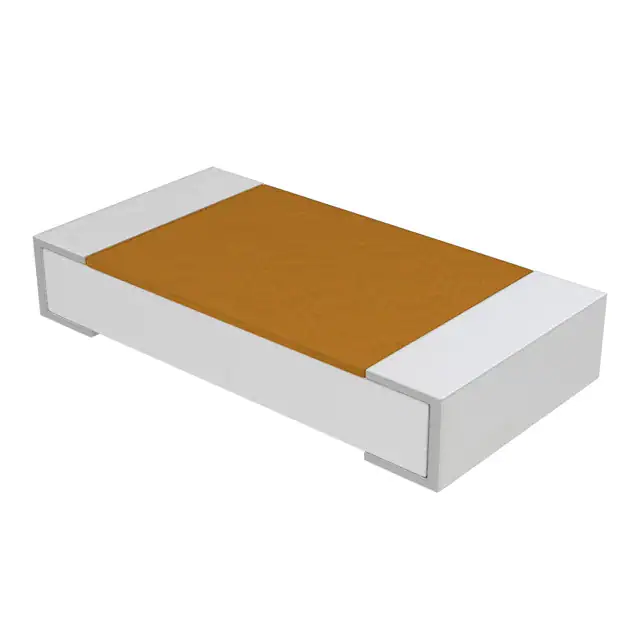

TNPW1206100KBYEARES 100K OHM 0.1% 1/4W 1206 |
16,750 | 0.92 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 100 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
.jpg)
|
RCWE0603R100FNEARES 0.1 OHM 1% 1/5W 0603 |
19,233 | 0.65 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCWE | Active | 100 mOhms | ±1% | 0.2W, 1/5W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.024 (0.60mm) | |
|
|
RCWE060350L0FNEARES 0.05 OHM 1% 1/5W 0603 |
10,000 | 0.65 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCWE | Active | 50 mOhms | ±1% | 0.2W, 1/5W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.024 (0.60mm) | |
|
|
TNPW12061K11BEEARES 1.11K OHM 0.1% 1/4W 1206 |
9,618 | 0.66 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 1.11 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
TNPW12061R00DEEARES 1 OHM 0.5% 1/4W 1206 |
14,798 | 0.66 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 1 Ohms | ±0.5% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
WSL251200000ZEA9RES 0 OHM JUMPER 2512 |
3,809 | 0.88 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 0 Ohms | Jumper | - | Metal Element | - | ±3900ppm/°C | -65°C ~ 170°C | - | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.035 (0.89mm) | |
|

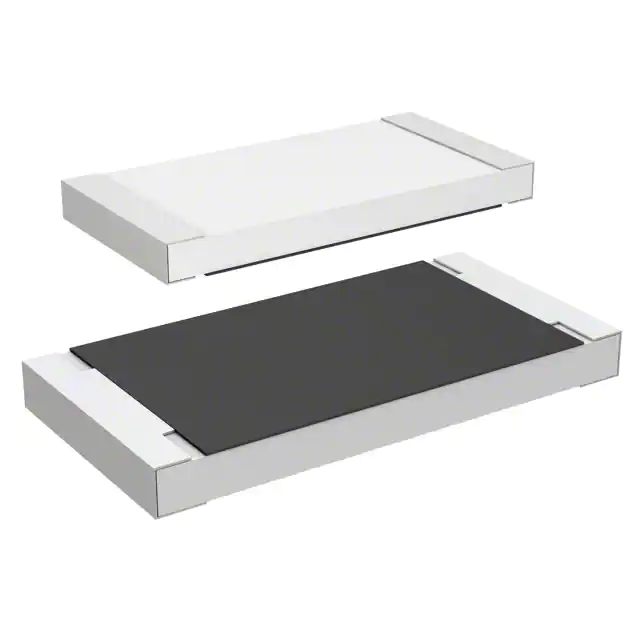

RCWL2512R510JNEARES 0.51 OHM 5% 1W 2512 |
7,599 | 0.65 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCWL | Active | 510 mOhms | ±5% | 1W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.248 L x 0.124 W (6.30mm x 3.15mm) | 0.028 (0.70mm) | |
|
|
RCWE1206R100FKEARES 0.1 OHM 1% 1/2W 1206 |
75,636 | 0.68 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCWE | Active | 100 mOhms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.063 W (3.10mm x 1.60mm) | 0.028 (0.70mm) | |
|
TNPW060349R9BEENRES 49.9 OHM 0.1% 1/10W 0603 |
4,299 | 0.92 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 49.9 Ohms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±25ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
|
TNPW0603100RBXENRES 100 OHM 0.1% 1/10W 0603 |
1,562 | 0.92 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 100 Ohms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±15ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
|
TNPW060310K0BXENRES 10K OHM 0.1% 1/10W 0603 |
2,306 | 0.92 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 10 kOhms | ±0.1% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±15ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
.JPG)
|
TNPW08051M00BYEARES 1M OHM 0.1% 1/8W 0805 |
3,285 | 1.03 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPW e3 | Active | 1 MOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.022 (0.55mm) | |
|
|

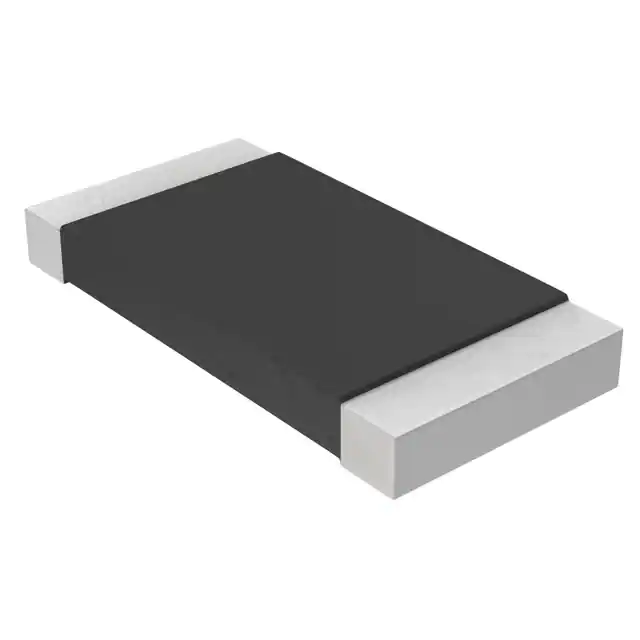

WSL2010R0500FEARES 0.05 OHM 1% 1/2W 2010 |
67,776 | 1.02 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 50 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.035 (0.89mm) | |
|
|
WSL2512R0300FEARES 0.03 OHM 1% 1W 2512 |
1,244 | 1.02 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 30 mOhms | ±1% | 1W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.035 (0.89mm) | |
|
|
WSL2010R0300FEARES 0.03 OHM 1% 1/2W 2010 |
8,691 | 1.02 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 30 mOhms | ±1% | 0.5W, 1/2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.035 (0.89mm) | |
|
WSL10206L000FEARES 0.006 OHM 1% 2W 2010 |
24,176 | 0.73 |
RFQ |
Datasheet |
Wide 2010 (5025 Metric), 1020 | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 6 mOhms | ±1% | 2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.100 L x 0.200 W (2.54mm x 5.08mm) | 0.030 (0.76mm) | |
|
|
WSL10205L000FEARES 0.005 OHM 1% 2W 2010 |
6,678 | 0.73 |
RFQ |
Datasheet |
Wide 2010 (5025 Metric), 1020 | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 5 mOhms | ±1% | 2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.030 (0.76mm) | |
|
|
WSL10203L000FEARES 0.003 OHM 1% 2W 2010 |
12,010 | 0.77 |
RFQ |
Datasheet |
Wide 2010 (5025 Metric), 1020 | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 3 mOhms | ±1% | 2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.100 L x 0.200 W (2.54mm x 5.08mm) | 0.030 (0.76mm) | |
|
|
WSL10204L000FEARES 0.004 OHM 1% 2W 2010 |
5,611 | 0.77 |
RFQ |
Datasheet |
Wide 2010 (5025 Metric), 1020 | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 4 mOhms | ±1% | 2W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.100 L x 0.200 W (2.54mm x 5.08mm) | 0.030 (0.76mm) |
