| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WSL2010R0100FTA18RES 0.01 OHM 1% 1W 2010 |
4,000 | 2.34 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL-HP | Active | 10 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.200 L x 0.100 W (5.08mm x 2.54mm) | 0.035 (0.89mm) | |
|
WSL2512R0100FTA18RES 0.01 OHM 1% 2W 2512 |
7,986 | 2.34 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL-HP | Active | 10 mOhms | ±1% | 2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.035 (0.89mm) | |
|
|
WSL2512R0250FTA18RES 0.025 OHM 1% 2W 2512 |
2,838 | 2.34 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL-HP | Active | 25 mOhms | ±1% | 2W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.035 (0.89mm) | |
|

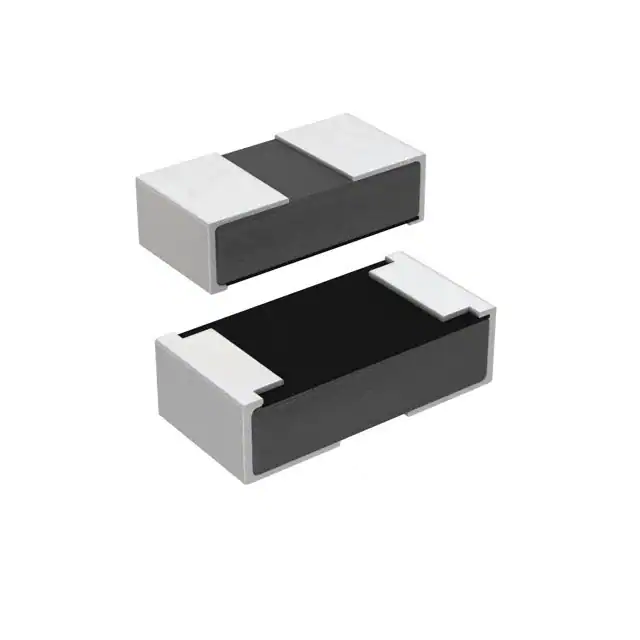

RCP0603W200RGEBRES SMD 200 OHM 2% 1.5W 0603 |
5,882 | 2.40 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCP | Active | 200 Ohms | ±2% | 1.5W | Thick Film | Moisture Resistant | ±150ppm/°C | -65°C ~ 155°C | - | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0.023 (0.58mm) | |
|
|
RCP0603W1K00GEBRES SMD 1K OHM 2% 1.5W 0603 |
2,634 | 2.40 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCP | Active | 1 kOhms | ±2% | 1.5W | Thick Film | Moisture Resistant | ±150ppm/°C | -65°C ~ 155°C | - | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0.023 (0.58mm) | |
.jpg)
|

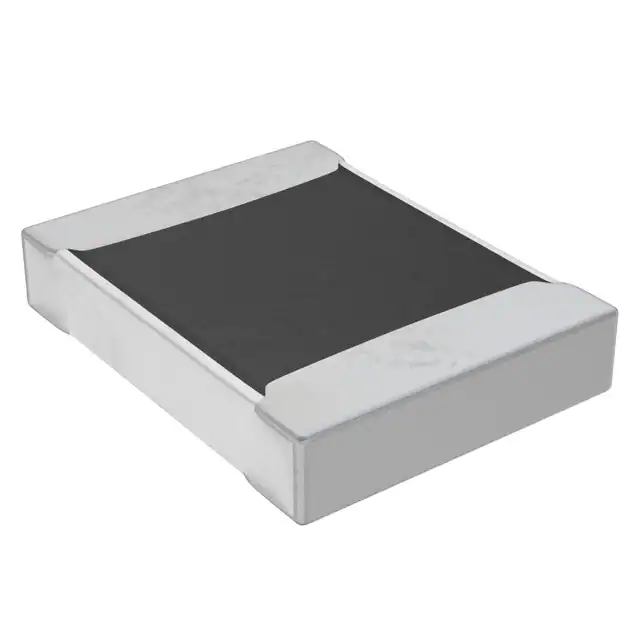

TNPV12101M00BEENRES SMD 1M OHM 0.1% 1/3W 1210 |
9,121 | 2.44 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV | Active | 1 MOhms | ±0.1% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.100 W (3.20mm x 2.55mm) | 0.030 (0.75mm) | |
|
|
TNPV1210499KBEENRES SMD 499K OHM 0.1% 1/3W 1210 |
8,758 | 2.44 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPV | Active | 499 kOhms | ±0.1% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.100 W (3.20mm x 2.55mm) | 0.030 (0.75mm) | |
|

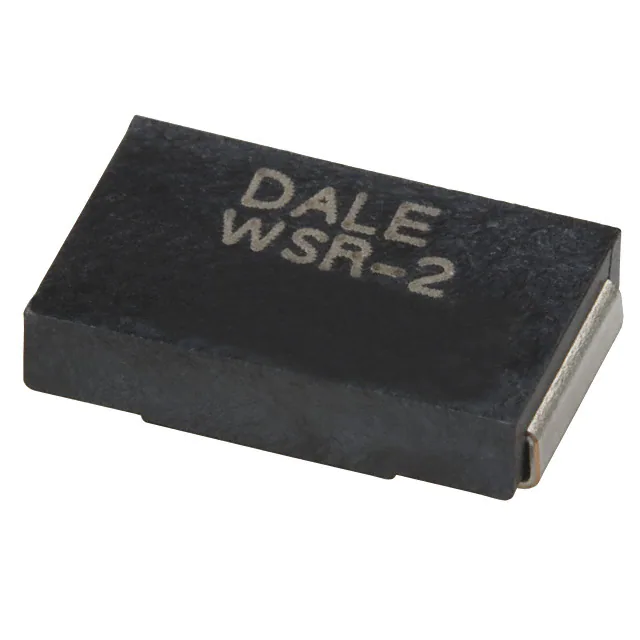

WSR55L000FEARES 0.005 OHM 1% 5W 4527 |
4,130 | 2.60 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSR | Active | 5 mOhms | ±1% | 5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±110ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.100 (2.54mm) | |
|
WSL25125L000FTARES 0.005 OHM 1% 1W 2512 |
3,890 | 2.66 |
RFQ |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 5 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±110ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.035 (0.89mm) | ||
|
WSLP27261L000FEARES 0.001 OHM 1% 7W 2726 |
4,553 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLP2726 | Active | 1 mOhms | ±1% | 7W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.272 L x 0.260 W (6.90mm x 6.60mm) | 0.113 (2.88mm) | |
|
WSLP40261L000FEARES 0.001 OHM 1% 7W 4026 |
1,812 | 2.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSLP4026 | Active | 1 mOhms | ±1% | 7W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.400 L x 0.260 W (10.16mm x 6.60mm) | 0.113 (2.88mm) | |
|
TNPU0603500RAZEN00RES SMD 500 OHM 0.05% 1/10W 0603 |
12,031 | 2.88 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 500 Ohms | ±0.05% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
|
TNPU060349K9AZEN00RES SMD 49.9K OHM 1/10W 0603 |
2,225 | 2.88 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 49.9 kOhms | ±0.05% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.022 (0.55mm) | |
|
|
WSR5R0250FEARES 0.025 OHM 1% 5W 4527 |
4,500 | 2.92 |
RFQ |
Datasheet |
4527 J-Lead | Tape & Reel (TR),Cut Tape (CT) | WSR | Active | 25 mOhms | ±1% | 5W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | 0.455 L x 0.275 W (11.56mm x 6.98mm) | 0.100 (2.54mm) | |
|
WSL36372L000DEARES 0.002 OHM 0.5% 3W 3637 |
2,562 | 3.02 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | WSL | Active | 2 mOhms | ±0.5% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.360 L x 0.370 W (9.14mm x 9.40mm) | 0.035 (0.89mm) | ||
|
TNPU12061K00BZEN00RES SMD 1K OHM 0.1% 1/4W 1206 |
7,703 | 3.05 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 1 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
TNPU1206100KBZEN00RES SMD 100K OHM 0.1% 1/4W 1206 |
5,895 | 3.05 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 100 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
TNPU1206100RBZEN00RES SMD 100 OHM 0.1% 1/4W 1206 |
4,283 | 3.05 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 100 Ohms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
|
TNPU120610K0BZEN00RES SMD 10K OHM 0.1% 1/4W 1206 |
1,491 | 3.05 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | TNPU e3 | Active | 10 kOhms | ±0.1% | 0.25W, 1/4W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±5ppm/°C | -55°C ~ 125°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.026 (0.65mm) | |
|
WSLP25124L000DEARES 0.004 OHM 0.5% 3W 2512 |
4,645 | 3.32 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | WSLP | Active | 4 mOhms | ±0.5% | 3W | Metal Element | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±150ppm/°C | -65°C ~ 170°C | AEC-Q200 | 0.250 L x 0.125 W (6.35mm x 3.18mm) | 0.035 (0.89mm) |
