| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

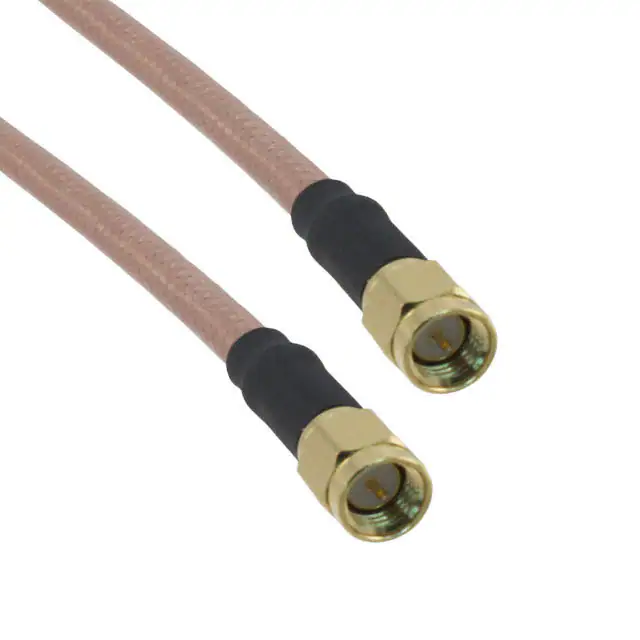

135101-07-36.00CBL ASSY SMA PLUG RG142 36 |
441 | 44.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-142 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | Shielded | - |
|

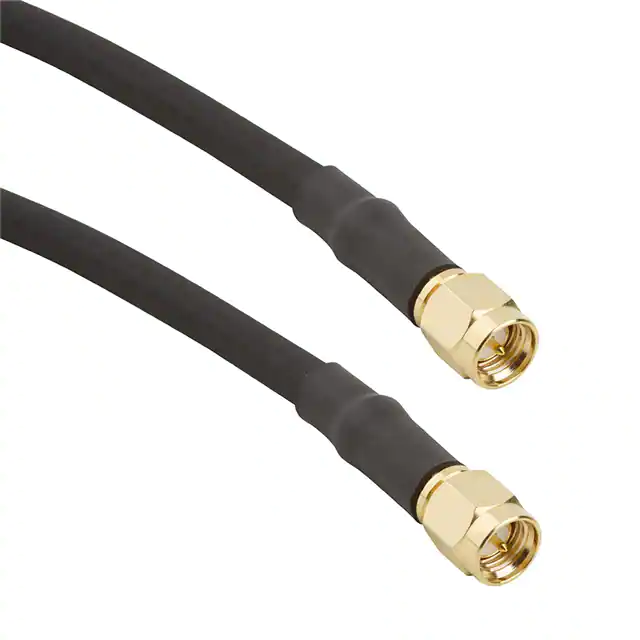

095-902-479M100CBL ASSY SMA PLUG LMR 240 3.3' |
140 | 44.42 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

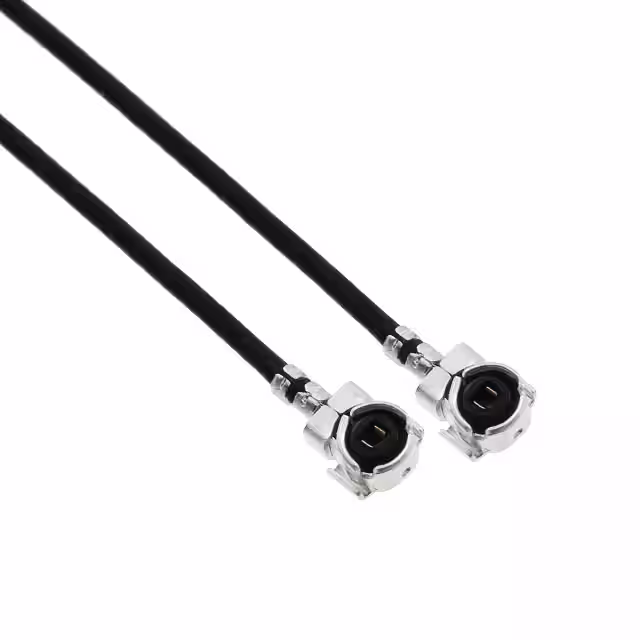

A-1PA-081-050B2CBL ASSY UMCC PLUG-PLUG 1.969 |
708 | 3.91 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|

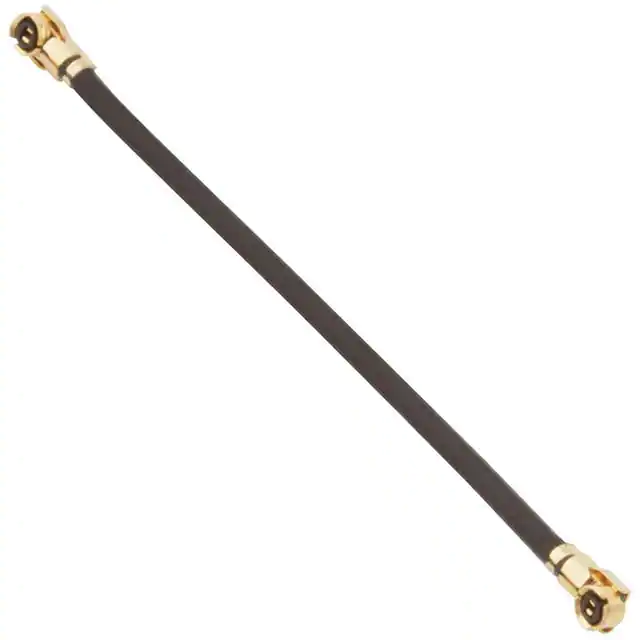

U-1PU-113-100B2AMC4 PLUG TO AMC4 PLUG ON 1.13MM |
2,750 | 5.05 |
RFQ |
Datasheet |
Bag | USS | Active | AMC4 to AMC4 | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C |
|
|
U-1PU-113-050B2AMC4 PLUG TO AMC4 PLUG ON 1.13MM |
3,150 | 5.05 |
RFQ |
Datasheet |
Bag | USS | Active | AMC4 to AMC4 | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C |
|
|
U-1PU-113-200B2AMC4 PLUG TO AMC4 PLUG ON 1.13MM |
784 | 5.38 |
RFQ |
Datasheet |
Bag | USS | Active | AMC4 to AMC4 | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C |
|

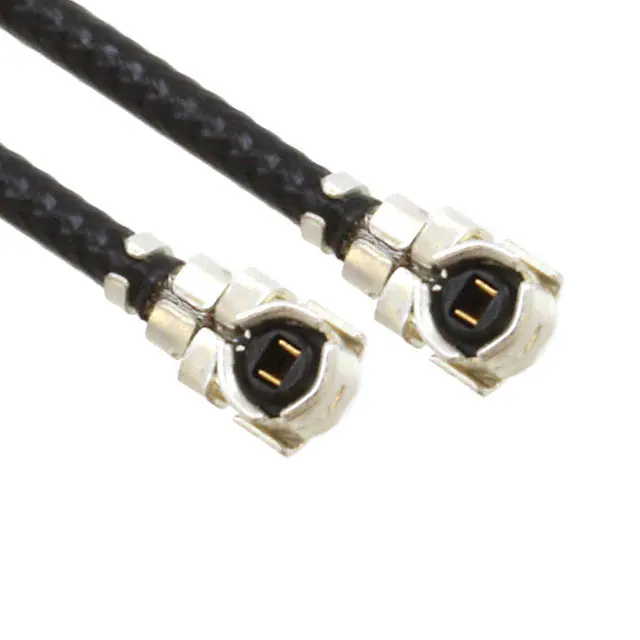

A-1PA-113-060B2CBL ASSY UMCC PLUG-PLUG 2.362 |
678 | 6.06 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 2.362 (60.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|

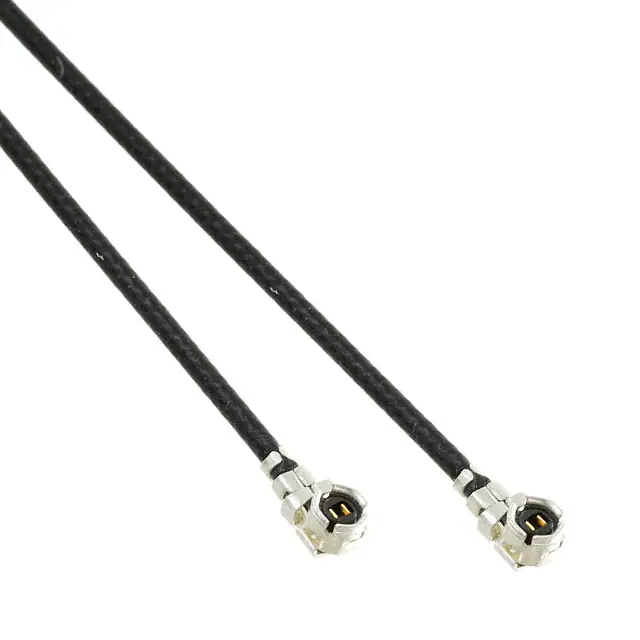

A-1PA-113-100B2CBL ASSY UMCC PLUG-PLUG 3.937 |
767 | 6.11 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-1PA-113-077B2CBL ASSY UMCC PLUG-PLUG 3.031 |
738 | 6.19 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.031 (77.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|

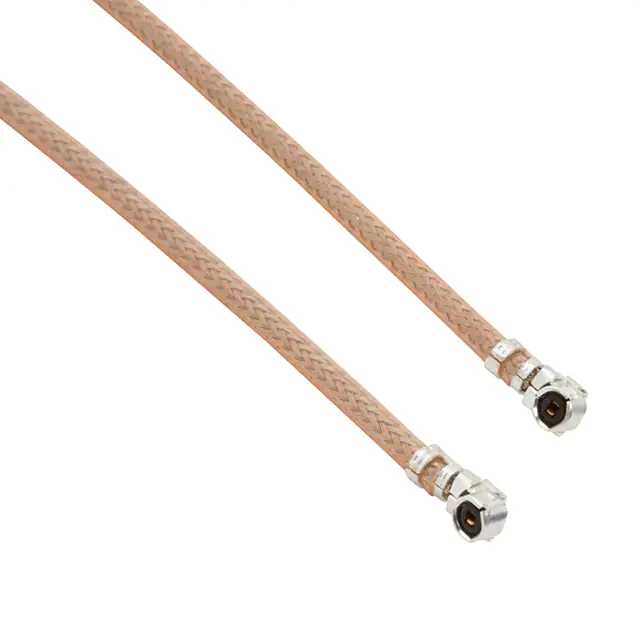

A-1PA-178-100N2CBL ASSY UMCC PLUG RG178 3.937 |
5,306 | 6.21 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Natural | Shielded | -40°C ~ 90°C |
|
|
A-1PA-113-150B2CBL ASSY UMCC PLUG-PLUG 5.906 |
1,837 | 6.30 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-1PA-113-300B2CBL ASSY UMCC PLUG-PLUG 11.811 |
1,254 | 6.64 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
A-1PA-137-040B2CBL ASSY UMCC PLUG-PLUG 1.575 |
455 | 7.10 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.575 (40.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-1PA-178-200N2CBL ASSY UMCC PLUG RG178 7.874 |
297 | 8.17 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Natural | Shielded | -40°C ~ 90°C |
|
|
A-1PA-113-01KB2CBL ASSY UMCC PLUG-PLUG 3.3' |
189 | 8.39 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
A-1PA-137-01KB2CBL ASSY UMCC PLUG-PLUG 3.3' |
830 | 8.53 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
336313-14-0050CBL ASSY SMA-UMC 1.969 |
1,098 | 9.36 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
336314-12-0100CBL ASSY RP-SMA-UMC 3.937 |
796 | 9.36 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
336313-14-0100CBL ASSY SMA-UMC 3.937 |
3,865 | 9.57 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
336313-12-0200CBL ASSY SMA-UMC 7.874 |
1,691 | 9.80 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
