| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

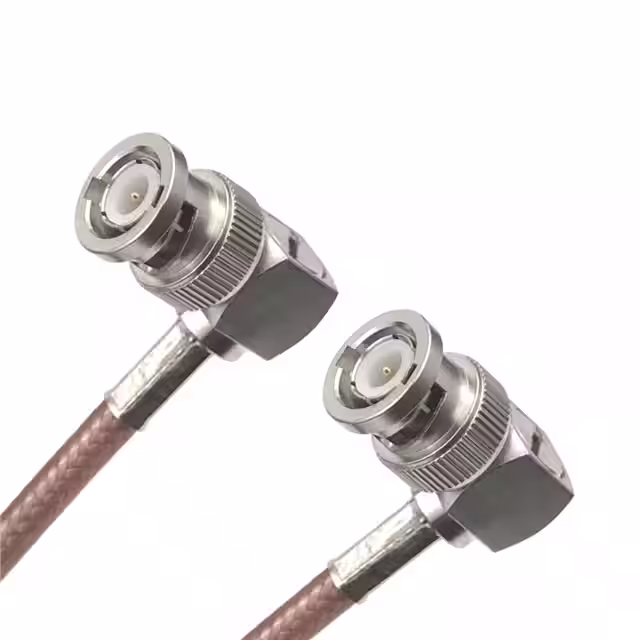

R-CX-1005-60RG-400 BNCR/A(M) - BNCR/A(M) 5' |
2,805 | 112.14 |
RFQ |
Datasheet |
Box | R-CX-1005 | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 60.0 (1.5m) 5.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C |
|
R-CX-1102-144RG58C N-TYPE(F) - N-TYPE(F) 12' |
3,083 | 112.83 |
RFQ |
Datasheet |
Bag | R-CX-1102 | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 144.0 (3.7m) 12.0' | RG-58C | - | - | 50 Ohms | 1 GHz | Black | Shielded | -40°C ~ 80°C |
|
|
R-CX-1102-180RG58C N-TYPE(F) - N-TYPE(F) 15' |
3,843 | 122.08 |
RFQ |
Datasheet |
Bag | R-CX-1102 | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 180.0 (4.6m) 15.0' | RG-58C | - | - | 50 Ohms | 1 GHz | Black | Shielded | -40°C ~ 80°C |
|

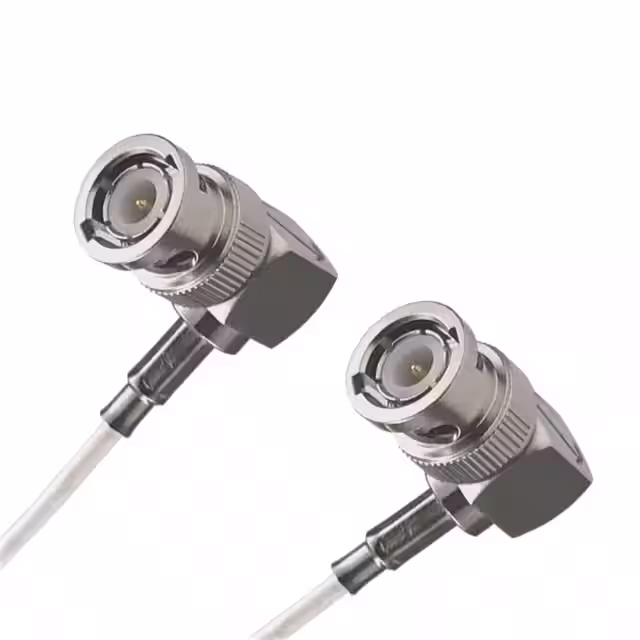

R-CX-1202-144RG-188A BNCR/A(M)-BNCR/A(M) 12' |
3,383 | 125.43 |
RFQ |
Datasheet |
Box | R-CX-1202 | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 144.0 (3.7m) 12.0' | RG-188A | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | -40°C ~ 85°C |
|

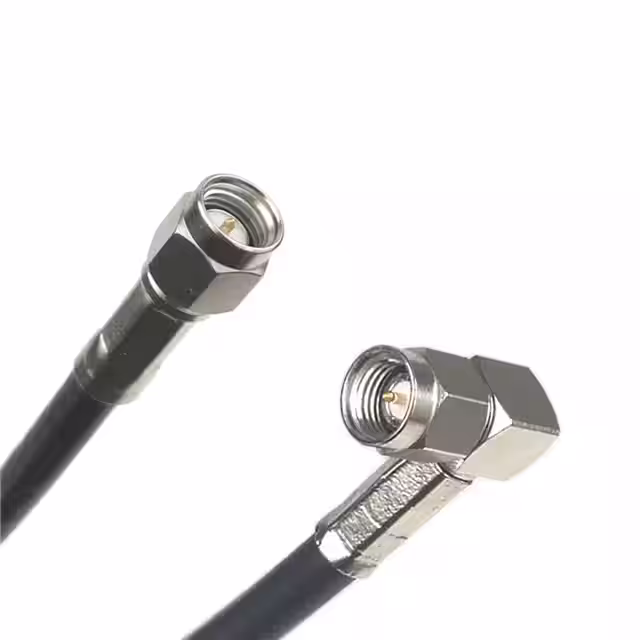

R-CX-1104-120RG-58C SMA(M) - SMAR/A(M) 10' |
2,703 | 114.38 |
RFQ |
Datasheet |
Box | R-CX-1104 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 120.0 (3.0m) 10.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 85°C |
|
R-CX-1202-120RG-188A BNCR/A(M)-BNCR/A(M) 10' |
3,354 | 114.65 |
RFQ |
Datasheet |
Box | R-CX-1202 | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 120.0 (3.0m) 10.0' | RG-188A | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | -40°C ~ 85°C |
|

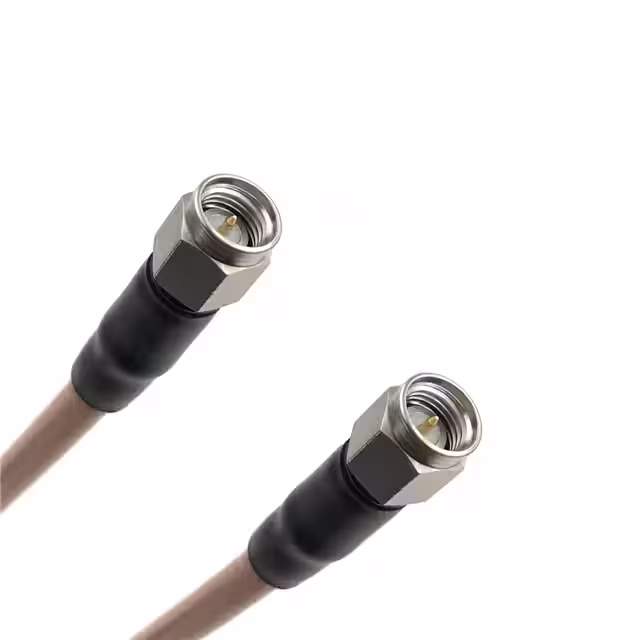

R-CX-1000-24RG400 SMA(M) - SMA(M) 2' |
3,030 | 115.42 |
RFQ |
Datasheet |
Bag | R-CX-1000 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 24.00 (609.60mm) | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C |
|
R-CX-1103-96RG-58C SMAR/A(M) - SMAR/A(M) 8' |
2,717 | 116.49 |
RFQ |
Datasheet |
Box | R-CX-1103 | Active | SMA to SMA | SMA Plug, Right Angle | Male | - | - | SMA Plug, Right Angle | Male | - | - | 96.0 (2.4m) 8.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 85°C |
|
R-CX-1200-240RG-188A BNC(M) - BNC(M) 20' |
2,506 | 117.18 |
RFQ |
Datasheet |
Box | R-CX-1200 | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 240.0 (6.1m) 20.0' | RG-188A | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | -40°C ~ 85°C |
|
R-CX-1302-72RG223 BNCR/A(M) - BNCR/A(M) 6' |
2,628 | 117.33 |
RFQ |
Datasheet |
Bag | R-CX-1302 | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 72.0 (1.8m) 6.0' | RG-223 DS | - | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 85°C |
|
R-CX-1005-72RG-400 BNCR/A(M) - BNCR/A(M) 6' |
3,145 | 117.66 |
RFQ |
Datasheet |
Box | R-CX-1005 | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 72.0 (1.8m) 6.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C |
|

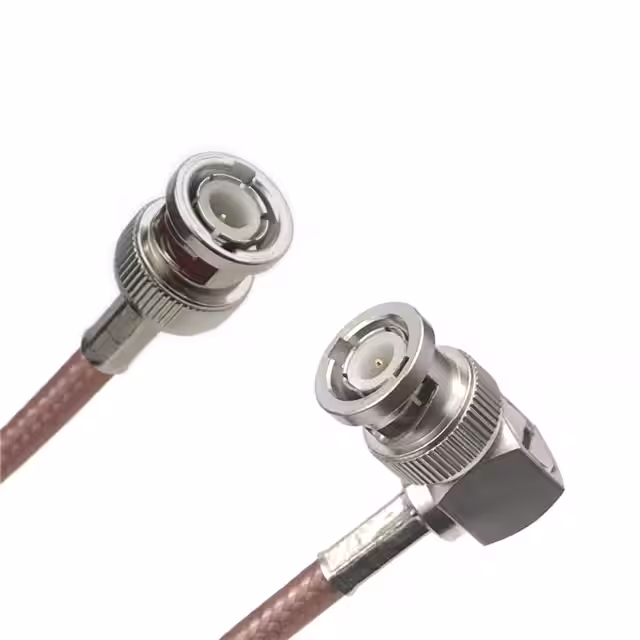

R-CX-1004-96RG-400 BNC(M) - BNCR/A(M) 8' |
2,674 | 118.40 |
RFQ |
Datasheet |
Box | R-CX-1004 | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug, Right Angle | Male | - | - | 96.0 (2.4m) 8.0' | RG-400 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | Shielded | -40°C ~ 85°C |
|

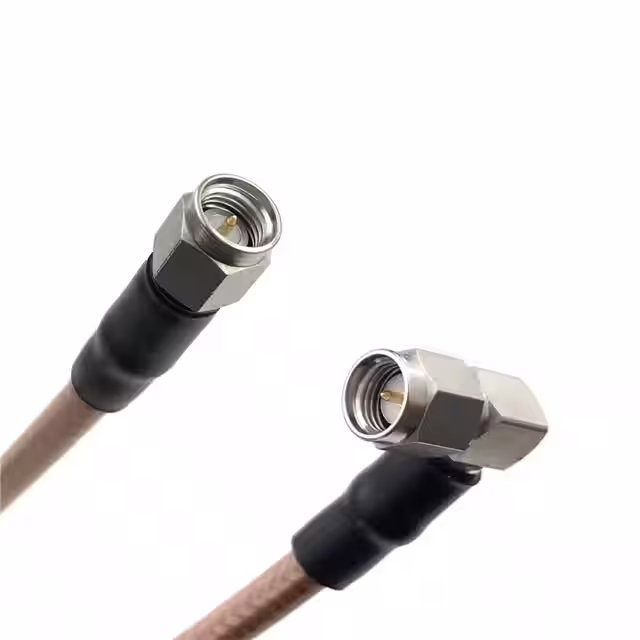

R-CX-1001-12RG400 SMA(M) - SMAR/A(M) 1' |
2,437 | 119.40 |
RFQ |
Datasheet |
Bag | R-CX-1001 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 12.00 (304.80mm) | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C |
|

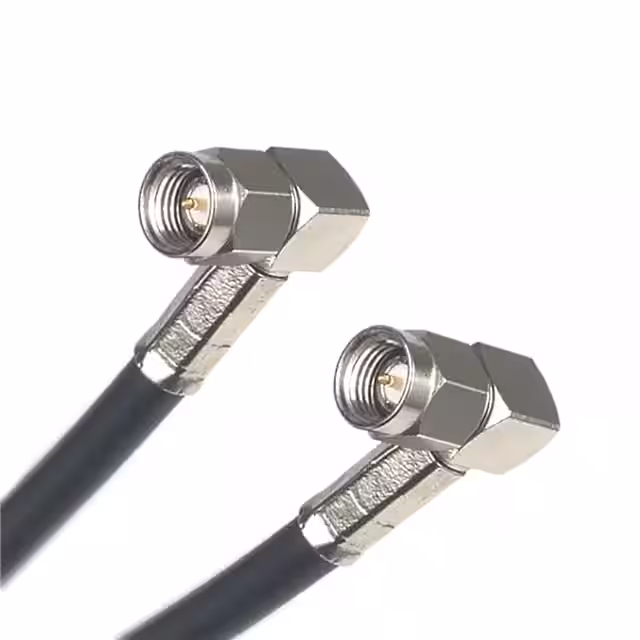

R-CX-1103-120RG-58C SMAR/A(M) - SMAR/A(M) 10' |
3,456 | 119.65 |
RFQ |
Datasheet |
Box | R-CX-1103 | Active | SMA to SMA | SMA Plug, Right Angle | Male | - | - | SMA Plug, Right Angle | Male | - | - | 120.0 (3.0m) 10.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 85°C |
|
R-CX-1101-240RG58C SMA(M) - N-TYPE(F) 20' |
3,589 | 121.25 |
RFQ |
Datasheet |
Bag | R-CX-1101 | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 240.0 (6.1m) 20.0' | RG-58C | - | - | 50 Ohms | 1 GHz | Black | Shielded | -40°C ~ 80°C |
|
|
R-CX-1104-180RG-58C SMA(M) - SMAR/A(M) 15' |
3,224 | 121.37 |
RFQ |
Datasheet |
Box | R-CX-1104 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 180.0 (4.6m) 15.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 85°C |
|
|
R-CX-1104-144RG-58C SMA(M) - SMAR/A(M) 12' |
3,661 | 122.30 |
RFQ |
Datasheet |
Box | R-CX-1104 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 144.0 (3.7m) 12.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 85°C |
|
R-CX-1301-96RG223 BNC(M) - BNCR/A(M) 8' |
3,673 | 124.43 |
RFQ |
Datasheet |
Bag | R-CX-1301 | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug, Right Angle | Male | - | - | 96.0 (2.4m) 8.0' | RG-223 DS | - | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 85°C |
|
|
R-CX-1000-36RG400 SMA(M) - SMA(M) 3' |
2,891 | 125.69 |
RFQ |
Datasheet |
Bag | R-CX-1000 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 36.00 (914.40mm) | RG-400 | - | - | 50 Ohms | 12.4 GHz | Tan | Shielded | -55°C ~ 165°C |
|
R-CX-1100-300RG58C SMA(M) - SMA(M) 25' |
3,771 | 125.99 |
RFQ |
Datasheet |
Bag | R-CX-1100 | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 300.0 (7.6m) 25.0' | RG-58C | - | - | 50 Ohms | 5 GHz | Black | Shielded | -40°C ~ 80°C |
