| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

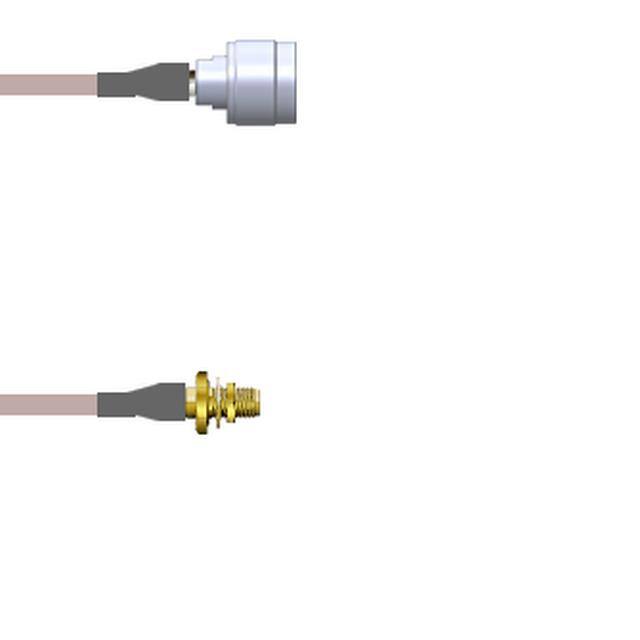

Q-2H02U0001036iCBL ASSY SMA-N J TO P RG178 36 |
3,574 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-0M03Y000H002MCBL ASSY BNC-SMB PLUG RG142 2M |
3,994 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | - | - | SMB Plug | Male | - | - | 78.7 (2.0m) 6.6' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

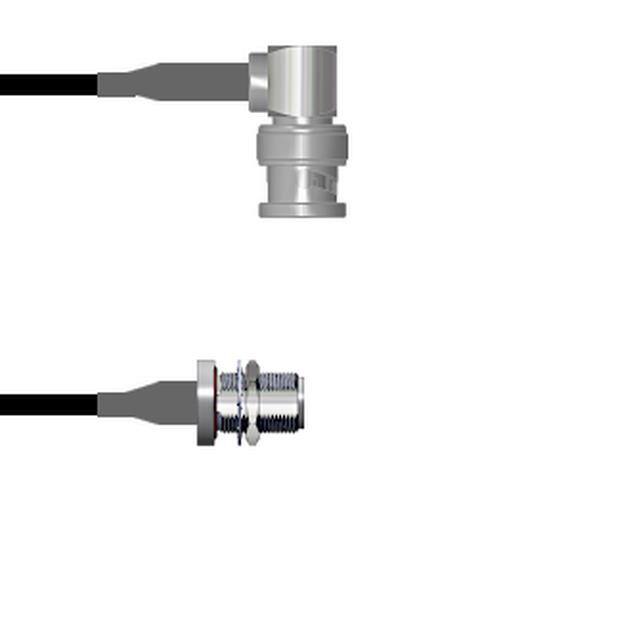

Q-0D01T0003036iCBL ASSY BNC-N-TYPE RG174 36 |
3,248 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0D00D0005024iCBL ASSY BNC PLUG RG316 24 |
2,256 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

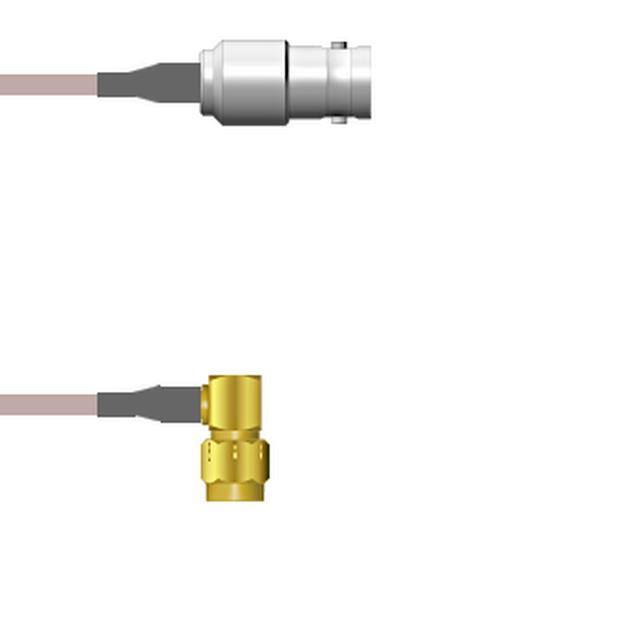

Q-020330001018iCBL ASY BNC-SMA J TO P RG178 18 |
3,536 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | - | - | SMA Plug, Right Angle | Male | - | - | 18.00 (457.20mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

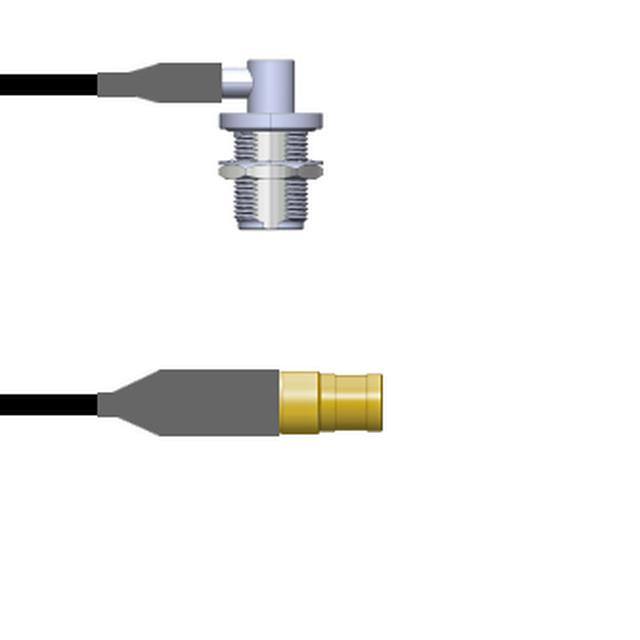

Q-1S03X0008001MCBL ASSY SMB-N PLG TO JK RG58 1M |
2,914 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | Free Hanging (In-Line) | - | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4 (1.0m) 3.3' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0D00D0005.25MCBL ASSY BNC PLUG RG316 9.843 |
3,963 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

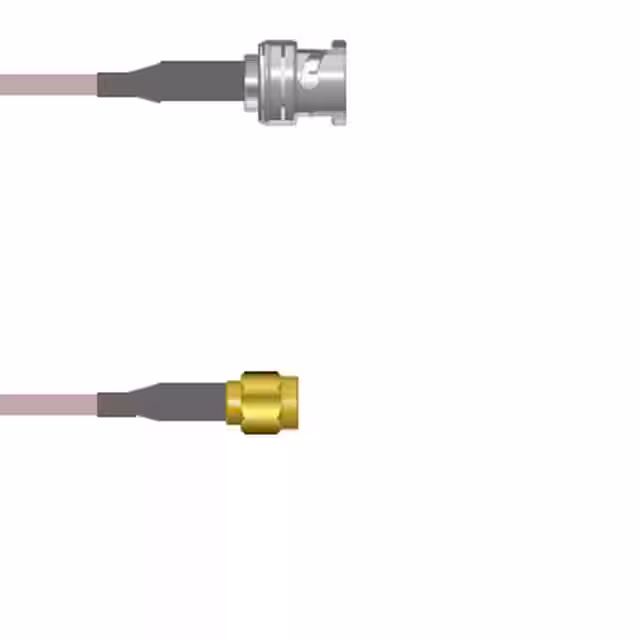

Q-0K03C000R2.5MCBL ASSY BNC-SMA PLUG RG316 2.5M |
3,072 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | - | - | SMA Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

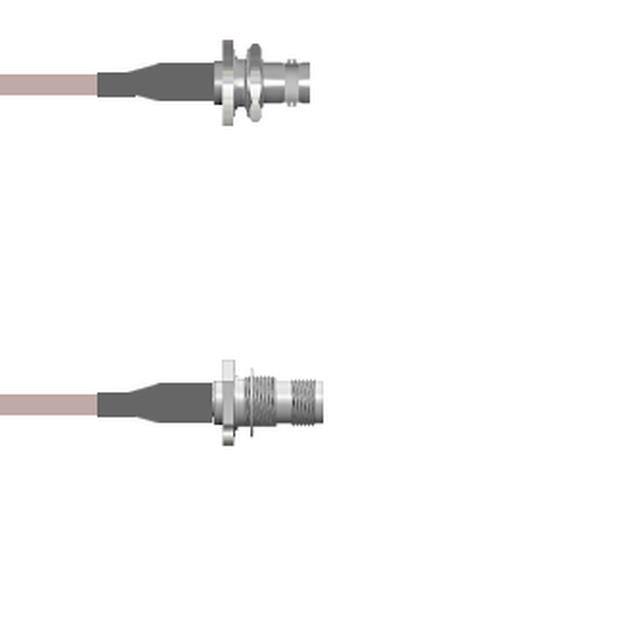

Q-0A04O000H060iCBL ASSY BNC-TNC JACK RG142 5' |
3,470 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

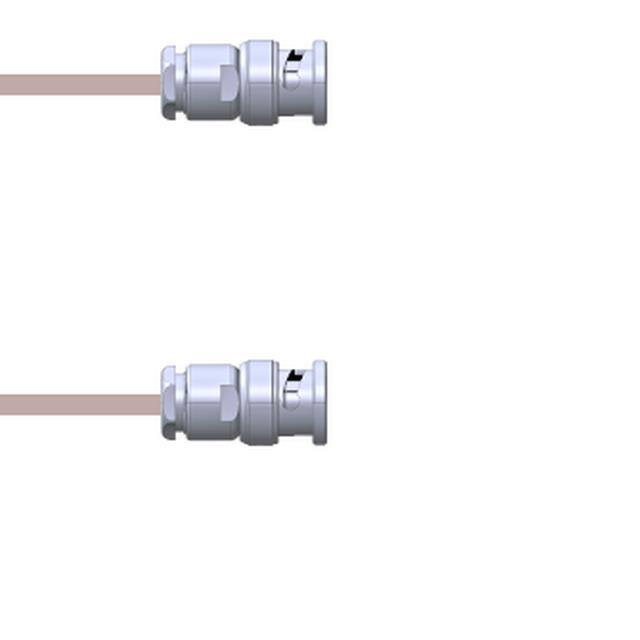

Q-0J00J0005006iCBL ASSY BNC PLUG RG316 6 |
2,133 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

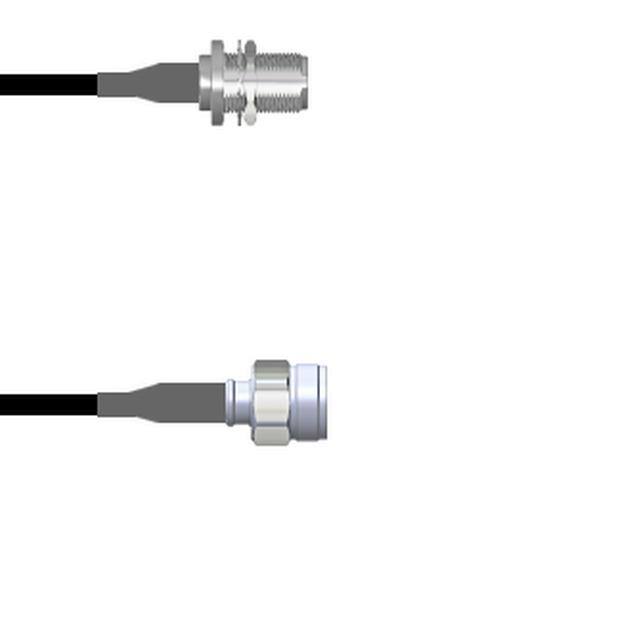

Q-23054000D072iCBL ASSY N TO TNC JACK TO PLG 6' |
2,256 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-2J019000H003MCBL ASSY MCX-N PLUG RG142 3M |
2,880 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 118.1 (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

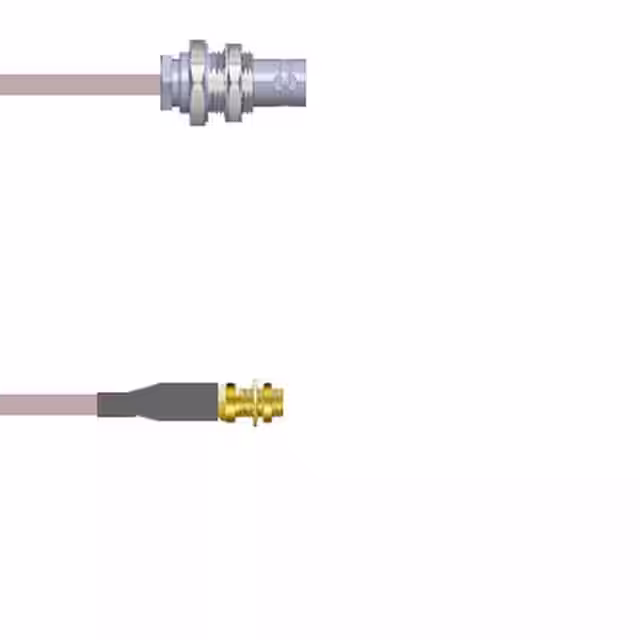

Q-07012000R009iCBL ASSY BNC-MCX JCK RG316 DB 9 |
3,633 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|

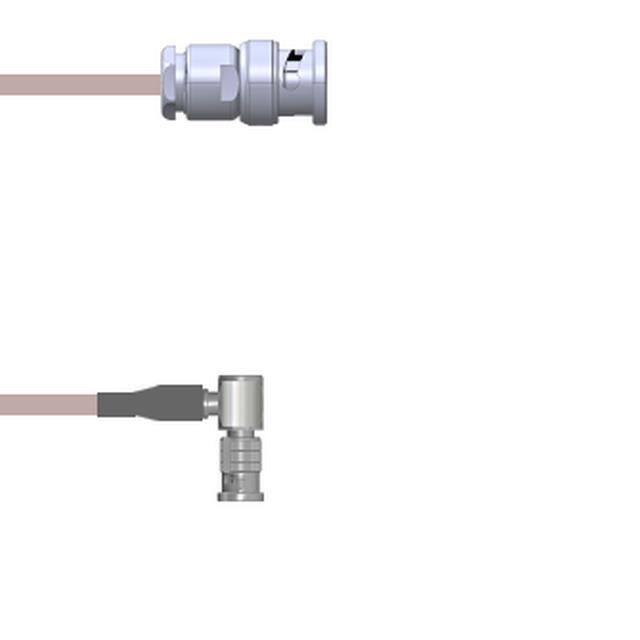

Q-0J05G0005018iCBL ASSY BNC-HD-BNC PL RG316 18 |
3,525 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | - | - | HD-BNC Plug, Right Angle | Male | - | - | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

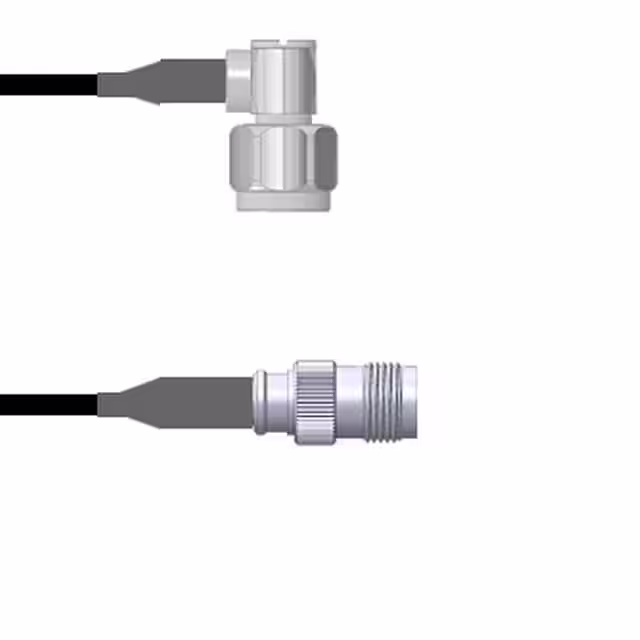

Q-2E04L000D001MCBL ASSY N TO TNC PLUG TO JCK 1M |
2,728 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Jack | Female | - | - | 39.4 (1.0m) 3.3' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

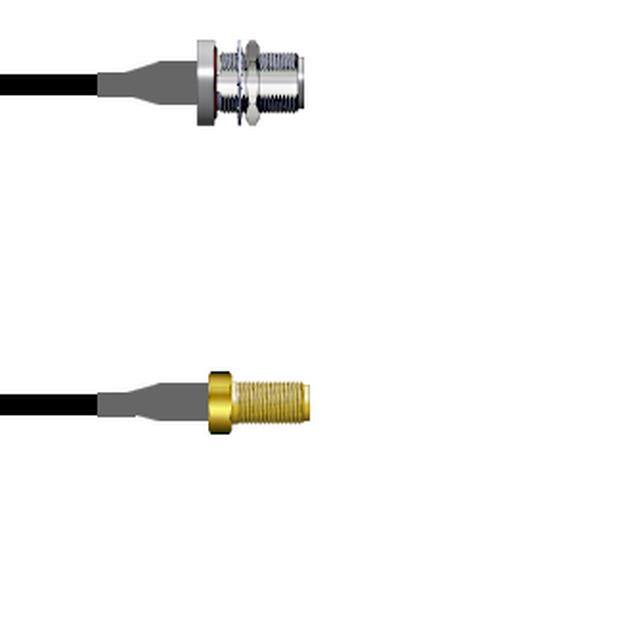

Q-1T02V0003.25MCBL ASSY SMA-N JACK RG174 9.843 |
3,063 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

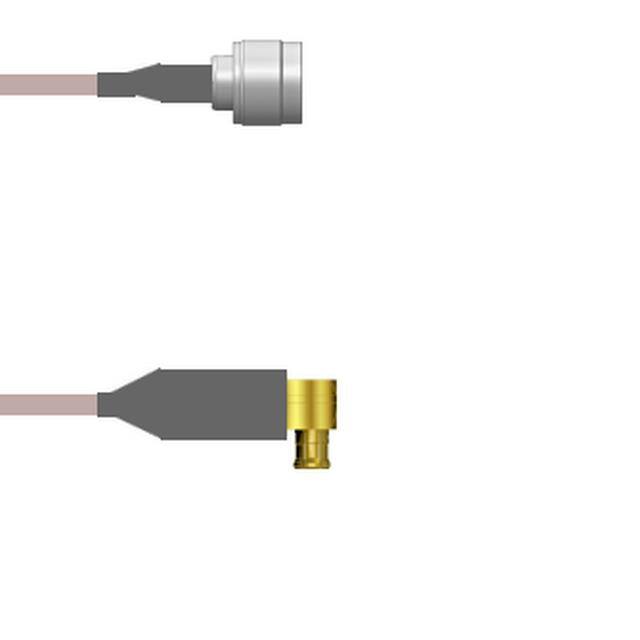

Q-2J019000H009iCBL ASSY MCX-N PLUG RG142 9 |
3,130 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 9.000 (228.60mm) | RG-142 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

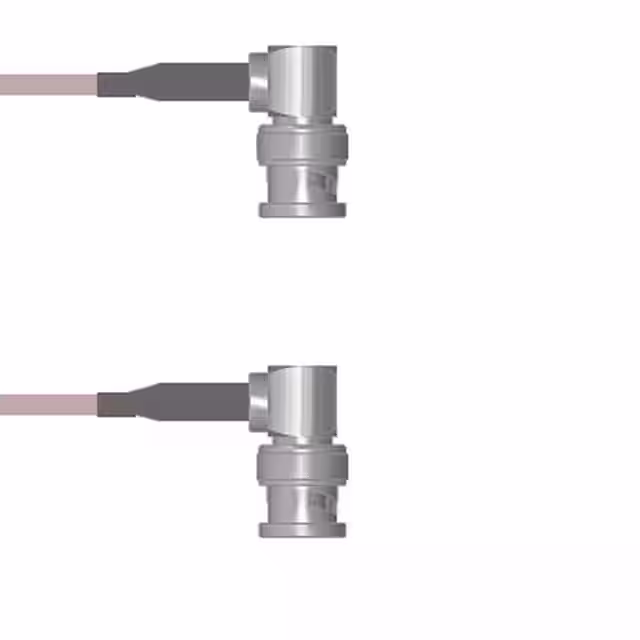

Q-0D00D0005060iCBL ASSY BNC PLUG RG316 5' |
2,463 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

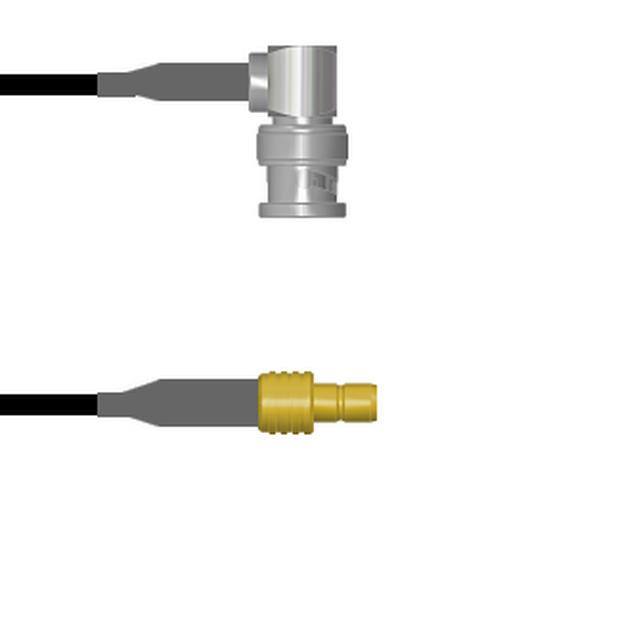

Q-0D03L00032.5MCBL ASY BNC-SMB P-J RG174 2.5M |
2,922 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | - | - | SMB Jack | Female | - | - | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-2201L000R.25MCB ASY MMCX-N JK RG316 DB 9.843 |
3,224 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
