| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

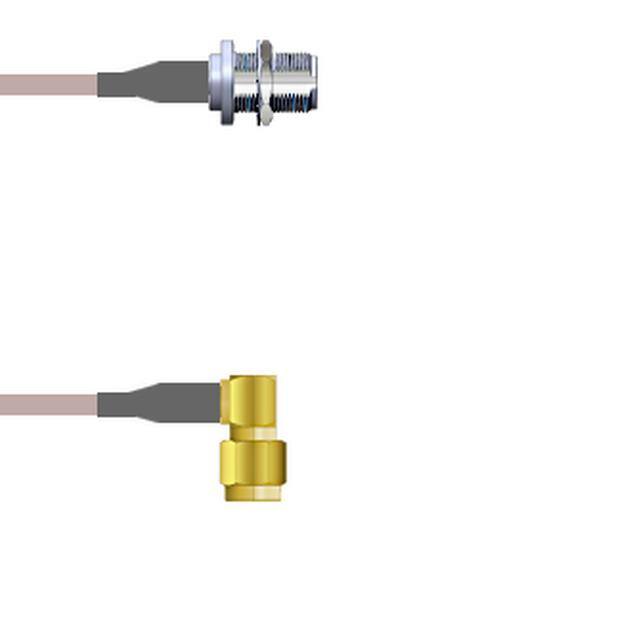

Q-25038000H003MCBL ASY SMA-N PLG TO JK RG142 3M |
3,457 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

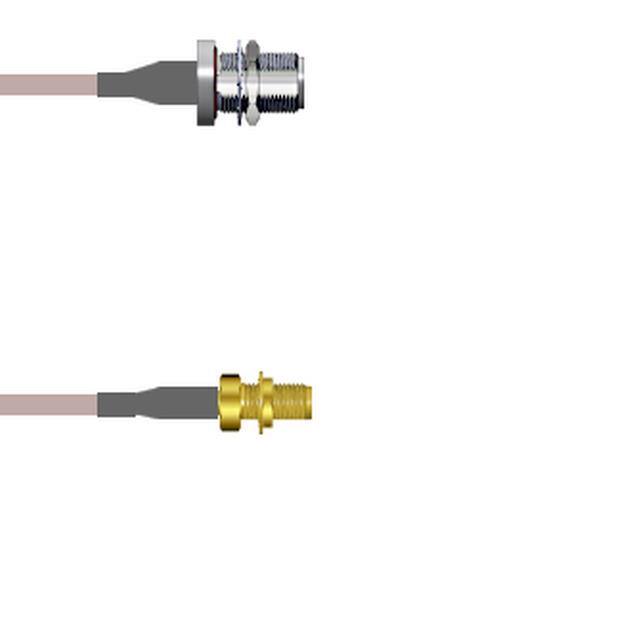

Q-1T02W0005012iCBL ASSY SMA-N JACK RG316 12 |
3,183 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

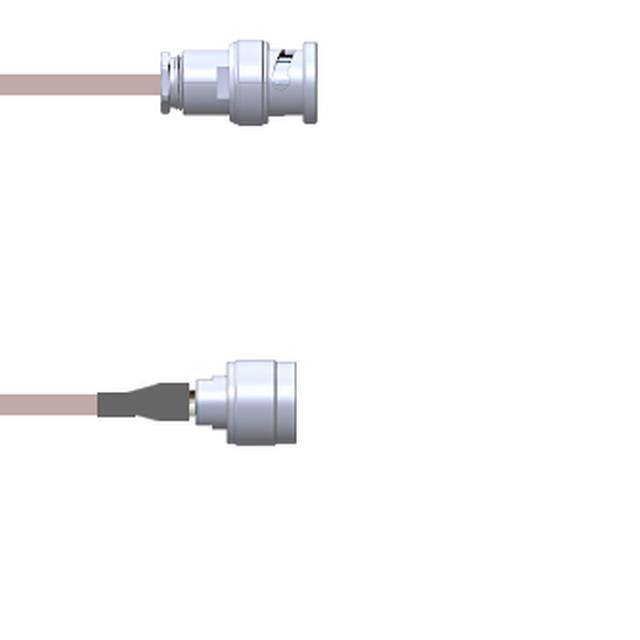

Q-0I02H0001006iCBL ASSY BNC-N-TYP PLUG RG178 6 |
3,542 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | - | - | N-Type Plug | Male | - | - | 6.000 (152.40mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

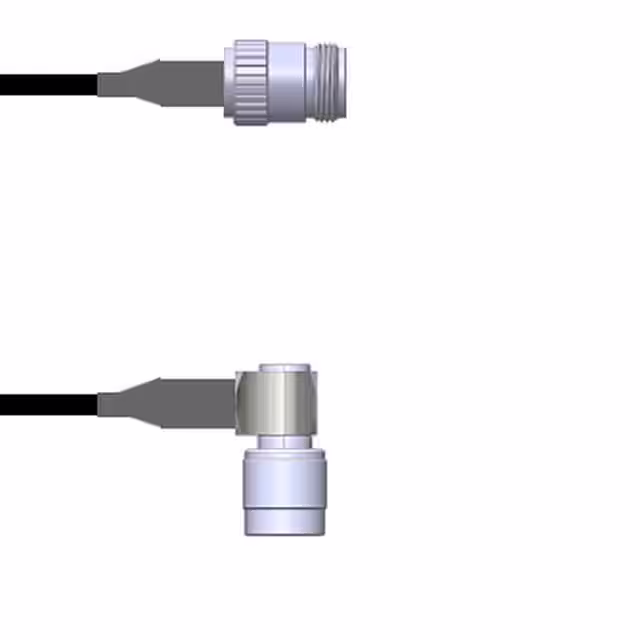

Q-2704Z000M.75MCBL ASSY N TO TNC J TO P 29.53 |
2,162 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug, Right Angle | Male | - | - | 29.53 (750.00mm) | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-0J02C0003024iCBL ASSY BNC-N-TYP PLG RG174 24 |
2,186 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 24.00 (609.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-1W05B0008024iCBL ASY N-FAKRA J TO P RG58 24 |
2,443 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack | Female | - | - | Fakra Plug | Male | - | - | 24.00 (609.60mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|
Q-0300D0005006iCBL ASSY BNC JCK TO PLG RG316 6 |
3,657 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | - | - | BNC Plug, Right Angle | Male | - | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

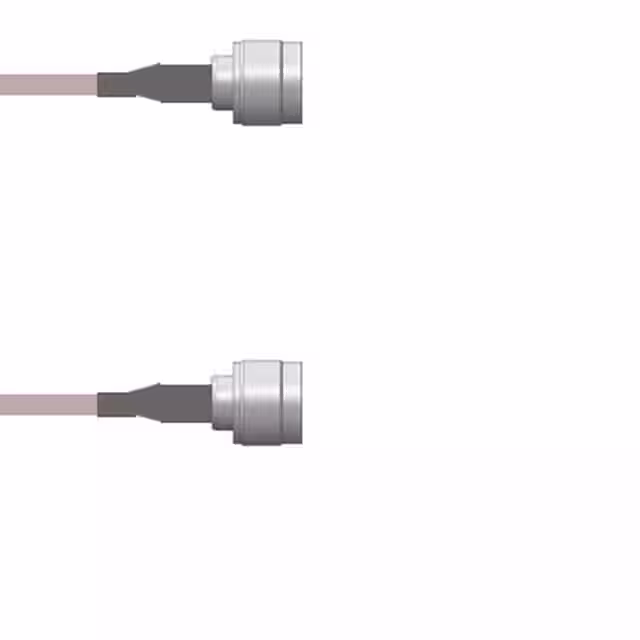

Q-2J02J000H018iCBL ASSY N-TYPE PLUG RG142 18 |
2,955 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 18.00 (457.20mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

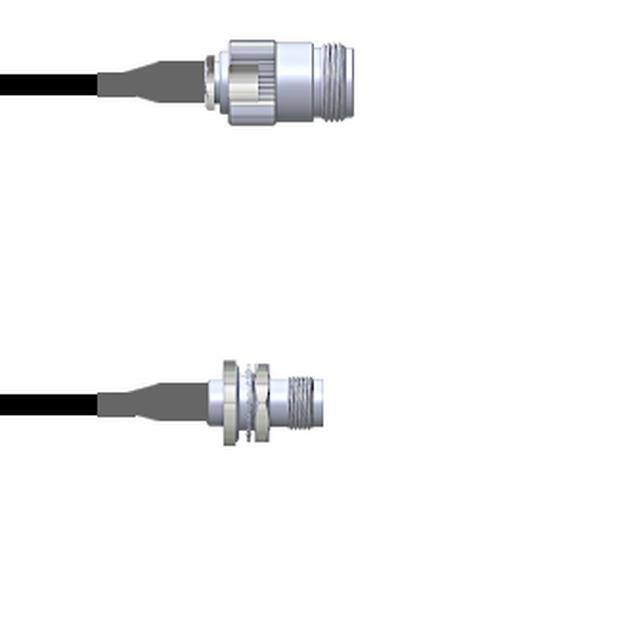

Q-2004E0003001MCBL ASSY N TO TNC JACK RG174 1M |
3,806 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4 (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

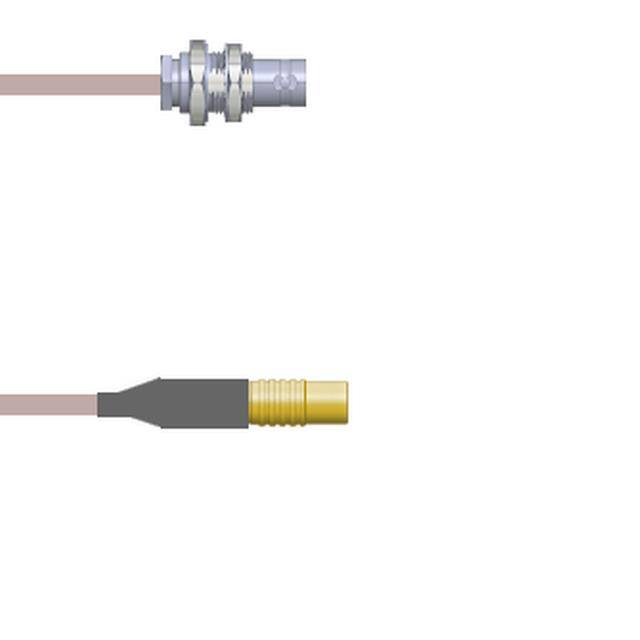

Q-07013000R024iCBL ASSY BNC-MCX JK RG316 DB 24 |
2,163 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Jack | Female | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|

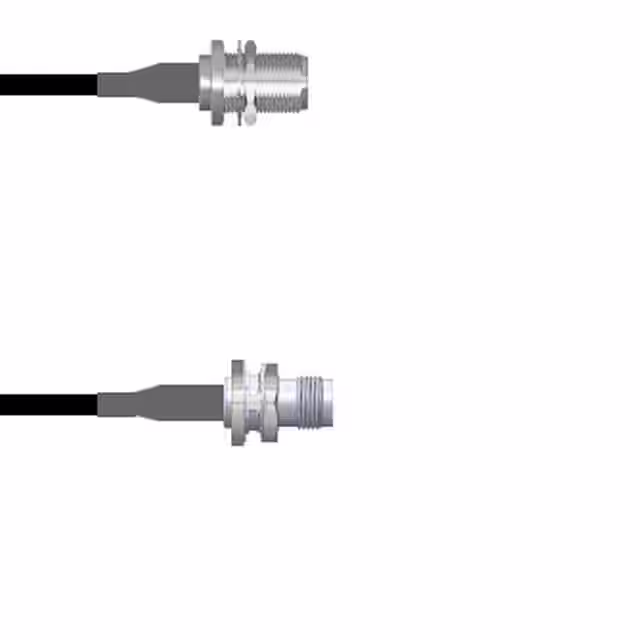

Q-2304M000D006iCBL ASSY N TO TNC JACK 6 |
3,397 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

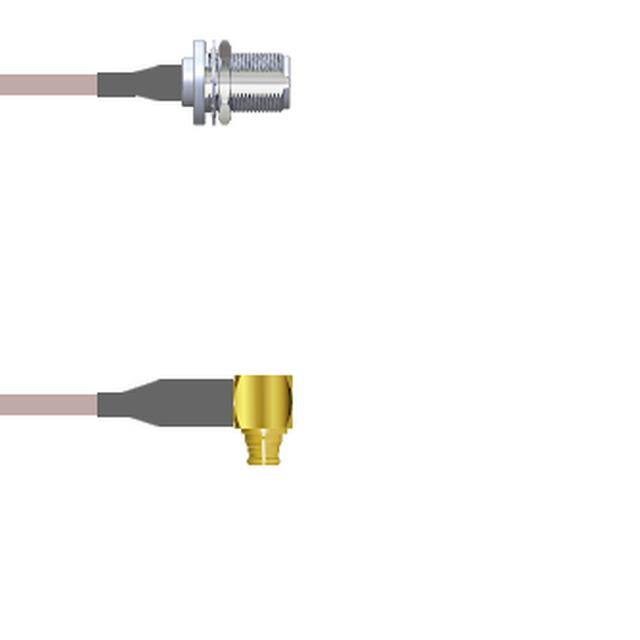

Q-1Z0410001108iCBL ASY SMP-N PLG TO JK RG178 9' |
2,496 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

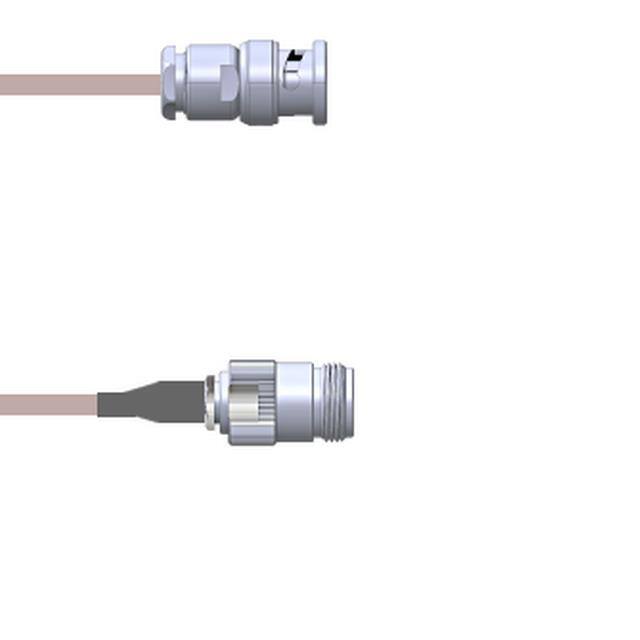

Q-0J0200005018iCBL ASSY BNC-N-TYPE RG316 18 |
2,290 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | - | - | N-Type Jack | Female | - | - | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-080720008084iCBL ASSY RP-SMA-BNC JACK RG58 7' |
3,960 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0 (2.1m) 7.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

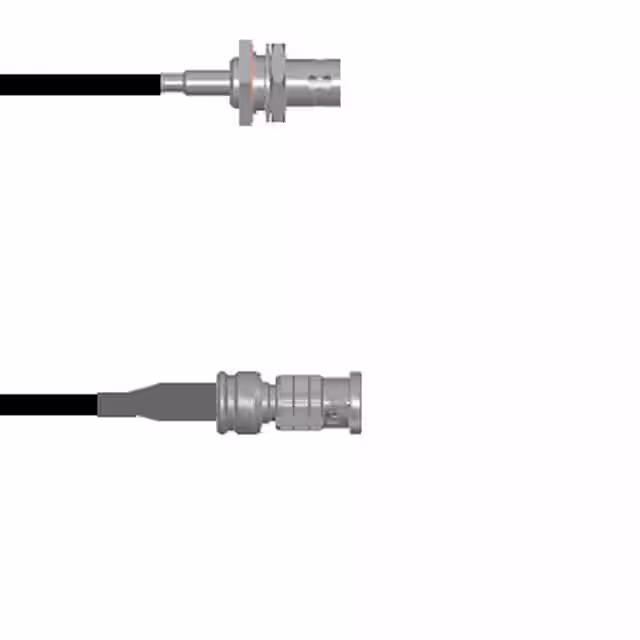

Q-0405H00032.5MCBL ASSY BNC-HD-BNC RG174 2.5M |
2,929 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

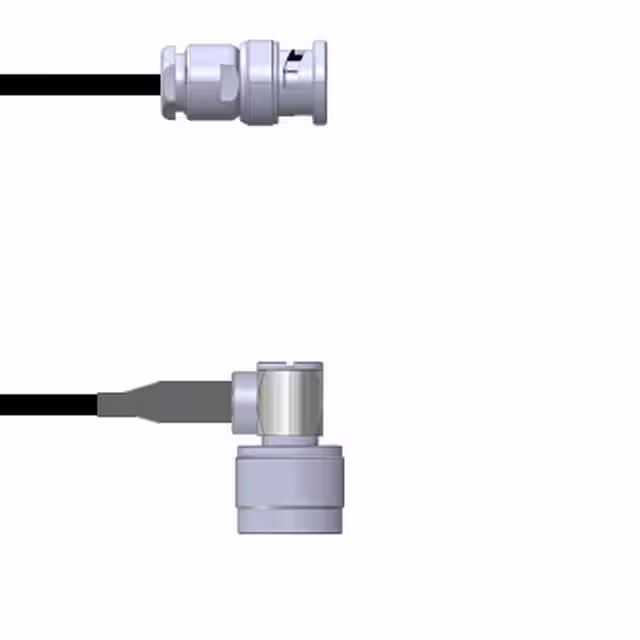

Q-0J02C0003003MCBL ASSY BNC-N-TYP PLUG RG174 3M |
2,767 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

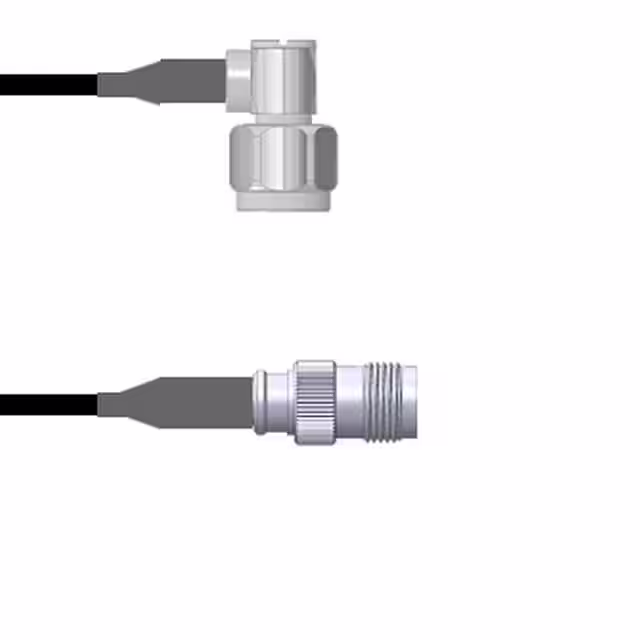

Q-2E04L000D024iCBL ASSY N TO TNC PLG TO JCK 24 |
3,047 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Jack | Female | - | - | 24.00 (609.60mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-1U0680005018iCBL ASSY RP-SMA TO N RG316 18 |
2,934 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-0405H0003072iCBL ASSY BNC-HD-BNC J-P RG174 6' |
3,531 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-1T01I0005024iCBL ASSY MMCX-N JACK RG316 24 |
2,853 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
