| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

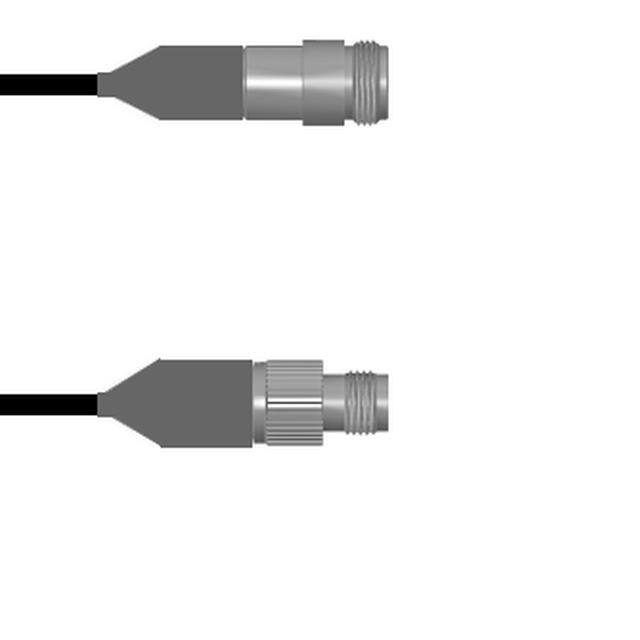

Q-290730013002MCBL ASSY N TO TNC JACK 2M |
2,040 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Jack | Female | - | - | 78.7 (2.0m) 6.6' | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

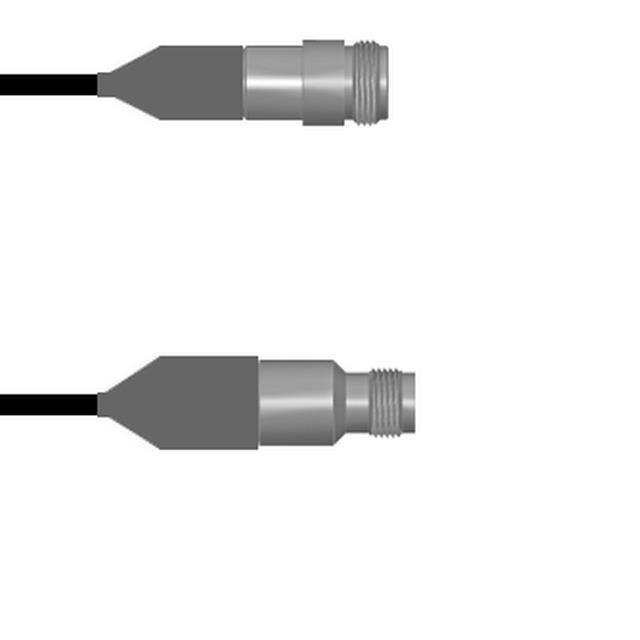

Q-290750013060iCBL ASSY RP-TNC TO N-TYP JACK 5' |
3,946 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-TNC to N-Type | RP-TNC Jack | Male | - | - | N-Type Jack | Female | - | - | 60.0 (1.5m) 5.0' | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

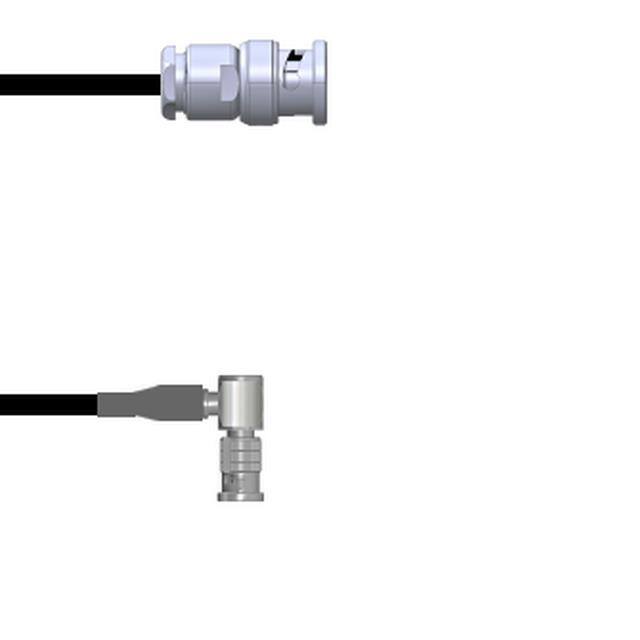

Q-0J05G0003072iCBL ASSY BNC-HD-BNC PLG RG174 6' |
3,608 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | - | - | HD-BNC Plug, Right Angle | Male | - | - | 72.0 (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

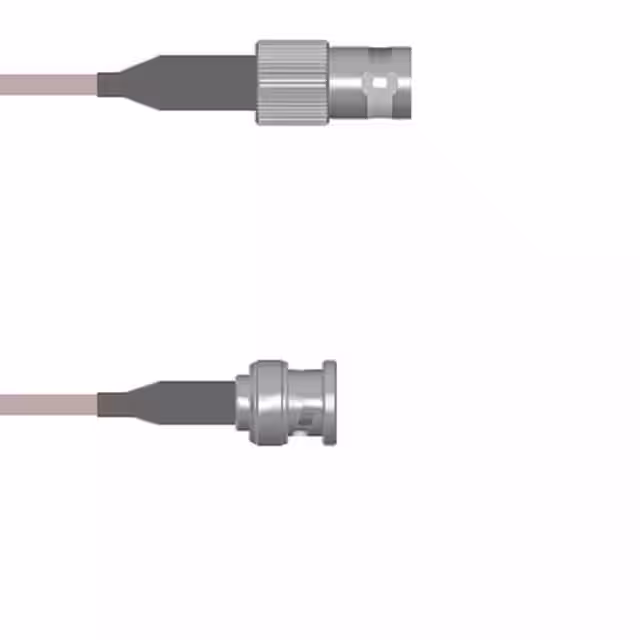

Q-0B00M000H009iCBL ASSY BNC JCK TO PLG RG142 9 |
2,205 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | - | - | BNC Plug | Male | - | - | 9.000 (228.60mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

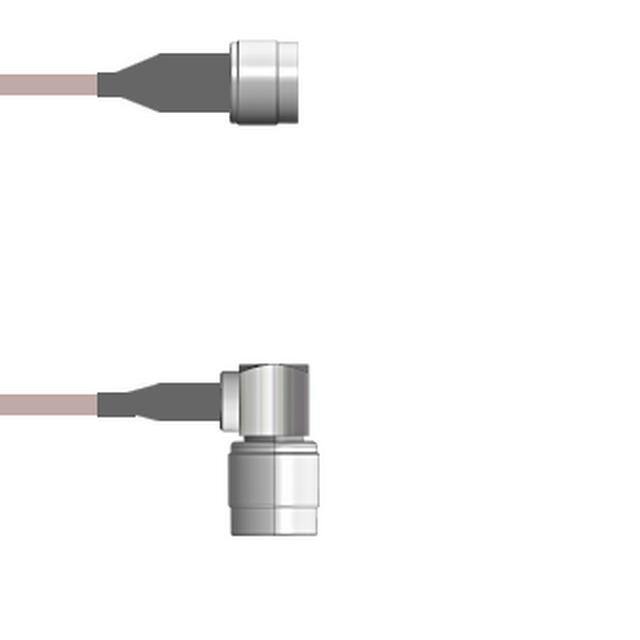

Q-2I04T0005.75MCBL ASY N TO TNC PL RG316 29.53 |
2,201 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Plug, Right Angle | Male | - | - | 29.53 (750.00mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

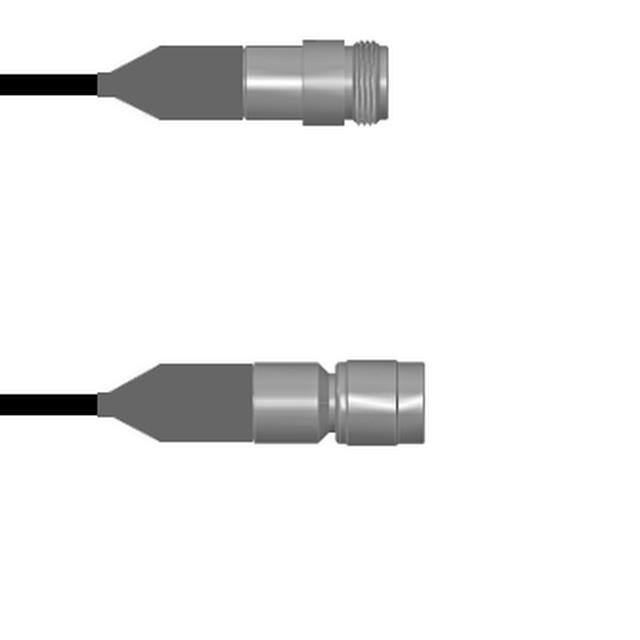

Q-290760013018iCBL ASSY RP-TNC TO N-TYPE 18 |
2,390 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-TNC to N-Type | RP-TNC Plug | Female | - | - | N-Type Jack | Female | - | - | 18.00 (457.20mm) | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

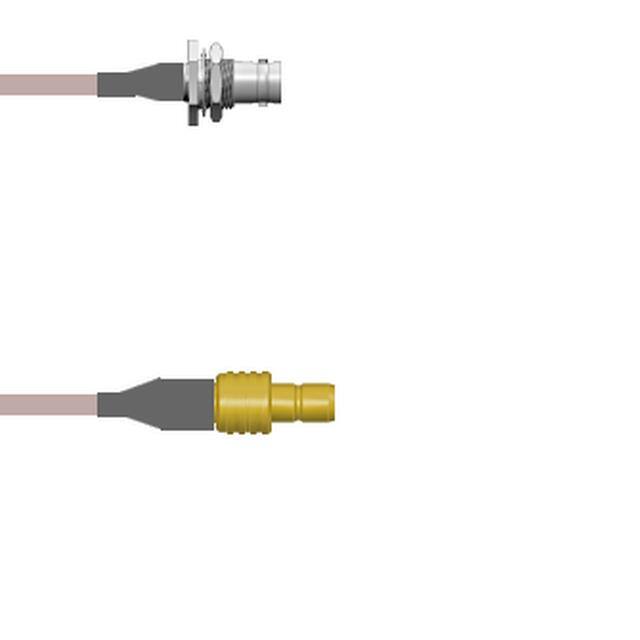

Q-0103J00012.5MCBL ASSY BNC-SMB JACK RG178 2.5M |
3,345 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Jack | Female | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2001A0003108iCBL ASY MCX-N PLG TO JK RG174 9' |
3,555 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 108.0 (2.7m) 9.0' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

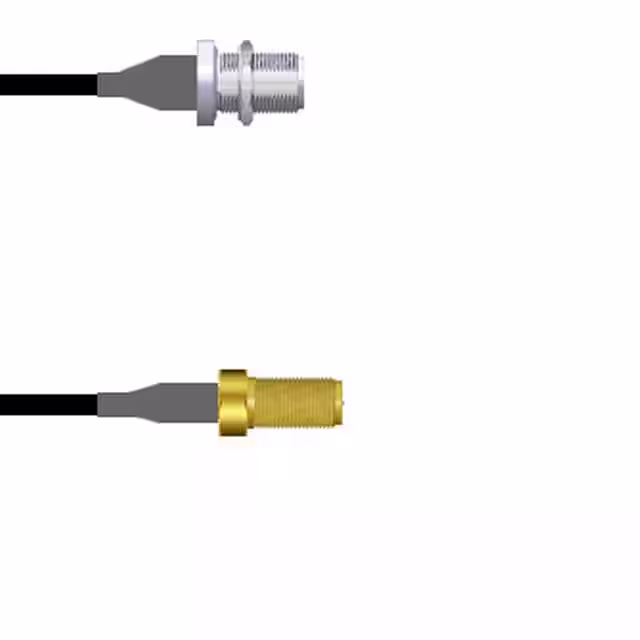

Q-1U0710003.75MCBL ASY RP-SMA TO N RG174 29.53 |
3,740 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 29.53 (750.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

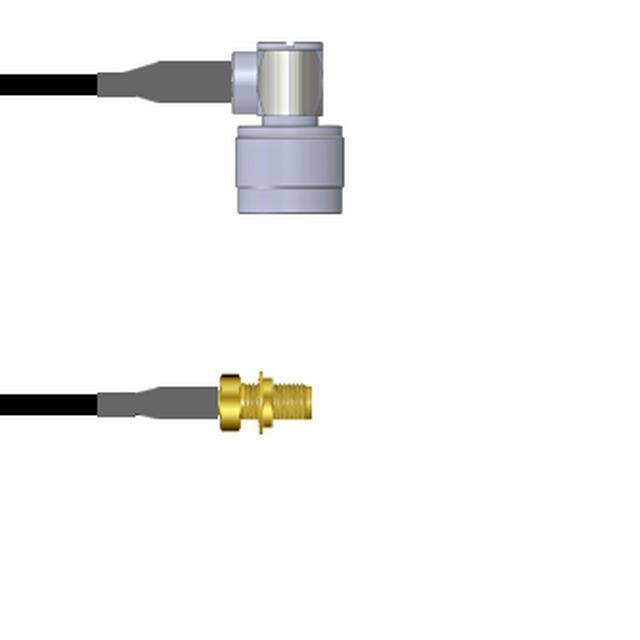

Q-2C02W0003084iCBL ASY SMA-N JK TO PLG RG174 7' |
2,035 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 84.0 (2.1m) 7.0' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

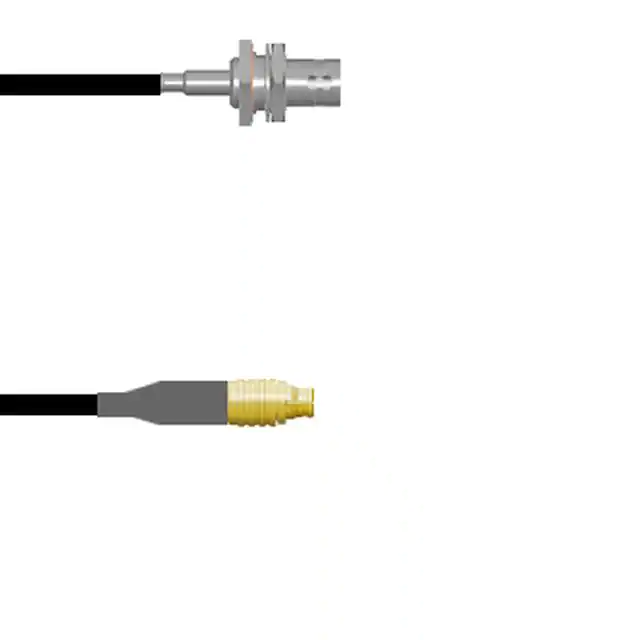

Q-0404400030.5MCBL ASSY BNC-SMP RG174 19.69 |
2,953 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMP | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMP Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

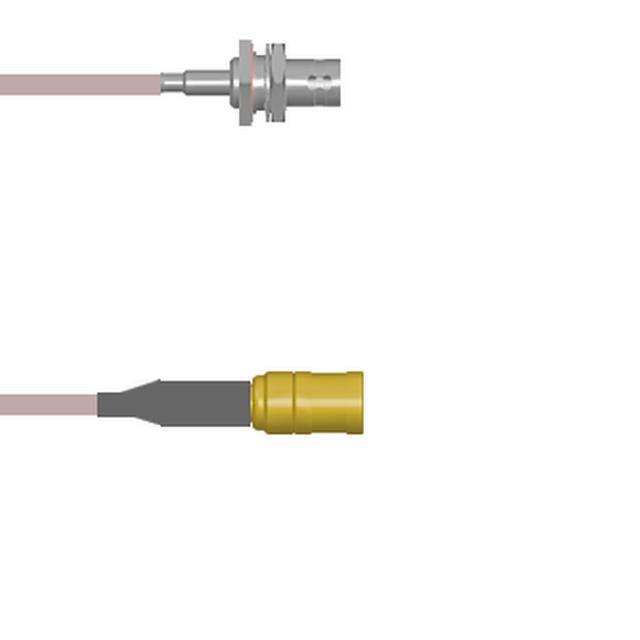

Q-0403W0005012iCBL ASY BNC-SMB J TO P RG316 12 |
2,663 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

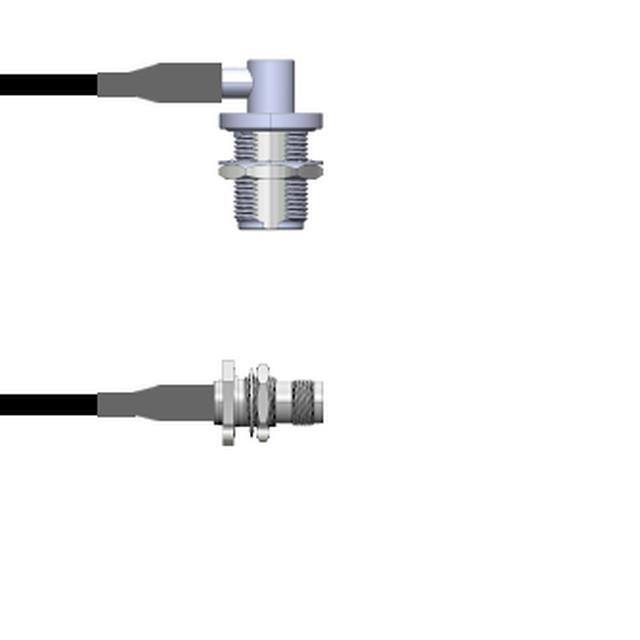

Q-1S04K0008012iCBL ASSY N TO TNC JACK RG58 12 |
2,454 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

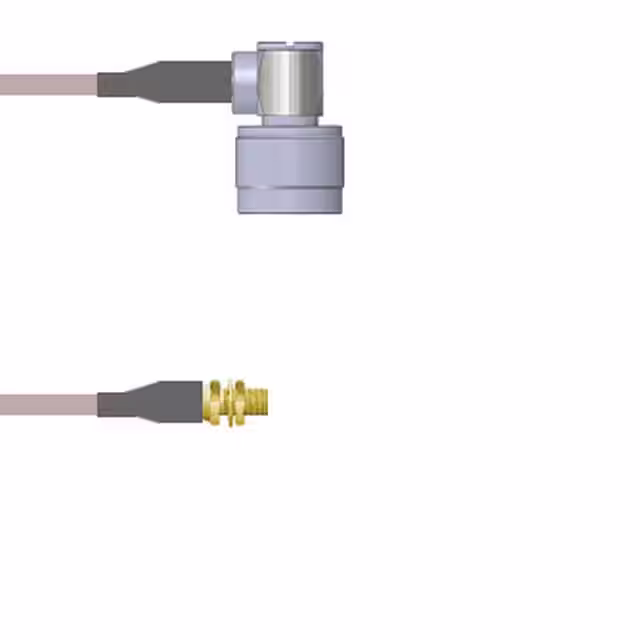

Q-2C01100051.5MCBL ASY MCX-N J TO P RG316 1.5M |
2,281 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

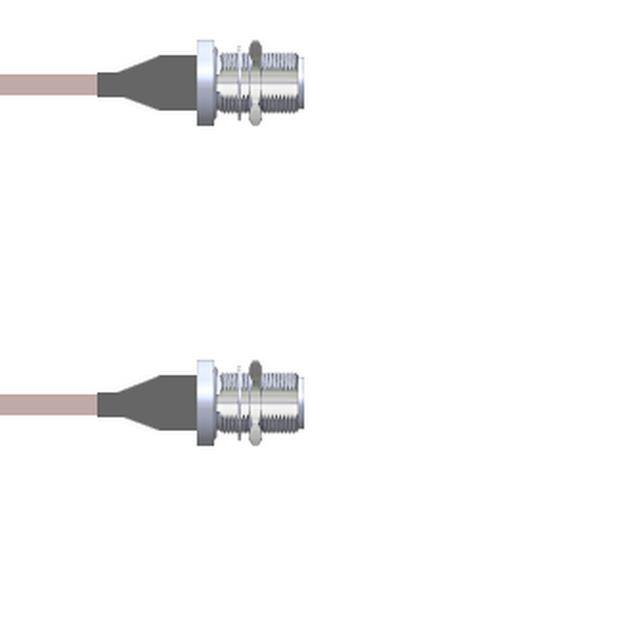

Q-22022000R018iCBL ASSY N-TYP JACK RG316 DB 18 |
2,045 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

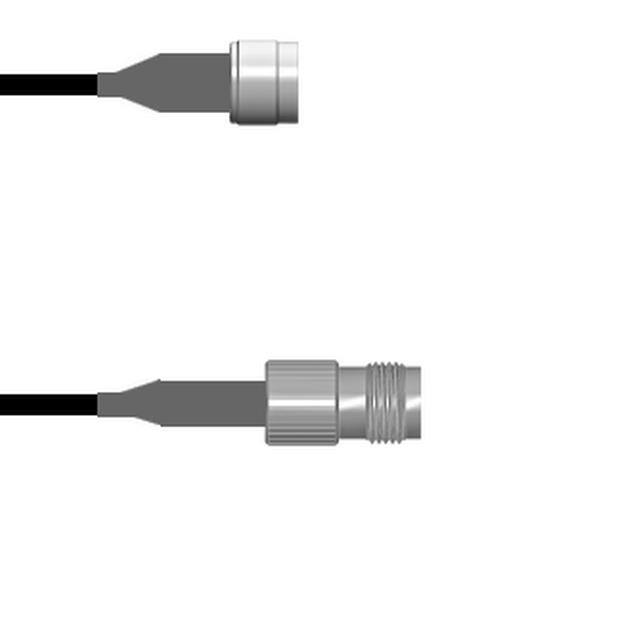

Q-2I04G0003108iCBL ASY N TO TNC P-J RG174 9' |
3,381 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Jack | Female | - | - | 108.0 (2.7m) 9.0' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

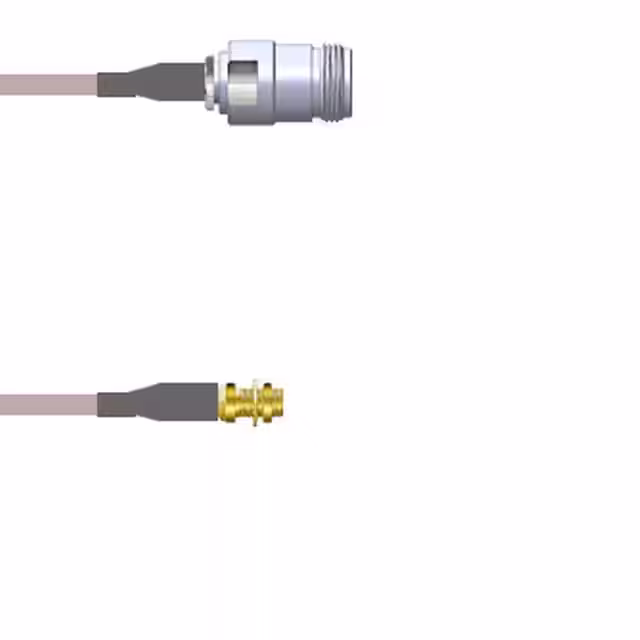

Q-1V012000R0.5MCBL ASSY MCX-N JACK RG316 19.69 |
2,769 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

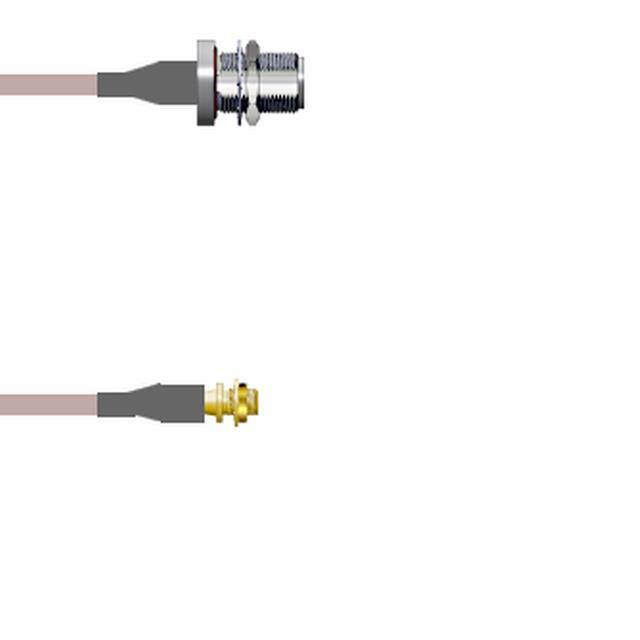

Q-1T01I0005018iCBL ASSY MMCX-N JACK RG316 18 |
3,703 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

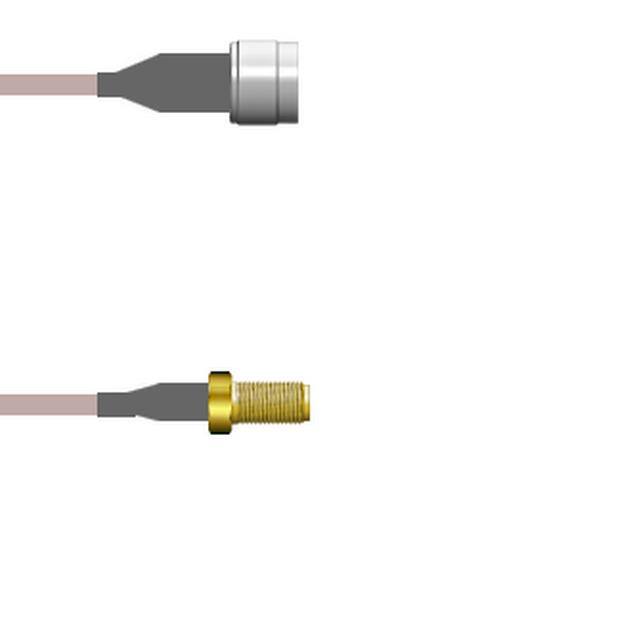

Q-2I02V0005048iCBL ASY SMA-N JK TO PLG RG316 4' |
2,206 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | - | - | N-Type Plug | Male | - | - | 48.0 (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | - |
|

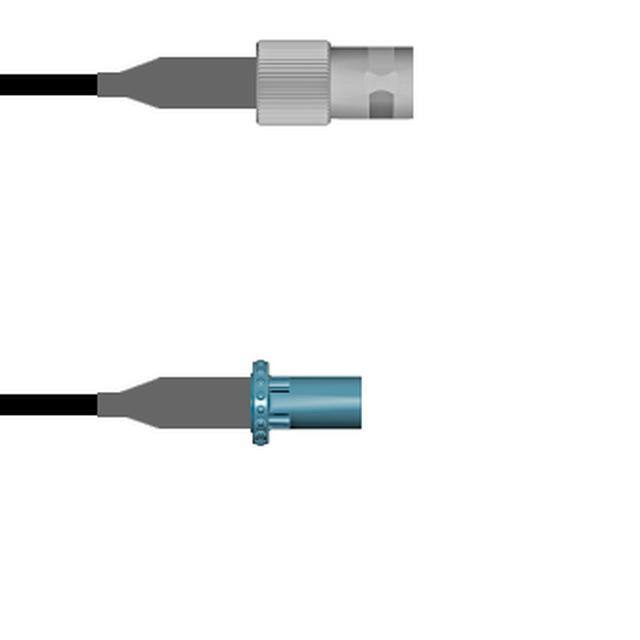

Q-0905B0008036iCBL ASY BNC-FAKRA J-P RG58 36 |
3,923 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | - | - | Fakra Plug | Male | - | - | 36.00 (914.40mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
