| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

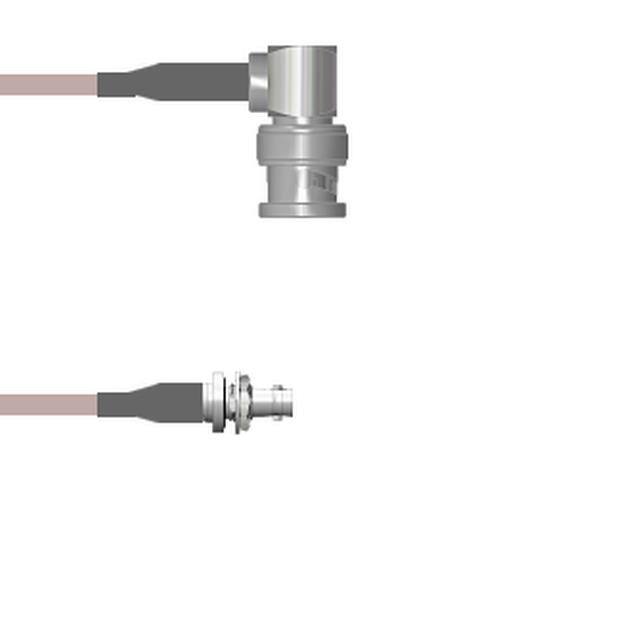

Q-0D00P0005108iCBL ASSY BNC-HD-BNC P-J RG316 9' |
2,965 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0D00J0003072iCBL ASSY BNC PLUG RG174 6' |
2,065 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug | Male | - | - | 72.0 (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

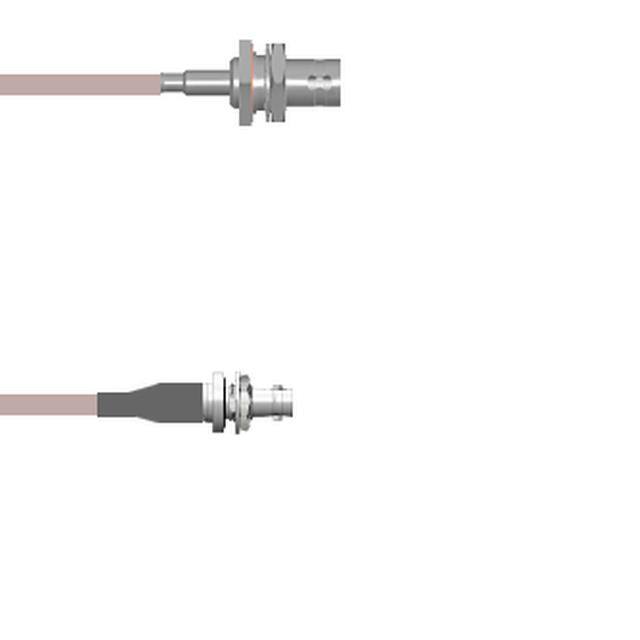

Q-0400P0005048iCBL ASSY BNC-HD-BNC JCK RG316 4' |
3,429 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

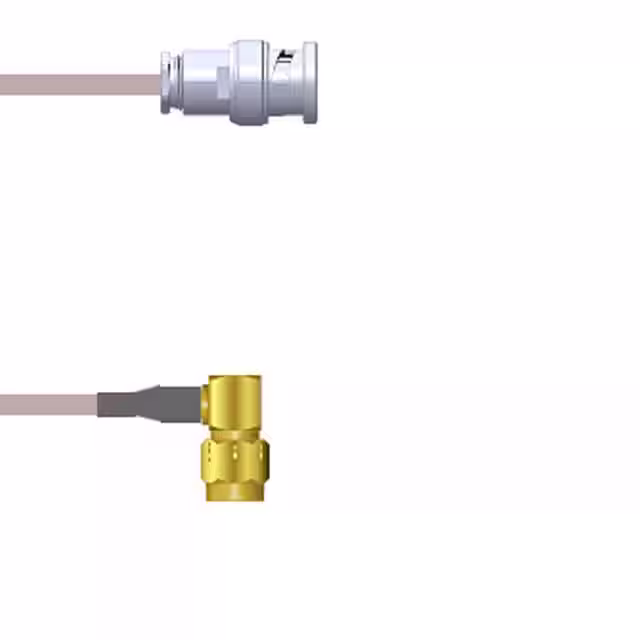

Q-0I0330001036iCBL ASSY BNC-SMA PLUG RG178 36 |
2,949 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 36.00 (914.40mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

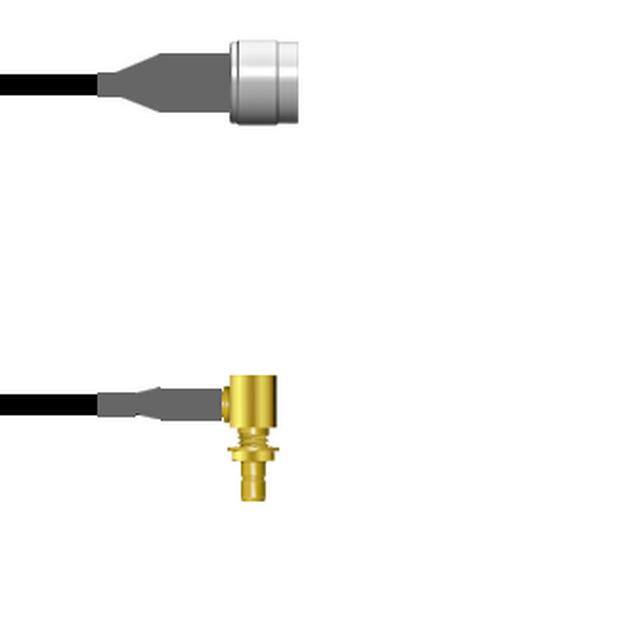

Q-2I03H00032.5MCBL ASY SMB-N J TO P RG174 2.5M |
2,459 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

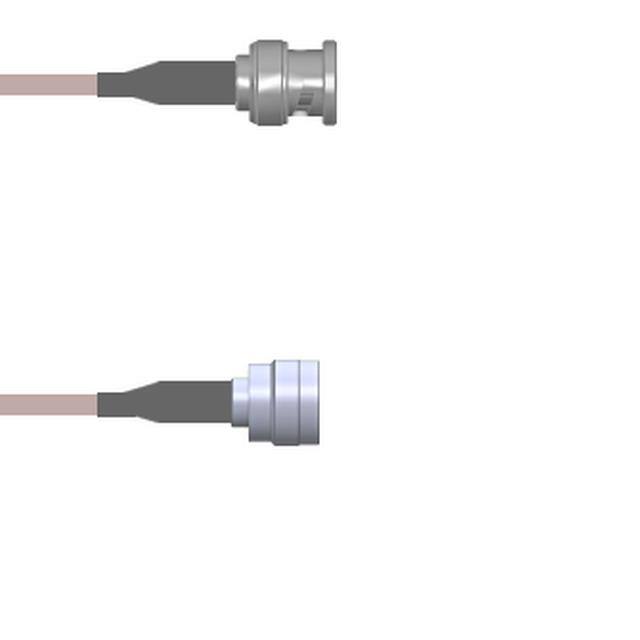

Q-0M056000H1.5MCBL ASSY BNC-TNC PLUG RG142 1.5M |
3,447 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | - | - | TNC Plug | Male | - | - | 59.1 (1.5m) 4.9' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

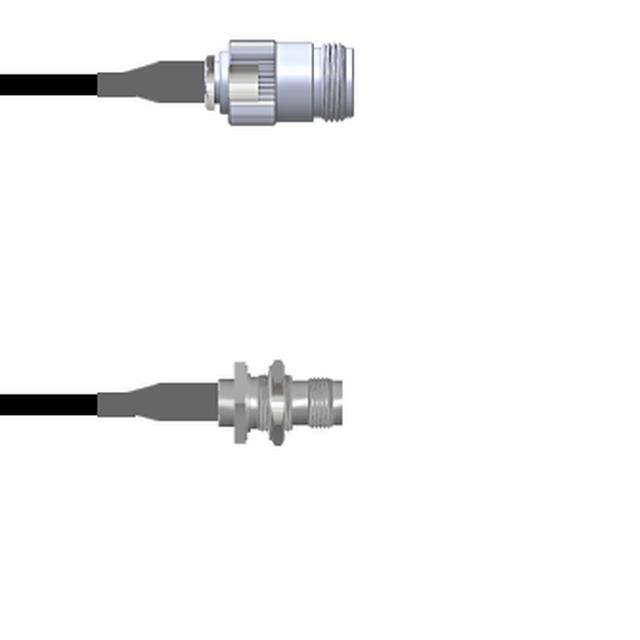

Q-2004F0003009iCBL ASSY N TO TNC JACK RG174 9 |
3,857 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

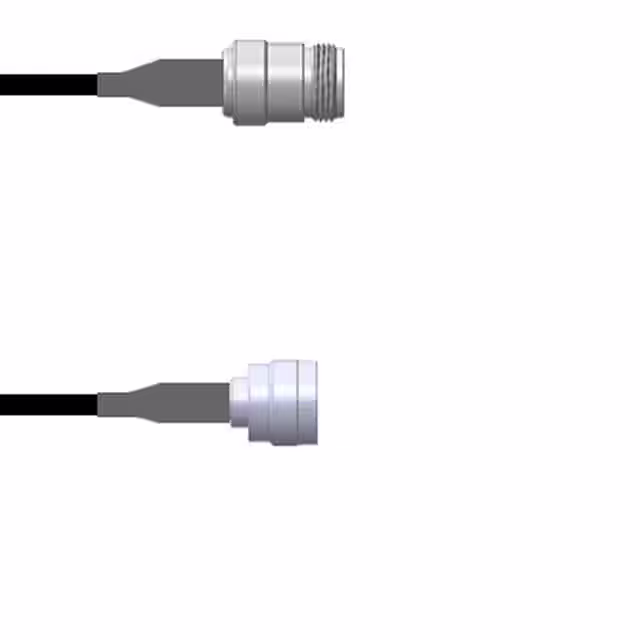

Q-1W0550008001MCBL ASY N TO TNC J TO P RG58 1M |
2,945 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug | Male | - | - | 39.4 (1.0m) 3.3' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-0303M0003009iCBL ASSY BNC-SMB JACK RG174 9 |
3,156 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Free Hanging (In-Line) | - | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

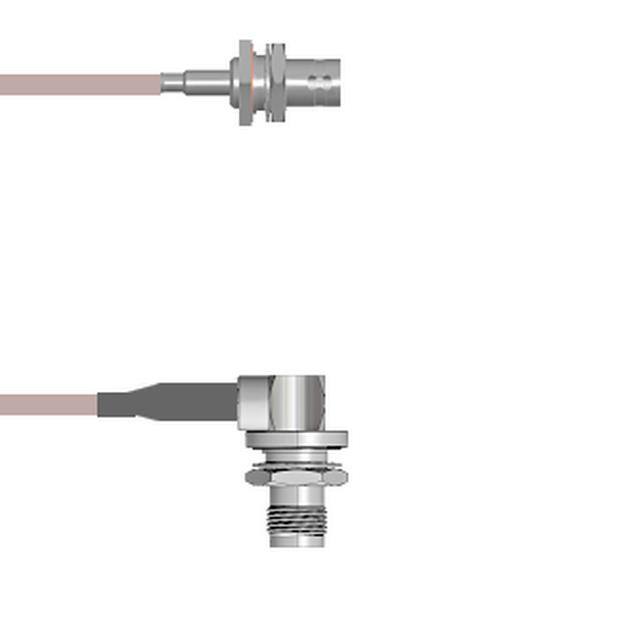

Q-040480005.25MCBL ASSY BNC-TNC JK RG316 9.843 |
2,943 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

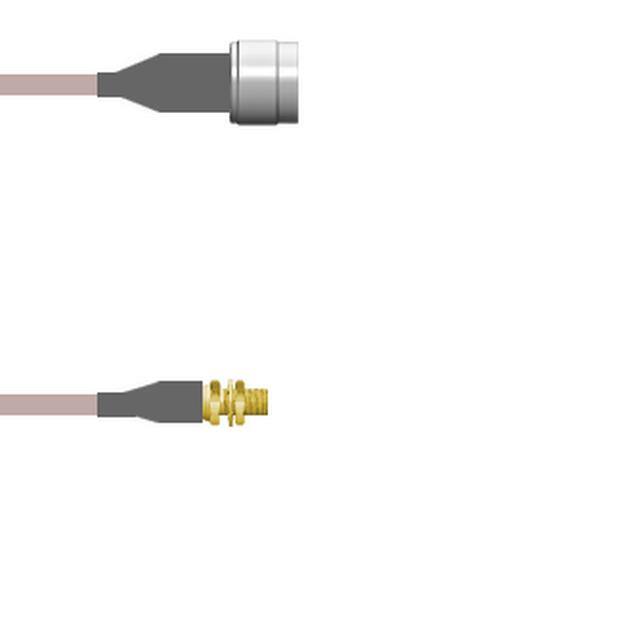

Q-2I0110005018iCBL ASSY MCX-N J TO P RG316 18 |
3,246 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

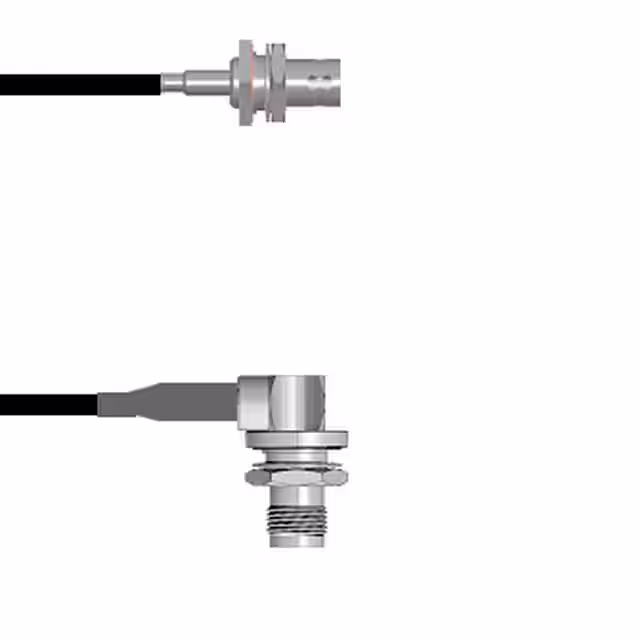

Q-040480003036iCBL ASSY BNC-TNC JACK RG174 36 |
3,403 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

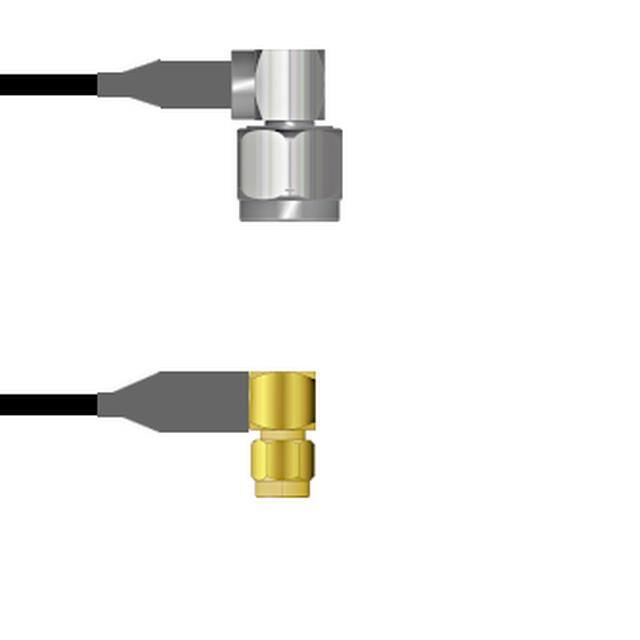

Q-2A039000M024iCBL ASSY SMA-N PLUG 24 |
3,276 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 24.00 (609.60mm) | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

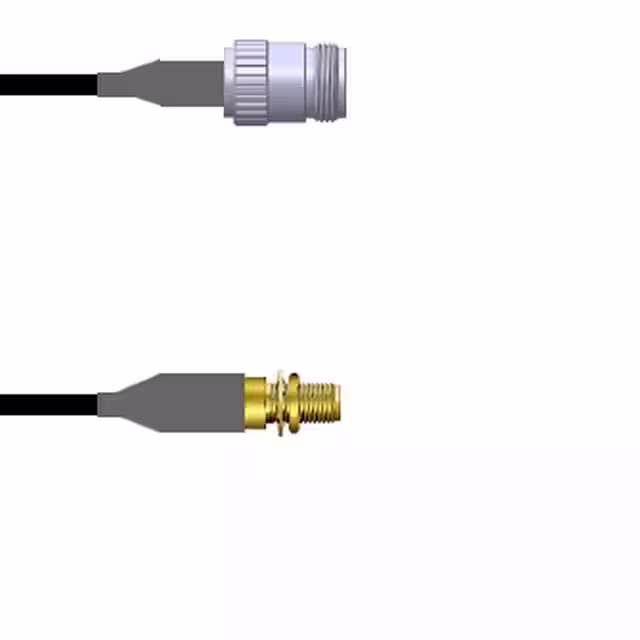

Q-27032000M036iCBL ASSY SMA-N JACK 36 |
2,171 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 36.00 (914.40mm) | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

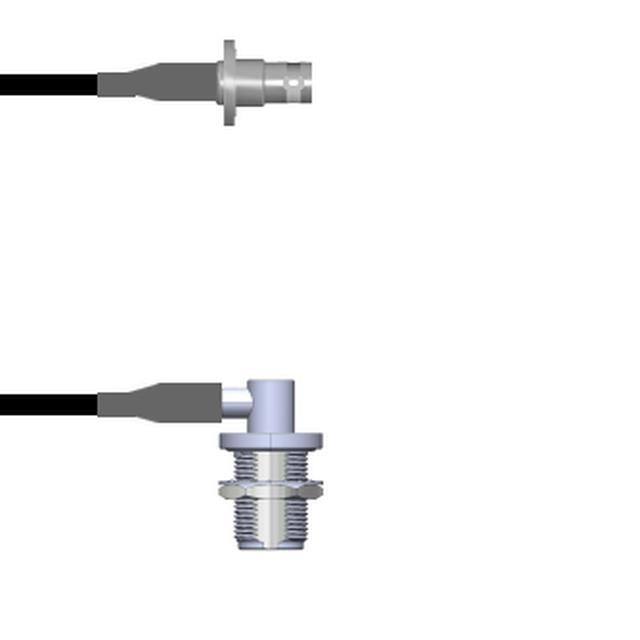

Q-0801S0008003MCBL ASSY BNC-N-TYPE JACK RG58 3M |
3,027 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

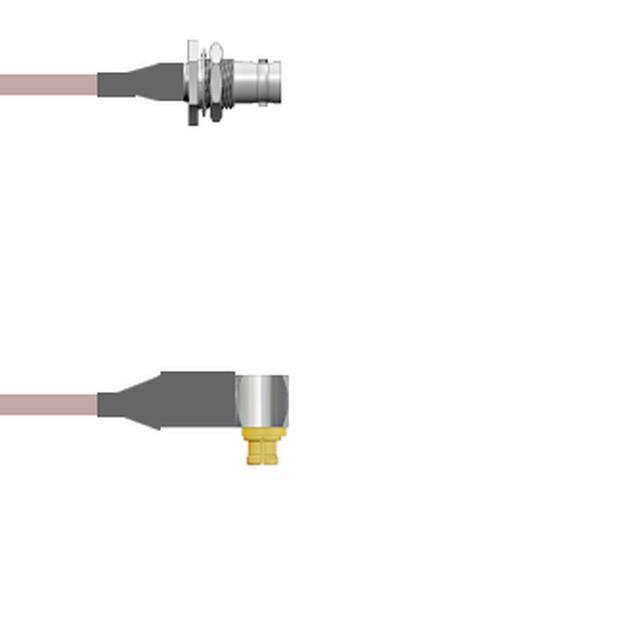

Q-0104600012.5MCBL ASSY BNC-SMPM J-P RG178 2.5M |
2,621 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMPM | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMPM Plug, Right Angle | Male | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

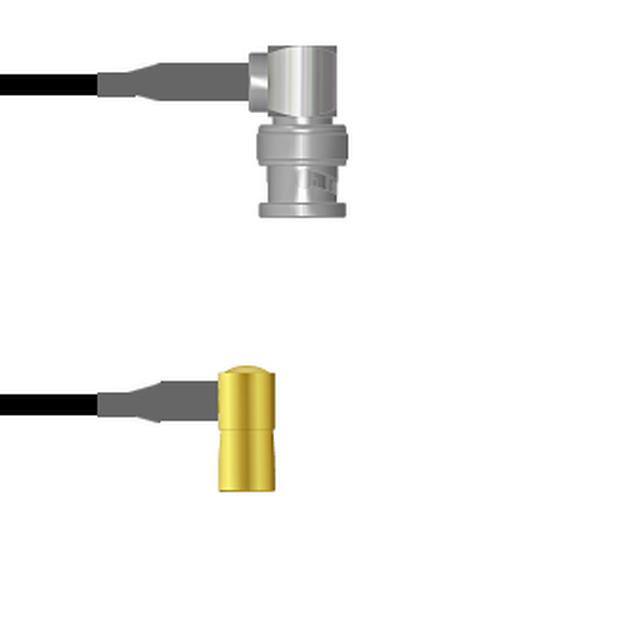

Q-0D03S0003024iCBL ASSY BNC-SMB PLUG RG174 24 |
2,025 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | - | - | SMB Plug, Right Angle | Male | - | - | 24.00 (609.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-2J04N000H0.5MCBL ASSY N TO TNC RG142 19.69 |
2,262 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Jack | Female | - | - | 19.69 (500.00mm) | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

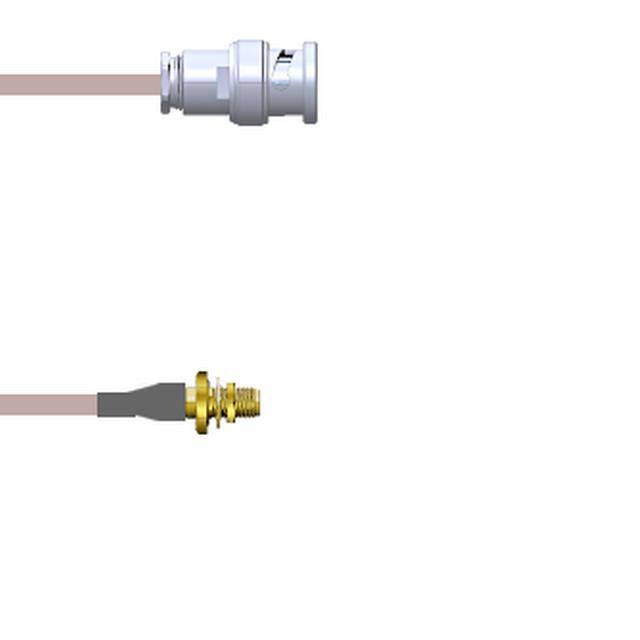

Q-0I02U00012.5MCBL ASY BNC-SMA P-J RG178 2.5M |
3,235 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4 (2.5m) 8.2' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

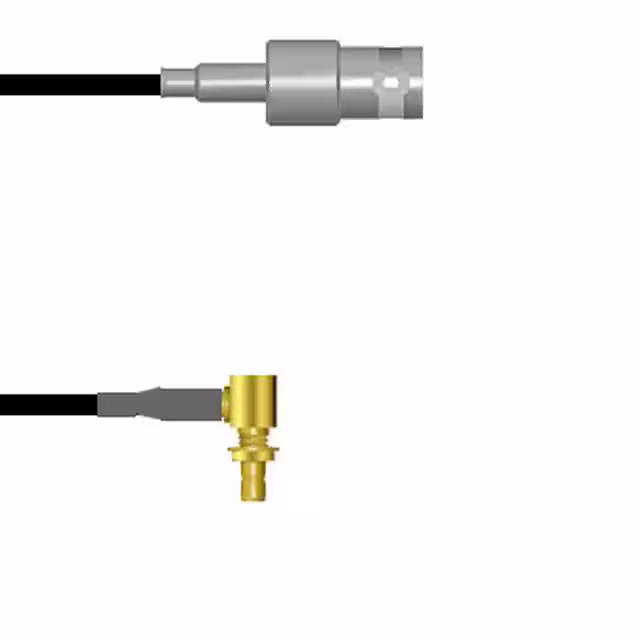

Q-0303H0003006iCBL ASSY BNC-SMB JACK RG174 6 |
3,387 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Free Hanging (In-Line) | - | SMB Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
