| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

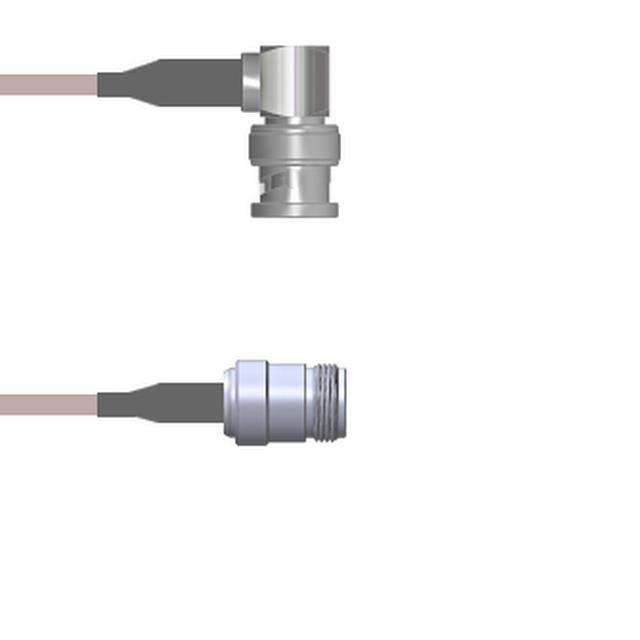

Q-0F024000H072iCBL ASSY BNC-N-TYPE P-J RG142 6' |
2,143 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 72.0 (1.8m) 6.0' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

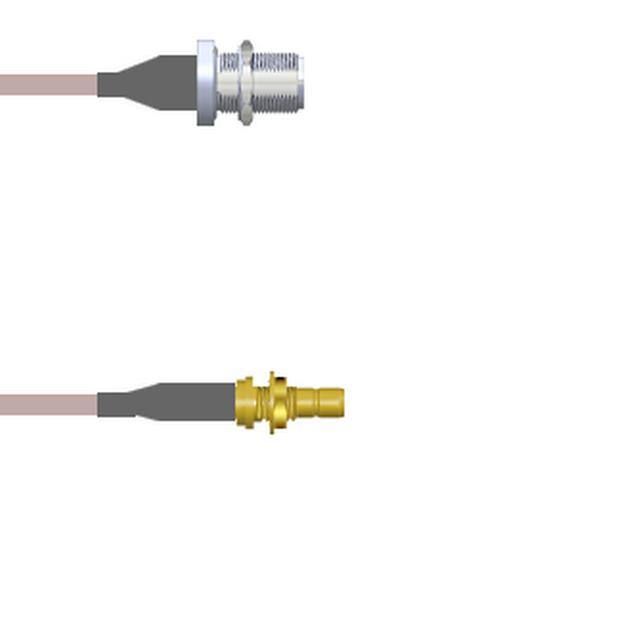

Q-1U03M0005003iCBL ASSY SMB-N JACK RG316 3 |
2,981 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000 (76.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

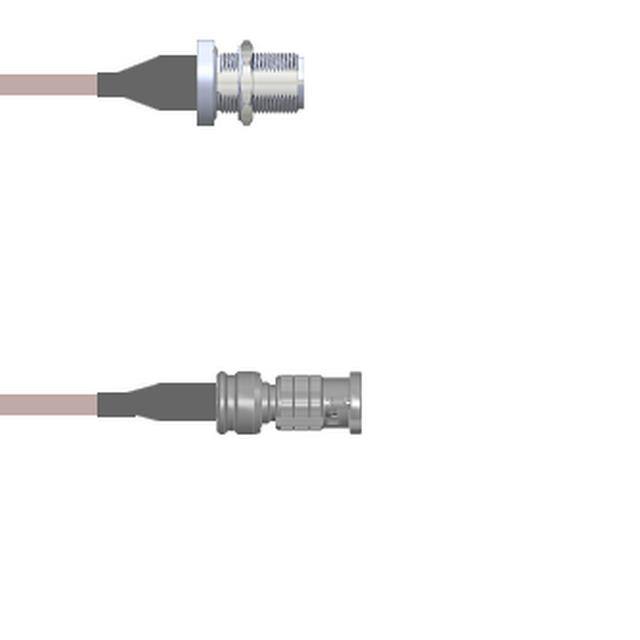

Q-1U05H0005024iCBL ASSY HD-BNC TO N RG316 24 |
2,476 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-2004E0005003iCBL ASSY N TO TNC JACK RG316 3 |
3,438 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000 (76.20mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

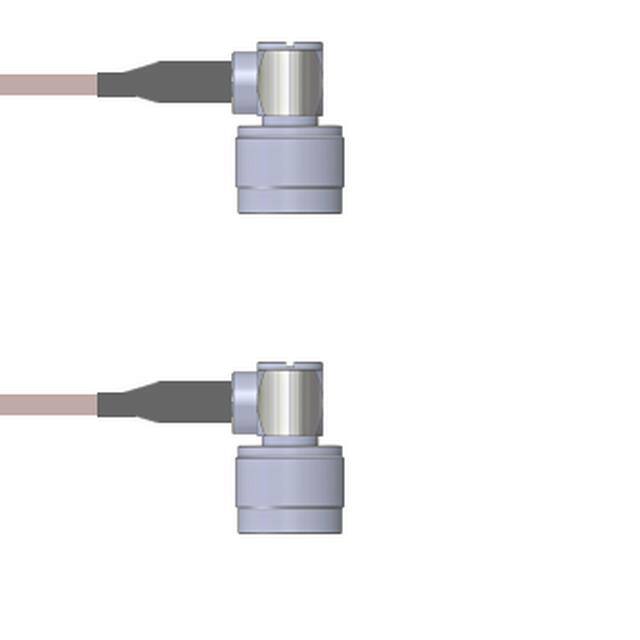

Q-2C02C0005002MCBL ASSY N-TYPE PLUG RG316 2M |
3,760 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 78.7 (2.0m) 6.6' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

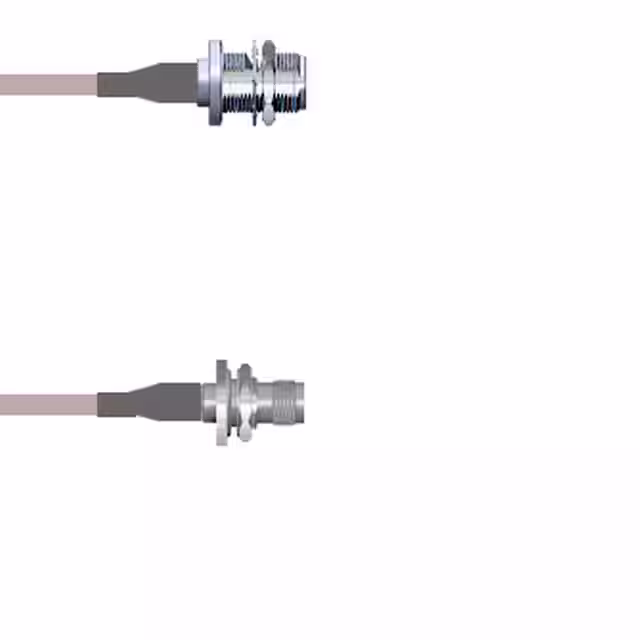

Q-2104H000R018iCBL ASSY N TO TNC JACK RG316 18 |
2,488 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

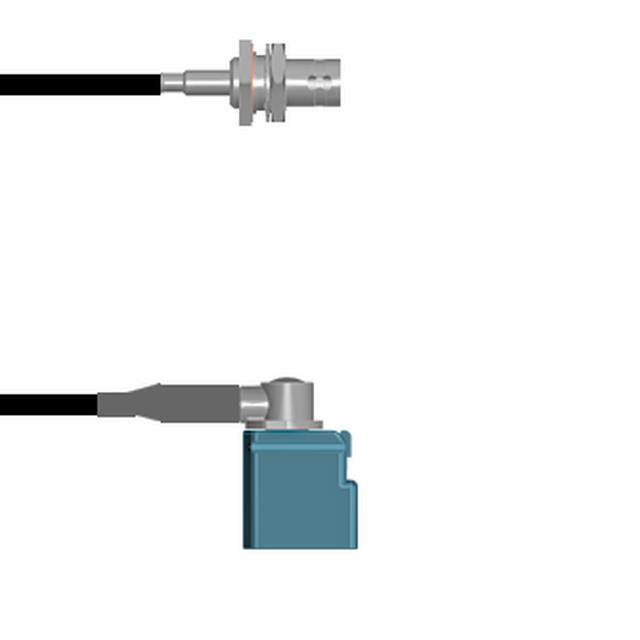

Q-0405C0003060iCBL ASSY BNC-FAKRA JACK RG174 5' |
3,160 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

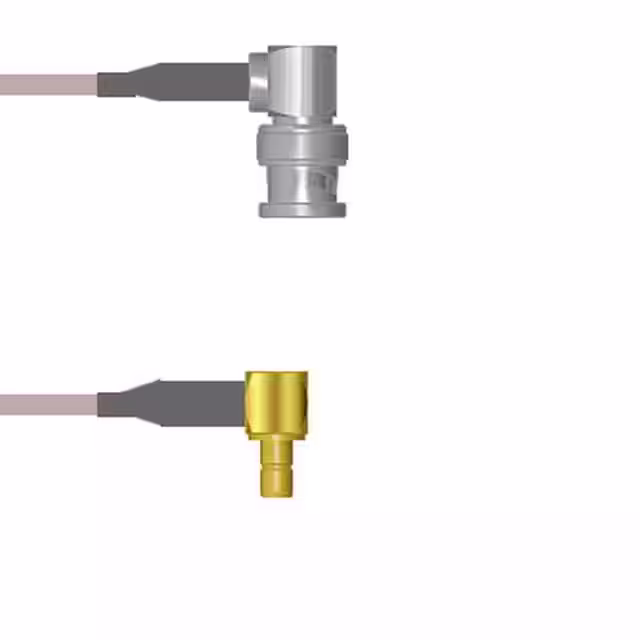

Q-0D03I0005108iCBL ASY BNC-SMB P-J RG316 9' |
2,337 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Jack, Right Angle | Female | Free Hanging (In-Line) | - | 108.0 (2.7m) 9.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

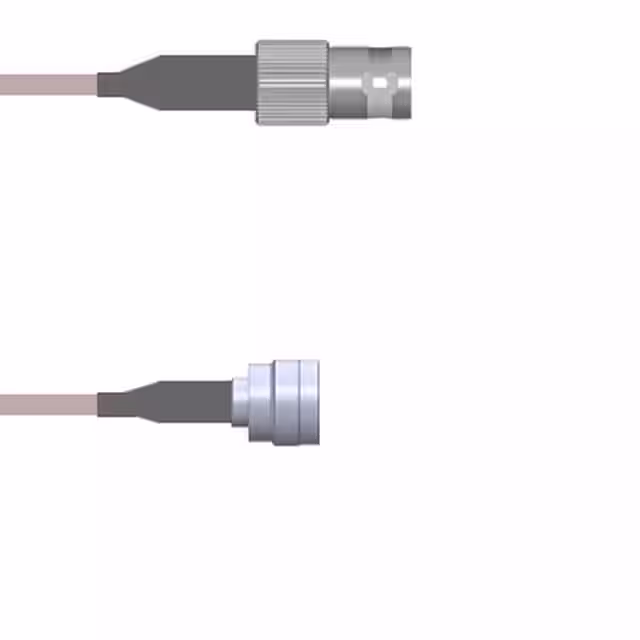

Q-0B056000H009iCBL ASY BNC-TNC J TO P RG142 9 |
2,202 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | - | - | TNC Plug | Male | - | - | 9.000 (228.60mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

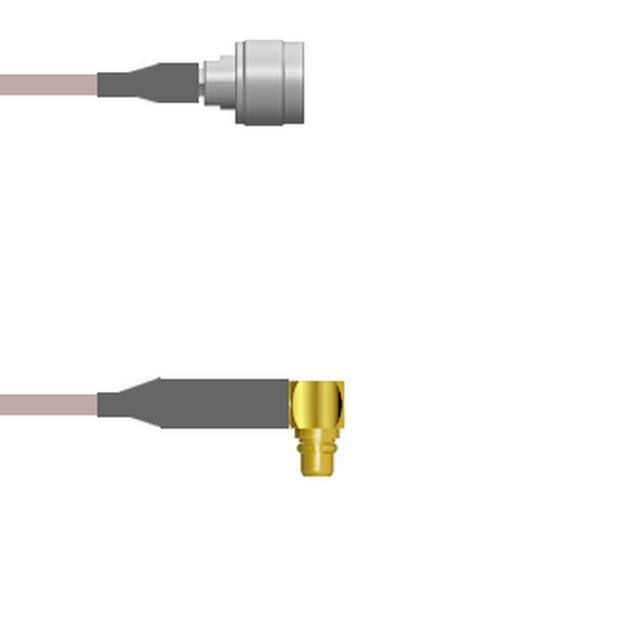

Q-2M01O000R009iCBL ASSY MMCX-N PLUG RG316 DB 9 |
4,000 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 9.000 (228.60mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-2I05H00051.5MCB ASY HD-BNC TO N PL RG316 1.5M |
3,393 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | - | - | N-Type Plug | Male | - | - | 59.1 (1.5m) 4.9' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

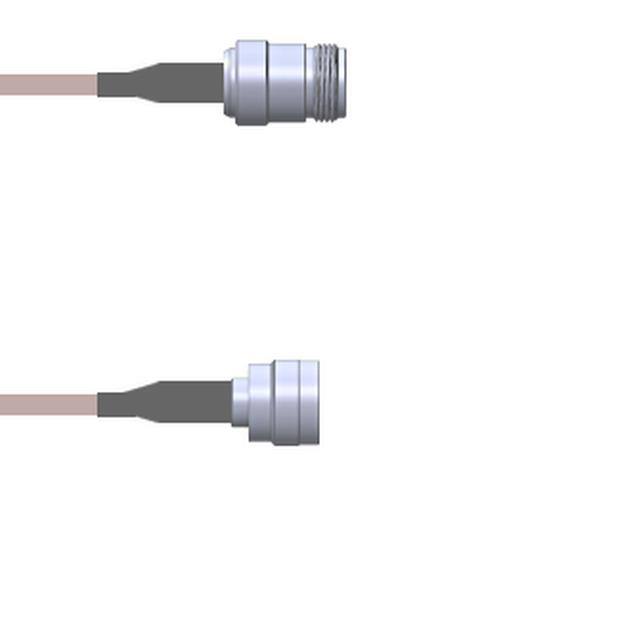

Q-24056000H2.5MCBL ASSY N TO TNC J-P RG142 2.5M |
2,965 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

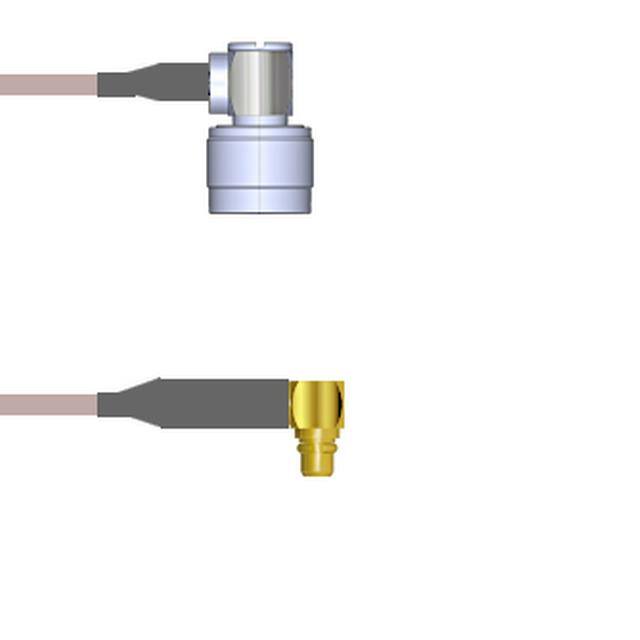

Q-2D01O000R060iCBL ASSY MMCX-N PLUG RG316 DB 5' |
2,647 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 60.0 (1.5m) 5.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

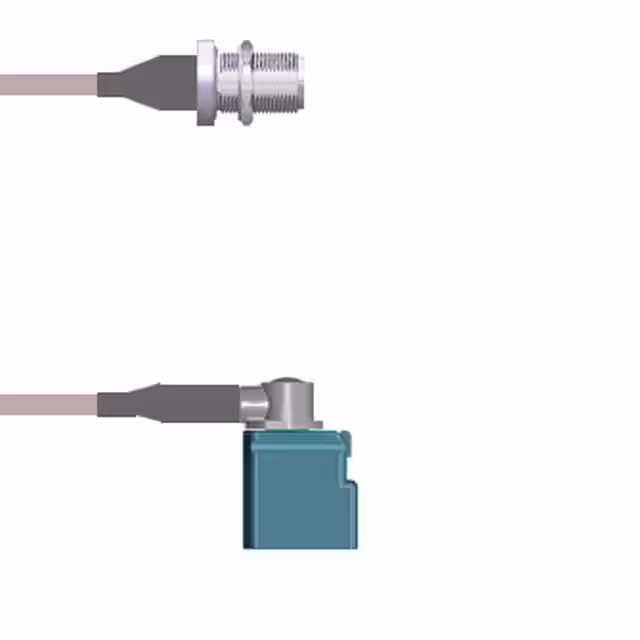

Q-1U05C0005002MCBL ASSY N-FAKRA JACK RG316 2M |
2,340 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

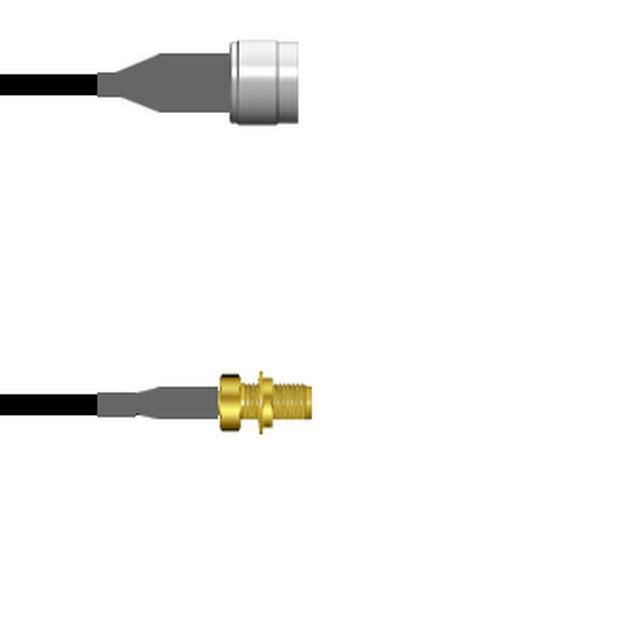

Q-2I02W00030.5MCBL ASY SMA-N J-P RG174 19.69 |
3,757 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | - |
|

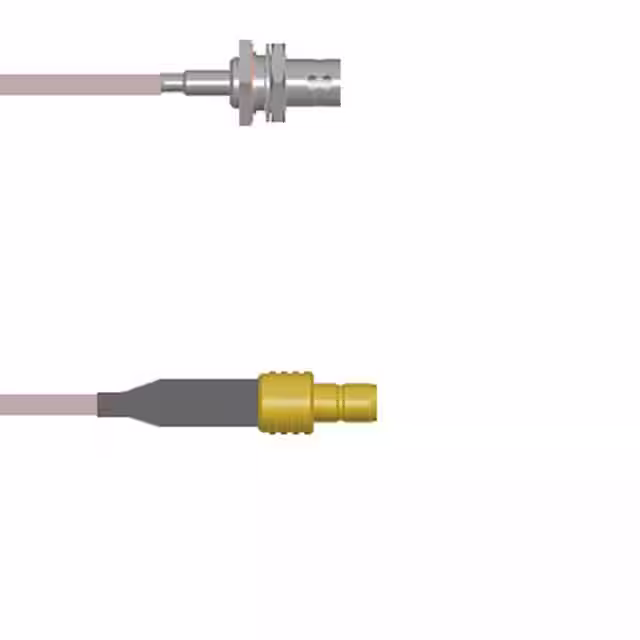

Q-0403L0005.75MCBL ASSY BNC-SMB JK RG316 29.53 |
3,768 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Jack | Female | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

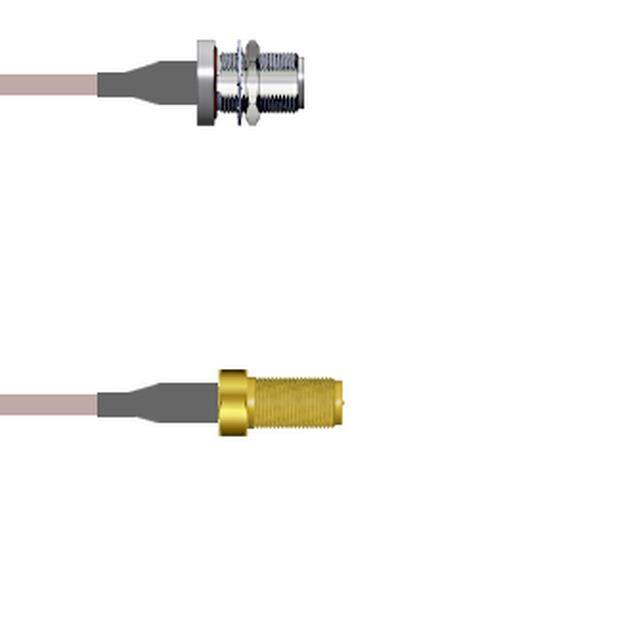

Q-1T0710005.25MCBL ASY RP-SMA TO N RG316 9.843 |
3,566 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

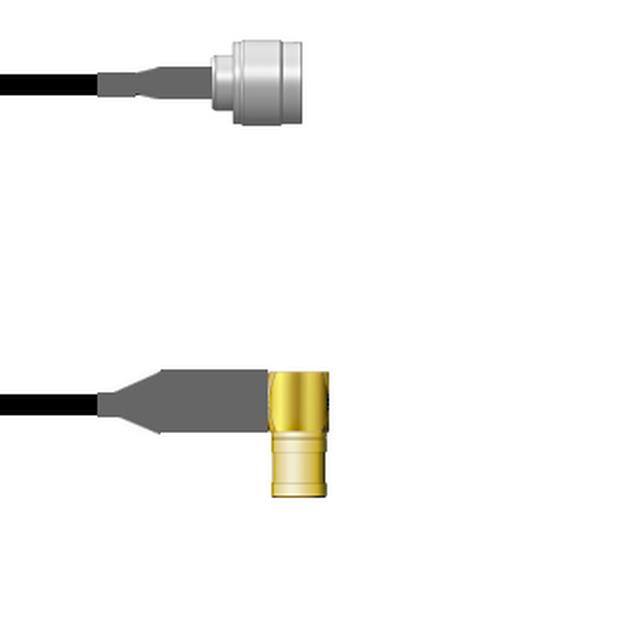

Q-2N03U0008036iCBL ASSY SMB-N PLUG RG58 36 |
2,528 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | - | - | N-Type Plug | Male | - | - | 36.00 (914.40mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

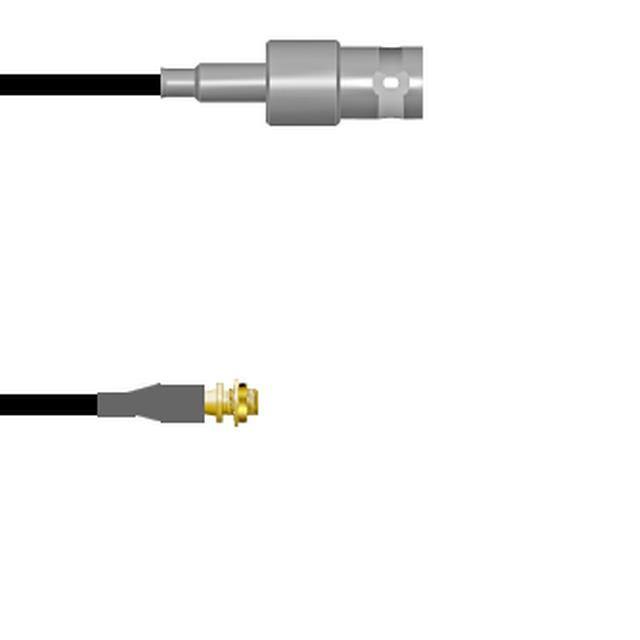

Q-0301I0003009iCBL ASSY BNC-MMCX JACK RG174 9 |
3,942 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Free Hanging (In-Line) | - | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

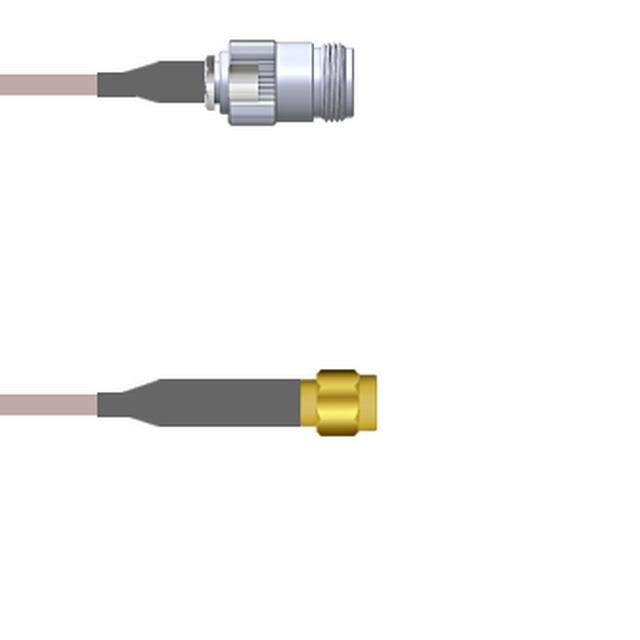

Q-200680005006iCBL ASSY RP-SMA TO N RG316 6 |
2,127 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Plug | Female | - | - | N-Type Jack | Female | - | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
