| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

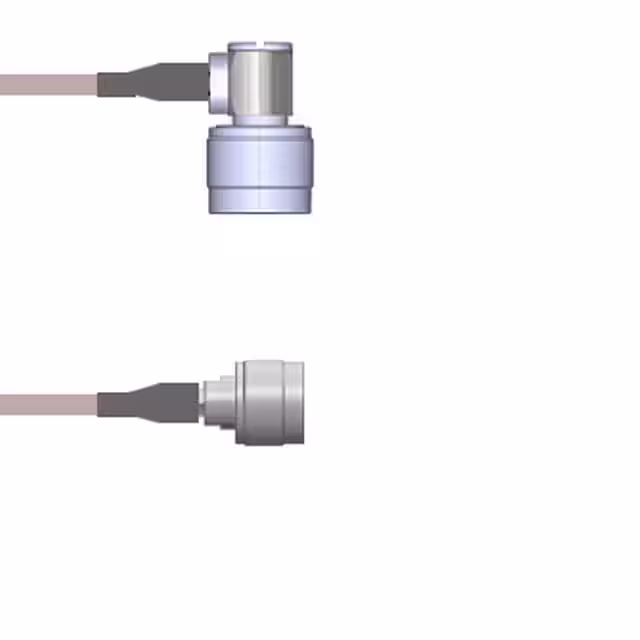

Q-2D02M000R.75MCBL ASY N-TYP PL RG316 DB 29.53 |
3,860 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 29.53 (750.00mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

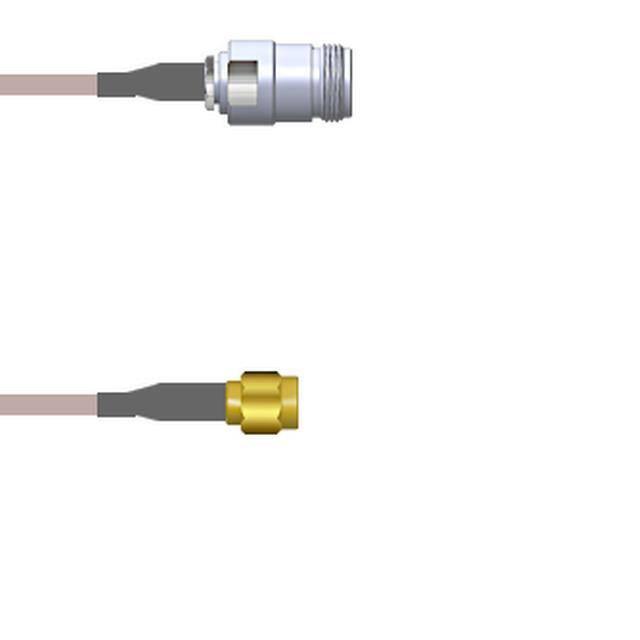

Q-1V03C000R.75MCBL ASSY SMA-N RG316 DB 29.53 |
2,022 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Jack | Female | - | - | 29.53 (750.00mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

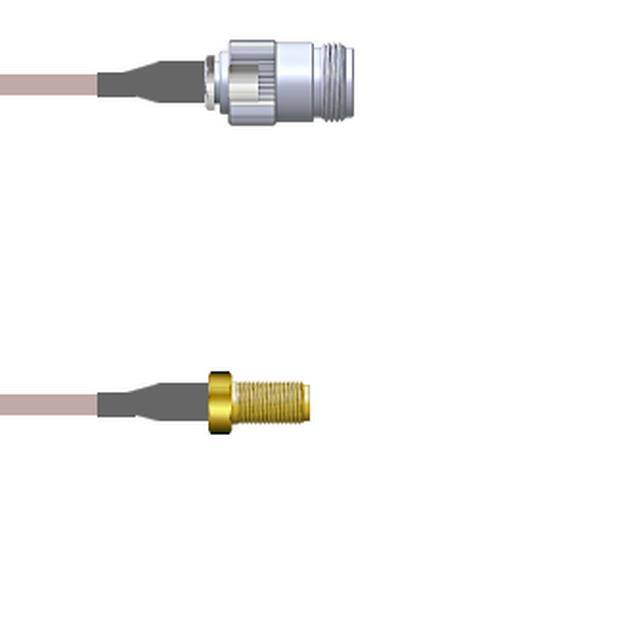

Q-2002V00051.5MCBL ASSY SMA-N JACK RG316 1.5M |
2,530 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | - | - | N-Type Jack | Female | - | - | 59.1 (1.5m) 4.9' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-0J01Q0005018iCBL ASSY BNC-MMCX PLUG RG316 18 |
2,585 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug | Male | - | - | MMCX Plug | Male | - | - | 18.00 (457.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0405C00032.5MCBL ASSY BNC-FAKRA JK RG174 2.5M |
3,333 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

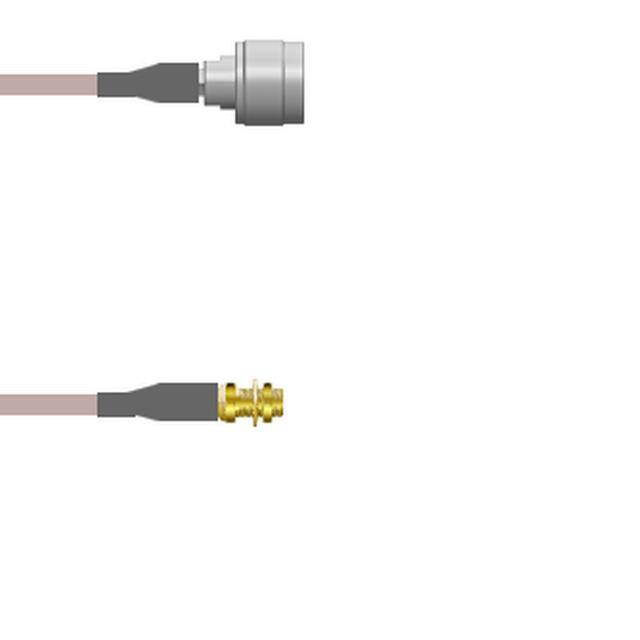

Q-2M012000R018iCBL ASY MCX-N J-P RG316 DB 18 |
2,909 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

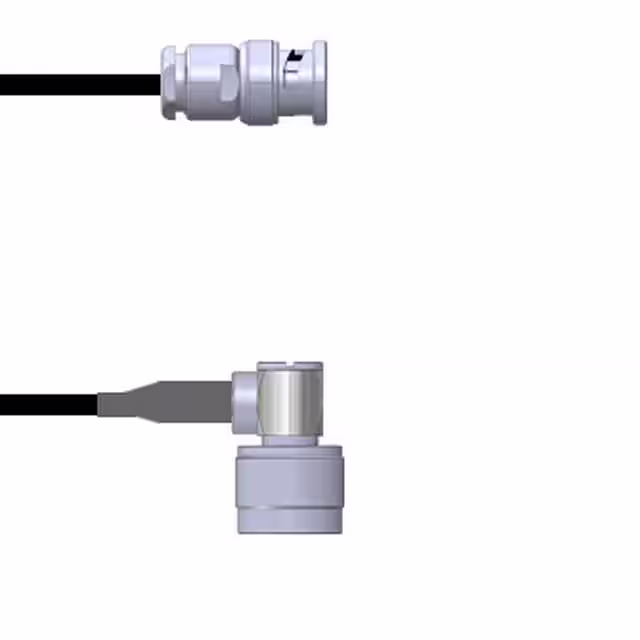

Q-0J02C0003006iCBL ASSY BNC-N-TYP PLUG RG174 6 |
2,547 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 6.000 (152.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

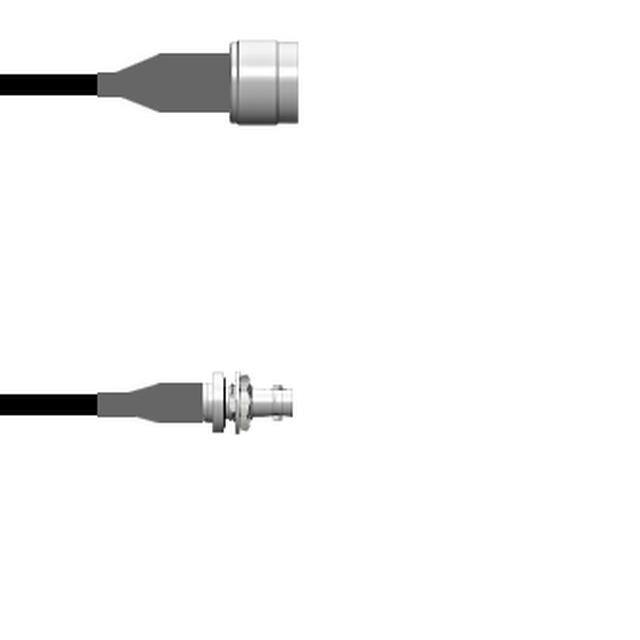

Q-2I00P0003002MCBL ASSY HD-BNC TO N RG174 2M |
2,010 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

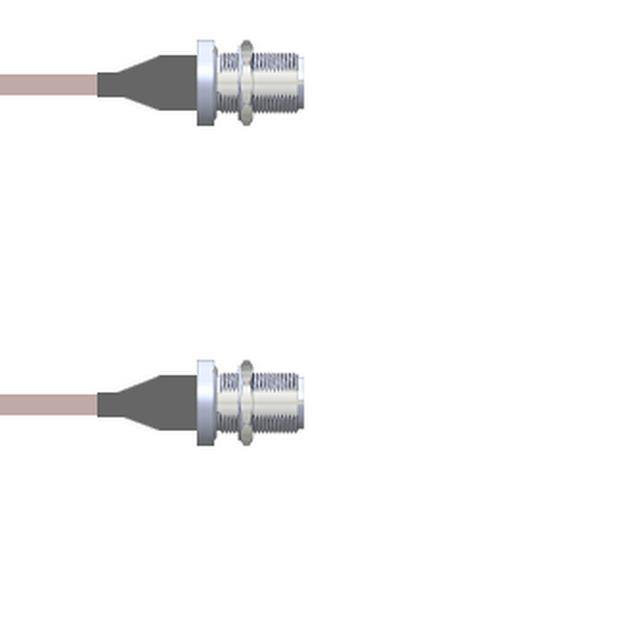

Q-1U01U0005084iCBL ASSY N-TYPE JACK RG316 7' |
2,406 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0 (2.1m) 7.0' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

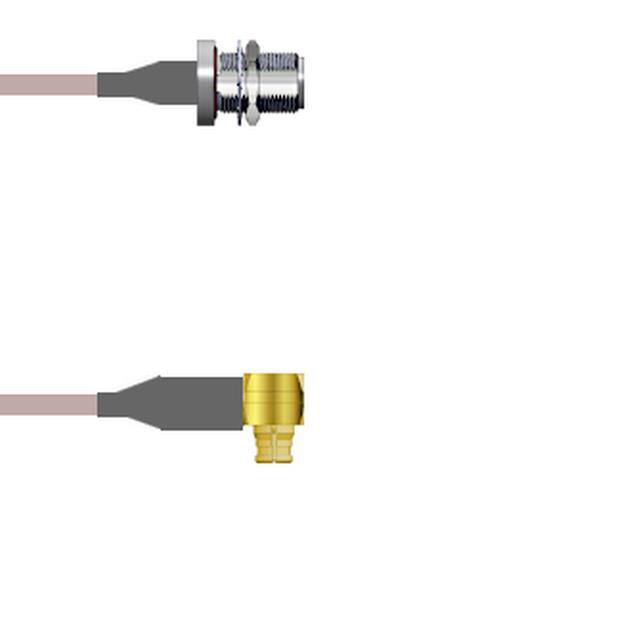

Q-1T0420005108iCBL ASY SMP-N PLG TO JK RG316 9' |
2,003 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

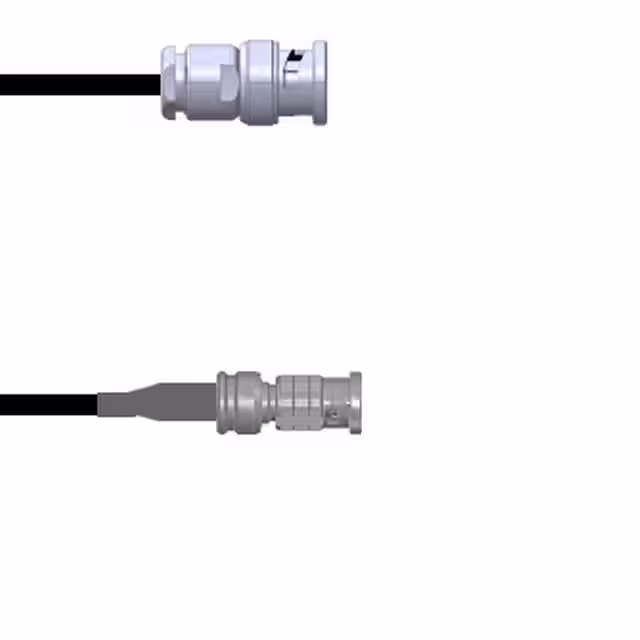

Q-0J05H0003072iCBL ASSY BNC-HD-BNC PLG RG174 6' |
2,796 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | - | - | HD-BNC Plug | Male | - | - | 72.0 (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

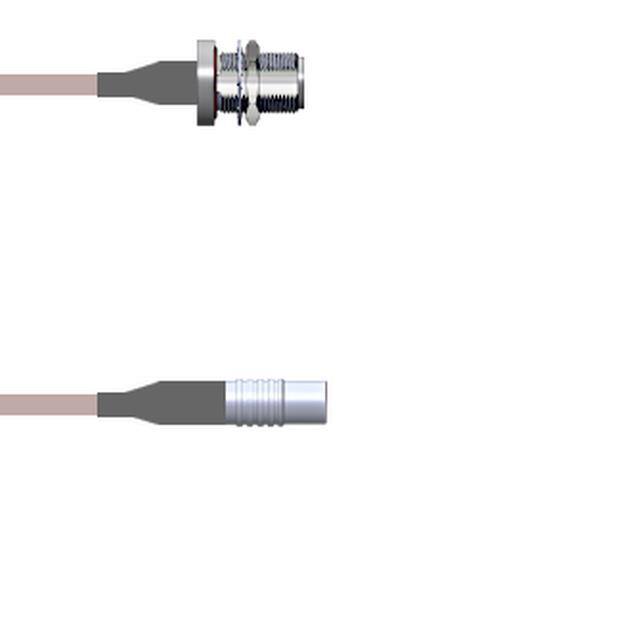

Q-1T0140005012iCBL ASSY MCX-N JACK RG316 12 |
3,972 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-1W04J0008012iCBL ASSY N TO TNC JACK RG58 12 |
3,470 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Jack | Female | - | - | 12.00 (304.80mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

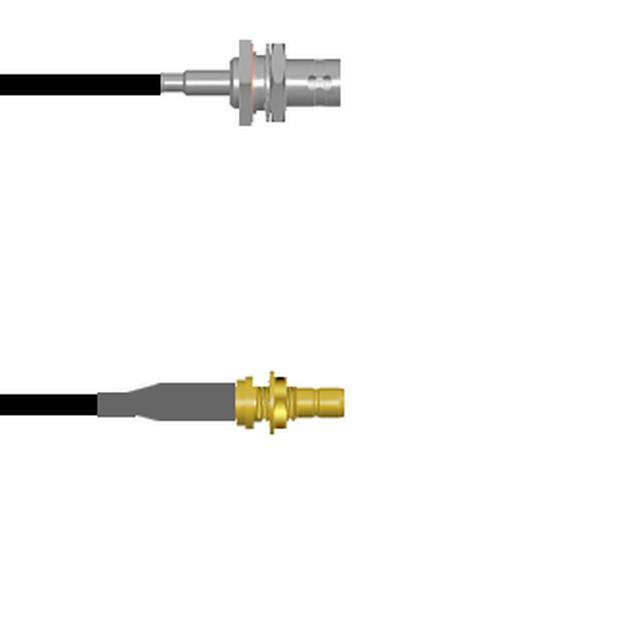

Q-0403M00030.5MCBL ASSY BNC-SMB JK RG174 19.69 |
3,434 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

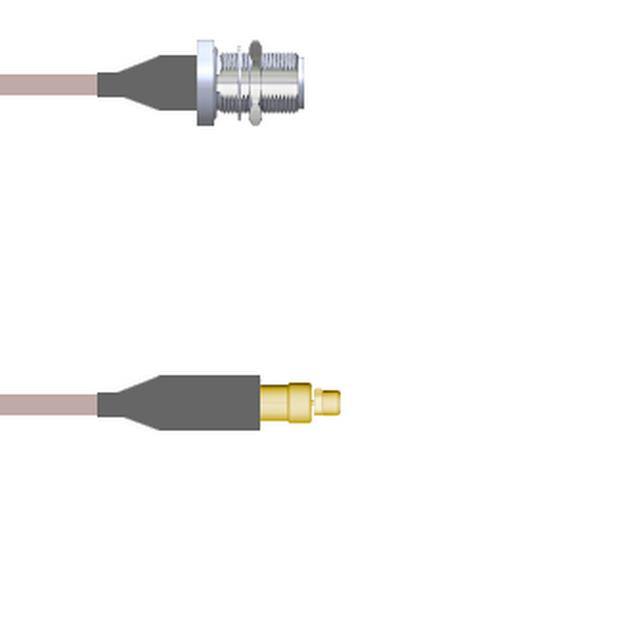

Q-2201R000R002MCBL ASY MMCX-N P-J RG316 DB 2M |
2,762 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

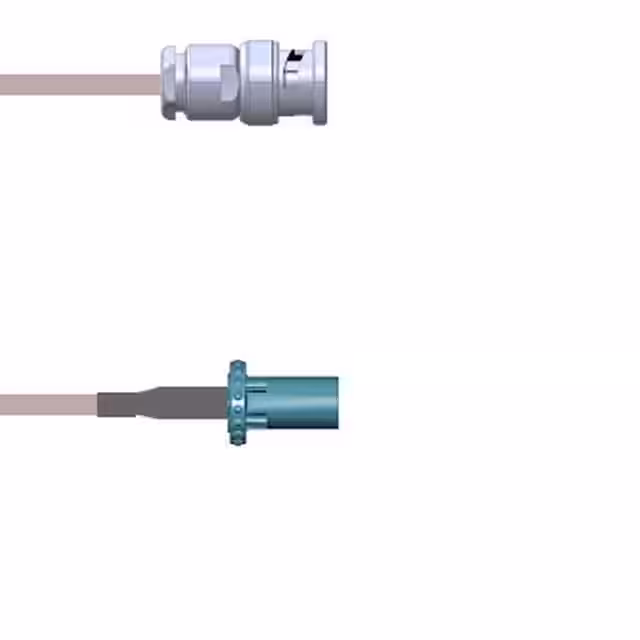

Q-0J05A0005072iCBL ASSY BNC-FAKRA PLUG RG316 6' |
3,507 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Plug | Male | - | - | Fakra Plug | Male | - | - | 72.0 (1.8m) 6.0' | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

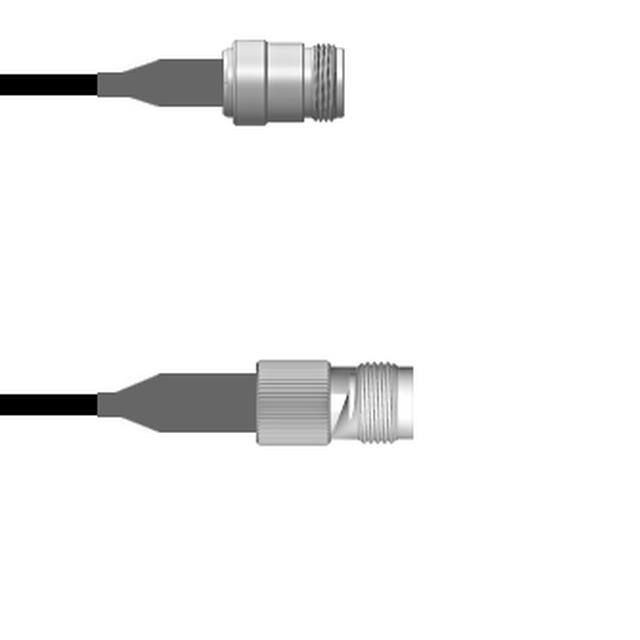

Q-1W04J0008006iCBL ASSY N TO TNC JACK RG58 6 |
3,248 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Jack | Female | - | - | 6.000 (152.40mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

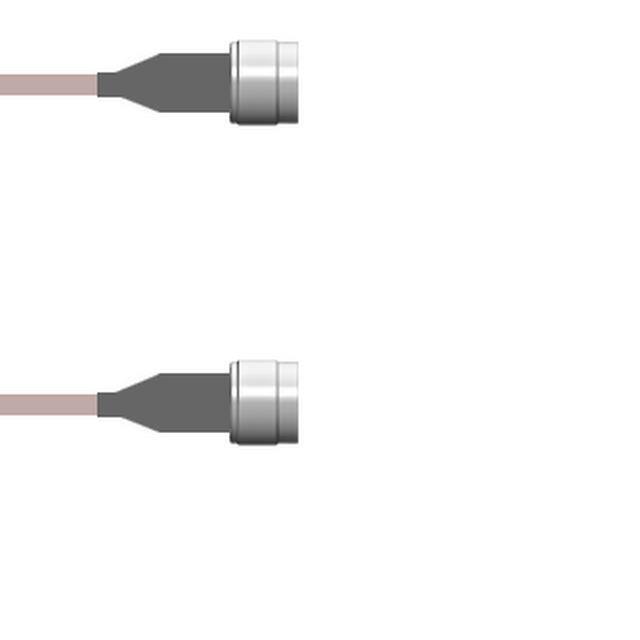

Q-2I02I0005012iCBL ASSY N-TYPE PLUG RG316 12 |
3,721 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 12.00 (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

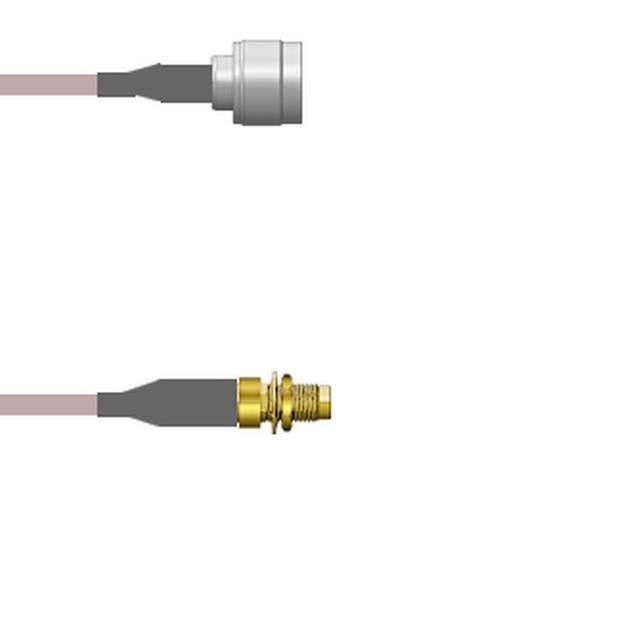

Q-2J031000H.75MCBL ASY SMA-N J-P RG142 29.53 |
2,858 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

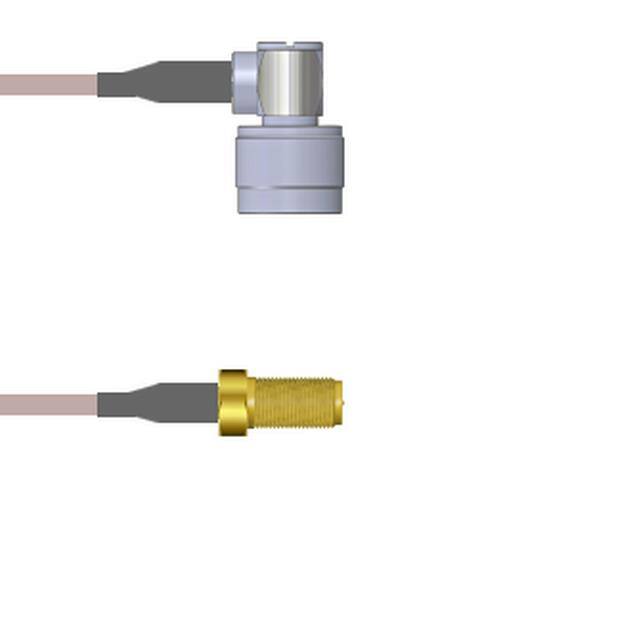

Q-2C0710005036iCBL ASSY RP-SMA TO N RG316 36 |
3,130 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Jack | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
