| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

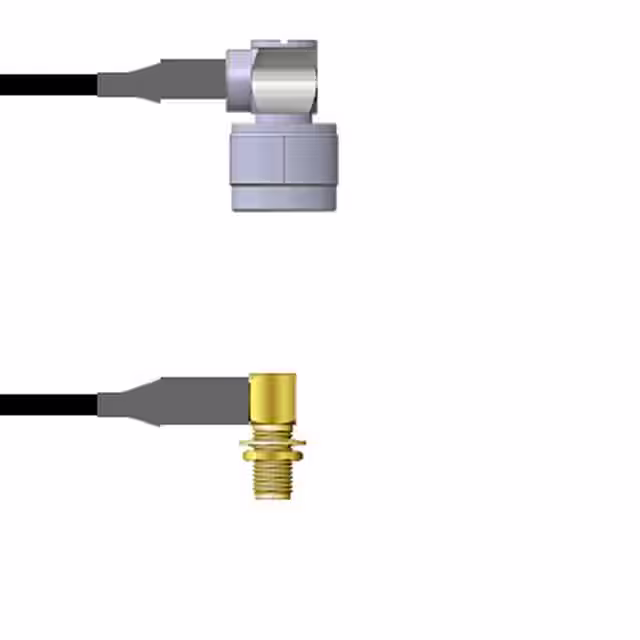

Q-2F02R0008084iCBL ASSY SMA-N JK TO PLG RG58 7' |
2,384 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 84.0 (2.1m) 7.0' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

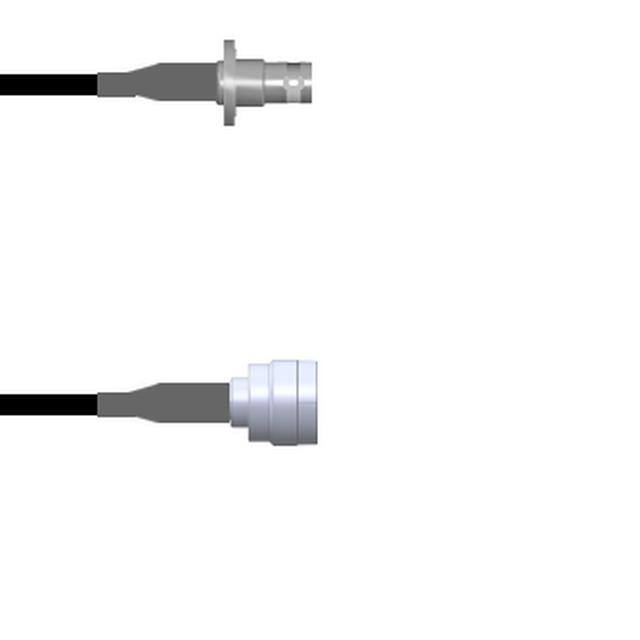

Q-0805500082.5MCBL ASY BNC-TNC J TO P RG58 2.5M |
2,903 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

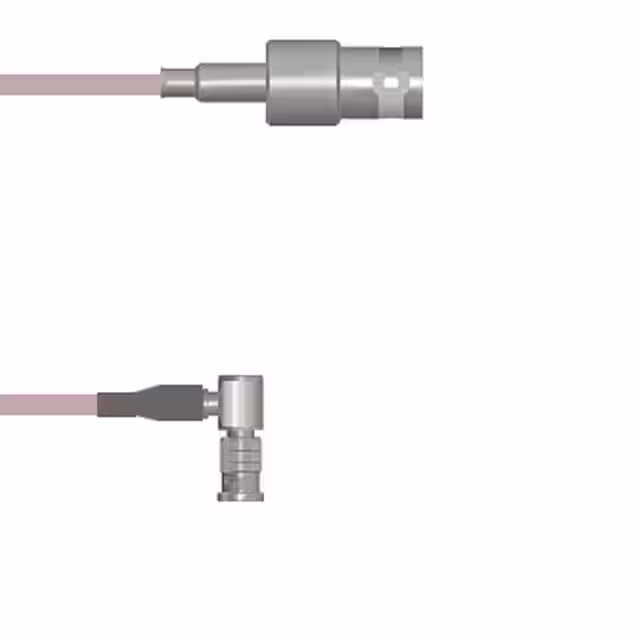

Q-0305G0005036iCBL ASSY BNC-HD-BNC RG316 36 |
3,364 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | - | - | HD-BNC Plug, Right Angle | Male | - | - | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

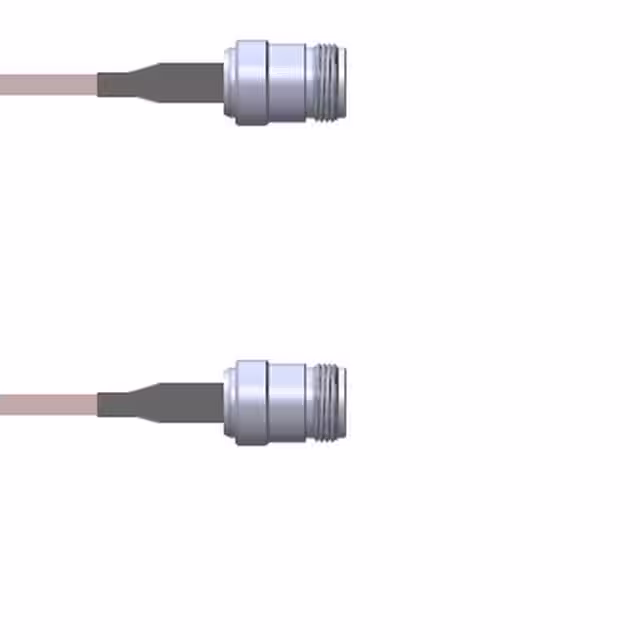

Q-24024000H072iCBL ASSY N-TYPE JACK RG142 6' |
2,111 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | - | - | N-Type Jack | Female | - | - | 72.0 (1.8m) 6.0' | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

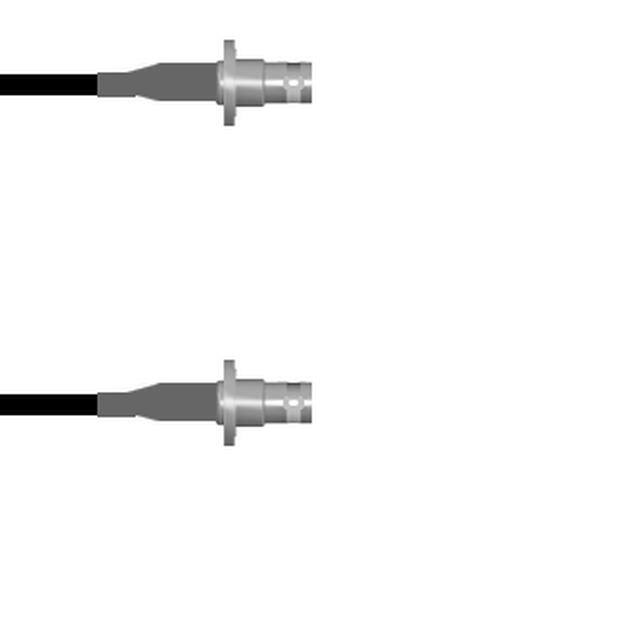

Q-080080008001MCBL ASSY BNC JACK RG58 1M |
2,461 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4 (1.0m) 3.3' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

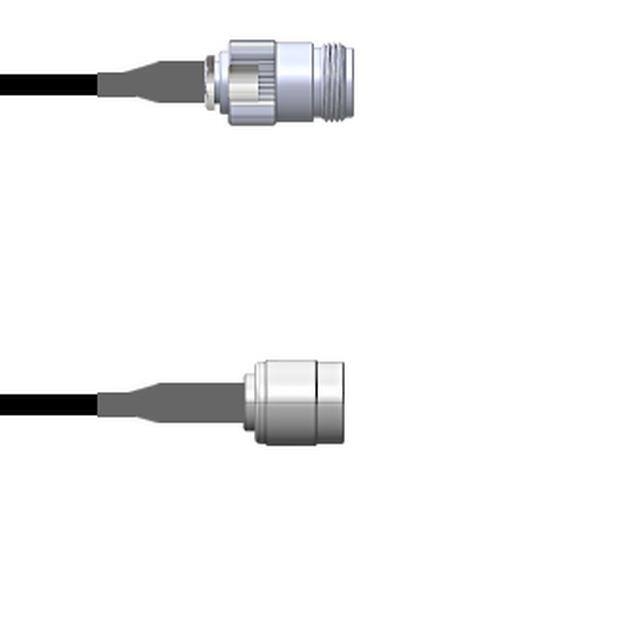

Q-200520003018iCBL ASY N-TNC J-P RG174 18 |
3,975 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug | Male | - | - | 18.00 (457.20mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

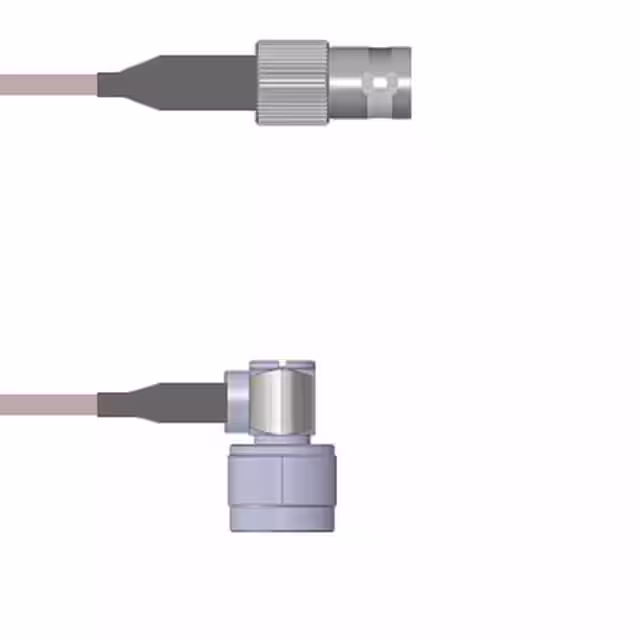

Q-0B02G000H060iCBL ASSY BNC-N-TYPE J-P RG142 5' |
2,492 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 60.0 (1.5m) 5.0' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

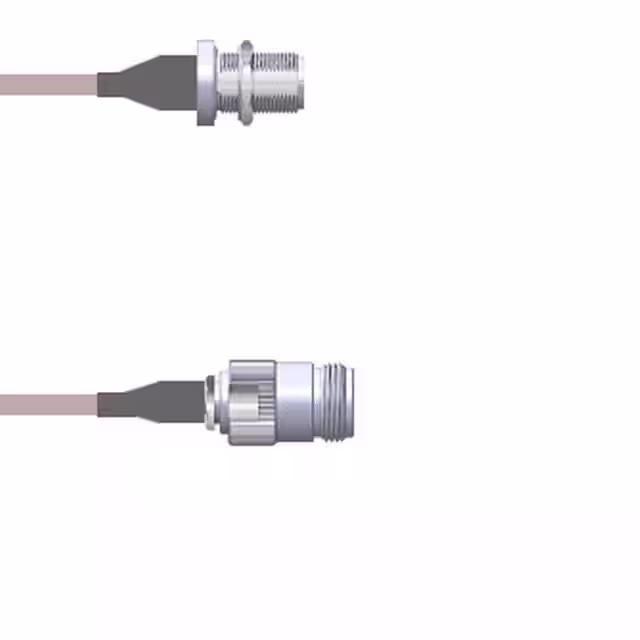

Q-1U0200005001MCBL ASSY N-TYPE JACK RG316 1M |
2,535 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

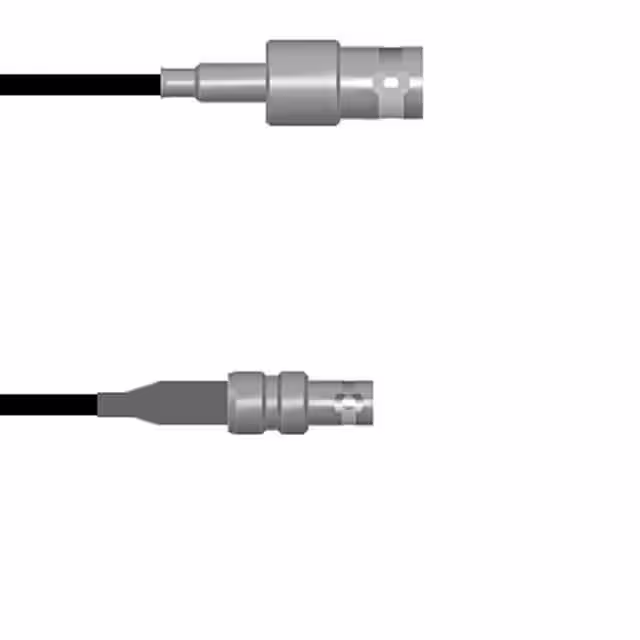

Q-0300Q0003048iCBL ASSY BNC-HD-BNC JCK RG174 4' |
3,197 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | - | - | HD-BNC Jack | Female | - | - | 48.0 (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

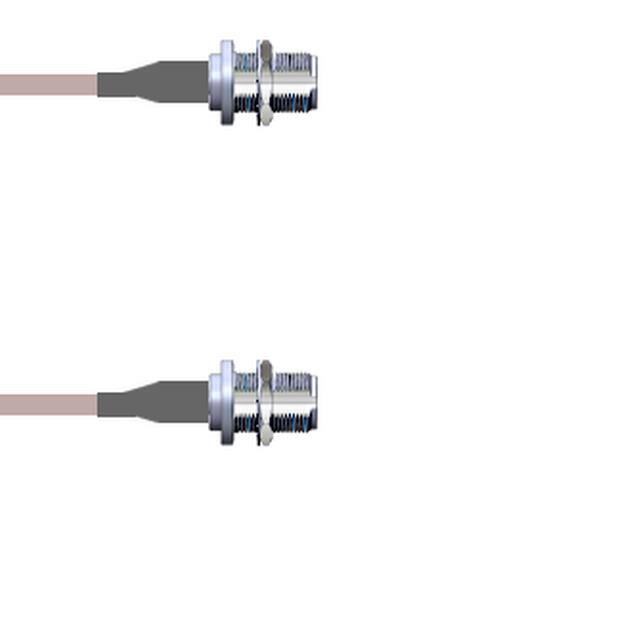

Q-25025000H060iCBL ASSY N-TYPE JACK RG142 5' |
2,382 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

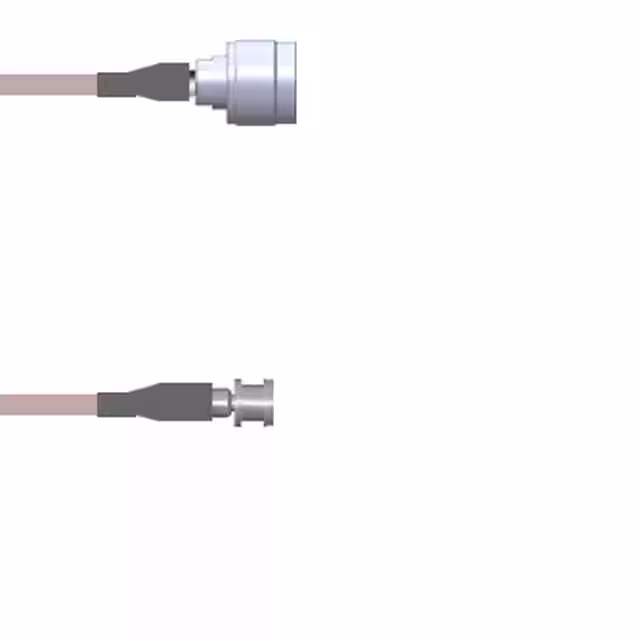

Q-2H0450001012iCBL ASY SMPM-N J TO P RG178 12 |
2,320 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMPM to N-Type | SMPM Jack | Female | - | - | N-Type Plug | Male | - | - | 12.00 (304.80mm) | RG-178 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

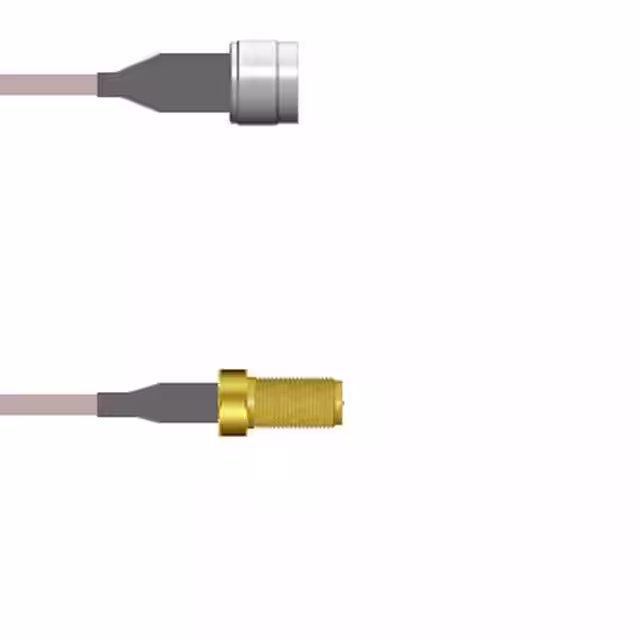

Q-2I0710005036iCBL ASSY RP-SMA TO N RG316 36 |
2,451 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Jack | Male | - | - | N-Type Plug | Male | - | - | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

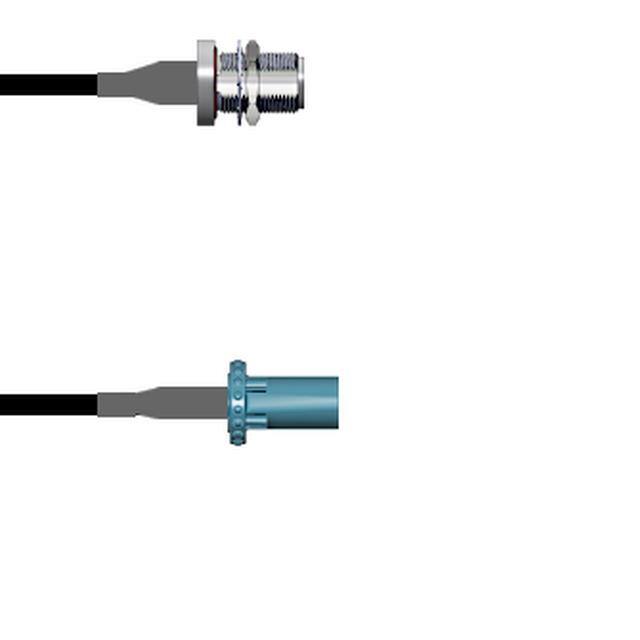

Q-1T05A0003036iCBL ASY N-FAKRA J TO P RG174 36 |
3,296 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

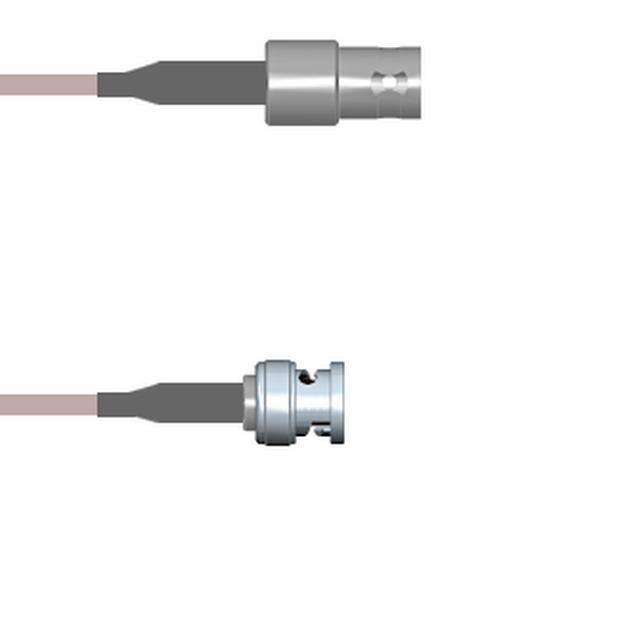

Q-0500O000S084iCBL ASSY BNC JCK TO PLG RG179 7' |
3,126 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | - | - | BNC Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - |
|

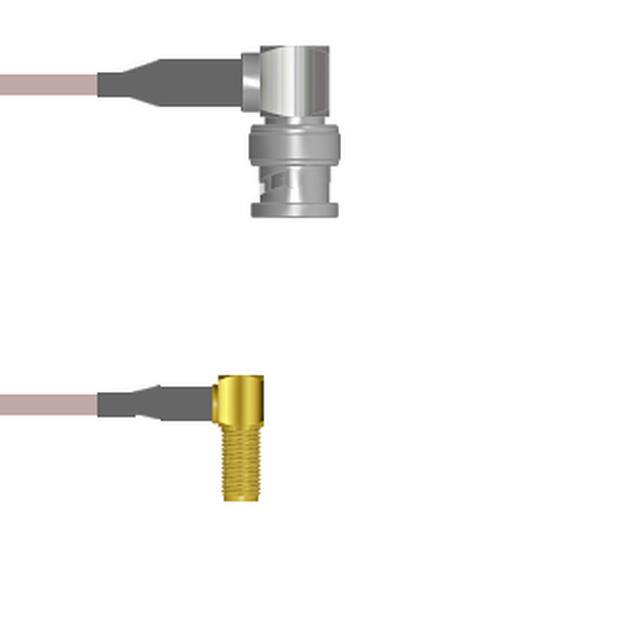

Q-0F02S000H0.5MCBL ASSY BNC-SMA RG142 19.69 |
3,744 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | - | - | SMA Jack, Right Angle | Female | - | - | 19.69 (500.00mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

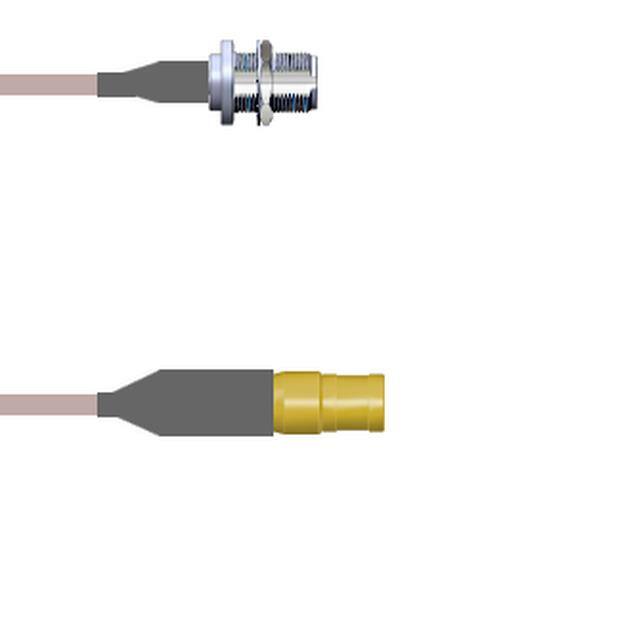

Q-2503Y000H003MCBL ASY SMB-N PLG TO JK RG142 3M |
3,340 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

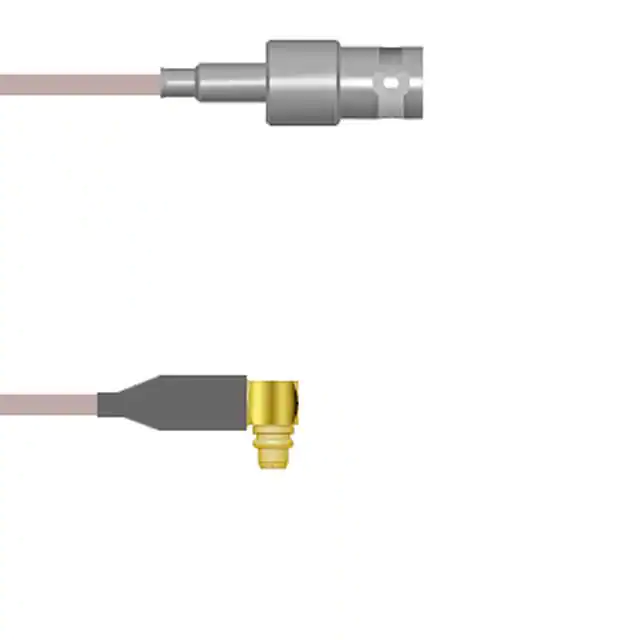

Q-0301N0005.25MCBL ASSY BNC-MMCX RG316 9.843 |
3,469 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | - | - | MMCX Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

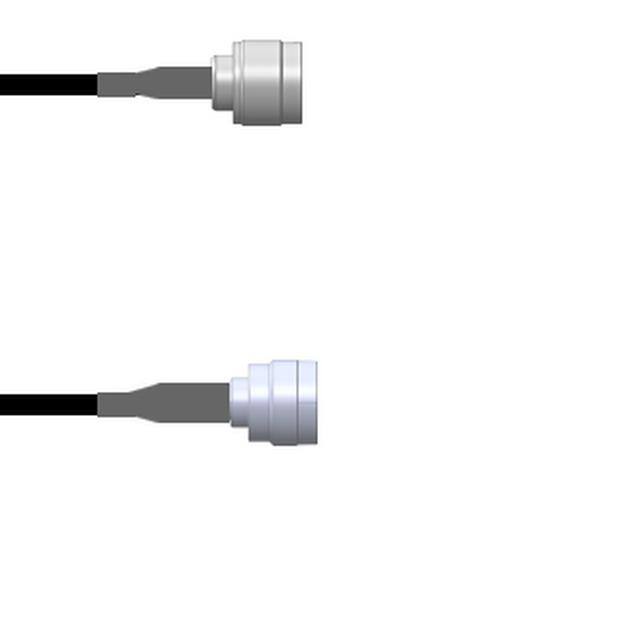

Q-2N0550008.75MCBL ASSY N TO TNC PL RG58 29.53 |
3,327 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Plug | Male | - | - | 29.53 (750.00mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

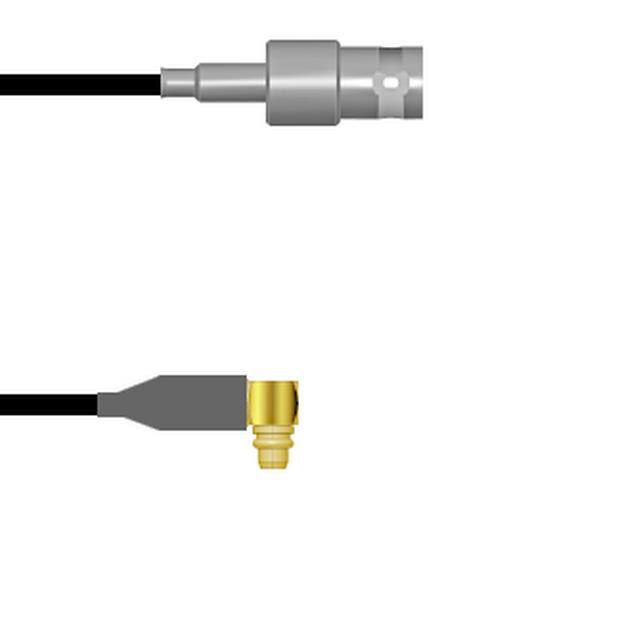

Q-0301N0003009iCBL ASY BNC-MMCX J TO P RG174 9 |
2,225 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | - | - | MMCX Plug, Right Angle | Male | - | - | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

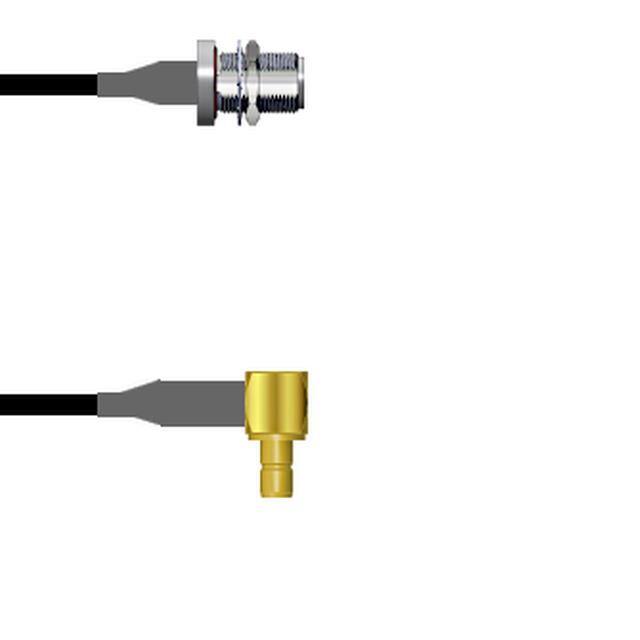

Q-1T03I0003048iCBL ASSY SMB-N JACK RG174 4' |
3,147 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0 (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
