| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

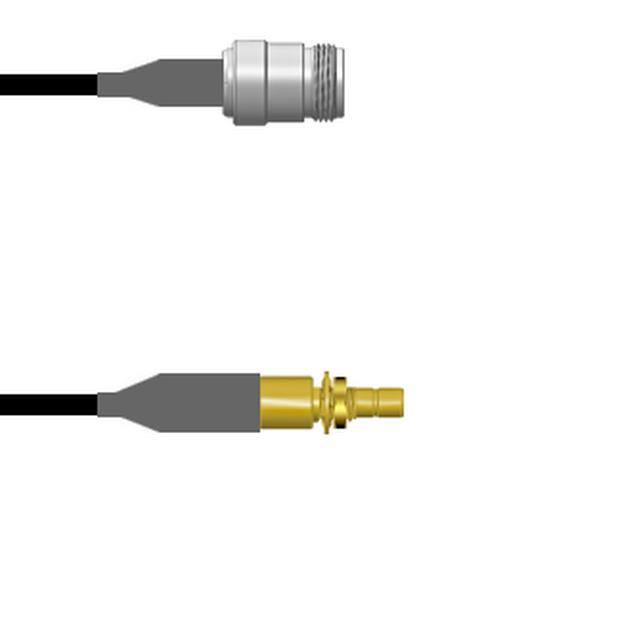

Q-1W03Q0008001MCBL ASSY SMB-N JACK RG58 1M |
2,114 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | - | - | N-Type Jack | Female | - | - | 39.4 (1.0m) 3.3' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

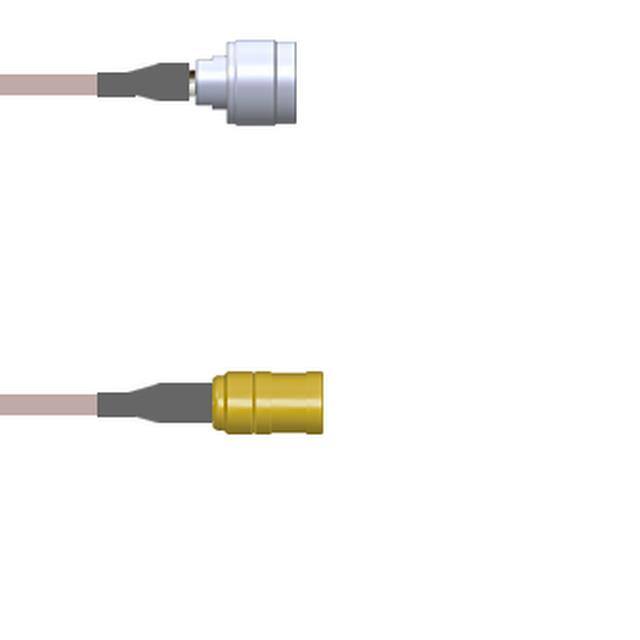

Q-2H0600001001MCBL ASSY SMB-N PLUG RG178 1M |
2,712 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | - | - | N-Type Plug | Male | - | - | 39.4 (1.0m) 3.3' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

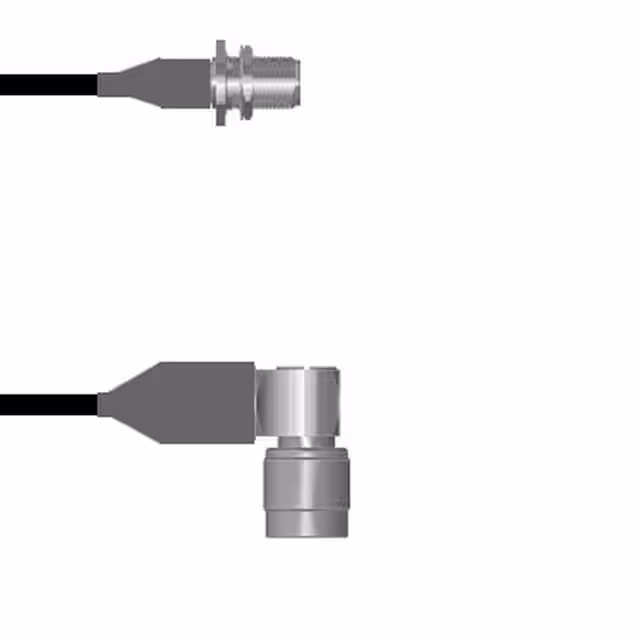

Q-280500013002MCBL ASSY N TO TNC JACK TO PLG 2M |
3,218 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

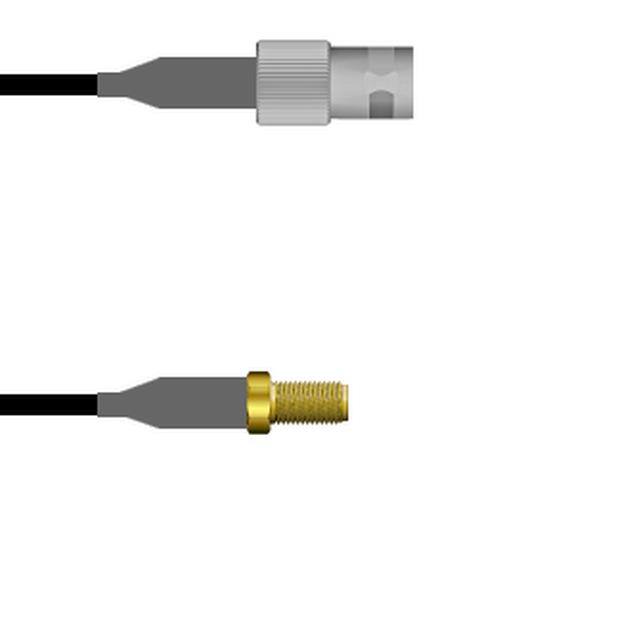

Q-0902Z0008108iCBL ASSY BNC-SMA JACK RG58 9' |
3,955 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | - | - | SMA Jack | Female | - | - | 108.0 (2.7m) 9.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

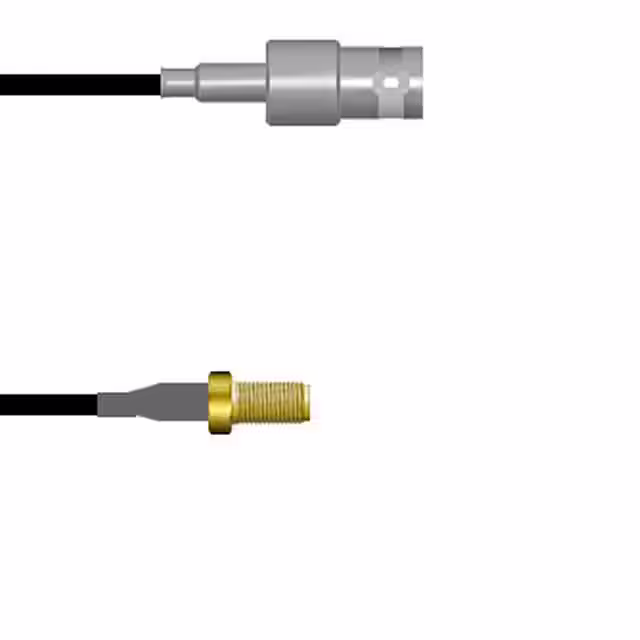

Q-0302V0003.25MCBL ASSY BNC-SMA JK RG174 9.843 |
2,121 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | - | - | SMA Jack | Female | - | - | 9.843 (250.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

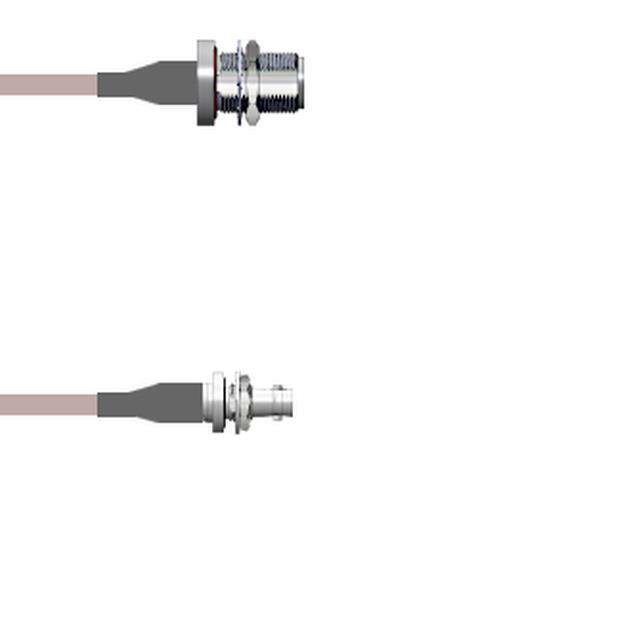

Q-1T00P0005108iCBL ASSY HD-BNC TO N JK RG316 9' |
2,739 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

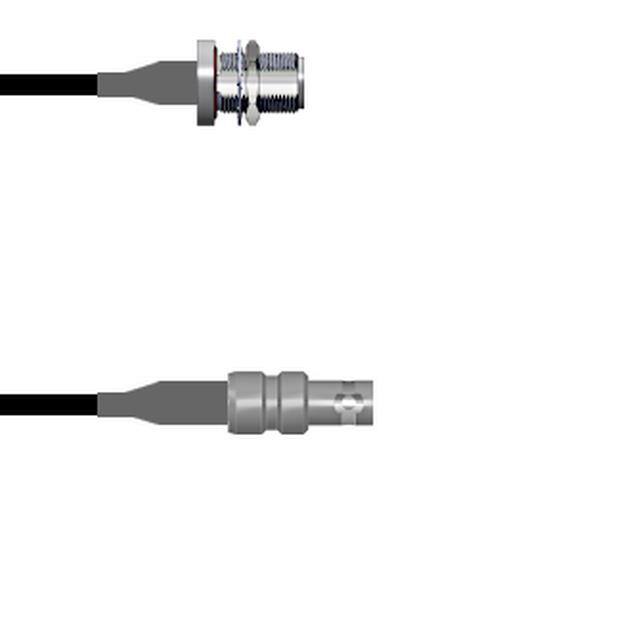

Q-1T00Q0003001MCBL ASSY HD-BNC TO N JK RG174 1M |
3,331 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4 (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

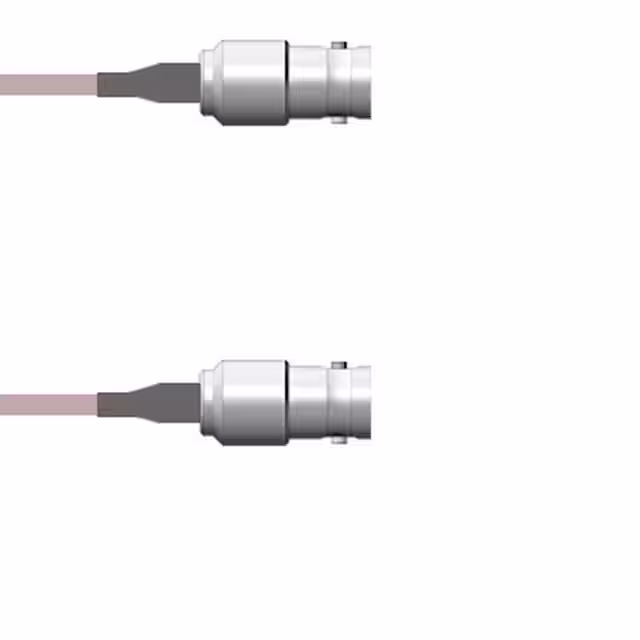

Q-020020001108iCBL ASSY BNC JACK RG178 9' |
2,440 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | - | - | BNC Jack | Female | - | - | 108.0 (2.7m) 9.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

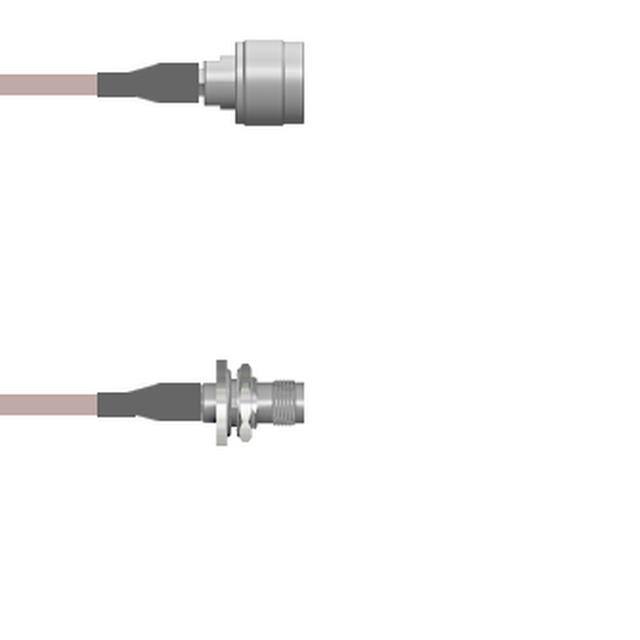

Q-2M04H000R006iCBL ASSY N TO TNC RG316 DB 6 |
2,206 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

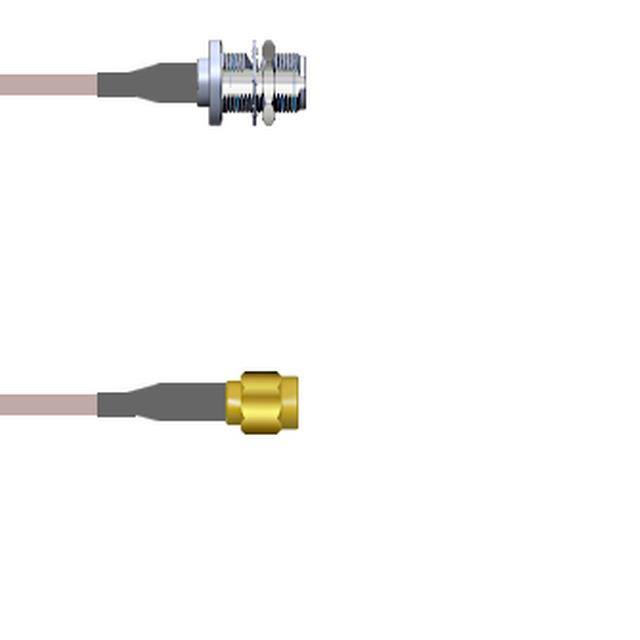

Q-2103C000R072iCBL ASY SMA-N P-J RG316 DB 6' |
3,709 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0 (1.8m) 6.0' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

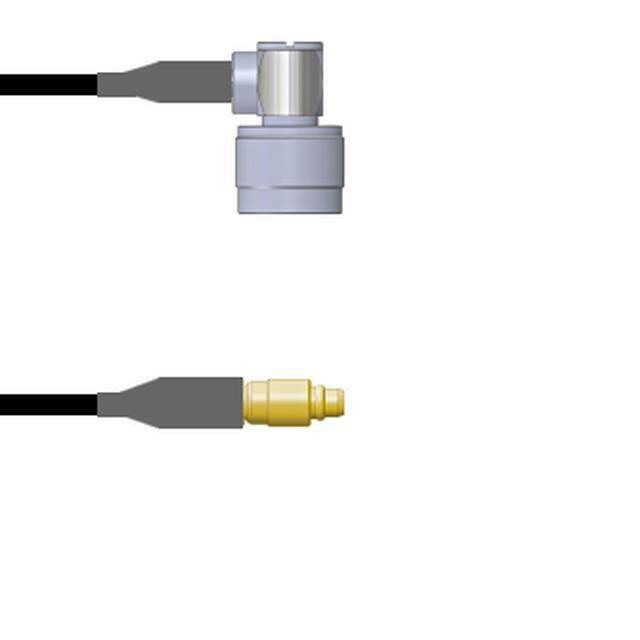

Q-2C01Q0003001MCBL ASSY MMCX-N PLUG RG174 1M |
3,927 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 39.4 (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

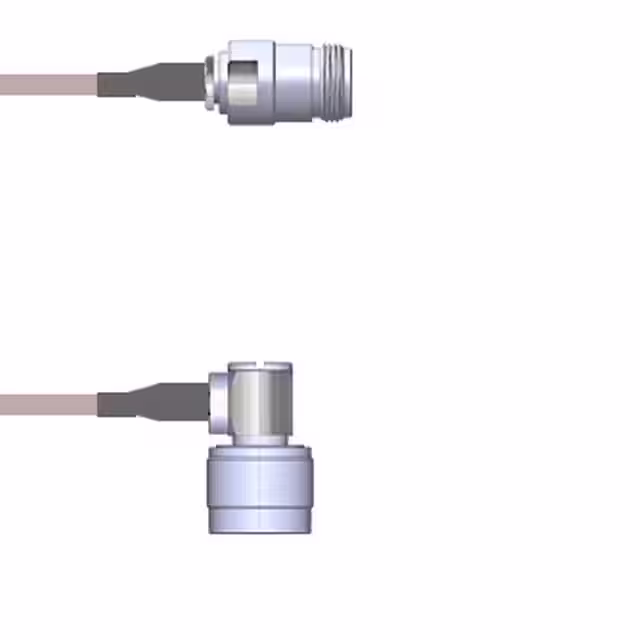

Q-1V02D000R018iCBL ASSY N-TYPE J-P RG316 DB 18 |
2,507 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 18.00 (457.20mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

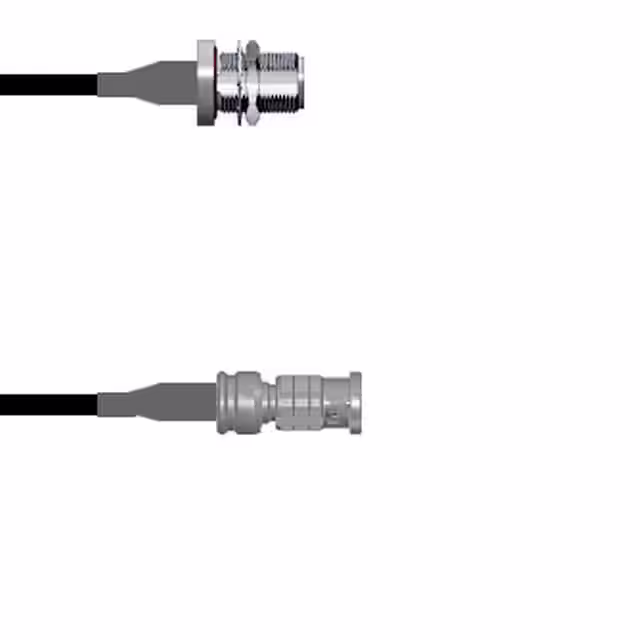

Q-1T05H0003012iCBL ASSY HD-BNC TO N RG174 12 |
2,756 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

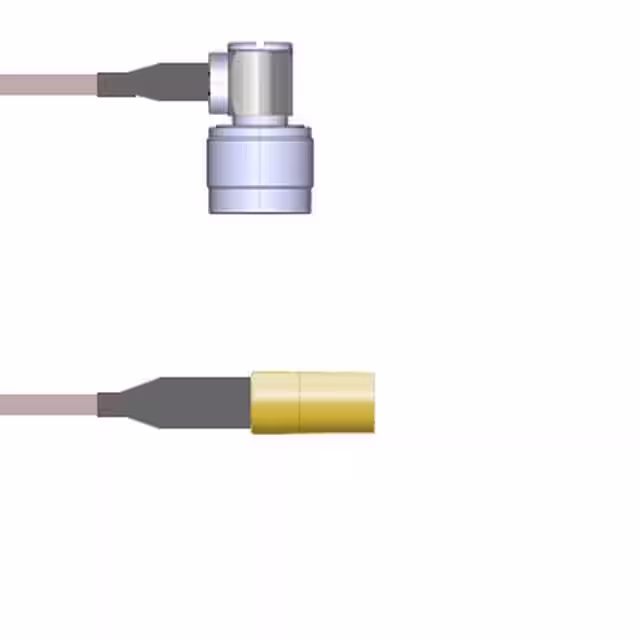

Q-2D03Z000R.25MCBL ASSY SMB-N PLUG RG316 9.843 |
2,258 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

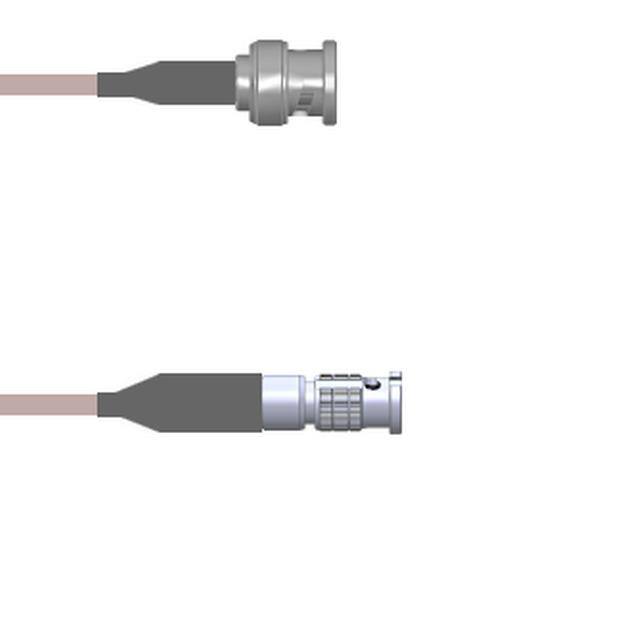

Q-0M00Y000H2.5MCBL ASY BNC-HD-BNC PL RG142 2.5M |
3,024 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | - | - | HD-BNC Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0302P0005060iCBL ASSY BNC-SMA JACK RG316 5' |
2,346 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

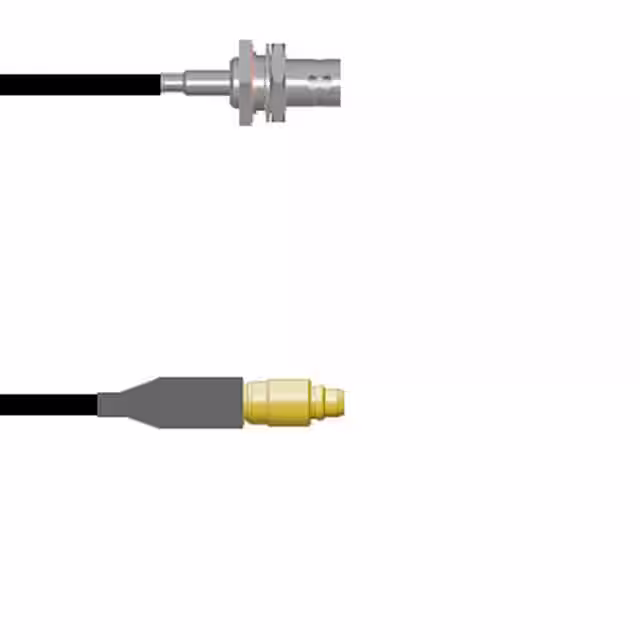

Q-0401Q0003006iCBL ASY BNC-MMCX J TO P RG174 6 |
2,656 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-1U03I0003108iCBL ASSY SMB-N JACK RG174 9' |
2,242 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

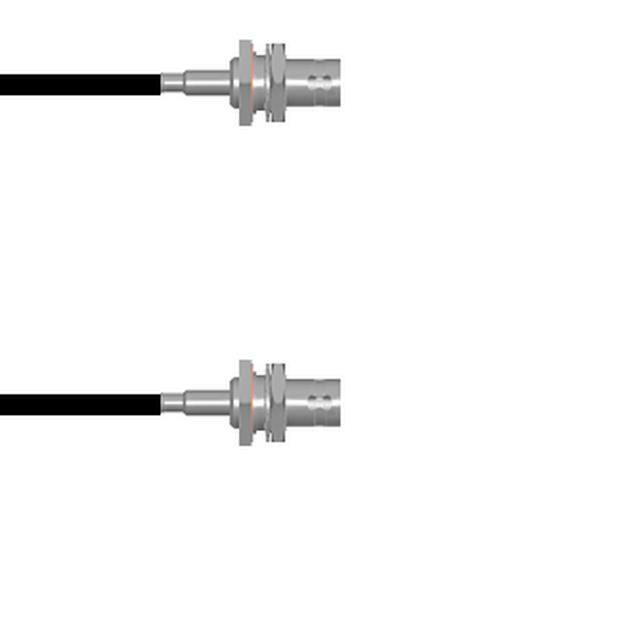

Q-040040003001MCBL ASSY BNC JACK RG174 1M |
3,245 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4 (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

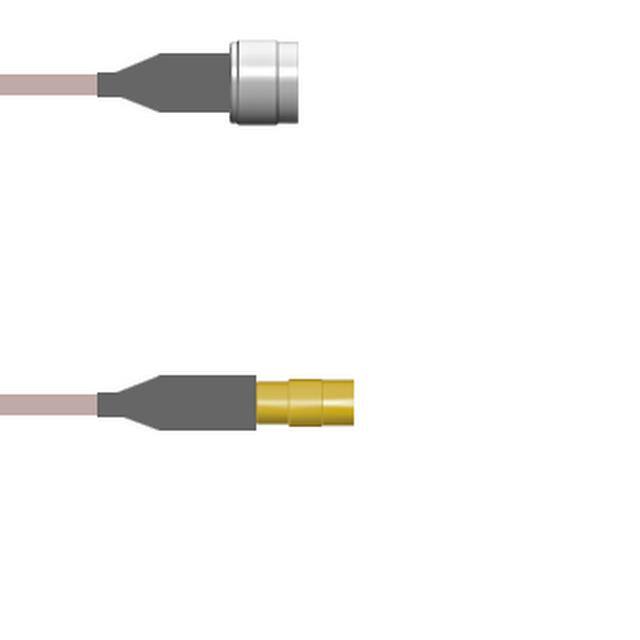

Q-2I01J0005003iCBL ASSY MMCX-N J TO P RG316 3 |
3,496 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | - | - | N-Type Plug | Male | - | - | 3.000 (76.20mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
