| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2016694-4RF CA,SMA BULKHEAD TO UMCC IV,L2 |
4,991 | 5.50 |
RFQ |
Datasheet |
Box | - | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -45°C ~ 85°C |
|
|
2016493-1RF CA,UMCC TO UMCC, 1.13MM CABLE |
1,196 | 3.32 |
RFQ |
Bag | UMCC | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.181 (30.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | - | Shielded | - | |
|
|
2032440-4C/A, UMCC TO SMA BHD JACK, 1.3 |
433 | 7.64 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C |
|

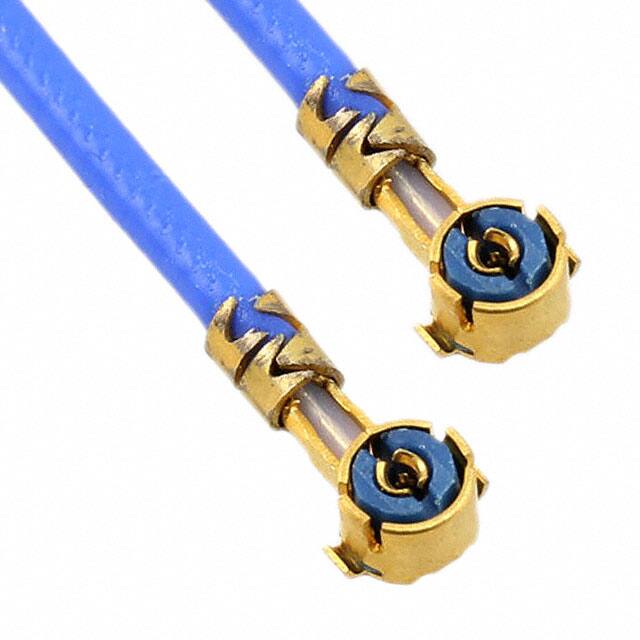

1064530-1CBL ASSY SSMT JACK-JACK 7.874 |
3,413 | 16.58 |
RFQ |
Datasheet |
Bag | - | Active | SSMT to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C |
|

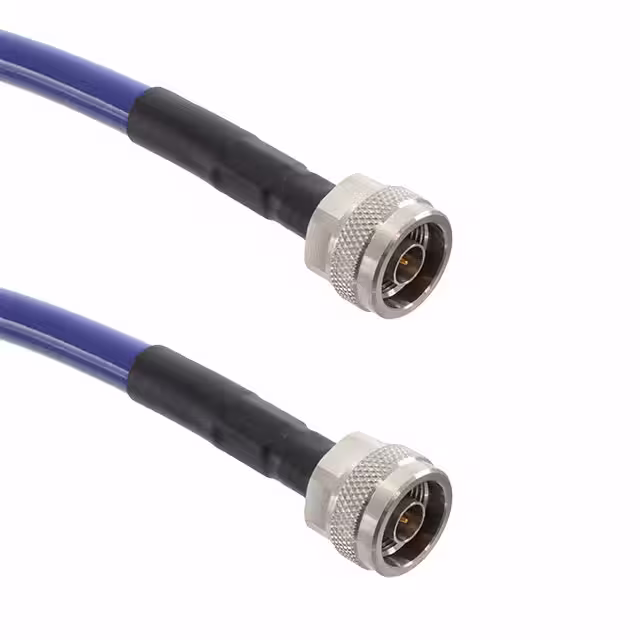

1-2016658-0CBL ASSY N-TYPE PLUG-PLUG 3.3' |
2,070 | 232.94 |
RFQ |
Datasheet |
Box | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | 10.20mm OD Coaxial Cable | - | - | 50 Ohms | 18 GHz | Blue | Armored Cable, Shielded | -40°C ~ 85°C |
|

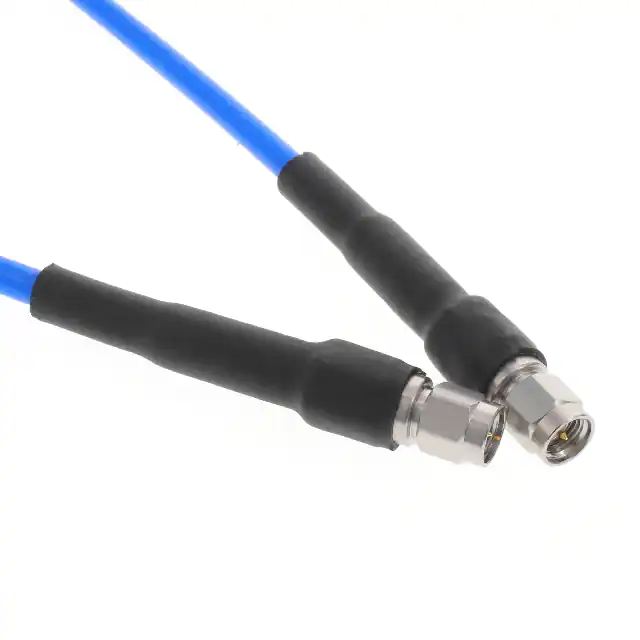

1-2016655-0SMA M DOUBLE,18G,1.0M WITHOUT AR |
3,077 | 174.87 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | 4.90mm OD Coaxial Cable | - | - | 50 Ohms | 18 GHz | Blue | - | -40°C ~ 85°C |
|

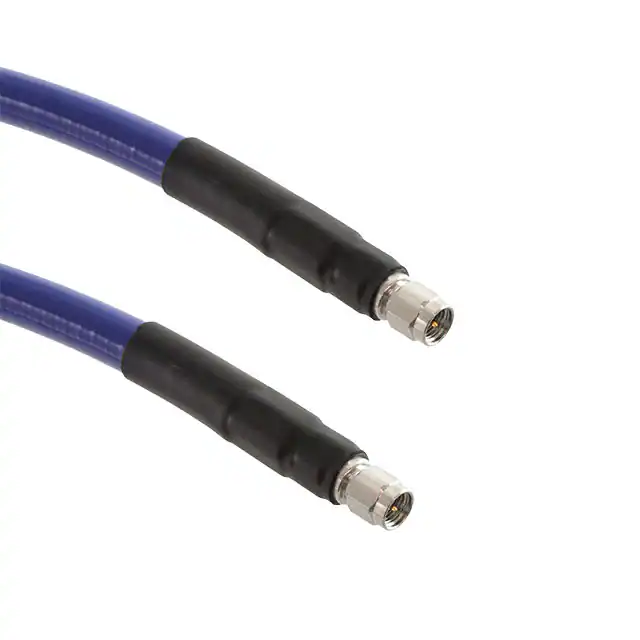

1-2016656-0CBL ASSY SMA PLUG TO PLUG 3.3' |
2,438 | 211.55 |
RFQ |
Datasheet |
Box | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | 10.20mm OD Coaxial Cable | - | - | 50 Ohms | 18 GHz | Blue | Armored Cable, Shielded | -40°C ~ 85°C |
|

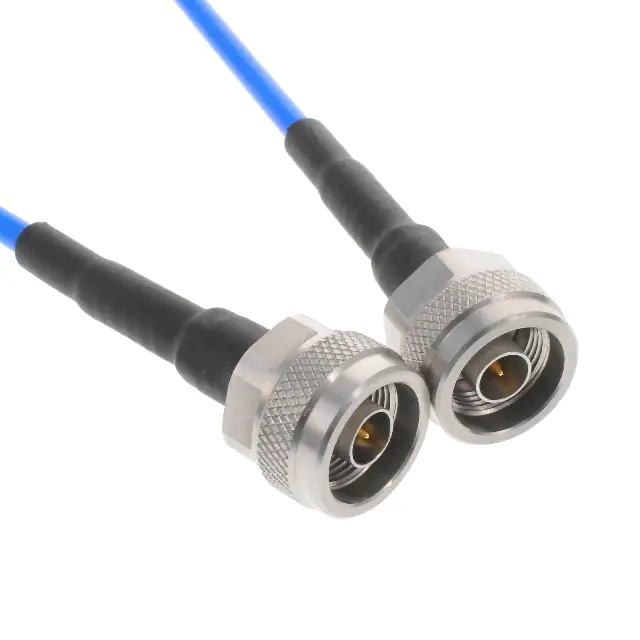

1-2016657-0N M DOUBLE,18G,1.0M WITHOUT ARMO |
2,072 | 227.57 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | 4.90mm OD Coaxial Cable | - | - | 50 Ohms | 18 GHz | Blue | - | -40°C ~ 85°C |
|

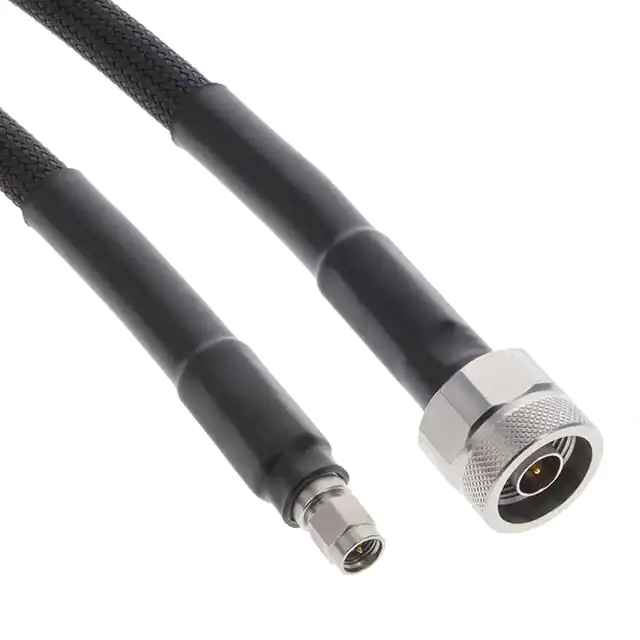

1-2016703-0N M TO SMA M,18G,1.0M WITH ARMOR |
3,047 | 280.16 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | 10.20mm OD Coaxial Cable | - | - | 50 Ohms | 18 GHz | Black | Armored Cable, Shielded | -40°C ~ 85°C |
|

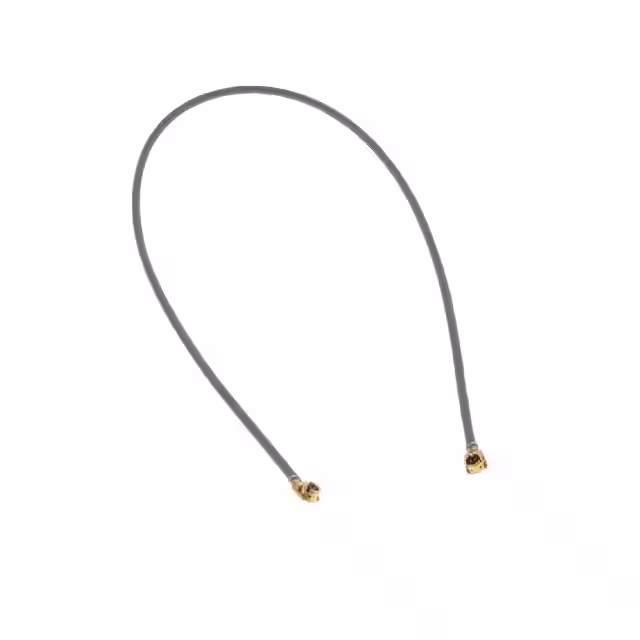

2195633-6RF CA,UMCC GEN1- GEN1,1.32,L200M |
2,682 | 1.44 |
RFQ |
Datasheet |
Box | UMCC | Active | U.FL (UMCC), IPEX MHF1 to U.FL (UMCC), IPEX MHF1 | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | 1.32mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - |
|

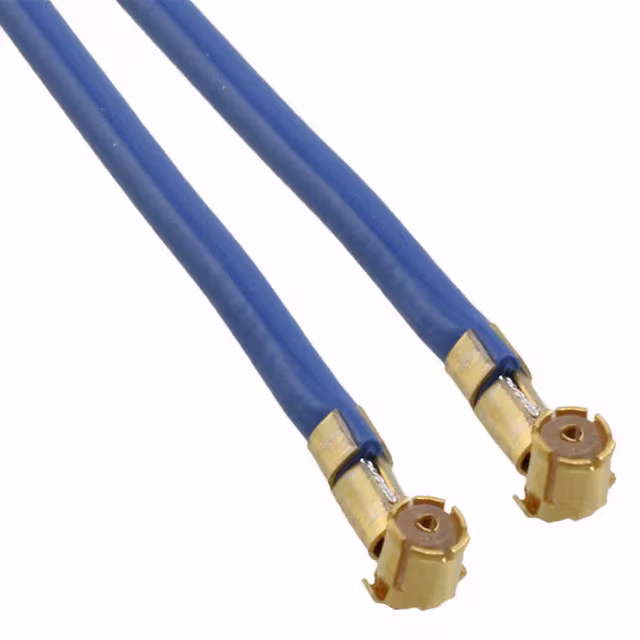

1064309-1CBL ASSY OSMT JACK-JACK 7.874 |
400 | 16.16 |
RFQ |
Datasheet |
Bag | - | Active | OSMT to OSMT | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 7.874 (200.00mm) | - | - | 50 Ohms | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 105°C |
|
|
2118651-2RF CA,UMCC GEN1GEN1, 1.13MM CABL |
5,370 | 2.25 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC), IPEX MHF1 to U.FL (UMCC), IPEX MHF1 | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.181 (30.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 90°C |
|

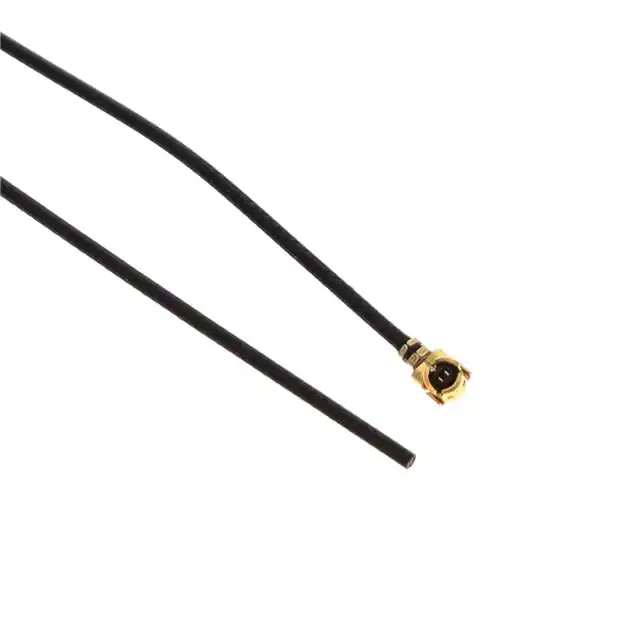

2411062-2RF CA, UMCC GEN1, 1.13MM, L100MM |
6,000 | 1.01 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC), IPEX MHF1 to Cable | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C |
|

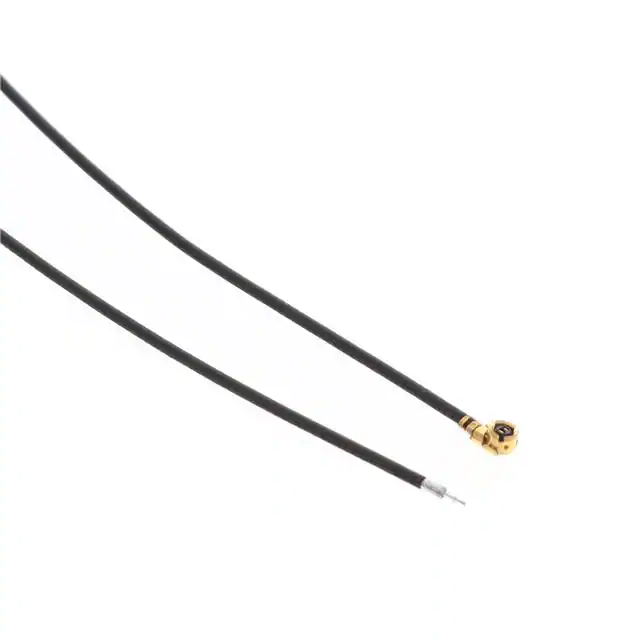

2148999-2RF CA, UMCC GEN1, 1.13MM, L100MM |
5,990 | 1.02 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC), IPEX MHF1 to Cable | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | Female | - | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C |
|
|
2411050-2RF CA, UMCC GEN1, 1.37MM, L100MM |
5,000 | 1.03 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC), IPEX MHF1 to Cable | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.937 (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C |
|
|
2411062-4RF CA, UMCC GEN1, 1.13MM, L200MM |
2,864 | 1.11 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC), IPEX MHF1 to Cable | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C |
|
2148999-4RF CA, UMCC GEN1, 1.13MM, L200MM |
3,958 | 1.12 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC), IPEX MHF1 to Cable | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | Female | - | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C |
|

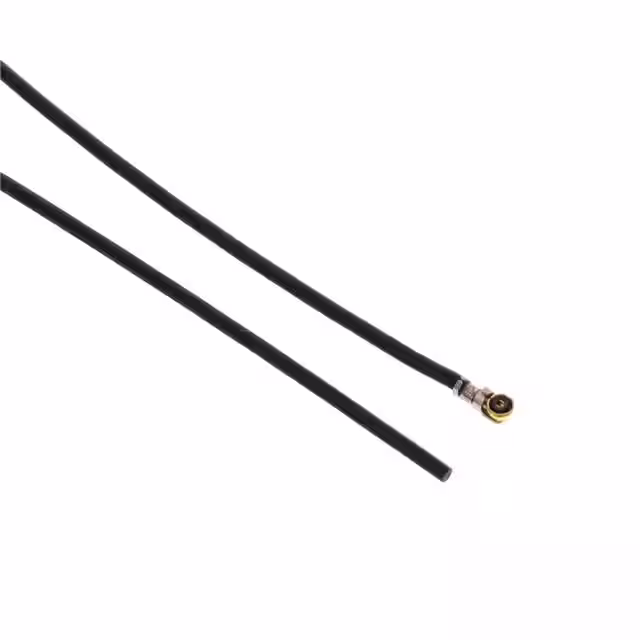

2411069-2RF CA, UMCC GEN4, 1.13MM, L100MM |
5,980 | 1.13 |
RFQ |
Datasheet |
Bag | - | Active | IPEX MHF4L to Cable | IPEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C |
|
|
2411050-4RF CA, UMCC GEN1, 1.37MM, L200MM |
4,499 | 1.14 |
RFQ |
Datasheet |
Bag | UMCC | Active | U.FL (UMCC), IPEX MHF1 to Cable | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874 (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C |
|
2411069-4RF CA, UMCC GEN4, 1.13MM, L200MM |
3,845 | 1.23 |
RFQ |
Datasheet |
Bag | - | Active | IPEX MHF4L to Cable | IPEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874 (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C |
