Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
PAC6034.105NLT CMC 2.1A 2LN 7.8KOHM SMD Pulse Electronics Power	150	4.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PAC6034.XXXNLT	Active	-	2	7.8 kOhms @ 2.6 MHz	-	2.1A	85mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	-	0.490 (12.45mm)
PAC6034.305NLT CMC 0.95A 2LN 26KOHM SMD Pulse Electronics Power	150	4.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PAC6034.XXXNLT	Active	-	2	26 kOhms @ 1.4 MHz	-	950mA	369mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	-	0.490 (12.45mm)
PG1265NLT CMC 20A 2LN SMD Pulse Electronics Power	636	4.60	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	-	-	20A	4.1mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
PH9407.204NLT CMC 17A 2LN 1.08KOHM SMD Pulse Electronics Power	722	5.78	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9407	Active	-	2	1.08 kOhms @ 1.79 MHz	-	17A	3.5mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.961 L x 0.850 W (24.40mm x 21.60mm)	0.630 (16.00mm)
PH9407.104NLT CMC 20A 2LN 730 OHM SMD Pulse Electronics Power	463	5.78	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9407	Active	-	2	730 Ohms @ 1.6 MHz	-	20A	2.5mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.961 L x 0.850 W (24.40mm x 21.60mm)	0.547 (13.90mm)

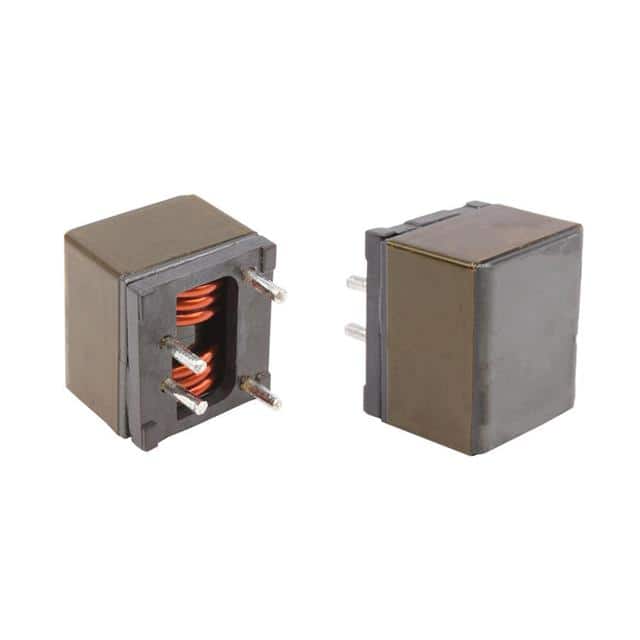

PMC9539.164NL COMMON MODE CHOKE 160 UH THT Pulse Electronics Power	147	4.35	RFQ	Datasheet	Tray	PMC9539.XXXNL	Active	-	2	450 Ohms @ 1.9 MHz	-	22A	1.7mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.772 L x 0.701 W (19.60mm x 17.80mm)	0.610 (15.50mm)
PMC9539.254NL COMMON MODE CHOKE 250UH THT Pulse Electronics Power	109	4.35	RFQ	Datasheet	Tray	PMC9539.XXXNL	Active	-	2	750 Ohms @ 1.6 MHz	-	18A	2.7mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.772 L x 0.701 W (19.60mm x 17.80mm)	0.610 (15.50mm)
PA3747.405NL CMC 2.25A 2LN TH Pulse Electronics Power	3,384	6.22	RFQ	Datasheet	Tray	PA3747	Active	-	2	-	-	2.25A	71.5mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.760 L x 0.717 W (19.30mm x 18.20mm)	0.902 (22.90mm)
PH9408.644NLT CMC 19A 2LN 2.5KOHM SMD Pulse Electronics Power	450	9.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9408	Active	-	2	2.5 kOhms @ 1.2 MHz	-	19A	5.6mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	1.201 L x 1.063 W (30.50mm x 27.00mm)	0.709 (18.00mm)
PH9408.494NLT CMC 21A 2LN 2KOHM SMD Pulse Electronics Power	428	9.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9408	Active	-	2	2 kOhms @ 1.3 MHz	-	21A	4mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	1.201 L x 1.063 W (30.50mm x 27.00mm)	0.650 (16.50mm)
PH9408.164NLT CMC 36A 2LN 400 OHM SMD Pulse Electronics Power	388	9.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9408	Active	-	2	400 Ohms @ 1.76 MHz	-	36A	1.3mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	1.201 L x 1.063 W (30.50mm x 27.00mm)	0.591 (15.00mm)
PH9408.364NLT CMC 23A 2LN 1.5KOHM SMD Pulse Electronics Power	403	9.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9408	Active	-	2	1.5 kOhms @ 1.3 MHz	-	23A	3.5mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	1.201 L x 1.063 W (30.50mm x 27.00mm)	0.650 (16.50mm)
PH9408.105NLT CMC 17A 2LN 4.3KOHM SMD Pulse Electronics Power	268	9.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9408	Active	-	2	4.3 kOhms @ 1.1 MHz	-	17A	7mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	1.201 L x 1.063 W (30.50mm x 27.00mm)	0.709 (18.00mm)
PE-62912NL CMC 3MH 3.5A 2LN TH Pulse Electronics Power	443	7.51	RFQ		Tray	-	Active	-	2	-	3 mH @ 1 kHz	3.5A	60mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.150 L x 0.560 W (29.21mm x 14.22mm)	1.160 (29.46mm)

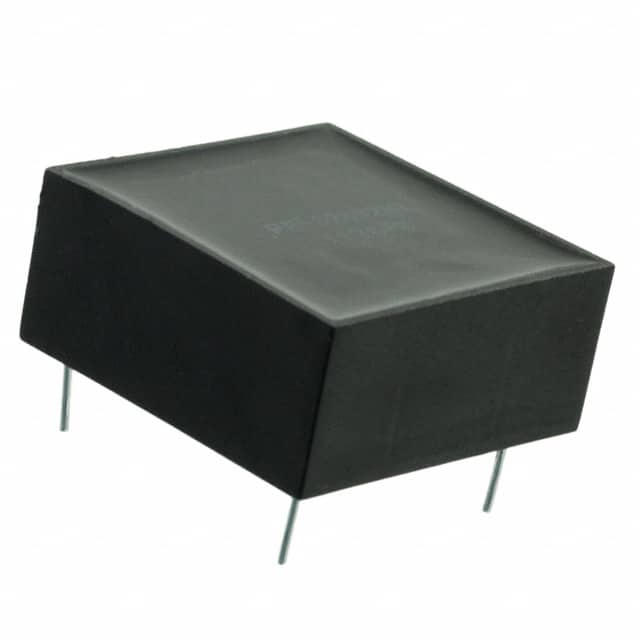

PE-62892NL CMC 3MH 3.5A 2LN TH Pulse Electronics Power	327	8.06	RFQ		Tray	-	Active	Power Line	2	-	3 mH @ 1 kHz	3.5A	60mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.250 L x 1.250 W (31.75mm x 31.75mm)	0.610 (15.49mm)

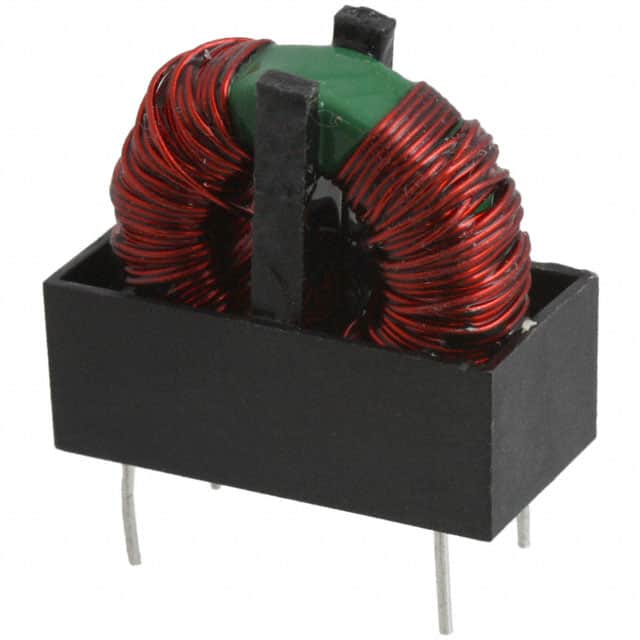

PE-62911NL CMC 10MH 1.8A 2LN TH Pulse Electronics Power	345	8.31	RFQ		Tray	-	Active	Power Line	2	-	10 mH @ 1 kHz	1.8A	240mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.150 L x 0.560 W (29.21mm x 14.22mm)	1.160 (29.46mm)
AWCU00453226104TM2 CMC 100UH 200MA 2LN SMD AEC-Q200 Pulse Electronics Power	2,512	1.52	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, WCU	Active	Signal Line	2	-	100 µH @ 1 MHz	200mA	2Ohm	50V	-	-50°C ~ 150°C	AEC-Q200	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.110 (2.80mm)
AWCU00453226513TM2 CMC 51UH 230MA 2LN SMD AEC-Q200 Pulse Electronics Power	2,687	1.52	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, WCU	Active	Signal Line	2	-	-	230mA	1Ohm	50V	-	-50°C ~ 150°C	AEC-Q200	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.110 (2.80mm)
AWCU00453226104TT2 CMC 100UH 150MA 2LN SMD AEC-Q200 Pulse Electronics Power	3,901	1.52	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, WCU	Active	Signal Line	2	5.8 kOhms @ 10 MHz	100 µH @ 100 kHz	150mA	2Ohm	50V	-	-50°C ~ 150°C	AEC-Q200	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.110 (2.80mm)
AWCU00453226223TT2 CMC 22UH 200MA 2LN SMD AEC-Q200 Pulse Electronics Power	3,443	1.52	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, WCU	Active	Signal Line	2	1.2 kOhms @ 10 MHz	22 µH @ 100 kHz	200mA	1Ohm	50V	-	-50°C ~ 150°C	AEC-Q200	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.110 (2.80mm)
