Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

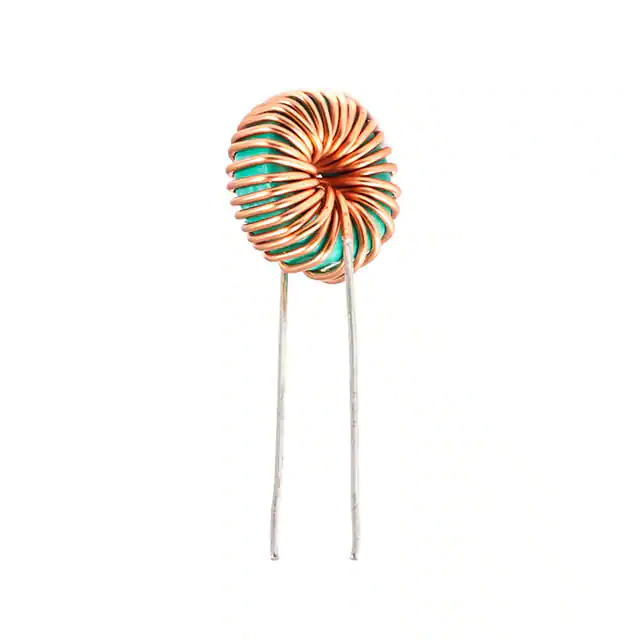

SN10-500 CMC 110UH 3A 2LN TH KEMET	291	3.57	RFQ	Datasheet	Bulk	SN	Active	Power Line	2	-	110 µH @ 100 kHz	3A	52mOhm	-	-	-25°C ~ 105°C	-	-	-	Through Hole	-	0.886 (22.50mm)

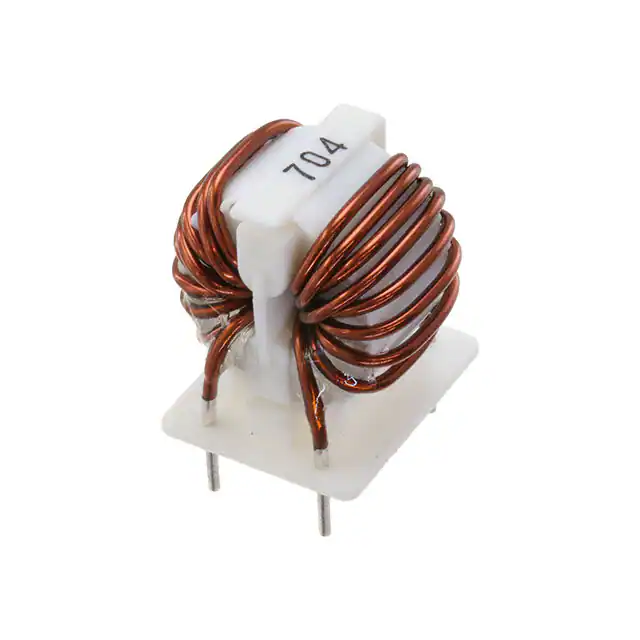

SC-07-04GJ CMC 360UH 7A 2LN TH KEMET	235	3.59	RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	360 µH @ 100 kHz	7A	14mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	0.709 L x 0.669 W (18.00mm x 17.00mm)	0.787 (20.00mm)

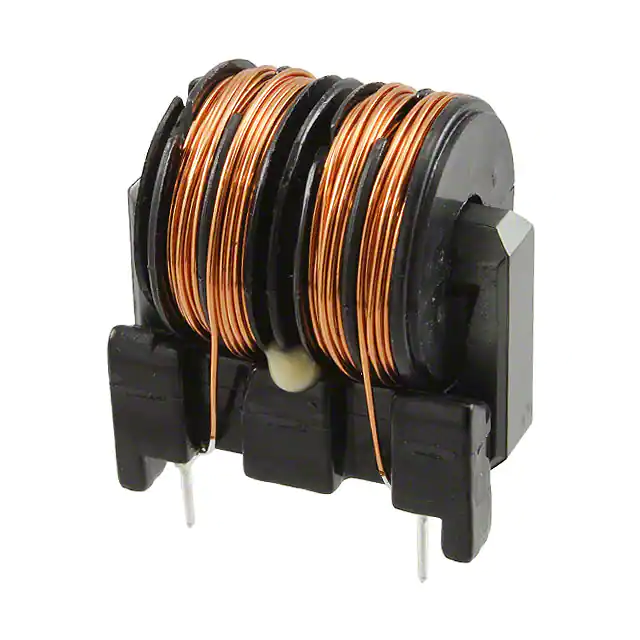

SS30V-R180190 CMC 19MH 1.8A 2LN TH KEMET	2,340	3.66	RFQ	Datasheet	Tray	SS	Active	Power Line	2	-	19 mH @ 1 kHz	1.8A	230mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)

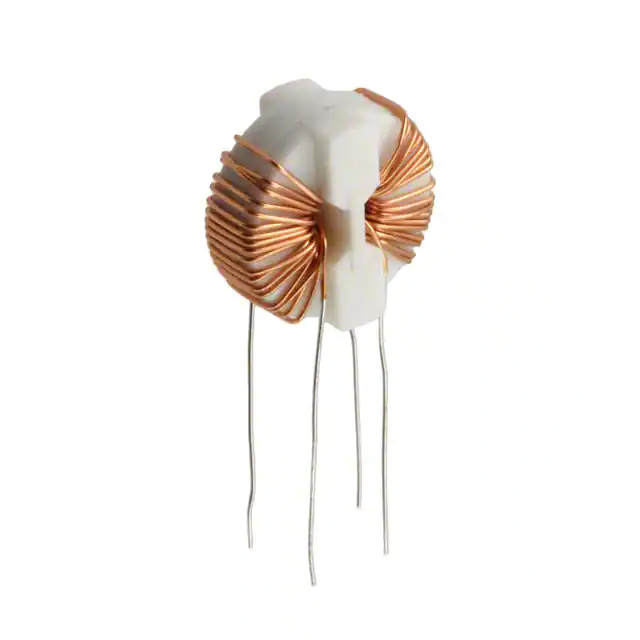

SC-01-10GS CMC 1MH 1A 2LN TH KEMET	835	3.67	RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	1 mH @ 100 kHz	1A	130mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.591 Dia x 0.335 W (15.00mm x 8.50mm)	0.591 (15.00mm)
SC-04-E50J CMC 5.18MH 4.3A 2LN TH KEMET	317	3.81	RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	5.18 mH @ 10 kHz	4.3A	56.4mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	0.925 L x 0.764 W (23.50mm x 19.40mm)	0.945 (24.00mm)

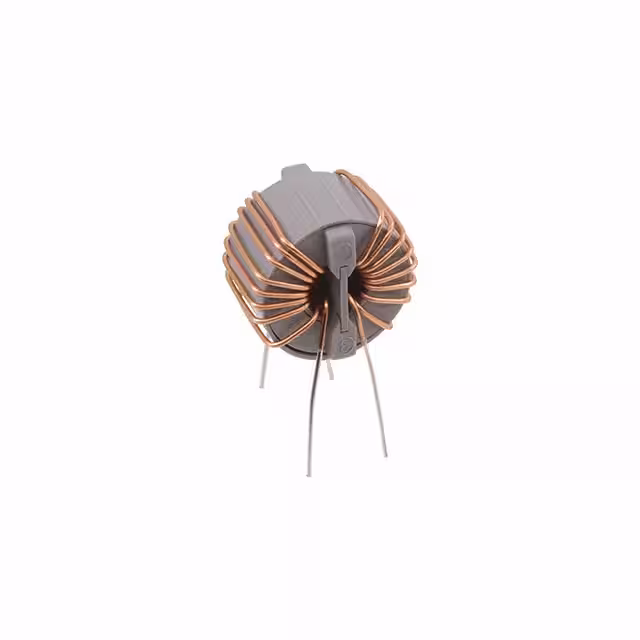

SC-04-D050 CMC 50UH 4A 2LN TH KEMET	252	3.90	RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	50 µH @ 100 kHz	4A	25mOhm	250V	250V	25°C ~ 105°C	-	-	-	Through Hole	0.984 L x 0.748 W (25.00mm x 19.00mm)	0.984 (25.00mm)

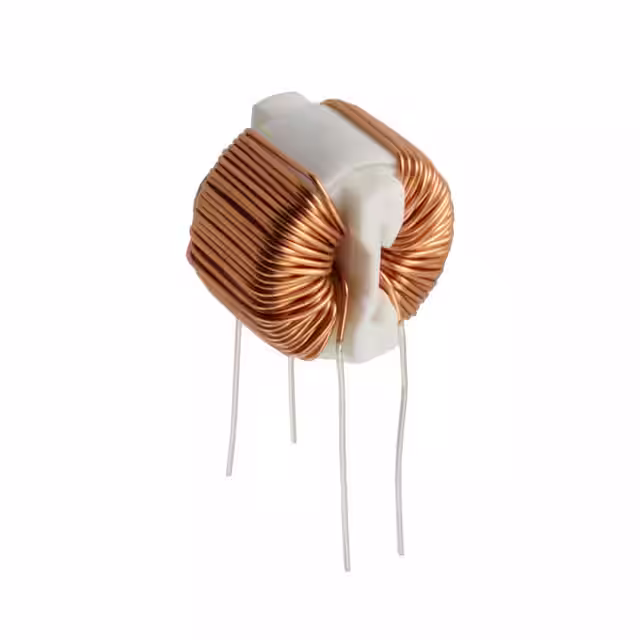

SC-01-50G CMC 5MH 1A 2LN TH KEMET	331	3.94	RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	5 mH @ 100 kHz	1A	150mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.689 Dia x 0.551 W (17.50mm x 14.00mm)	0.689 (17.50mm)

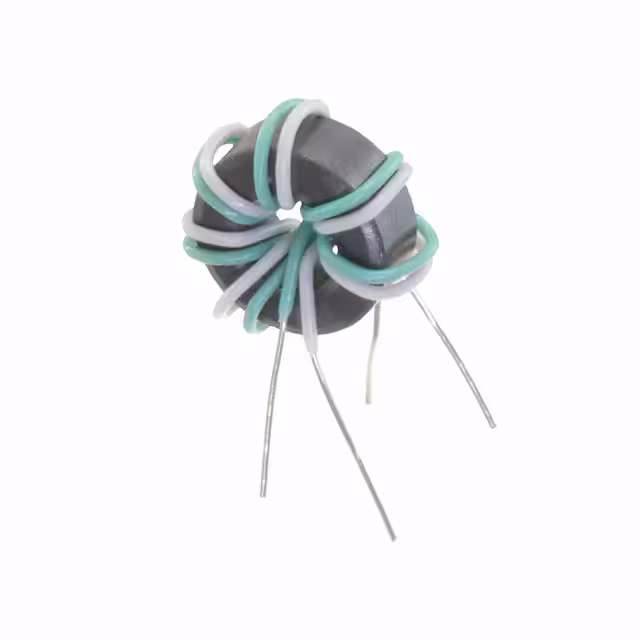

ST-202S CMC, TROID, 600OHM, 35MOHM KEMET	136	3.98	RFQ	Datasheet	Tray	ST	Active	-	2	600 Ohms @ 100 MHz	-	1A	35mOhm	50V	-	-20°C ~ 75°C	-	-	-	Through Hole	0.512 Dia (13.00mm)	0.276 (7.00mm)

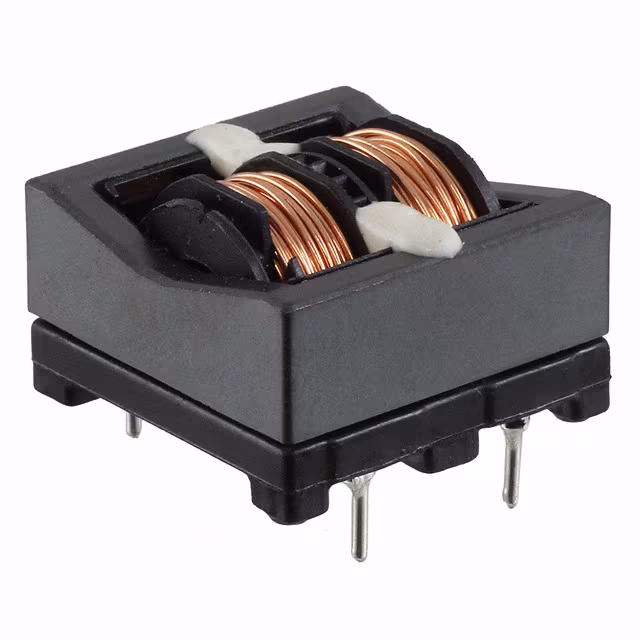

SSR21H-12150 CMC 15MH 1.2A 2LN TH KEMET	420	2.96	RFQ	Datasheet	Bulk	SSR21H	Active	Power Line	2	-	15 mH @ 10 kHz	1.2A	320mOhm	250V	-	-25°C ~ 120°C	-	-	-	Through Hole	0.906 L x 0.906 W (23.00mm x 23.00mm)	0.571 (14.50mm)

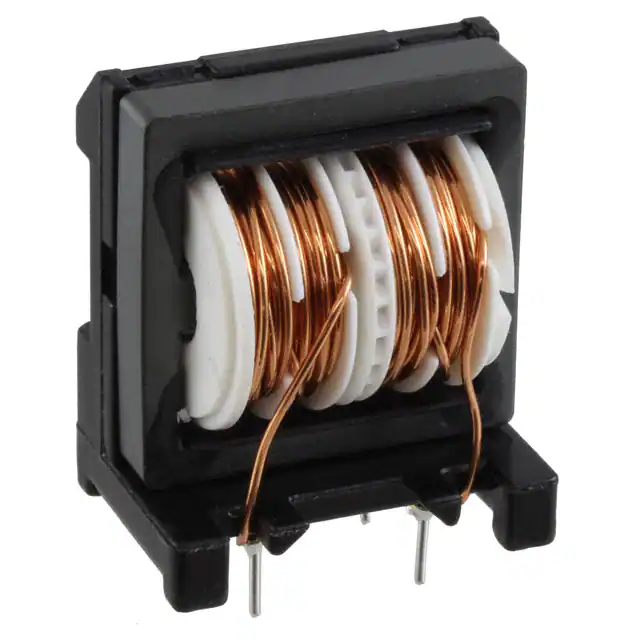

SS28V-25045-CH CMC 4.5MH 2.5A 2LN TH KEMET	300	2.96	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	4.5 mH @ 1 kHz	2.5A	160mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.181 L x 0.866 W (30.00mm x 22.00mm)	1.398 (35.50mm)

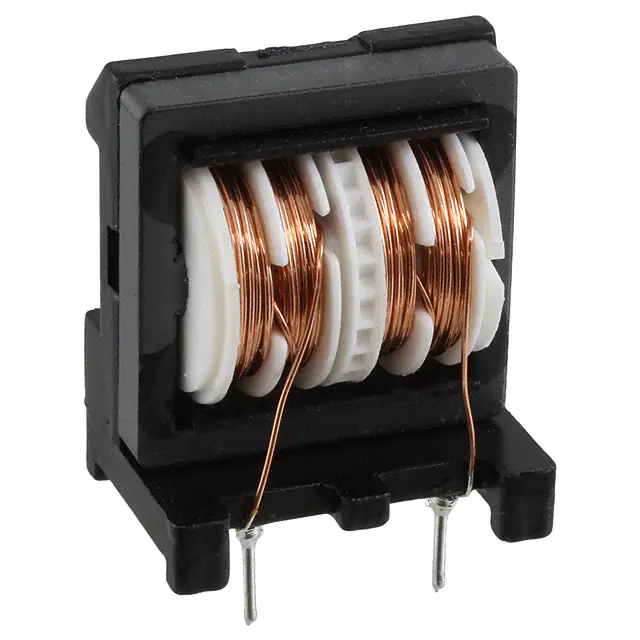

SS24V-R08250-CH CMC 25MH 800MA 2LN TH KEMET	200	2.96	RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	25 mH @ 1 kHz	800mA	750mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.024 L x 0.748 W (26.00mm x 19.00mm)	1.240 (31.50mm)
SC-02-05GJ CMC 515UH 2A 2LN TH KEMET	212	4.38	RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	515 µH @ 100 kHz	2A	58mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	0.689 L x 0.689 W (17.50mm x 17.50mm)	0.768 (19.50mm)
SN12-400 CMC 64UH 5A 2LN TH KEMET	346	4.51	RFQ		Bulk	SN	Active	Power Line	2	-	64 µH @ 100 kHz	5A	32mOhm	-	-	-25°C ~ 105°C	-	-	-	Through Hole	0.984 Dia x 0.472 W (25.00mm x 12.00mm)	1.043 (26.50mm)

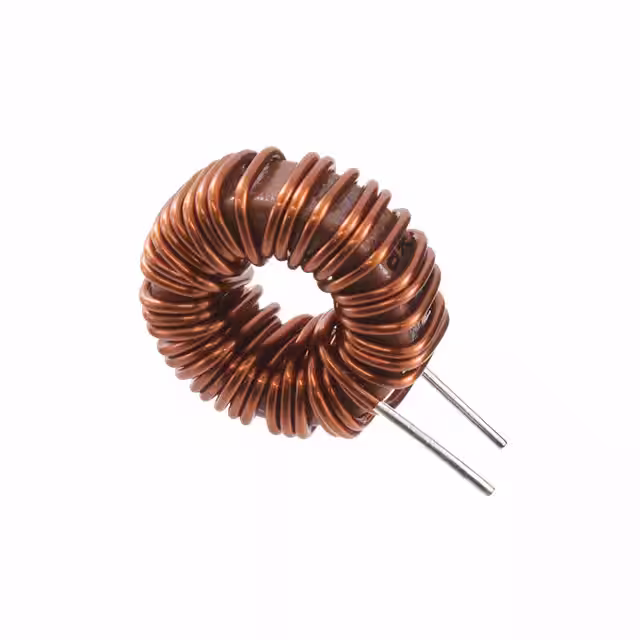

HHBC12-1R0A0051V CMC 51UH 5A 2LN TH KEMET	169	4.60	RFQ	Datasheet	Bulk	HHBC	Active	-	2	-	51 µH @ 100 kHz	5A	28mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.024 Dia (26.00mm)	1.024 (26.00mm)
SC-05-E45JH CMC 4.5MH 5A 2LN TH KEMET	199	4.75	RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	4.5 mH @ 100 kHz	5A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	-	0.827 (21.00mm)
SC-07-10J CMC 1MH 7A 2LN TH KEMET	253	5.01	RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	1 mH @ 100 kHz	7A	24mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	1.339 L x 0.906 W (34.00mm x 23.00mm)	1.299 (33.00mm)

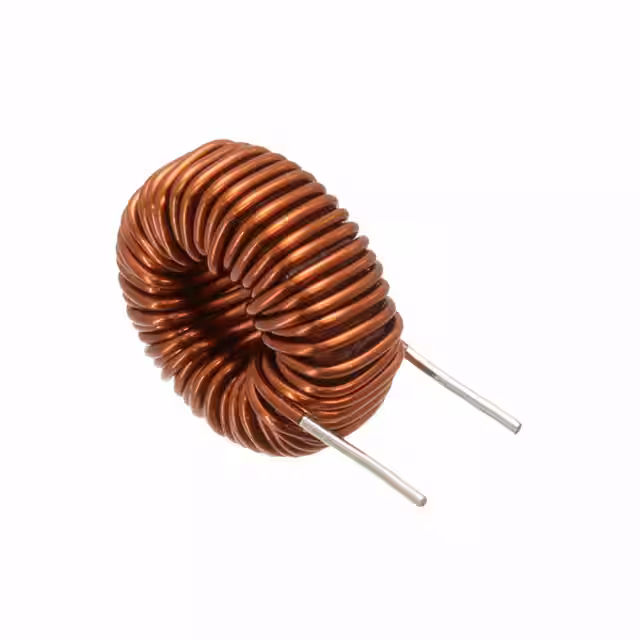

HHBC12-1R0A0080V CMC 80UH 5A 2LN TH KEMET	239	5.01	RFQ	Datasheet	Bulk	HHBC	Active	-	2	-	80 µH @ 100 kHz	5A	-	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.039 Dia (26.40mm)	-

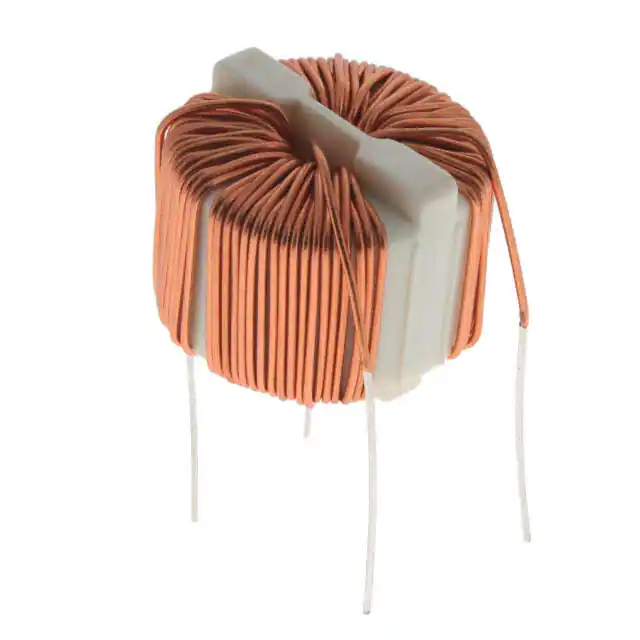

SC-02-E620H CMC 6.2MH 2A 2LN TH KEMET	301	5.17	RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	6.2 mH @ 1 kHz	2A	180mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.063 Dia (27.00mm)	0.787 (20.00mm)

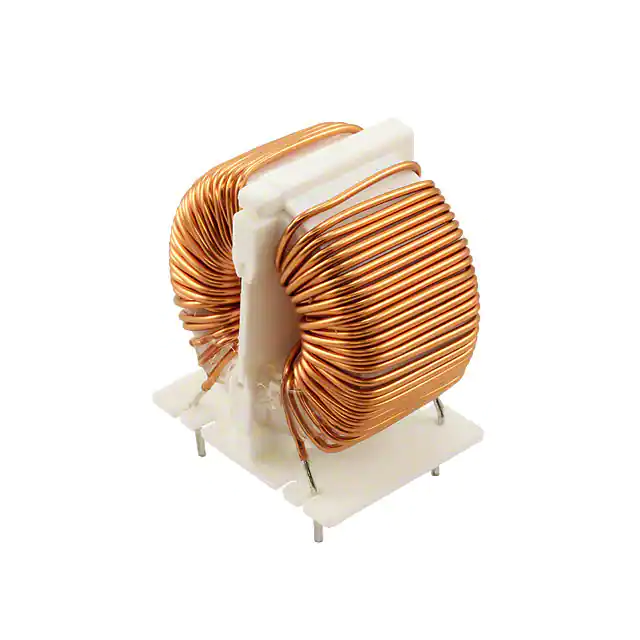

SC-05-30J CMC 3MH 5A 2LN TH KEMET	180	5.30	RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	3 mH @ 100 kHz	5A	70mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.339 L x 0.906 W (34.00mm x 23.00mm)	1.299 (33.00mm)
SC-05-300 CMC 3MH 5A 2LN TH KEMET	161	5.31	RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	3 mH @ 100 kHz	5A	55mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	1.260 Dia (32.00mm)	1.260 (32.00mm)
