Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

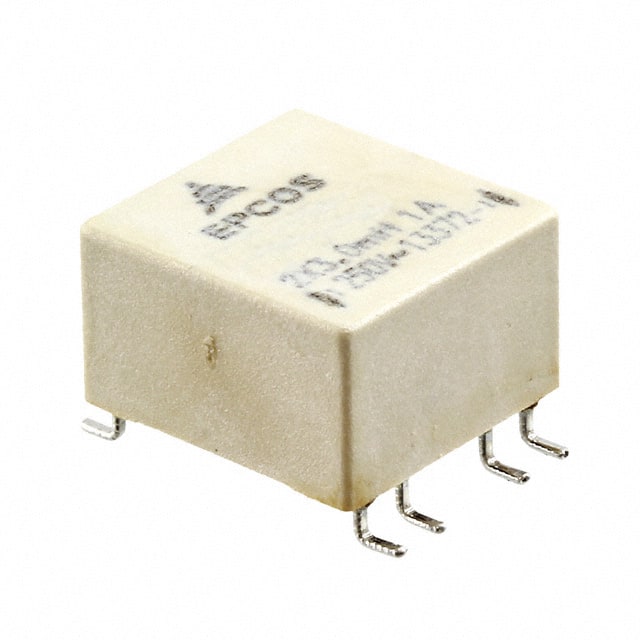

B82720S2102N040 CMC 3MH 1A 2LN SMD EPCOS - TDK Electronics	492	3.49	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82720	Active	Power Line	2	-	3 mH @ 10 kHz	1A	220mOhm (Typ)	-	250V	-40°C ~ 125°C	-	-	-	Surface Mount	0.571 L x 0.524 W (14.50mm x 13.30mm)	0.421 (10.70mm)
B82722S0193A040 SMD RING CORE CHOKE 0.38MH 19A/+ EPCOS - TDK Electronics	186	8.55	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82722S0	Active	Power Line	2	-	380 µH @ 100 kHz	19A	3mOhm	80V	48V	-	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
B82722S0103A020 SMD RING CORE CHOKE 0.63MH 10.4A EPCOS - TDK Electronics	173	8.55	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82722S0	Active	Power Line	2	-	630 µH @ 100 kHz	10.4A	8.8mOhm	80V	48V	-	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
B82721A2701N020 CMC 10MH 700MA 2LN TH EPCOS - TDK Electronics	515	3.30	RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	10 mH @ 10 kHz	700mA	550mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.705 L x 0.681 W (17.90mm x 17.30mm)	0.496 (12.60mm)
B82732F2601B001 CMC 68MH 600MA 2LN TH EPCOS - TDK Electronics	871	3.40	RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	68 mH @ 10 kHz	600mA	1.97Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)
B82720A2301N040 CMC 12MH 300MA 2LN TH EPCOS - TDK Electronics	709	3.49	RFQ	Datasheet	Tray	B82720	Active	Power Line	2	-	12 mH @ 10 kHz	300mA	1.1Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.559 L x 0.559 W (14.20mm x 14.20mm)	0.380 (9.65mm)
B82720A2601N040 CMC 4.4MH 600MA 2LN TH EPCOS - TDK Electronics	640	3.49	RFQ	Datasheet	Tray	B82720	Active	Power Line	2	-	4.4 mH @ 10 kHz	600mA	400mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.559 L x 0.559 W (14.20mm x 14.20mm)	0.380 (9.65mm)
B82726E6333B040 CMC 420UH 33A 2LN TH EPCOS - TDK Electronics	2,502	14.53	RFQ	Datasheet	Tray	B82726	Active	Power Line	2	-	420 µH @ 100 kHz	33A	1.4mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	UR	-	Through Hole	2.205 L x 1.339 W (56.00mm x 34.00mm)	2.047 (52.00mm)
B82730U3102A020 CMC 1.8MH 1A 2LN TH EPCOS - TDK Electronics	204	2.63	RFQ	Datasheet	Tray	B82730	Active	Power Line	2	-	1.8 mH @ 10 kHz	1A	340mOhm (Typ)	-	300V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.650 L x 0.433 W (16.50mm x 11.00mm)	0.650 (16.50mm)
B82730G3601A020 CMC 4.7MH 600MA 2LN TH EPCOS - TDK Electronics	289	2.63	RFQ	Datasheet	Tray	B82730	Active	Power Line	2	-	4.7 mH @ 10 kHz	600mA	920mOhm (Typ)	-	300V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.650 L x 0.591 W (16.50mm x 15.00mm)	0.472 (12.00mm)
B82730U3262A020 CMC 330UH 2.6A 2LN TH EPCOS - TDK Electronics	156	2.63	RFQ	Datasheet	Tray	B82730	Active	Power Line	2	-	330 µH @ 100 kHz	2.6A	60mOhm (Typ)	-	300V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.650 L x 0.433 W (16.50mm x 11.00mm)	0.650 (16.50mm)
B82721K2262N001 CMC 400UH 2.6A 2LN TH EPCOS - TDK Electronics	720	3.30	RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	400 µH @ 100 kHz	2.6A	55mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.520 W (18.20mm x 13.20mm)	0.823 (20.90mm)
B82733F2701B001 CMC 100MH 700MA 2LN TH EPCOS - TDK Electronics	546	3.30	RFQ	Datasheet	Tray	B82733	Active	Power Line	2	-	100 mH @ 10 kHz	700mA	1.81Ohm (Typ)	-	300V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.043 L x 0.976 W (26.50mm x 24.80mm)	0.551 (14.00mm)
B82721A2501N001 CMC 18MH 500MA 2LN TH EPCOS - TDK Electronics	522	3.30	RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	18 mH @ 10 kHz	500mA	1.4Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.705 L x 0.681 W (17.90mm x 17.30mm)	0.496 (12.60mm)
B82731T2132A020 CMC 6.8MH 1.3A 2LN TH EPCOS - TDK Electronics	491	3.32	RFQ	Datasheet	Tray	B82731	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.3A	370mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.846 L x 0.531 W (21.50mm x 13.50mm)	0.831 (21.10mm)
B82732F2162B001 CMC 10MH 1.6A 2LN TH EPCOS - TDK Electronics	366	3.40	RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	10 mH @ 10 kHz	1.6A	290mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)
B82732F2701B001 CMC 47MH 700MA 2LN TH EPCOS - TDK Electronics	502	3.40	RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	47 mH @ 10 kHz	700mA	1.26Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)
B82732F2801B001 CMC 39MH 800MA 2LN TH EPCOS - TDK Electronics	264	3.40	RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	39 mH @ 10 kHz	800mA	1.1Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)

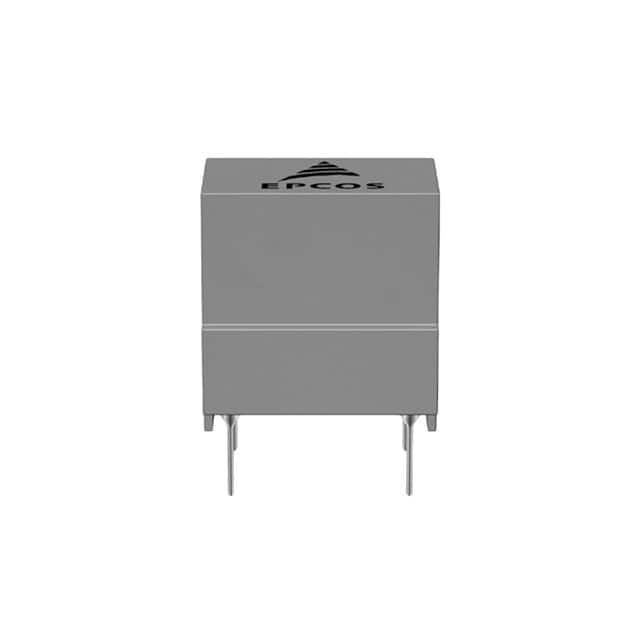

B82720H0015A035 CMC 68MH 200MA 2LN TH EPCOS - TDK Electronics	900	3.49	RFQ	Datasheet	Tray	B82720	Active	Signal Line	2	-	68 mH @ 10 kHz	200mA	3.3Ohm (Typ)	80V	42V	-40°C ~ 125°C	-	-	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.551 (14.00mm)
B82720K2601N040 CMC 4.4MH 600MA 2LN TH EPCOS - TDK Electronics	600	3.49	RFQ	Datasheet	Tray	B82720	Active	Power Line	2	-	4.4 mH @ 10 kHz	600mA	400mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.551 (14.00mm)
