Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
B82734W2172B030 CMC 27MH 1.7A 2LN TH EPCOS - TDK Electronics	527	4.51	RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	27 mH @ 10 kHz	1.7A	320mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 1.220 W (32.50mm x 31.00mm)	0.854 (21.70mm)

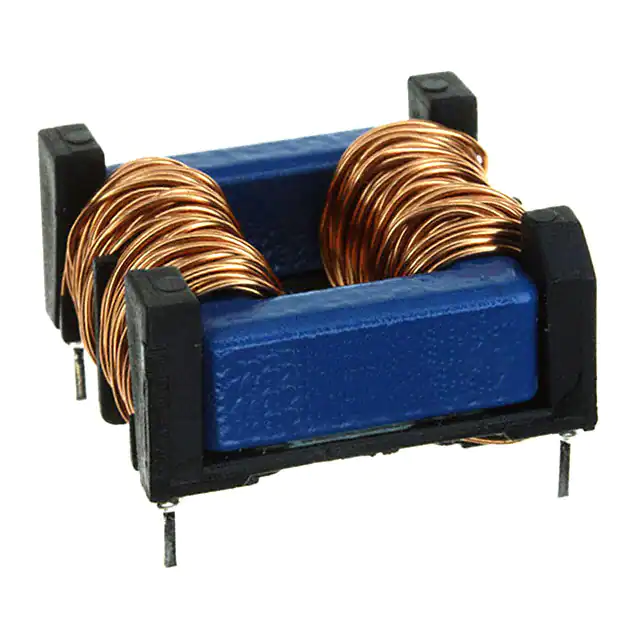

B82733F2232B001 CMC 10MH 2.3A 2LN TH EPCOS - TDK Electronics	559	3.30	RFQ	Datasheet	Tray	B82733	Active	Power Line	2	-	10 mH @ 10 kHz	2.3A	188mOhm (Typ)	-	300V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.043 L x 0.976 W (26.50mm x 24.80mm)	0.551 (14.00mm)

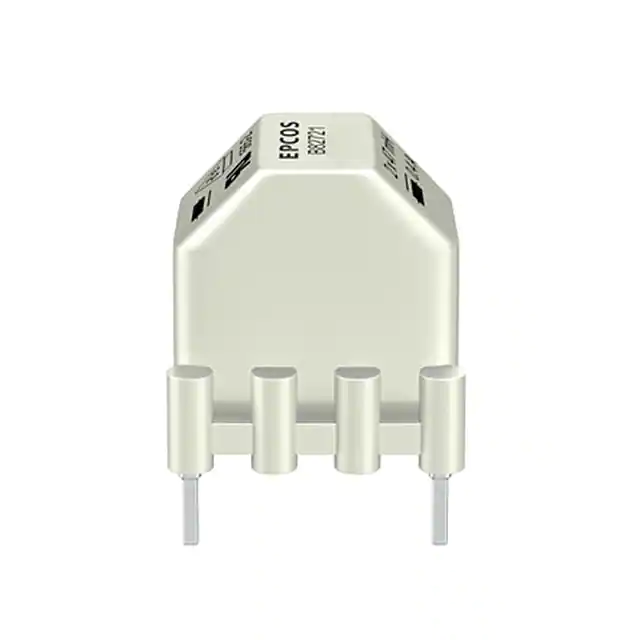

B82721K2122N020 CMC 6.8MH 1.2A 2LN TH EPCOS - TDK Electronics	2,307	3.30	RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.2A	280mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.520 W (18.20mm x 13.20mm)	0.823 (20.90mm)
B82721K2202N001 CMC 1MH 2A 2LN TH EPCOS - TDK Electronics	3,756	3.30	RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	1 mH @ 100 kHz	2A	80mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.520 W (18.20mm x 13.20mm)	0.823 (20.90mm)
B82732F2901B001 CMC 27MH 900MA 2LN TH EPCOS - TDK Electronics	2,612	3.40	RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	27 mH @ 10 kHz	900mA	770mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)

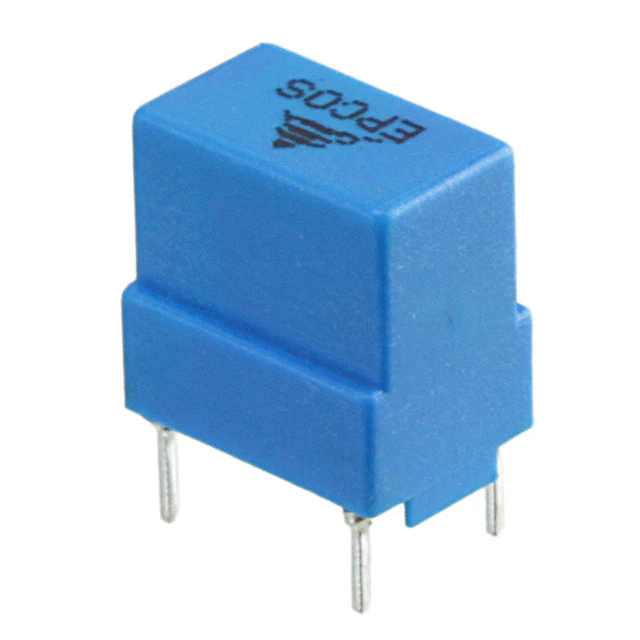

B82720K2102N040 CMC 3MH 1A 2LN TH EPCOS - TDK Electronics	3,821	3.49	RFQ	Datasheet	Tray	B82720	Active	Power Line	2	-	3 mH @ 10 kHz	1A	220mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.551 (14.00mm)
B82720A2102N040 CMC 3MH 1A 2LN TH EPCOS - TDK Electronics	2,111	3.49	RFQ	Datasheet	Tray	B82720	Active	Power Line	2	-	3 mH @ 10 kHz	1A	220mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.559 L x 0.559 W (14.20mm x 14.20mm)	0.380 (9.65mm)

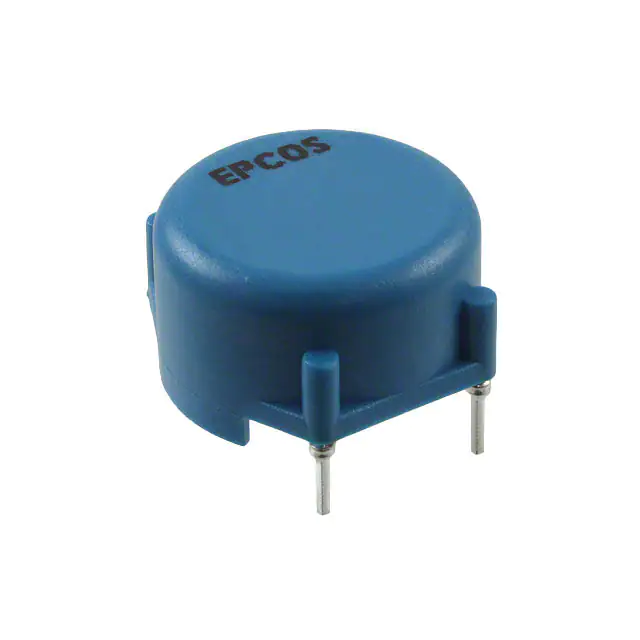

B82722A2102N001 CMC 10MH 1A 2LN TH EPCOS - TDK Electronics	3,091	3.67	RFQ	Datasheet	Tray	B82722	Active	Power Line	2	-	10 mH @ 10 kHz	1A	480mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.894 L x 0.878 W (22.70mm x 22.30mm)	0.524 (13.30mm)
B82722A2202N001 CMC 2.2MH 2A 2LN TH EPCOS - TDK Electronics	3,123	3.67	RFQ	Datasheet	Tray	B82722	Active	Power Line	2	-	2.2 mH @ 10 kHz	2A	130mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.894 L x 0.878 W (22.70mm x 22.30mm)	0.524 (13.30mm)

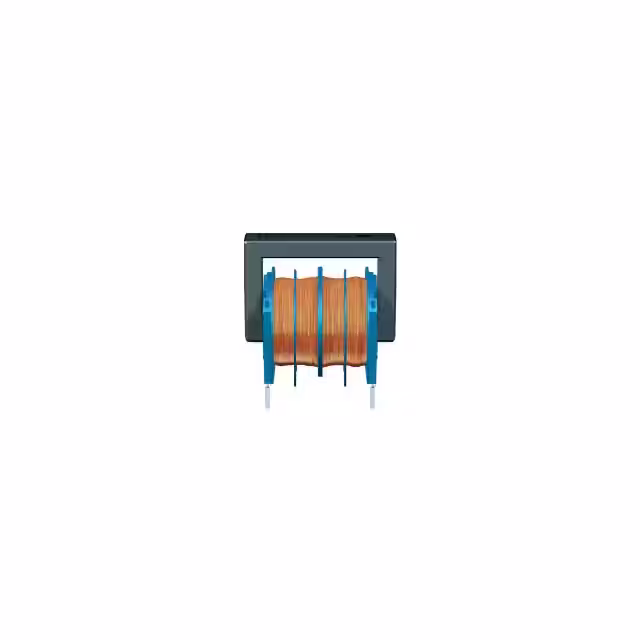

B82731M2801A030 CMC 22MH 800MA 2LN TH EPCOS - TDK Electronics	2,454	3.80	RFQ	Datasheet	Tray	B82731	Active	Power Line	2	-	22 mH @ 10 kHz	800mA	800mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.827 L x 0.591 W (21.00mm x 15.00mm)	0.807 (20.50mm)
B82731H2501A030 CMC 47MH 500MA 2LN TH EPCOS - TDK Electronics	926	3.80	RFQ	Datasheet	Tray	B82731	Active	Power Line	2	-	47 mH @ 10 kHz	500mA	2Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.610 (15.50mm)
B82732R2172B030 CMC 6.8MH 1.7A 2LN TH EPCOS - TDK Electronics	2,339	3.88	RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.7A	190mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.945 L x 0.650 W (24.00mm x 16.50mm)	0.925 (23.50mm)
B82732R2142B030 CMC 10MH 1.4A 2LN TH EPCOS - TDK Electronics	2,672	3.88	RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	10 mH @ 10 kHz	1.4A	300mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.945 L x 0.650 W (24.00mm x 16.50mm)	0.925 (23.50mm)

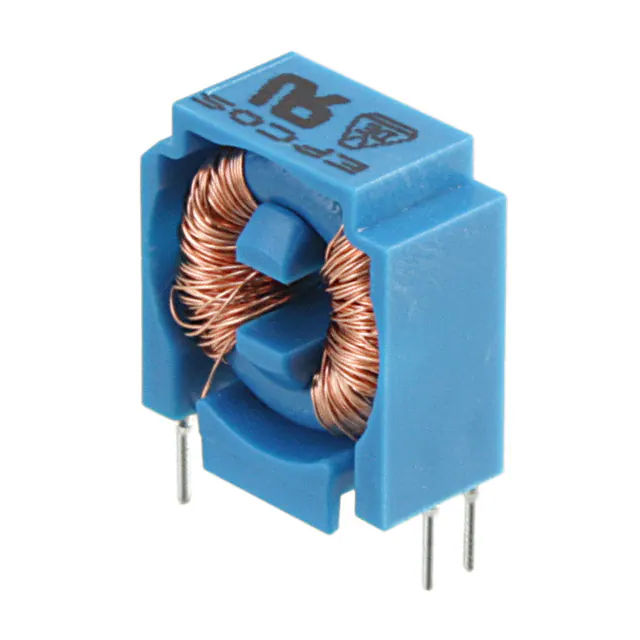

B82791H2251N020 CMC 47MH 250MA 2LN TH EPCOS - TDK Electronics	3,199	4.06	RFQ	Datasheet	Bulk	B82791	Active	Power Line	2	-	47 mH @ 10 kHz	250mA	2.4Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.602 L x 0.291 W (15.30mm x 7.40mm)	0.693 (17.60mm)
B82791H2501N001 CMC 10MH 500MA 2LN TH EPCOS - TDK Electronics	2,438	4.06	RFQ	Datasheet	Bulk	B82791	Active	Power Line	2	-	10 mH @ 10 kHz	500mA	1Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.602 L x 0.291 W (15.30mm x 7.40mm)	0.693 (17.60mm)

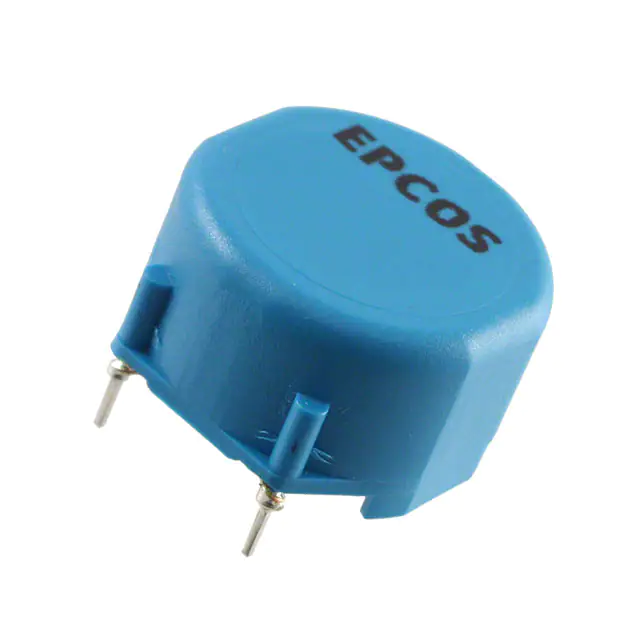

B82723A2402N001 CMC 2.7MH 4A 2LN TH EPCOS - TDK Electronics	2,465	4.34	RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	2.7 mH @ 10 kHz	4A	60mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.102 L x 1.063 W (28.00mm x 27.00mm)	0.661 (16.80mm)

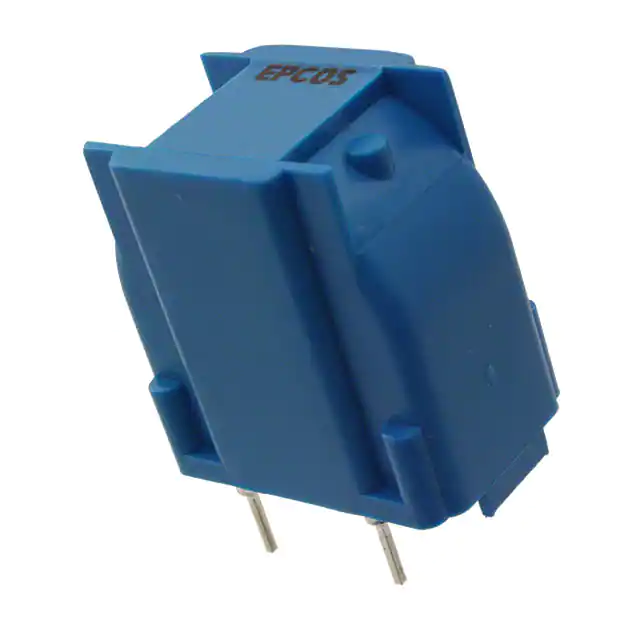

B82723J2402N001 CMC 2.7MH 4A 2LN TH EPCOS - TDK Electronics	534	4.34	RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	2.7 mH @ 10 kHz	4A	60mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.102 L x 0.591 W (28.00mm x 15.00mm)	1.201 (30.50mm)
B82734R2462B030 CMC 3.3MH 4.6A 2LN TH EPCOS - TDK Electronics	3,510	4.51	RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	3.3 mH @ 10 kHz	4.6A	46mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 0.827 W (32.50mm x 21.00mm)	1.220 (31.00mm)
B82734R2132B030 CMC 47MH 1.3A 2LN TH EPCOS - TDK Electronics	537	4.51	RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	47 mH @ 10 kHz	1.3A	560mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 0.827 W (32.50mm x 21.00mm)	1.220 (31.00mm)
B82734R2232B030 CMC 15MH 2.3A 2LN TH EPCOS - TDK Electronics	170	4.51	RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	15 mH @ 10 kHz	2.3A	185mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 0.827 W (32.50mm x 21.00mm)	1.220 (31.00mm)
