Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
CMS3-9-R CMC 400UH 1.7A 2LN SMD Eaton - Electronics Division	2,512	6.19	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	400 µH @ 100 kHz	1.7A	53mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.450 L x 0.450 W (11.43mm x 11.43mm)	0.236 (6.00mm)
ACE1V2012-222-R CMC 150MA 2LN 2.2KOHM SMD Eaton - Electronics Division	2,395	0.67	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V2012	Active	Signal Line	2	2.2 kOhms @ 100 MHz	-	150mA	2Ohm	50V	-	-40°C ~ 105°C	AEC-Q200	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.055 (1.40mm)
ACE1V2012-102-R CMC 190MA 2LN 1KOHM SMD AEC-Q200 Eaton - Electronics Division	3,091	0.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V2012	Active	Signal Line	2	1 kOhms @ 100 MHz	-	190mA	1.5Ohm	50V	-	-40°C ~ 105°C	AEC-Q200	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.055 (1.40mm)
ACE1V3225-201-R CMC 200UH 70MA 2LN SMD AEC-Q200 Eaton - Electronics Division	2,324	0.86	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V3225	Active	Signal Line	2	-	200 µH @ 100 kHz	70mA	4.8Ohm	80V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.098 (2.50mm)
ACE1V3225-220-R CMC 22UH 250MA 2LN SMD AEC-Q200 Eaton - Electronics Division	3,163	0.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V3225	Active	Signal Line	2	1 kOhms @ 10 MHz	22 µH @ 100 kHz	250mA	500mOhm	80V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.098 (2.50mm)
CMS2-5-R CMC 160UH 2.3A 2LN SMD Eaton - Electronics Division	793	4.15	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	160 µH @ 100 kHz	2.3A	29mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
CMS3-10-R CMC 518UH 1.45A 2LN SMD Eaton - Electronics Division	2,032	5.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	518 µH @ 100 kHz	1.45A	76mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.450 L x 0.450 W (11.43mm x 11.43mm)	0.236 (6.00mm)
CMS3-5-R CMC 146UH 3.1A 2LN SMD Eaton - Electronics Division	604	6.30	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	146 µH @ 100 kHz	3.1A	17mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.450 L x 0.450 W (11.43mm x 11.43mm)	0.236 (6.00mm)
ACE1V2012-361-R CMC 280MA 2LN 360OHM SMD AECQ200 Eaton - Electronics Division	3,209	0.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V2012	Active	Signal Line	2	360 Ohms @ 100 MHz	-	280mA	400mOhm	50V	-	-40°C ~ 105°C	AEC-Q200	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.055 (1.40mm)
ACE1V2012-121-R CMC 370MA 2LN 120OHM SMD AECQ200 Eaton - Electronics Division	2,366	0.81	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ACE1V2012	Active	Signal Line	2	120 Ohms @ 100 MHz	-	370mA	300mOhm	50V	-	-40°C ~ 105°C	AEC-Q200	-	-	Surface Mount	0.079 L x 0.047 W (2.00mm x 1.20mm)	0.055 (1.40mm)

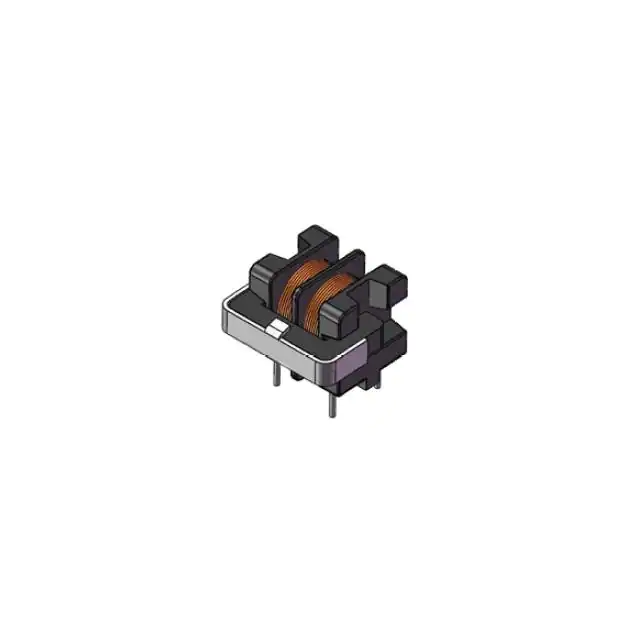

ECMT1V1714H-8R0-R CHOKE COMMON MODE 8.0MH THT Eaton - Electronics Division	2,907	2.14	RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	8 mH @ 1 kHz	800mA	1Ohm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.630 W (17.00mm x 16.00mm)	0.551 (14.00mm)
ECMT1V1714H-2R0-R CHOKE COMMON MODE 2.0MH THT Eaton - Electronics Division	2,815	2.14	RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	2 mH @ 1 kHz	1.4A	300mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.630 W (17.00mm x 16.00mm)	0.551 (14.00mm)
ECMT1V1714H-1R0-R CHOKE COMMON MODE 1.0MH THT Eaton - Electronics Division	3,357	2.16	RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	1 mH @ 1 kHz	1A	100mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.630 W (17.00mm x 16.00mm)	0.551 (14.00mm)
CMS2-12-R CMC 915UH 670MA 2LN SMD Eaton - Electronics Division	800	4.25	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	915 µH @ 100 kHz	670mA	330mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)

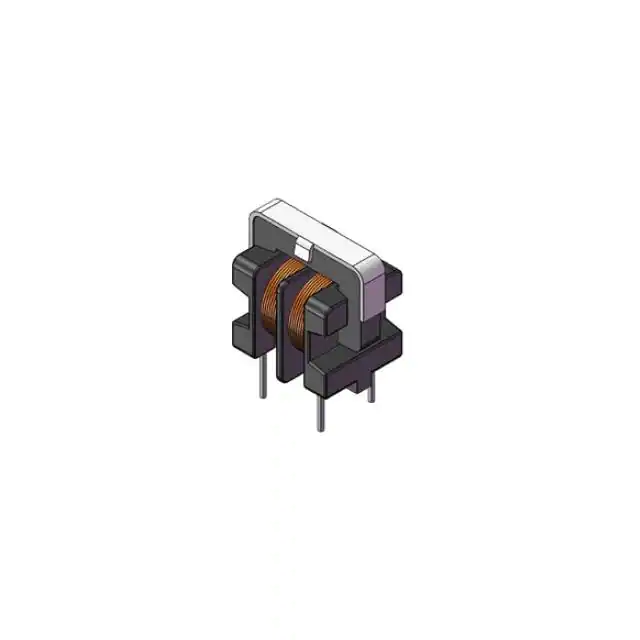

ECMT1V1717S-2R0-R CHOKE COMMON MODE 2.0MH THT Eaton - Electronics Division	2,745	2.21	RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	2 mH @ 1 kHz	1.4A	300mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.472 W (17.00mm x 12.00mm)	0.669 (17.00mm)
ECMT1V1717S-8R0-R CHOKE COMMON MODE 8.0MH THT Eaton - Electronics Division	3,998	2.21	RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	8 mH @ 1 kHz	800mA	1Ohm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.472 W (17.00mm x 12.00mm)	0.669 (17.00mm)
ECMT1V1717S-1R0-R CHOKE COMMON MODE 1.0MH THT Eaton - Electronics Division	2,778	2.69	RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	1 mH @ 1 kHz	1A	100mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.472 W (17.00mm x 12.00mm)	0.669 (17.00mm)
ECMT1V1717S-5R0-R CHOKE COMMON MODE 5.0MH THT Eaton - Electronics Division	2,806	2.75	RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	5 mH @ 1 kHz	1.4A	300mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.472 W (17.00mm x 12.00mm)	0.669 (17.00mm)
ECMT1V1714H-5R0-R CHOKE COMMON MODE 5.0MH THT Eaton - Electronics Division	2,144	2.75	RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	5 mH @ 1 kHz	1.4A	300mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.630 W (17.00mm x 16.00mm)	0.551 (14.00mm)
ECMT1V1714H-100-R CHOKE COMMON MODE 10.0MH THT Eaton - Electronics Division	2,304	2.75	RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	10 mH @ 1 kHz	1.2A	600mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.630 W (17.00mm x 16.00mm)	0.551 (14.00mm)
