| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLC7226CNIC DAC 8BIT V-OUT 20DIP |
3,462 | 8.27 |
RFQ |
Datasheet |
20-DIP (0.300, 7.62mm) | Tube | - | Active | 8 | 4 | 20µs | Voltage - Buffered | No | Parallel | External | 11.4V ~ 16.5V, -5.5V | - | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
TLC7226IDWIC DAC 8BIT V-OUT 20SOIC |
1,516 | 9.15 |
RFQ |
Datasheet |
20-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 8 | 4 | 20µs | Voltage - Buffered | No | Parallel | External | 11.4V ~ 16.5V, -5.5V | - | ±1 (Max), ±1 (Max) | R-2R | -30°C ~ 85°C |
|
|
THS5641AIPWIC DAC 8BIT A-OUT 28TSSOP |
211 | 10.13 |
RFQ |
Datasheet |
28-TSSOP (0.173, 4.40mm Width) | Tube | CommsDAC™ | Active | 8 | 1 | 35ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 5.5V | 3V ~ 5.5V | ±0.1, ±0.05 | Current Source | -40°C ~ 85°C |
|
TLV5616IDGKIC DAC 12BIT V-OUT 8VSSOP |
799 | 11.11 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tube | - | Active | 12 | 1 | 20µs | Voltage - Buffered | No | SPI | External | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | ±1.9, ±0.5 | String DAC | -40°C ~ 85°C |
|
TLV5604CPWIC DAC 10BIT V-OUT 16TSSOP |
677 | 12.17 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | 10 | 4 | 18µs | Voltage - Buffered | No | SPI | External | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | ±1 (Max), ±0.1 | String DAC | 0°C ~ 70°C |
|
TLV5636CDIC DAC 12BIT V-OUT 8SOIC |
690 | 12.77 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tube | - | Active | 12 | 1 | 7µs | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | ±2, ±0.5 | String DAC | 0°C ~ 70°C |
|
|
TLV5604IPWIC DAC 10BIT V-OUT 16TSSOP |
2,679 | 12.84 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | 10 | 4 | 18µs | Voltage - Buffered | No | SPI | External | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | ±1 (Max), ±0.1 | String DAC | -40°C ~ 85°C |
|
TLV5608IPWIC DAC 10BIT V-OUT 20TSSOP |
225 | 16.13 |
RFQ |
Datasheet |
20-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | 10 | 8 | 7µs | Voltage - Buffered | No | SPI | External | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | ±0.5, ±0.1 | String DAC | -40°C ~ 85°C |
|
DAC70508ZRTETIC DAC 14BIT V-OUT 16WQFN |
263 | 21.36 |
RFQ |
Datasheet |
16-WFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | 14 | 8 | 5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 1.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 125°C (TA) |
|
|
THS5661AIPWIC DAC 12BIT A-OUT 28TSSOP |
124 | 21.01 |
RFQ |
Datasheet |
28-TSSOP (0.173, 4.40mm Width) | Tube | CommsDAC™ | Active | 12 | 1 | 35ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 5.5V | 3V ~ 5.5V | ±0.75, ±0.5 | Current Source | -40°C ~ 85°C |
|
|
DAC7718SPAGIC DAC 12BIT V-OUT 64TQFP |
158 | 21.27 |
RFQ |
Datasheet |
64-TQFP | Tray | - | Active | 12 | 8 | 15µs | Voltage - Buffered | No | SPI | External | ±4.5V ~ 18V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C |
|
DAC7642VFTIC DAC 16BIT V-OUT 32LQFP |
438 | 30.16 |
RFQ |
Datasheet |
32-LQFP | Tape & Reel (TR),Cut Tape (CT) | - | Active | 16 | 2 | 10µs | Voltage - Buffered | No | Parallel | External | ±5V | 5V | ±3, ±2 | R-2R | -40°C ~ 85°C |
|
DAC5672IPFBIC DAC 14BIT A-OUT 48TQFP |
3,317 | 30.63 |
RFQ |
Datasheet |
48-TQFP | Tray | - | Active | 14 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 3.6V | 3V ~ 3.6V | ±1.1, ±0.75 | Current Source | -40°C ~ 85°C |
|
DAC7802KUIC DAC 12BIT A-OUT 24SOIC |
181 | 34.83 |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 12 | 2 | 800ns | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±1 (Max), ±1 (Max) | Multiplying DAC | -40°C ~ 85°C |
|
DAC7634EBIC DAC 16BIT V-OUT 48SSOP |
171 | 53.84 |
RFQ |
Datasheet |
48-BSSOP (0.295, 7.50mm Width) | Tube | - | Active | 16 | 4 | 10µs | Voltage - Buffered | No | SPI | External | ±5V | 5V | ±2, ±1 | R-2R | -40°C ~ 85°C |
|
DAC5688IRGCTIC DAC 16BIT A-OUT 64VQFN |
672 | 64.36 |
RFQ |
Datasheet |
64-VFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | 16 | 2 | 10.4ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 3.6V | 1.7V ~ 1.9V | ±4, ±2 | Current Sink | -40°C ~ 85°C |
.jpg)
|
DAC5687IPZPIC DAC 16BIT A-OUT 100HTQFP |
287 | 61.74 |
RFQ |
Datasheet |
100-TQFP Exposed Pad | Tray | - | Active | 16 | 2 | 10.4ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 3.6V | 1.71V ~ 2.15V | ±4, ±4 | Current Sink | -40°C ~ 85°C |
|

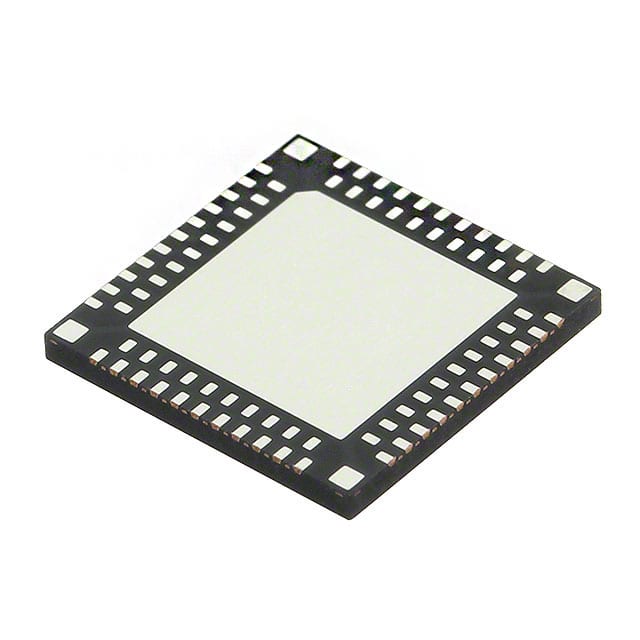

DAC3484IRKDTIC DAC 16BIT A-OUT 88WQFN |
467 | 96.49 |
RFQ |
Datasheet |
88-WQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | 16 | 4 | 10ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.14V ~ 3.46V | 1.14V ~ 1.32V | ±4, ±2 | Current Source | -40°C ~ 85°C |
|
DAC38RF80IAAVIC DAC 2 SE 144FCBGA |
2,391 | 249.38 |
RFQ |
Datasheet |
144-FBGA, FCBGA | Tray | - | Active | 14 | 2 | 1ns (Typ) | Voltage - Buffered | No | JESD204B | External, Internal | 1.71V ~ 1.89V | 0.95V ~ 1.05V | ±4, ±3 | Current Source | -40°C ~ 85°C |
|
|
TLV5623CDGKIC DAC 8BIT V-OUT 8VSSOP |
130 | 3.89 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tube | - | Active | 8 | 1 | 20µs | Voltage - Buffered | No | SPI | External | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | ±0.3, ±0.07 | String DAC | 0°C ~ 70°C |
